    SWG


    SWG
    Description

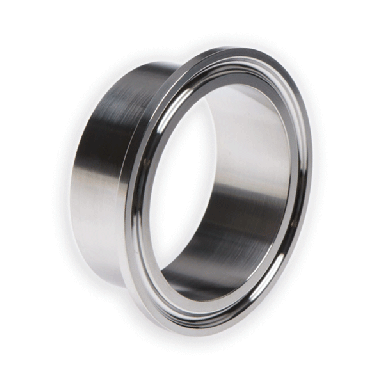

    SWG Ferrules; material 1.4404, sizes 1" to 4". Flatness of sealing face meets or exceeds guidelines.

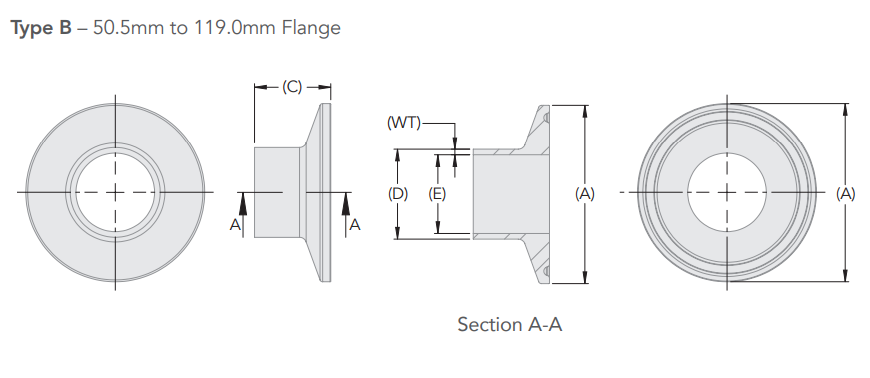

    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: SWG / BS
    • Durability: 0.8Ra um Int
    Materials
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    • 316L / 1,4404 3,1 Certified – Solid Bar
    Ferrules / SWG
    Tri-Clamps Tri-Clamps Safety Tri-Clamps Safety Tri-Clamps Ferrules Ferrules Tri-Clamp Gaskets Tri-Clamp Gaskets
    SWG SWG
    BS 4825 Part 3 BS 4825 Part 3 BS Schedule 5 BS Schedule 5 BS Schedule 10 BS Schedule 10 BS Schedule 40 BS Schedule 40 ASME BPE Compliant ASME BPE Compliant DIN 32676 Table A Short DIN 32676 Table A Short DIN 32676 Table A Long DIN 32676 Table A Long DIN 32676 Table B Short DIN 32676 Table B Short DIN 32676 Table B Long DIN 32676 Table B Long DIN 32676 Table C Short DIN 32676 Table C Short DIN 32676 Table C Long DIN 32676 Table C Long ISO 1127 Standard ISO 1127 Standard ISO 1127 Variation ISO 1127 Variation Mini Series Ultra-Bore Metric & Imperial Mini Series Ultra-Bore Metric & Imperial SMS 3008/3017 SMS 3008/3017 MPW Tank MPW Tank
    Total: 12
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade EN Standard Size (in) Size (DN) Size (mm) Flange A (mm) Flange A (in) OD (mm) OD (in) ID (mm) ID (in) Wall Thickness (mm) Wall Thickness (in) Length (mm) Length (in) Surface Finish Manufactured Weight
    FPS1050025021S56L
    		Ferrule (1") | SWG | Length 21,5mm | 316L (SF6) SWG 316L 1.4404 1" 25.4 50.5 1.99" 25.4 1" 22.1 0.87" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (1") | SWG | Length 21,5mm | 316L (SF6) Legacy Part Number UK:  FR.SW.0100 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   25.4
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   25.4
    • Tube OD (D) in:   1"
    • Tube ID (E) mm:   22.1
    • Tube ID (E) in:   0.87"
    • ID mm:   22.1
    FPS1050038021S56L
    		Ferrule (1,5") | SWG | Length 21,5mm | 316L (SF6) SWG 316L 1.4404 1 1/2" 38.1 50.5 1.99" 38.1 1.5" 34.8 1.37" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.056200
    dimensional image
    View Page → Ferrule (1,5") | SWG | Length 21,5mm | 316L (SF6) Legacy Part Number UK:  FR.SW.0150.EP - 11/2" SWG FERRULE 316L - Legacy Part Number DK:  FRSW0150EP Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   38.1
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   38.1
    • Tube OD (D) in:   1.5"
    • Tube ID (E) mm:   34.8
    • Tube ID (E) in:   1.37"
    • ID mm:   34.8
    FPS1064051021SD6L
    		Ferrule (2") | SWG | Length 21,5mm | 316L (SF6) SWG 316L 1.4404 2" 51 64 2.52" 50.8 2" 47.5 1.87" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.076000
    dimensional image
    View Page → Ferrule (2") | SWG | Length 21,5mm | 316L (SF6) Legacy Part Number UK:  FR.SW.0200 - 2" SWG FERRULE 316L - 21.5mm Legacy Part Number DK:  FRSW0200 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • OD 1 (D) mm:   50.8
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   50.8
    • Tube OD (D) in:   2"
    • Tube ID (E) mm:   47.5
    • Tube ID (E) in:   1.87"
    • ID mm:   47.5
    FPS1077063021SD6L
    		Ferrule (2,5") | SWG | Length 21,5mm | 316L (0.8 Ra) SWG 316L 1.4404 2 1/2" 63.5 77.5 3.05" 63.5 2.5" 60.2 2.37" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (2,5") | SWG | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SW.0250 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • OD 1 (D) mm:   63.5
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   63.5
    • Tube OD (D) in:   2.5"
    • Tube ID (E) mm:   60.2
    • Tube ID (E) in:   2.37"
    • ID mm:   60.2
    FPS1091076021SD6L
    		Ferrule (3") | SWG | Length 21,5mm | 316L (0.8 Ra) SWG 316L 1.4404 3" 76.1 91 3.58" 76.2 3" 72.9 2.87" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.100000
    dimensional image
    View Page → Ferrule (3") | SWG | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SW.0300 - 3" SWG FERRULE 316L - 21.5mm Legacy Part Number DK:  FRSW0300 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • OD 1 (D) mm:   76.2
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   76.2
    • Tube OD (D) in:   3"
    • Tube ID (E) mm:   72.9
    • Tube ID (E) in:   2.87"
    • ID mm:   72.9
    FPS1119101021SD6L
    		Ferrule (4") | SWG | Length 21,5mm | 316L (0.8 Ra) SWG 316L 1.4404 4" 101.6 119 4.69" 101.6 4" 97.4 3.83" 2.1 0.08" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 1.000000
    dimensional image
    View Page → Ferrule (4") | SWG | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  4" SWG FERRULE 21.5L 316L 0.8Ra Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • OD 1 (D) mm:   101.6
    • Wall (WT) mm:   2.1
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.08"
    • Tube OD (D) mm:   101.6
    • Tube OD (D) in:   4"
    • Tube ID (E) mm:   97.4
    • Tube ID (E) in:   3.83"
    • ID mm:   97.4
    FDS1050025021S56L
    		Ferrule (1") | SWG | Length 21,5mm | 316L (SF6) SWG 316L 1.4404 1" 25.4 50.5 1.99" 25.4 1" 22.1 0.87" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (1") | SWG | Length 21,5mm | 316L (SF6) Legacy Part Number UK:  FR.SW.0100 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   25.4
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   25.4
    • Tube OD (D) in:   1"
    • Tube ID (E) mm:   22.1
    • Tube ID (E) in:   0.87"
    • ID mm:   22.1
    FDS1050038021S56L
    		Ferrule (1,5") | SWG | Length 21,5mm | 316L (SF6) SWG 316L 1.4404 1 1/2" 38.1 50.5 1.99" 38.1 1.5" 34.8 1.37" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (1,5") | SWG | Length 21,5mm | 316L (SF6) Legacy Part Number UK:  FR.SW.0150 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   38.1
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   38.1
    • Tube OD (D) in:   1.5"
    • Tube ID (E) mm:   34.8
    • Tube ID (E) in:   1.37"
    • ID mm:   34.8
    FDS1064051021SD6L
    		Ferrule (2") | SWG | Length 21,5mm | 316L (SF6) SWG 316L 1.4404 2" 51 64 2.52" 50.8 2" 47.5 1.87" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (2") | SWG | Length 21,5mm | 316L (SF6) Legacy Part Number UK:  FR.SW.0200 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • OD 1 (D) mm:   50.8
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   50.8
    • Tube OD (D) in:   2"
    • Tube ID (E) mm:   47.5
    • Tube ID (E) in:   1.87"
    • ID mm:   47.5
    FDS1077063021SD6L
    		Ferrule (2,5") | SWG | Length 21,5mm | 316L (0.8 Ra) SWG 316L 1.4404 2 1/2" 63.5 77.5 3.05" 63.5 2.5" 60.2 2.37" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (2,5") | SWG | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SW.0250 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • OD 1 (D) mm:   63.5
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   63.5
    • Tube OD (D) in:   2.5"
    • Tube ID (E) mm:   60.2
    • Tube ID (E) in:   2.37"
    • ID mm:   60.2
    FDS1091076021SD6L
    		Ferrule (3") | SWG | Length 21,5mm | 316L (0.8 Ra) SWG 316L 1.4404 3" 76.1 91 3.58" 76.2 3" 72.9 2.87" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (3") | SWG | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SW.0300 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • OD 1 (D) mm:   76.2
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   76.2
    • Tube OD (D) in:   3"
    • Tube ID (E) mm:   72.9
    • Tube ID (E) in:   2.87"
    • ID mm:   72.9
    FDS1119101021SD6L
    		Ferrule (4") | SWG | Length 21,5mm | 316L (0.8 Ra) SWG 316L 1.4404 4" 101.6 119 4.69" 101.6 4" 97.4 3.83" 2.1 0.08" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (4") | SWG | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SW.0400 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • OD 1 (D) mm:   101.6
    • Wall (WT) mm:   2.1
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.08"
    • Tube OD (D) mm:   101.6
    • Tube OD (D) in:   4"
    • Tube ID (E) mm:   97.4
    • Tube ID (E) in:   3.83"
    • ID mm:   97.4
