    BS Schedule 10


    BS Schedule 10
    Description

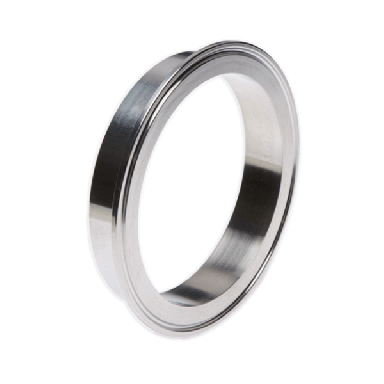

    BS Schedule 10 Ferrules. Flatness of sealing face meets or exceeds guidelines. Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​.

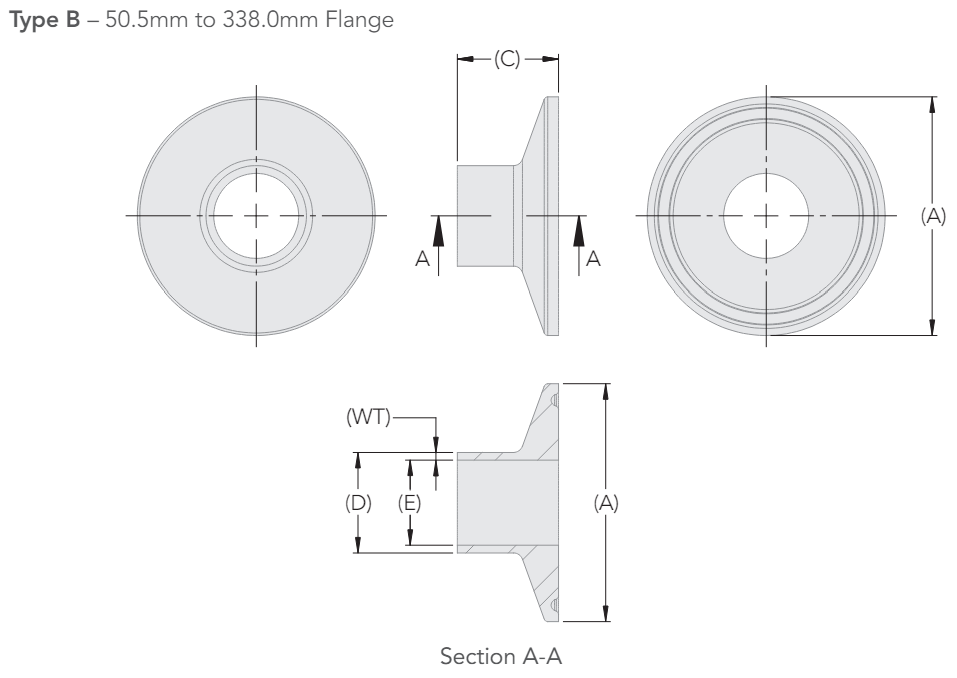

    Dimensional Image
    Features
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: BS4825-3
    • Durability: 0.8Ra um Int
    Materials
    • 316L / 1.4404 3.1 Certified – Solid Bar
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum
    Total: 30
    Industry
    PART#    		 Product
    Name    		 Standard Type Size Imperial Size Metric Size ISO Flange Nut Type Material Pressure Rating ID OD Length Closing mechanism
    Add
    To Cart     LIST
    PRICE
    Hygienic
    FDB2050021021SD6L
    		Ferrule (0,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 1/2" 50.5(mm)/1.99"(in) 316L 17.12(mm)/0.67"(in) 21.34(mm)/0.84"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (0,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS10.0050
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • Wall (WT) mm:  2.11
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  21.34
    • • Tube OD (D) in:  0.84"
    • • Tube ID (E) mm:  17.12
    • • Tube ID (E) in:  0.67"
    • • ID mm:  17.12
    Hygienic
    FDB2050026021SD6L
    		Ferrule (0,75") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 3/4" 50.5(mm)/1.99"(in) 316L 22.45(mm)/0.88"(in) 26.67(mm)/1.05"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (0,75") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS10.0075
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • Wall (WT) mm:  2.11
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  26.67
    • • Tube OD (D) in:  1.05"
    • • Tube ID (E) mm:  22.45
    • • Tube ID (E) in:  0.88"
    • • ID mm:  22.45
    Hygienic
    FDB2050033021SD6L
    		Ferrule (1") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 1" 50.5(mm)/1.99"(in) 316L 27.86(mm)/1.1"(in) 33.4(mm)/1.31"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (1") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS10.0100
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • Wall (WT) mm:  2.77
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.11"
    • • Tube OD (D) mm:  33.4
    • • Tube OD (D) in:  1.31"
    • • Tube ID (E) mm:  27.86
    • • Tube ID (E) in:  1.1"
    • • ID mm:  27.86
    Hygienic
    FDB2064042021SD6L
    		Ferrule (1,25") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 1 1/4" 64(mm)/2.52"(in) 316L 36.62(mm)/1.44"(in) 42.16(mm)/1.66"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (1,25") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS10.0125
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • Wall (WT) mm:  2.77
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.11"
    • • Tube OD (D) mm:  42.16
    • • Tube OD (D) in:  1.66"
    • • Tube ID (E) mm:  36.62
    • • Tube ID (E) in:  1.44"
    • • ID mm:  36.62
    Hygienic
    FDB2064048021SD6L
    		Ferrule (1,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 1 1/2" 64(mm)/2.52"(in) 316L 42.72(mm)/1.68"(in) 48.26(mm)/1.9"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (1,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS10.0150
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • Wall (WT) mm:  2.77
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.11"
    • • Tube OD (D) mm:  48.26
    • • Tube OD (D) in:  1.9"
    • • Tube ID (E) mm:  42.72
    • • Tube ID (E) in:  1.68"
    • • ID mm:  42.72
    Hygienic
    FDB2077060021SD6L
    		Ferrule (2") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 2" 77.5(mm)/3.05"(in) 316L 54.79(mm)/2.16"(in) 60.32(mm)/2.37"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (2") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS10.0200
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  77.5
    • • Flange (A) in:  3.05"
    • • Wall (WT) mm:  2.77
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.11"
    • • Tube OD (D) mm:  60.32
    • • Tube OD (D) in:  2.37"
    • • Tube ID (E) mm:  54.79
    • • Tube ID (E) in:  2.16"
    • • ID mm:  54.79
    Hygienic
    FDB2091073021SD6L
    		Ferrule (2,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 2 1/2" 91(mm)/3.58"(in) 316L 66.93(mm)/2.64"(in) 73.03(mm)/2.88"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (2,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS10.0250
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • Wall (WT) mm:  3.05
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.12"
    • • Tube OD (D) mm:  73.03
    • • Tube OD (D) in:  2.88"
    • • Tube ID (E) mm:  66.93
    • • Tube ID (E) in:  2.64"
    • • ID mm:  66.93
    Hygienic
    FDB2106089021SD6L
    		Ferrule (3") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 106(mm) 316L 82.8(mm)/3.26"(in) 88.9(mm)/3.5"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (3") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS10.0300
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  106
    • • Flange (A) in:  4.17"
    • • Wall (WT) mm:  3.05
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.12"
    • • Tube OD (D) mm:  88.9
    • • Tube OD (D) in:  3.5"
    • • Tube ID (E) mm:  82.8
    • • Tube ID (E) in:  3.26"
    Hygienic
    FDB2119101021SD6L
    		Ferrule (3,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 3 1/2" 119(mm)/4.69"(in) 316L 95.5(mm)/3.76"(in) 101.6(mm)/4"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (3,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS10.0350
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69"
    • • Wall (WT) mm:  3.05
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.12"
    • • Tube OD (D) mm:  101.6
    • • Tube OD (D) in:  4"
    • • Tube ID (E) mm:  95.5
    • • Tube ID (E) in:  3.76"
    • • ID mm:  95.5
    Hygienic
    FDB2130114028SD6L
    		Ferrule (4") | BS Schedule 10 | Length 28mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 4" 130(mm)/5.12"(in) 316L 108.2(mm)/4.26"(in) 114.3(mm)/4.5"(in) 28(mm)/1.1"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (4") | BS Schedule 10 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS10.0400
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  130
    • • Flange (A) in:  5.12"
    • • Wall (WT) mm:  3.05
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.12"
    • • Tube OD (D) mm:  114.3
    • • Tube OD (D) in:  4.5"
    • • Tube ID (E) mm:  108.2
    • • Tube ID (E) in:  4.26"
    • • ID mm:  108.2
    Hygienic
    FDB2155141028SD6L
    		Ferrule (5") | BS Schedule 10 | Length 28mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 5" 155(mm)/6.1"(in) 316L 134.5(mm)/5.3"(in) 141.3(mm)/5.56"(in) 28(mm)/1.1"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (5") | BS Schedule 10 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS10.0500
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  155
    • • Flange (A) in:  6.1"
    • • Wall (WT) mm:  3.4
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.13"
    • • Tube OD (D) mm:  141.3
    • • Tube OD (D) in:  5.56"
    • • Tube ID (E) mm:  134.5
    • • Tube ID (E) in:  5.3"
    • • ID mm:  134.5
    Hygienic
    FDB2183168028SD6L
    		Ferrule (6") | BS Schedule 10 | Length 28mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 6" 183(mm)/7.2"(in) 316L 161.47(mm)/6.36"(in) 168.28(mm)/6.63"(in) 28(mm)/1.1"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (6") | BS Schedule 10 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS10.0600
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  183
    • • Flange (A) in:  7.2"
    • • Wall (WT) mm:  3.41
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.13"
    • • Tube OD (D) mm:  168.28
    • • Tube OD (D) in:  6.63"
    • • Tube ID (E) mm:  161.47
    • • Tube ID (E) in:  6.36"
    • • ID mm:  161.47
