Tri-Clamps

Description

ACL clamps are designed and manufactured for use in the Data Center, Hygienic and Pharmaceutical industries where standard tube/pipe couplings (tri-clamps) are required. Clamp segments & wingnuts are produced by investment casting to ASME SA 351 / A 351 M. Eyebolts & rivets are produced from ASME SA 580 / A 580 M Stainless wire. The threads are rolled to reduce galling. The assembled components are then barrel polished to produce the high quality finish demanded throughout the industry. Quality and precision in manufacture combined with the unique design of our groove profile, produce a clamp with the best joint efficiency for this type of connection.

Our S type & SH clamps are available with coloured wing nuts for easy line identification on a system. For further details click here

Specifications

Majority of clamp MAWP are calculated to ASME VIII APP 24.
Reduction of CO2. The Euro-Pure clamp is designed to reduce the amount of CO2 used in all aspects of the product life-cycle.
Tested by TUV, Forbairt, FORCE. Currently testing is underway for A2000-A5 (PED) on some of clamp ranges (TUV approved testing).

Features

Acl clamps are widely regarded as the premier clamp in the industry.
Designed and optimized for ease of installation and maintainance.
Proven design for 30+ years.
Polished to a high quality finish.
Clamps are tested periodically to ensure safety and consistency.
Minimum of 0.8Ra um surface finish (external).
Fastener options designed to resist galling.
Clamps are sized between batches to ensure consistency of fit on the union.
Packaged loose, in cardboard boxes. No plastic.

Clamps & Sealing / Tri-Clamps

Sight Flow Indicators

Tri-Clamps

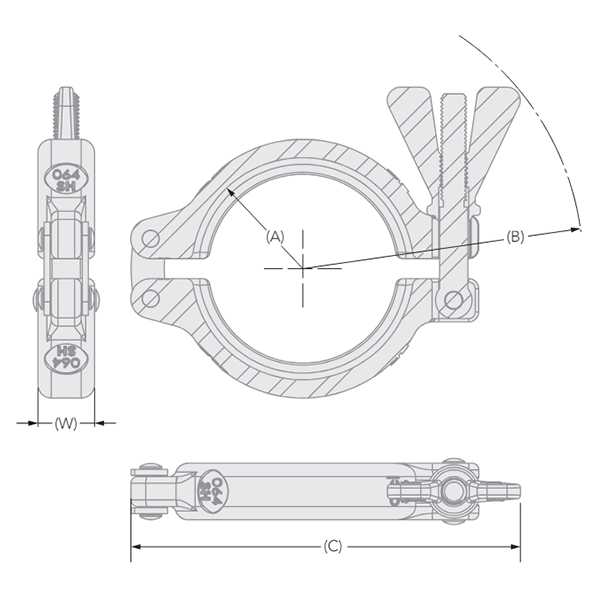

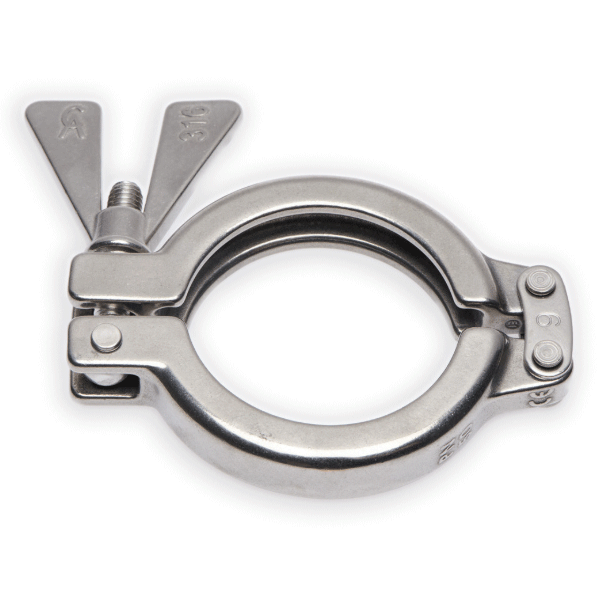

Type SH (Single-Bolt | Double-Hinge) 316

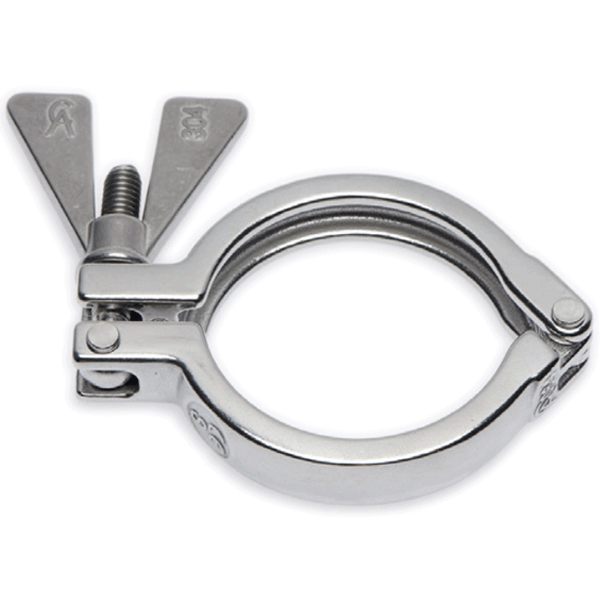

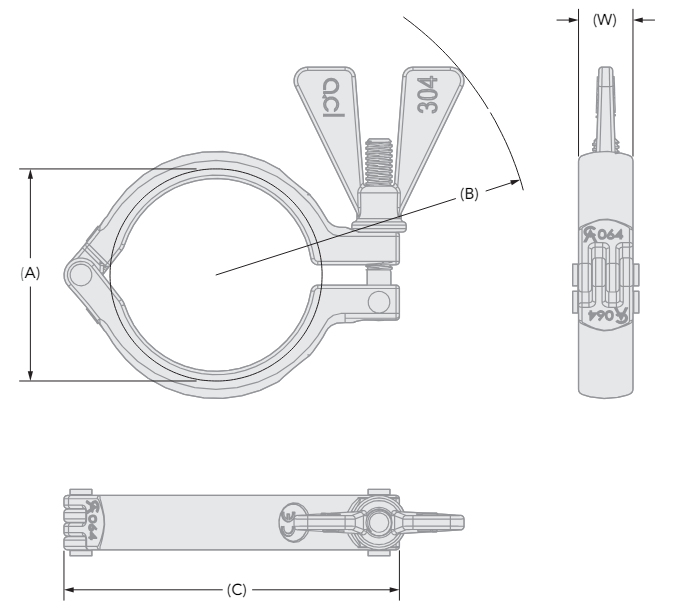

Type SL 304

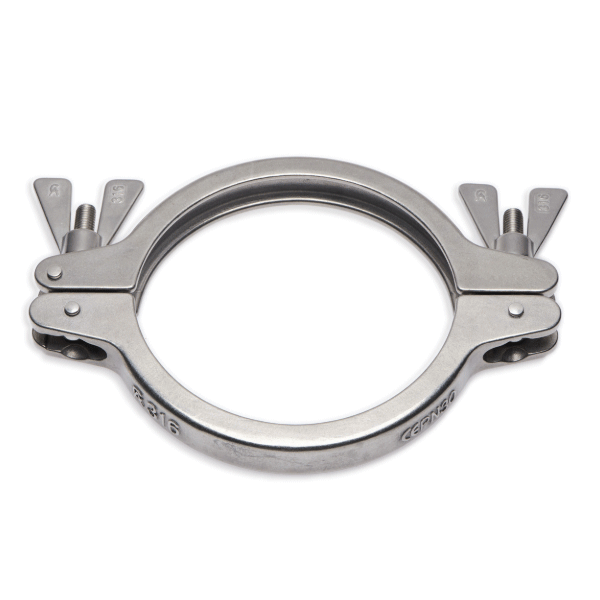

Type SH (Double Bolt) 316

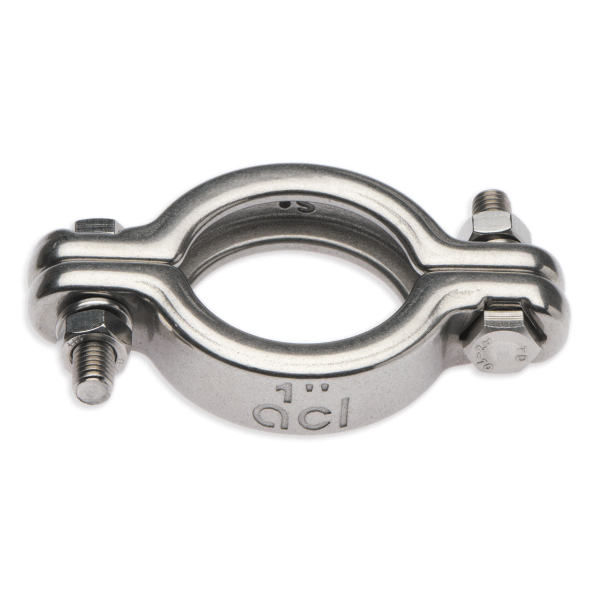

Euro-Pure® 316

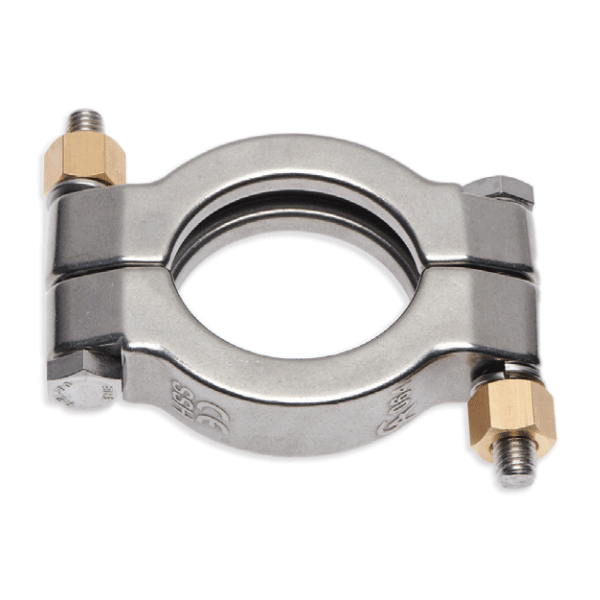

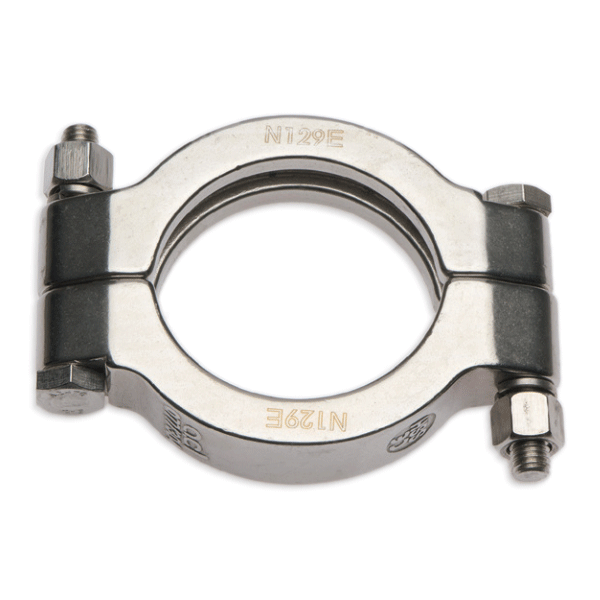

Type SSH (Brass Nuts) 304

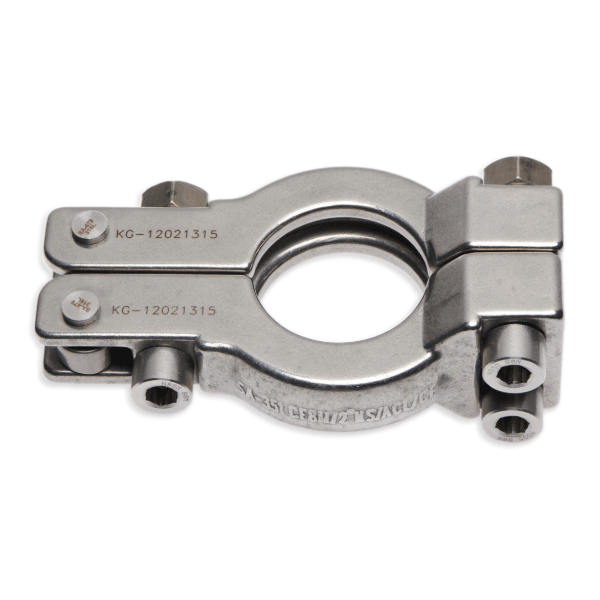

Type ASME VIII 316

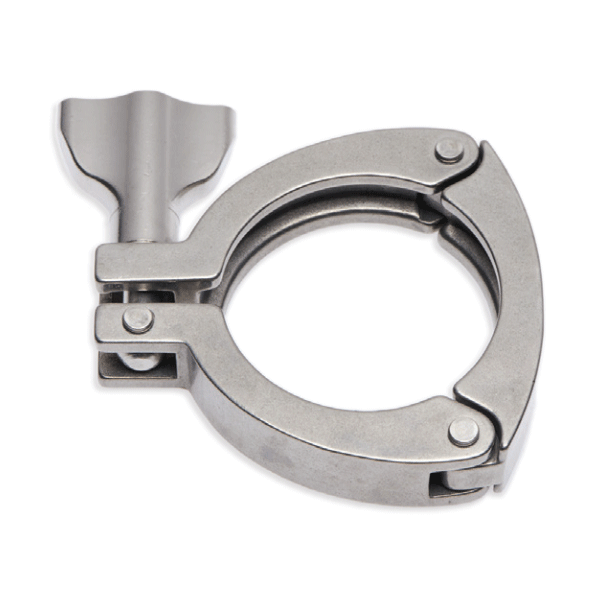

3 Segment 304

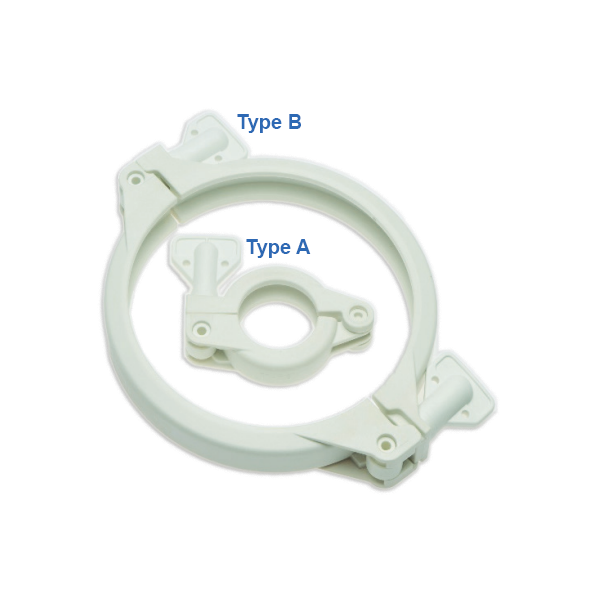

13MHHM Nylon

Industry PART#	Product Name	Type	Material Grade	EN Standard	ASTM Standard	Size (in)	Size (DIN)	Size (ISO)	Closing Mechanism	Nut Type	Safety	Pressure Rating (bar)	Pressure Rating (psi)	Flange A (mm)	Flange A (in)	Width (mm)	Width (in)	Weight
Pharmaceutical SHWN0002506	Tri-Clamp (1/4" - 3/4") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	1/4" - 3/4"	DN 6-8	DN 8-10	2-Pin	Wingnut	No	50	725.19	25.4	1"	17	0.67"	0.150000
View Page → Tri-Clamp (1/4" - 3/4") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.0050 Legacy Part Number UK: CL.SH.0050 - 1/2" - 3/4" SH CLAMP 316 Legacy Part Number DK: CLSH0050 Dimensional Image Key: Flange (A) mm: 25.4 Flange (A) in: 1" B in: 2.56" B mm: 65 C mm: 75 C in: 2.95" W mm: 17 W in: 0.67"
Hygienic SLWN0002504	Tri-Clamp (1/4" - 3/4") \| Type SL \| Stainless Steel 304 \| Wingnut	SL	304	1.4308	J92600	1/4" - 3/4"	DN 6-8	DN 8-10	1-Pin	Wingnut	No	25	362.6	25.4	1"	17	0.67"	0.122000
View Page → Tri-Clamp (1/4" - 3/4") \| Type SL \| Stainless Steel 304 \| Wingnut Legacy Part Number IE: CL.S.0050 Legacy Part Number UK: CL.S.0050 - 1/2" - 3/4" S TYPE CLAMP 304 Legacy Part Number DK: CLS0050 Dimensional Image Key: Flange (A) mm: 25.4 Flange (A) in: 1" B in: 2.48" B mm: 63 C mm: 60 C in: 2.36" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0003406	Tri-Clamp (DN 10) \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	DN10	DN 10-15-20		2-Pin	Wingnut	No	50	725.19	34	1.34"	17	0.67"	0.160000
View Page → Tri-Clamp (DN 10) \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.D010 Legacy Part Number UK: CL.SH.D010 - DIN 10/15/20 SH CLAMP 316 Legacy Part Number DK: CLSHD010 Dimensional Image Key: Flange (A) mm: 34 Flange (A) in: 1 3/8" B in: 2.64" B mm: 67 C mm: 85 C in: 3.35" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0005006	Tri-Clamp (1" - 1 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	1" - 1 1/2"	DN 25-40	DN 15-20-25	2-Pin	Wingnut	No	50	725.19	50.5	1.99"	17	0.67"	0.246400
View Page → Tri-Clamp (1" - 1 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.0100 Legacy Part Number UK: CL.SH.0100 - 1" - 1 1/2" SH CLAMP 316 Legacy Part Number DK: CLSH0100 Dimensional Image Key: Flange (A) mm: 50.5 Flange (A) in: 2" B in: 3.03" B mm: 77 C mm: 102 C in: 4.02" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0006406	Tri-Clamp (2") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	2"	DN 50	DN 32-40	2-Pin	Wingnut	No	50	725.19	64	2.52"	17	0.67"	0.316000
View Page → Tri-Clamp (2") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.0200 Legacy Part Number UK: CL.SH.0200 - 2" SH CLAMP 316 Legacy Part Number DK: CLSH0200 Dimensional Image Key: Flange (A) mm: 64 Flange (A) in: 2 1/2" B in: 3.66" B mm: 93 C mm: 123 C in: 4.84" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0007706	Tri-Clamp (2 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	2 1/2"		DN 50	2-Pin	Wingnut	No	50	725.19	77.5	3.05"	17	0.67"	0.362000
View Page → Tri-Clamp (2 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.0250 Legacy Part Number UK: CL.SH.0250 - 2 1/2" SH CLAMP 316 Legacy Part Number DK: CLSH0250 Dimensional Image Key: Flange (A) mm: 77.5 Flange (A) in: 3" B in: 3.94" B mm: 100 C mm: 140 C in: 5.51" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0009106	Tri-Clamp (3") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	3"	DN 65	DN 65	2-Pin	Wingnut	No	40	580.15	91	3.58"	17	0.67"	0.402000
View Page → Tri-Clamp (3") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.0300 Legacy Part Number UK: CL.SH.0300 - 3" SH CLAMP 316 Legacy Part Number DK: CLSH0300 Dimensional Image Key: Flange (A) mm: 91 Flange (A) in: 3 1/2" B in: 4.13" B mm: 105 C mm: 150 C in: 5.91" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0010606	Tri-Clamp (3 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	3 1/2"	DN 80	DN 80	2-Pin	Wingnut	No	40	580.15	106	4.17"	17	0.67"	0.428000
View Page → Tri-Clamp (3 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.0350 Legacy Part Number UK: CL.SH.0350 - 3 1/2" SH CLAMP 316 Legacy Part Number DK: CLSH0350 Dimensional Image Key: Flange (A) mm: 106 Flange (A) in: 4 1/8" B in: 4.33" B mm: 110 C mm: 165 C in: 6.50" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0011906	Tri-Clamp (4") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	4"	DN 100		2-Pin	Wingnut	No	35	507.63	119	4.69"	17	0.67"	0.530000
View Page → Tri-Clamp (4") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.0400 Legacy Part Number UK: CL.SH.0400 - 4" SH CLAMP 316 Legacy Part Number DK: CLSH0400 Dimensional Image Key: Flange (A) mm: 119 Flange (A) in: 4 3/4" B in: 4.69" B mm: 119 C mm: 185 C in: 7.28" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0013006	Tri-Clamp (4 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	4 1/2"		DN 100	2-Pin	Wingnut	No	30	435.11	130	5.12"	17	0.67"	0.568000
View Page → Tri-Clamp (4 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.0450 Legacy Part Number UK: CL.SH.0450 - 4 1/2" SH CLAMP 316 Legacy Part Number DK: CLSH0450 Dimensional Image Key: Flange (A) mm: 130 Flange (A) in: 5 1/8" B in: 4.69" B mm: 119 C mm: 191 C in: 7.52" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0014406	Tri-Clamp (5") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	5"			2-Pin	Wingnut	No	30	435.11	144.4	5.69"	19	0.75"	0.734000
View Page → Tri-Clamp (5") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.0500 Legacy Part Number UK: CL.SH.0500 - 5" SH CLAMP 316 Legacy Part Number DK: CLSH0500 Dimensional Image Key: Flange (A) mm: 144.4 Flange (A) in: 5 5/8" B in: 5.16" B mm: 131 C mm: 215 C in: 8.46" W mm: 19 W in: 0.75"
Pharmaceutical SHWN0015506	Tri-Clamp (5 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	5 1/2"	DN 125	DN 125	2-Pin	Wingnut	No	30	435.11	155	6.1"	24	0.94"	1.360000
View Page → Tri-Clamp (5 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.0550 Legacy Part Number UK: CL.SH.0550 - 5 1/2" SH CLAMP 316 (SINGLE Legacy Part Number DK: CLSH0550 Dimensional Image Key: Flange (A) mm: 155 Flange (A) in: 6 1/8" B in: 6.10" B mm: 155 C mm: 252 C in: 9.92" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0016706	Tri-Clamp (6") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	6"			2-Pin	Wingnut	No	30	435.11	167	6.57"	24	0.94"	1.378000
View Page → Tri-Clamp (6") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.0600 Legacy Part Number UK: CL.SH.0600 - 6" SH CLAMP 316 (SINGLE BOLT) Legacy Part Number DK: CLSH0600 Dimensional Image Key: Flange (A) mm: 167 Flange (A) in: 6 5/8" B in: 6.14" B mm: 156 C mm: 262 C in: 10.31" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0018306	Tri-Clamp (6 5/8") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	6 5/8"	DN 150	DN 150	2-Pin	Wingnut	No	25	362.6	183	7.2"	24	0.94"	1.446000
View Page → Tri-Clamp (6 5/8") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.0658 Legacy Part Number UK: CL.SH.0658 - 6 5/8" SH CLAMP 316 (SINGLE Legacy Part Number DK: CLSH0658 Dimensional Image Key: Flange (A) mm: 183 Flange (A) in: 7 1/4" B in: 6.46" B mm: 164 C mm: 280 C in: 11.02" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0021706	Tri-Clamp (8") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	8"			2-Pin	Wingnut	No	20	290.08	217.4	8.56"	24	0.94"	2.014000
View Page → Tri-Clamp (8") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.0800 Legacy Part Number UK: CL.SH.0800 - 8" SH CLAMP 316 (SINGLE BOLT) Legacy Part Number DK: CLSH0800 Dimensional Image Key: Flange (A) mm: 217.4 Flange (A) in: 8 1/2" B in: 7.24" B mm: 184 C mm: 325 C in: 12.80" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0023306	Tri-Clamp (8 5/8") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	8 5/8"	DN 200	DN 200	2-Pin	Wingnut	No	20	290.08	233.5	9.19"	24	0.94"	2.198000
View Page → Tri-Clamp (8 5/8") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.0858 Legacy Part Number UK: CL.SH.0858 - 8 5/8" SH CLAMP 316 (SINGLE Legacy Part Number DK: CLSH0858 Dimensional Image Key: Flange (A) mm: 233.5 Flange (A) in: 9 1/8" B in: 7.28" B mm: 185 C mm: 326 C in: 12.83" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0026806	Tri-Clamp (10") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	10"	DN 250		2-Pin	Wingnut	No	16	232.06	268	10.55"	24	0.94"	2.730000
View Page → Tri-Clamp (10") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.1000 Legacy Part Number UK: CL.SH.1000 - 10" SH CLAMP 316 (SINGLE Legacy Part Number DK: CLSH1000 Dimensional Image Key: Flange (A) mm: 268 Flange (A) in: 10 1/2" B in: 7.72" B mm: 196 C mm: 366 C in: 14.41" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0028606	Tri-Clamp (10 5/8") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	10 5/8"		DN 250	2-Pin	Wingnut	No	16	232.06	286.1	11.26"	24	0.94"	2.874000
View Page → Tri-Clamp (10 5/8") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.1058 Legacy Part Number UK: CL.SH.1058 - 10 5/8" SH CLAMP 316 (SINGLE Legacy Part Number DK: CLSH1058 Dimensional Image Key: Flange (A) mm: 286.1 Flange (A) in: 11 1/4" B in: 8.07" B mm: 205 C mm: 384 C in: 15.12" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0031906	Tri-Clamp (12") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	12"	DN 300		2-Pin	Wingnut	No	10	145.04	319	12.56"	24	0.94"	3.204000
View Page → Tri-Clamp (12") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.1200 Legacy Part Number UK: CL.SH.1200 - 12" SH CLAMP 316 (SINGLE Legacy Part Number DK: CLSH1200 Dimensional Image Key: Flange (A) mm: 319 Flange (A) in: 12 1/2" B in: 9.09" B mm: 231 C mm: 430 C in: 16.93" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0033806	Tri-Clamp (12 5/8") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	12 5/8"		DN 300	2-Pin	Wingnut	No	10	145.04	338	13.31"	24	0.94"	3.364000
View Page → Tri-Clamp (12 5/8") \| Type SH \| Stainless Steel 316 \| Wingnut Legacy Part Number IE: CL.SH.1258 Legacy Part Number UK: CL.SH.1258 - 12 5/8" SH CLAMP 316 (SINGLE Legacy Part Number DK: CLSH1258 Dimensional Image Key: Flange (A) mm: 338 Flange (A) in: 13 1/4" B in: 8.98" B mm: 228 C mm: 425 C in: 16.73" W mm: 24 W in: 0.94"
Hygienic SLWN0003404	Tri-Clamp (DN 10) \| Type SL \| Stainless Steel 304 \| Wingnut	SL	304	1.4308	J92600	DN10	DN 10-15-20		1-Pin	Wingnut	No	25	362.6	34	1.34"	17	0.67"	0.148000
View Page → Tri-Clamp (DN 10) \| Type SL \| Stainless Steel 304 \| Wingnut Legacy Part Number IE: CL.S.D010 Legacy Part Number UK: CL.S.D010 - DIN 10/15/20 S TYPE CLAMP 304 Legacy Part Number DK: CLSD010 Dimensional Image Key: Flange (A) mm: 34 Flange (A) in: 1 3/8" B in: 2.87" B mm: 73 C mm: 69 C in: 2.72" W mm: 17 W in: 0.67"
Hygienic SLWN0005004	Tri-Clamp (1" - 1 1/2") \| Type SL \| Stainless Steel 304 \| Wingnut	SL	304	1.4308	J92600	1" - 1 1/2"	DN 25-40	DN 15-20-25	1-Pin	Wingnut	No	25	362.6	50.5	1.99"	17	0.67"	0.184000
View Page → Tri-Clamp (1" - 1 1/2") \| Type SL \| Stainless Steel 304 \| Wingnut Legacy Part Number IE: CL.S.0100 Legacy Part Number UK: CL.S.0100 - 1" - 1 1/2" S TYPE CLAMP 304 Legacy Part Number DK: CLS0100 Dimensional Image Key: Flange (A) mm: 50.5 Flange (A) in: 2" B in: 3.07" B mm: 78 C mm: 85 C in: 3.35" W mm: 17 W in: 0.67"
Hygienic SLWN0006404	Tri-Clamp (2") \| Type SL \| Stainless Steel 304 \| Wingnut	SL	304	1.4308	J92600	2"	DN 50	DN 32-40	1-Pin	Wingnut	No	25	362.6	64	2.52"	17	0.67"	0.240000
View Page → Tri-Clamp (2") \| Type SL \| Stainless Steel 304 \| Wingnut Legacy Part Number IE: CL.S.0200 Legacy Part Number UK: CL.S.0200 - 2" S TYPE CLAMP 304 (NEW Legacy Part Number DK: CLS0200 Dimensional Image Key: Flange (A) mm: 64 Flange (A) in: 2 1/2" B in: 3.23" B mm: 82 C mm: 99 C in: 3.90" W mm: 17 W in: 0.67"
Hygienic SLWN0007704	Tri-Clamp (2 1/2") \| Type SL \| Stainless Steel 304 \| Wingnut	SL	304	1.4308	J92600	2 1/2"		DN 50	1-Pin	Wingnut	No	25	362.6	77.5	3.05"	17	0.67"	0.272000
View Page → Tri-Clamp (2 1/2") \| Type SL \| Stainless Steel 304 \| Wingnut Legacy Part Number IE: CL.S.0250 Legacy Part Number UK: CL.S.0250 - 2 1/2" S TYPE CLAMP 304 (NEW Legacy Part Number DK: CLS0250 Dimensional Image Key: Flange (A) mm: 77.5 Flange (A) in: 3" B in: 3.50" B mm: 89 C mm: 112 C in: 4.41" W mm: 17 W in: 0.67"
