3 Segment 304

Description

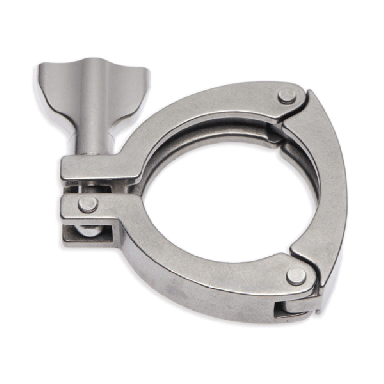

Three segment 304 acl clamp. 304 / 1.4308 cold formed rivet, single bolt, barrel polished tri clamp. Corrosion resistant, high quality surface finish (for cleanability). 3 segment 304 clamps are for use in light duty applications.

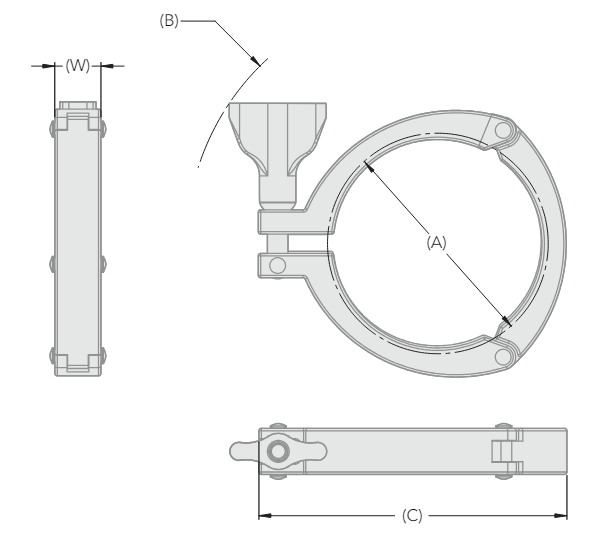

Dimensional Image

Features

Material: 304 / 1.4308
Application: Hygienic
Hinge Layout: Interlocking Rivets
Supplied Assembled
Design optimised for one-handed assembly.

Tri-Clamps / 3 Segment 304

Select Series Tri-Clamps

3 Segment 304

Type SH (Single-Bolt | Double-Hinge) 316

Type SL 304

Type SH (Double Bolt) 316

Euro-Pure® 316

Type SSH (Brass Nuts) 304

Type ASME VIII 316

13MHHM Nylon

Industry PART#	Product Name	Type	Material Grade	EN Standard	ASTM Standard	Size (in)	Size (DIN)	Size (ISO)	Closing Mechanism	Nut Type	Safety	Pressure Rating (bar)	Pressure Rating (psi)	Flange A (mm)	Flange A (in)	Width (mm)	Width (in)	Weight
Hygienic S3WN0005004	Tri-Clamp (1" - 1 1/2") \| Type 3 SEGMENT \| Stainless Steel 304 \| Wingnut	3 SEGMENT	304	1.4308	J92600	1" - 1 1/2"	DN 25-40	DN 15-20-25	3-Pin Interlocking	Wingnut	No	21	304.58	50.5	1.99"	19	0.75"	0.354000
View Page → Tri-Clamp (1" - 1 1/2") \| Type 3 SEGMENT \| Stainless Steel 304 \| Wingnut Legacy Part Number IE: CL.3S.0100 Legacy Part Number UK: CL.3S.0100 - 1" - 1 1/2" 3 SEG CLAMP 304 Legacy Part Number DK: CL3S0100 Dimensional Image Key: Flange (A) mm: 50.5 Flange (A) in: 2" B in: 3.00" B mm: 76.2 C mm: 81.7 C in: 3.22" W mm: 19 W in: 0.75"
Hygienic S3WN0006404	Tri-Clamp (2") \| Type 3 SEGMENT \| Stainless Steel 304 \| Wingnut	3 SEGMENT	304	1.4308	J92600	2"	DN 50	DN 32-40	3-Pin Interlocking	Wingnut	No	19	275.57	64	2.52"	19	0.75"	0.398000
View Page → Tri-Clamp (2") \| Type 3 SEGMENT \| Stainless Steel 304 \| Wingnut Legacy Part Number IE: CL.3S.0200 Legacy Part Number UK: CL.3S.0200 - 2" 3 SEG CLAMP 304 Legacy Part Number DK: CL3S0200 Dimensional Image Key: Flange (A) mm: 64 Flange (A) in: 2 1/2" B in: 3.23" B mm: 82 C mm: 93.5 C in: 3.68" W mm: 19 W in: 0.75"
Hygienic S3WN0007704	Tri-Clamp (2 1/2") \| Type 3 SEGMENT \| Stainless Steel 304 \| Wingnut	3 SEGMENT	304	1.4308	J92600	2 1/2"		DN 50	3-Pin Interlocking	Wingnut	No	15	217.56	77.5	3.05"	19.5	0.77"	0.452000
View Page → Tri-Clamp (2 1/2") \| Type 3 SEGMENT \| Stainless Steel 304 \| Wingnut Legacy Part Number IE: CL.3S.0250 Legacy Part Number UK: CL.3S.0250 - 2 1/2" 3 SEG CLAMP 304 Legacy Part Number DK: CL3S0250 Dimensional Image Key: Flange (A) mm: 77.5 Flange (A) in: 3" B in: 3.43" B mm: 87 C mm: 109 C in: 4.29" W mm: 19.5 W in: 0.77"
Hygienic S3WN0009104	Tri-Clamp (3") \| Type 3 SEGMENT \| Stainless Steel 304 \| Wingnut	3 SEGMENT	304	1.4308	J92600	3"	DN 65	DN 65	3-Pin Interlocking	Wingnut	No	12	174.05	91	3.58"	19.5	0.77"	0.614000
View Page → Tri-Clamp (3") \| Type 3 SEGMENT \| Stainless Steel 304 \| Wingnut Legacy Part Number IE: CL.3S.0300 Legacy Part Number UK: CL.3S.0300 - 3" 3 SEG CLAMP 304 Legacy Part Number DK: CL3S0300 Dimensional Image Key: Flange (A) mm: 91 Flange (A) in: 3 1/2" B in: 3.78" B mm: 96 C mm: 126.5 C in: 4.98" W mm: 19.5 W in: 0.77"
Hygienic S3WN0011904	Tri-Clamp (4") \| Type 3 SEGMENT \| Stainless Steel 304 \| Wingnut	3 SEGMENT	304	1.4308	J92600	4"	DN 100		3-Pin Interlocking	Wingnut	No	12	174.05	119	4.69"	19.5	0.77"	0.732000
View Page → Tri-Clamp (4") \| Type 3 SEGMENT \| Stainless Steel 304 \| Wingnut Legacy Part Number IE: CL.3S.0400 Legacy Part Number UK: CL.3S.0400 - 4" 3 SEG CLAMP 304 Legacy Part Number DK: CL3S0400 Dimensional Image Key: Flange (A) mm: 119 Flange (A) in: 4 3/4" B in: 4.88" B mm: 124 C mm: 150 C in: 5.91" W mm: 19.5 W in: 0.77"

Tri-Clamp (1" - 1 1/2") | Type 3 SEGMENT | Stainless Steel 304 | Wingnut
Hygienic
S3WN0005004

Tri-Clamp (2") | Type 3 SEGMENT | Stainless Steel 304 | Wingnut
Hygienic
S3WN0006404

Tri-Clamp (2 1/2") | Type 3 SEGMENT | Stainless Steel 304 | Wingnut
Hygienic
S3WN0007704

Tri-Clamp (3") | Type 3 SEGMENT | Stainless Steel 304 | Wingnut
Hygienic
S3WN0009104

Tri-Clamp (4") | Type 3 SEGMENT | Stainless Steel 304 | Wingnut
Hygienic
S3WN0011904
