    Ferrules


    Ferrules
    Description

    ACL manufactures ferrules in accordance with the relevant British and European standards, as itemised in the detailed ferrule section. Pharmaceutical grade Ferrules are produced by machining from 316L stainless steel bar stock. To comply with customer specifications, we can produce from certified bar to, (but not limited to);

    AD2000 W2

    ASTM A 182/SA 479/SB 574 etc

    PED 97/23/EC

    The surface finish is equal to or more often better than those quoted in the relevant standards. Ferrules are also available with enhanced surface finish to 0.38 um Ra, this being achieved by electro polishing, (also providing a passivated layer to the ferrule).

    3.1 Material certification is available online and all ferrules are laser marked with the material grade, mill heat number and the fitting size and type. A Declaration of conformity is issued as standard.

    Ferrules can also be supplied as specials in a variety of non-standard materials such as special stainless steels, titanium, hastelloy, AL6XN etc.

    As well as the extensive range of standard stock ferrules, we can supply customised ferrules to a wide range of requirements.

    Features
    • Pharmaceutical grade: European Stainless Steel, manufactured in Europe by ACL, surface finish: 0.4Ra or better
    • Food & beverage grade: Global sourced steel, surface finish is 0.8Ra or better
    • Quality checks by ACL are at the highest level for fitting manufacturers: JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
    • Flatness of sealing face meets or exceeds guidelines
    • Circularity of components is within 0.1mm
    Materials
    • Materials are AD2000 (PED) and ASME VIII
    • Surface finish is 0.8Ra um minimum
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.
    Clamps & Sealing / Ferrules
    Clamps & Sealing Clamps & Sealing Fittings Fittings Weld Fittings Weld Fittings ASME BPE Fittings ASME BPE Fittings Sight Flow Indicators Sight Flow Indicators Valves Valves Maintenance Items Maintenance Items Single Use Single Use Filters Filters
    Ferrules Ferrules
    Tri-Clamps Tri-Clamps Safety Tri-Clamps Safety Tri-Clamps Tri-Clamp Gaskets Tri-Clamp Gaskets

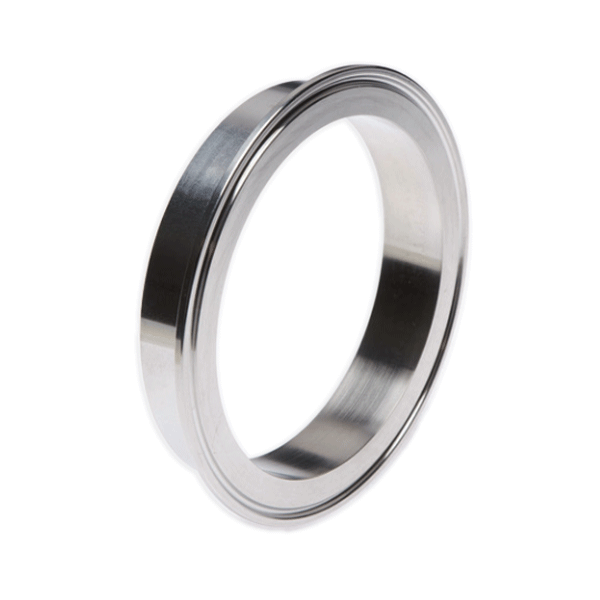

    BS 4825 Part 3 BS 4825 Part 3 BS Schedule 5 BS Schedule 5 BS Schedule 10 BS Schedule 10 BS Schedule 40 BS Schedule 40 ASME BPE Compliant ASME BPE Compliant DIN 32676 Table A Short DIN 32676 Table A Short DIN 32676 Table A Long DIN 32676 Table A Long DIN 32676 Table B Short DIN 32676 Table B Short DIN 32676 Table B Long DIN 32676 Table B Long DIN 32676 Table C Short DIN 32676 Table C Short DIN 32676 Table C Long DIN 32676 Table C Long ISO 1127 Standard ISO 1127 Standard ISO 1127 Variation ISO 1127 Variation Mini Series Ultra-Bore Metric & Imperial Mini Series Ultra-Bore Metric & Imperial SMS 3008/3017 SMS 3008/3017 SWG SWG MPW Tank MPW Tank
    Total: 532
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade EN Standard Size (in) Size (DN) Size (mm) Flange A (mm) Flange A (in) OD (mm) OD (in) ID (mm) ID (in) Wall Thickness (mm) Wall Thickness (in) Length (mm) Length (in) Surface Finish Manufactured Weight
    FDB1050021021SD6L
    		Ferrule (0,5") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 5 BS Schedule 5 316L 1.4404 1/2" 50.5 1.99" 21.34 0.84" 18.04 0.71" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 81.820000

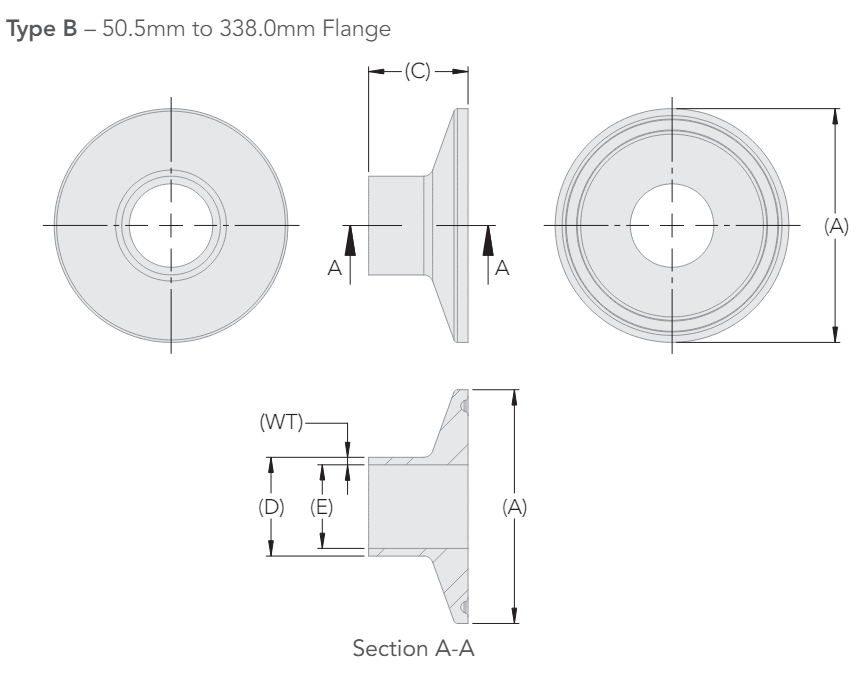

    dimensional image
    View Page → Ferrule (0,5") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS05.0050 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   21.34
    • Tube OD (D) in:   0.84"
    • Tube ID (E) mm:   18.04
    • Tube ID (E) in:   0.71"
    • ID mm:   18.04
    FDB1050026021SD6L
    		Ferrule (0,75") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 5 BS Schedule 5 316L 1.4404 3/4" 50.5 1.99" 26.67 1.05" 23.37 0.92" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 74.290000
    dimensional image
    View Page → Ferrule (0,75") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS05.0075 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   26.67
    • Tube OD (D) in:   1.05"
    • Tube ID (E) mm:   23.37
    • Tube ID (E) in:   0.92"
    • ID mm:   23.37
    FDB1050033021SD6L
    		Ferrule (1") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 5 BS Schedule 5 316L 1.4404 1" 50.5 1.99" 33.4 1.31" 30.1 1.19" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 63.680000
    dimensional image
    View Page → Ferrule (1") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS05.0100 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   33.4
    • Tube OD (D) in:   1.31"
    • Tube ID (E) mm:   30.1
    • Tube ID (E) in:   1.19"
    • ID mm:   30.1
    FDB1064042021SD6L
    		Ferrule (1,25") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 5 BS Schedule 5 316L 1.4404 1 1/4" 64 2.52" 42.16 1.66" 38.86 1.53" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 100.240000
    dimensional image
    View Page → Ferrule (1,25") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS05.0125 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   42.16
    • Tube OD (D) in:   1.66"
    • Tube ID (E) mm:   38.86
    • Tube ID (E) in:   1.53"
    • ID mm:   38.86
    FDB1064048021SD6L
    		Ferrule (1,5") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 5 BS Schedule 5 316L 1.4404 1 1/2" 64 2.52" 48.26 1.9" 44.96 1.77" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 83.990000
    dimensional image
    View Page → Ferrule (1,5") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS05.0150 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   48.26
    • Tube OD (D) in:   1.9"
    • Tube ID (E) mm:   44.96
    • Tube ID (E) in:   1.77"
    • ID mm:   44.96
    FDB1077060021SD6L
    		Ferrule (2") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 5 BS Schedule 5 316L 1.4404 2" 77.5 3.05" 60.32 2.37" 57.02 2.24" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 111.700000
    dimensional image
    View Page → Ferrule (2") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS05.0200 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   60.32
    • Tube OD (D) in:   2.37"
    • Tube ID (E) mm:   57.02
    • Tube ID (E) in:   2.24"
    • ID mm:   57.02
    FDB1091073021SD6L
    		Ferrule (2,5") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 5 BS Schedule 5 316L 1.4404 2 1/2" 91 3.58" 73.03 2.88" 68.81 2.71" 2.11 0.08" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 156.500000
    dimensional image
    View Page → Ferrule (2,5") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS05.0250 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • Wall (WT) mm:   2.11
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.08"
    • Tube OD (D) mm:   73.03
    • Tube OD (D) in:   2.88"
    • Tube ID (E) mm:   68.81
    • Tube ID (E) in:   2.71"
    • ID mm:   68.81
    FDB1106089021SD6L
    		Ferrule (3") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 5 BS Schedule 5 316L 1.4404 3" 106 4.17" 88.9 3.5" 84.68 3.33" 2.11 0.08" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 182.960000
    dimensional image
    View Page → Ferrule (3") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS05.0300 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   106
    • Flange (A) in:   4.17"
    • Wall (WT) mm:   2.11
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.08"
    • Tube OD (D) mm:   88.9
    • Tube OD (D) in:   3.5"
    • Tube ID (E) mm:   84.68
    • Tube ID (E) in:   3.33"
    • ID mm:   84.68
    FDB1119101021SD6L
    		Ferrule (3,5") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 5 BS Schedule 5 316L 1.4404 3 1/2" 119 4.69" 101.6 4" 97.38 3.83" 2.11 0.08" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 211.090000
    dimensional image
    View Page → Ferrule (3,5") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS05.0350 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • Wall (WT) mm:   2.11
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.08"
    • Tube OD (D) mm:   101.6
    • Tube OD (D) in:   4"
    • Tube ID (E) mm:   97.38
    • Tube ID (E) in:   3.83"
    • ID mm:   97.38
    FDB1130114028SD6L
    		Hygienic Ferrule (4") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra) 259.900000
    dimensional image
    View Page → Hygienic Ferrule (4") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:  4" BS Schedule 5 FERRULE┬á 28.5L 316L 0.8Ra Dimensional Image Key:
    • Length (C) mm:   28
    • Flange (A) mm:   130
    • Flange (A) in:   5.12"
    • Wall (WT) mm:   2.11
    • Length (C) in:   1.1"
    • Wall (WT) in:   0.08"
    • Tube OD (D) mm:   114.3
    • Tube OD (D) in:   4.5"
    • Tube ID (E) mm:   110.08
    • Tube ID (E) in:   4.33"
    FDB1155141028SD6L
    		Ferrule (5") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra) BS Schedule 5 BS Schedule 5 316L 1.4404 5" 155 6.1" 141.3 5.56" 135.76 5.34" 2.77 0.11" 28 1.1" 0.8 Ra 3.1b Certified - Solid Bar 0.001000
    dimensional image
    View Page → Ferrule (5") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:  5" BS Schedule 5 FERRULE 28.0L 316L Dimensional Image Key:
    • Length (C) mm:   28
    • Flange (A) mm:   155
    • Flange (A) in:   6.1"
    • Wall (WT) mm:   2.77
    • Length (C) in:   1.1"
    • Wall (WT) in:   0.11"
    • Tube OD (D) mm:   141.3
    • Tube OD (D) in:   5.56"
    • Tube ID (E) mm:   135.76
    • Tube ID (E) in:   5.34"
    • ID mm:   135.76
    FDB1183168028SD6L
    		Ferrule (6") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra) BS Schedule 5 BS Schedule 5 316L 1.4404 6" 183 7.2" 168.28 6.63" 162.74 6.41" 2.77 0.11" 28 1.1" 0.8 Ra 3.1b Certified - Solid Bar 535.160000
    dimensional image
    View Page → Ferrule (6") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS05.0600 Dimensional Image Key:
    • Length (C) mm:   28
    • Flange (A) mm:   183
    • Flange (A) in:   7.2"
    • Wall (WT) mm:   2.77
    • Length (C) in:   1.1"
    • Wall (WT) in:   0.11"
    • Tube OD (D) mm:   168.28
    • Tube OD (D) in:   6.63"
    • Tube ID (E) mm:   162.74
    • Tube ID (E) in:   6.41"
    • ID mm:   162.74
    FDB1233219028SD6L
    		Ferrule (8") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra) BS Schedule 5 BS Schedule 5 316L 1.4404 8" 233.5 9.19" 219.08 8.63" 213.54 8.41" 2.77 0.11" 28 1.1" 0.8 Ra 3.1b Certified - Solid Bar 688.600000
    dimensional image
    View Page → Ferrule (8") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS05.0800 Dimensional Image Key:
    • Length (C) mm:   28
    • Flange (A) mm:   233.5
    • Flange (A) in:   9.19"
    • Wall (WT) mm:   2.77
    • Length (C) in:   1.1"
    • Wall (WT) in:   0.11"
    • Tube OD (D) mm:   219.08
    • Tube OD (D) in:   8.63"
    • Tube ID (E) mm:   213.54
    • Tube ID (E) in:   8.41"
    • ID mm:   213.54
    FDB1286273028SD6L
    		Ferrule (10") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra) BS Schedule 5 BS Schedule 5 316L 1.4404 10" 286.1 11.26" 273.05 10.75" 266.25 10.48" 3.4 0.13" 28 1.1" 0.8 Ra 3.1b Certified - Solid Bar 936.760000
    dimensional image
    View Page → Ferrule (10") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS05.1000 Dimensional Image Key:
    • Length (C) mm:   28
    • Flange (A) mm:   286.1
    • Flange (A) in:   11.26"
    • Wall (WT) mm:   3.4
    • Length (C) in:   1.1"
    • Wall (WT) in:   0.13"
    • Tube OD (D) mm:   273.05
    • Tube OD (D) in:   10.75"
    • Tube ID (E) mm:   266.25
    • Tube ID (E) in:   10.48"
    • ID mm:   266.25
    FDB1338324028SD6L
    		Ferrule (12") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra) BS Schedule 5 BS Schedule 5 316L 1.4404 12" 338 13.31" 323.85 12.75" 315.93 12.44" 3.96 0.16" 28 1.1" 0.8 Ra 3.1b Certified - Solid Bar 1291.260000
    dimensional image
    View Page → Ferrule (12") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS05.1200 Dimensional Image Key:
    • Length (C) mm:   28
    • Flange (A) mm:   338
    • Flange (A) in:   13.31"
    • Wall (WT) mm:   3.96
    • Length (C) in:   1.1"
    • Wall (WT) in:   0.16"
    • Tube OD (D) mm:   323.85
    • Tube OD (D) in:   12.75"
    • Tube ID (E) mm:   315.93
    • Tube ID (E) in:   12.44"
    • ID mm:   315.93
    FDB2050021021SD6L
    		Ferrule (0,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 316L 1.4404 1/2" 50.5 1.99" 21.34 0.84" 17.12 0.67" 2.11 0.08" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 86.210000
    dimensional image
    View Page → Ferrule (0,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS10.0050 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • Wall (WT) mm:   2.11
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.08"
    • Tube OD (D) mm:   21.34
    • Tube OD (D) in:   0.84"
    • Tube ID (E) mm:   17.12
    • Tube ID (E) in:   0.67"
    • ID mm:   17.12
    FDB2050026021SD6L
    		Ferrule (0,75") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 316L 1.4404 3/4" 50.5 1.99" 26.67 1.05" 22.45 0.88" 2.11 0.08" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 80.010000
    dimensional image
    View Page → Ferrule (0,75") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS10.0075 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • Wall (WT) mm:   2.11
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.08"
    • Tube OD (D) mm:   26.67
    • Tube OD (D) in:   1.05"
    • Tube ID (E) mm:   22.45
    • Tube ID (E) in:   0.88"
    • ID mm:   22.45
    FDB2050033021SD6L
    		Ferrule (1") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 316L 1.4404 1" 50.5 1.99" 33.4 1.31" 27.86 1.1" 2.77 0.11" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 81.270000
    dimensional image
    View Page → Ferrule (1") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS10.0100 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • Wall (WT) mm:   2.77
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.11"
    • Tube OD (D) mm:   33.4
    • Tube OD (D) in:   1.31"
    • Tube ID (E) mm:   27.86
    • Tube ID (E) in:   1.1"
    • ID mm:   27.86
    FDB2064042021SD6L
    		Ferrule (1,25") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 316L 1.4404 1 1/4" 64 2.52" 42.16 1.66" 36.62 1.44" 2.77 0.11" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 123.160000
    dimensional image
    View Page → Ferrule (1,25") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS10.0125 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • Wall (WT) mm:   2.77
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.11"
    • Tube OD (D) mm:   42.16
    • Tube OD (D) in:   1.66"
    • Tube ID (E) mm:   36.62
    • Tube ID (E) in:   1.44"
    • ID mm:   36.62
    FDB2064048021SD6L
    		Ferrule (1,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 316L 1.4404 1 1/2" 64 2.52" 48.26 1.9" 42.72 1.68" 2.77 0.11" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 110.620000
    dimensional image
    View Page → Ferrule (1,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS10.0150 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • Wall (WT) mm:   2.77
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.11"
    • Tube OD (D) mm:   48.26
    • Tube OD (D) in:   1.9"
    • Tube ID (E) mm:   42.72
    • Tube ID (E) in:   1.68"
    • ID mm:   42.72
    FDB2077060021SD6L
    		Ferrule (2") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 316L 1.4404 2" 77.5 3.05" 60.32 2.37" 54.79 2.16" 2.77 0.11" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 145.500000
    dimensional image
    View Page → Ferrule (2") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS10.0200 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • Wall (WT) mm:   2.77
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.11"
    • Tube OD (D) mm:   60.32
    • Tube OD (D) in:   2.37"
    • Tube ID (E) mm:   54.79
    • Tube ID (E) in:   2.16"
    • ID mm:   54.79
    FDB2091073021SD6L
    		Ferrule (2,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 316L 1.4404 2 1/2" 91 3.58" 73.03 2.88" 66.93 2.64" 3.05 0.12" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 191.090000
    dimensional image
    View Page → Ferrule (2,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS10.0250 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • Wall (WT) mm:   3.05
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.12"
    • Tube OD (D) mm:   73.03
    • Tube OD (D) in:   2.88"
    • Tube ID (E) mm:   66.93
    • Tube ID (E) in:   2.64"
    • ID mm:   66.93
    FDB2106089021SD6L
    		Ferrule (3") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 316L 1.4404 3" 106 4.17" 88.9 3.5" 82.8 3.26" 3.05 0.12" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 225.640000
    dimensional image
    View Page → Ferrule (3") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS10.0300 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   106
    • Flange (A) in:   4.17"
    • Wall (WT) mm:   3.05
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.12"
    • Tube OD (D) mm:   88.9
    • Tube OD (D) in:   3.5"
    • Tube ID (E) mm:   82.8
    • Tube ID (E) in:   3.26"
    • ID mm:   82.8
    FDB2119101021SD6L
    		Ferrule (3,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 10 BS Schedule 10 316L 1.4404 3 1/2" 119 4.69" 101.6 4" 95.5 3.76" 3.05 0.12" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 249.860000
    dimensional image
    View Page → Ferrule (3,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.BS10.0350 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • Wall (WT) mm:   3.05
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.12"
    • Tube OD (D) mm:   101.6
    • Tube OD (D) in:   4"
    • Tube ID (E) mm:   95.5
    • Tube ID (E) in:   3.76"
    • ID mm:   95.5
    Prev 1 2 3 4 … 23 Next
    Ferrule (0,5
    Ferrule (0,5") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB1050021021SD6L
    Ferrule (0,75
    Ferrule (0,75") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB1050026021SD6L
    Ferrule (1
    Ferrule (1") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB1050033021SD6L
    Ferrule (1,25
    Ferrule (1,25") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB1064042021SD6L
    Ferrule (1,5
    Ferrule (1,5") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB1064048021SD6L
    Ferrule (2
    Ferrule (2") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB1077060021SD6L
    Ferrule (2,5
    Ferrule (2,5") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB1091073021SD6L
    Ferrule (3
    Ferrule (3") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB1106089021SD6L
    Ferrule (3,5
    Ferrule (3,5") | BS Schedule 5 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB1119101021SD6L
    Hygienic Ferrule (4
    Hygienic Ferrule (4") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra)
    FDB1130114028SD6L
    Ferrule (5
    Ferrule (5") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra)
    Hygienic
    FDB1155141028SD6L
    Ferrule (6
    Ferrule (6") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra)
    Hygienic
    FDB1183168028SD6L
    Ferrule (8
    Ferrule (8") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra)
    Hygienic
    FDB1233219028SD6L
    Ferrule (10
    Ferrule (10") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra)
    Hygienic
    FDB1286273028SD6L
    Ferrule (12
    Ferrule (12") | BS Schedule 5 | Length 28mm | 316L (0.8 Ra)
    Hygienic
    FDB1338324028SD6L
    Ferrule (0,5
    Ferrule (0,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB2050021021SD6L
    Ferrule (0,75
    Ferrule (0,75") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB2050026021SD6L
    Ferrule (1
    Ferrule (1") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB2050033021SD6L
    Ferrule (1,25
    Ferrule (1,25") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB2064042021SD6L
    Ferrule (1,5
    Ferrule (1,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB2064048021SD6L
    Ferrule (2
    Ferrule (2") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB2077060021SD6L
    Ferrule (2,5
    Ferrule (2,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB2091073021SD6L
    Ferrule (3
    Ferrule (3") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB2106089021SD6L
    Ferrule (3,5
    Ferrule (3,5") | BS Schedule 10 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDB2119101021SD6L
    Prev 1 2 3 4 … 23 Next
