Weld Fittings

Description

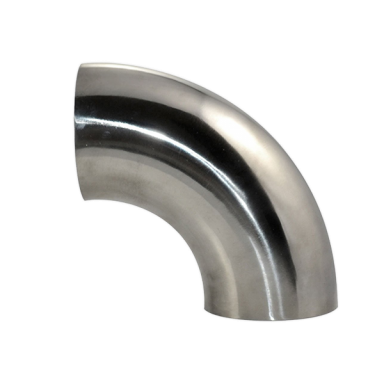

ACL weld fittings are manufactured for use in the Hygienic, food and beverage industry where consistent, high-integrity tube connections are required. Produced from 316L stainless steel bar or tube stock and machined to exacting tolerances, ACL weld fittings are available in a comprehensive range of configurations including bends, tees, reducers, end caps, y-pieces and cross pieces.

Specifications

Standards: BS4825, DIN11850, ISO2037, ASME BPE
Surface finish: 0.8Ra µm minimum (internal and external)
Materials comply with AD2000 (PED) and ASME VIII
3.1 material certification available

Features

Manufactured to BS4825, DIN11850, ISO2037 and ASME BPE standards
Produced from 316L stainless steel as standard
Internal and external surface finish to 0.8Ra µm or better
Full traceability — laser marked with material grade and heat number
3.1 material certification available online
Declaration of Conformity issued as standard
Available in bespoke and non-standard configurations on request

Materials

Material: 316L Stainless Steel as standard
Alternative materials: 304, titanium, hastelloy, AL6XN available on request

Data Center

ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.

Industry PART#	Product Name	Standard	Type	OD	Wall Thickness	Length	Centre to End	Material

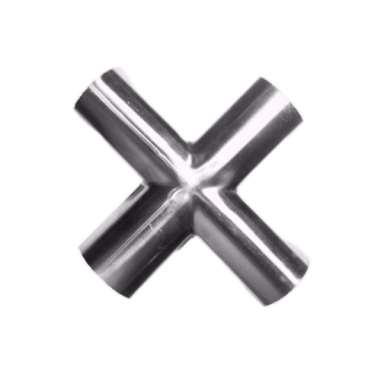

DWXEA1076S16L	Hygienic X-Piece Equal (3") \| ASME BPE Compliant \| 316L
View Page → Hygienic X-Piece Equal (3") \| ASME BPE Compliant \| 316L

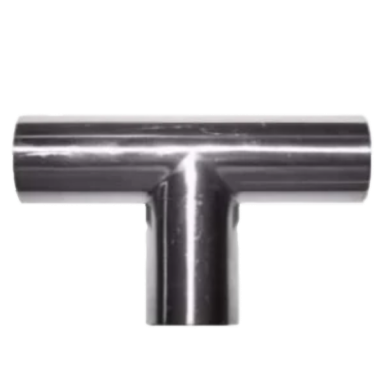

DWTSS8032SD6L	Hygienic Tee Equal (32mm) \| SMS 3008 \| 316L
View Page → Hygienic Tee Equal (32mm) \| SMS 3008 \| 316L Legacy Part Number DK: TSSM0125S
DWTSD2154SD6L	Hygienic Tee Equal (154mm) \| DIN 32676 Series 2 \| 316L
View Page → Hygienic Tee Equal (154mm) \| DIN 32676 Series 2 \| 316L Legacy Part Number DK: TSDI0600
DWTSD2018SD6L	Hygienic Tee Equal (DN15) \| DIN 32676 Series 2 \| 316L
View Page → Hygienic Tee Equal (DN15) \| DIN 32676 Series 2 \| 316L Legacy Part Number DK: TSDI0018S

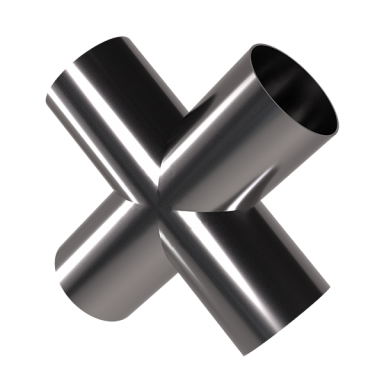

Hygienic DWXEB4101SD6L	X-Piece Equal (OD 101,6mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	X-Piece Equal	101.6(mm) / 4"(in)	2(mm) / 0.08"(in)	150(mm) / 5.91"(in)	150(mm) / 5.91"(in)	316L
View Page → X-Piece Equal (OD 101,6mm) \| BS4825 \| 316L Legacy Part Number DK: XLSM0400S
Hygienic DWXEB4076SD6L	X-Piece Equal (OD 76mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	X-Piece Equal	76(mm) / 2.99"(in)	1.6(mm) / 0.06"(in)	110(mm) / 4.33"(in)	110(mm) / 4.33"(in)	316L
View Page → X-Piece Equal (OD 76mm) \| BS4825 \| 316L Legacy Part Number DK: XLSM0300S
Hygienic DWXEB4063SD6L	X-Piece Equal (OD 63,5mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	X-Piece Equal	63.5(mm) / 2.5"(in)	1.6(mm) / 0.06"(in)	105(mm) / 4.13"(in)	105(mm) / 4.13"(in)	316L
View Page → X-Piece Equal (OD 63,5mm) \| BS4825 \| 316L Legacy Part Number DK: XLSM0250S
Hygienic DWXEB4051SD6L	X-Piece Equal (OD 51mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	X-Piece Equal	51(mm) / 2.01"(in)	1.2(mm) / 0.05"(in)	82(mm) / 3.23"(in)	82(mm) / 3.23"(in)	316L
View Page → X-Piece Equal (OD 51mm) \| BS4825 \| 316L Legacy Part Number DK: XLSM0200S
Hygienic DWXEB4038SD6L	X-Piece Equal (OD 38mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	X-Piece Equal	38(mm) / 1.5"(in)	1.2(mm) / 0.05"(in)	70(mm) / 2.76"(in)	70(mm) / 2.76"(in)	316L
View Page → X-Piece Equal (OD 38mm) \| BS4825 \| 316L Legacy Part Number DK: XLSM0150S
Hygienic DWXEB4025SD6L	X-Piece Equal (OD 25mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	X-Piece Equal	25(mm) / 0.98"(in)	1.2(mm) / 0.05"(in)	55(mm) / 2.17"(in)	55(mm) / 2.17"(in)	316L
View Page → X-Piece Equal (OD 25mm) \| BS4825 \| 316L Legacy Part Number DK: XLSM0100S
Hygienic DWYPB4101SD6L	Y-Piece (OD 101,6mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	Y-Piece	101.6(mm) / 4"(in)	2(mm) / 0.08"(in)	85(mm) / 3.35"(in)	174(mm) / 6.85"(in)	316L
View Page → Y-Piece (OD 101,6mm) \| BS4825 \| 316L Legacy Part Number DK: YSM0400S
Hygienic DWYPB4076SD6L	Y-Piece (OD 76mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	Y-Piece	76(mm) / 2.99"(in)	1.5(mm) / 0.06"(in)	67(mm) / 2.64"(in)	134(mm) / 5.28"(in)	316L
View Page → Y-Piece (OD 76mm) \| BS4825 \| 316L Legacy Part Number DK: YSM0300S
Hygienic DWYPB4063SD6L	Y-Piece (OD 63,5mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	Y-Piece	63.5(mm) / 2.5"(in)	1.5(mm) / 0.06"(in)	58(mm) / 2.28"(in)	114(mm) / 4.49"(in)	316L
View Page → Y-Piece (OD 63,5mm) \| BS4825 \| 316L Legacy Part Number DK: YSM0250S
Hygienic DWYPB4051SD6L	Y-Piece (OD 51mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	Y-Piece	51(mm) / 2.01"(in)	1.5(mm) / 0.06"(in)	44(mm) / 1.73"(in)	89(mm) / 3.5"(in)	316L
View Page → Y-Piece (OD 51mm) \| BS4825 \| 316L Legacy Part Number DK: YSM0200S
Hygienic DWYPB4038SD6L	Y-Piece (OD 38mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	Y-Piece	38(mm) / 1.5"(in)	1.5(mm) / 0.06"(in)	31(mm) / 1.22"(in)	64(mm) / 2.52"(in)	316L
View Page → Y-Piece (OD 38mm) \| BS4825 \| 316L Legacy Part Number DK: YSM0150S
Hygienic DWYPB4025SD6L	Y-Piece (OD 25mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	Y-Piece	25(mm) / 0.98"(in)	1.5(mm) / 0.06"(in)	22(mm) / 0.87"(in)	44(mm) / 1.73"(in)	316L
View Page → Y-Piece (OD 25mm) \| BS4825 \| 316L Legacy Part Number DK: YSM0100S
Hygienic Data Center DWTIB4101SD6L	Seagull Tee (OD 101,6mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	Seagull Tee	101.6(mm) / 4"(in)	2(mm) / 0.08"(in)	195(mm) / 7.68"(in)		316L
View Page → Seagull Tee (OD 101,6mm) \| BS4825 \| 316L Legacy Part Number DK: TTBS0400S Dimensional Image Key: Thickness (T) mm: 2 Thickness (T) in: 0.08" OD mm: 101.6 OD in: 4" Length / Leg Length (L) mm: 195
Hygienic Data Center DWTIB4076SD6L	Seagull Tee (OD 76mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	Seagull Tee	76(mm) / 2.99"(in)	1.5(mm) / 0.06"(in)	155(mm) / 6.1"(in)		316L
View Page → Seagull Tee (OD 76mm) \| BS4825 \| 316L Legacy Part Number DK: TTBS0300S Dimensional Image Key: Thickness (T) mm: 1.5 Thickness (T) in: 0.06" OD mm: 76 OD in: 2.99" Length / Leg Length (L) mm: 155
Hygienic Data Center DWTIB4063SD6L	Seagull Tee (OD 63,5mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	Seagull Tee	63.5(mm) / 2.5"(in)	1.5(mm) / 0.06"(in)	135(mm) / 5.31"(in)		316L
View Page → Seagull Tee (OD 63,5mm) \| BS4825 \| 316L Legacy Part Number DK: TTBS0250S Dimensional Image Key: Thickness (T) mm: 1.5 Thickness (T) in: 0.06" OD mm: 63.5 OD in: 2.5" Length / Leg Length (L) mm: 135
Hygienic Data Center DWTIB4051SD6L	Seagull Tee (OD 51mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	Seagull Tee	51(mm) / 2.01"(in)	1.5(mm) / 0.06"(in)	110(mm) / 4.33"(in)		316L
View Page → Seagull Tee (OD 51mm) \| BS4825 \| 316L Legacy Part Number DK: TTBS0200S Dimensional Image Key: Thickness (T) mm: 1.5 Thickness (T) in: 0.06" OD mm: 51 OD in: 2.01" Length / Leg Length (L) mm: 110
Hygienic Data Center DWTIB4038SD6L	Seagull Tee (OD 38mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	Seagull Tee	38(mm) / 1.5"(in)	1.5(mm) / 0.06"(in)	85(mm) / 3.35"(in)		316L
View Page → Seagull Tee (OD 38mm) \| BS4825 \| 316L Legacy Part Number DK: TTBS0150S Dimensional Image Key: Thickness (T) mm: 1.5 Thickness (T) in: 0.06" OD mm: 38 OD in: 1.5" Length / Leg Length (L) mm: 85
Hygienic Data Center DWTIB4025SD6L	Seagull Tee (OD 25mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	Seagull Tee	25(mm) / 0.98"(in)	1.5(mm) / 0.06"(in)	65(mm) / 2.56"(in)		316L
View Page → Seagull Tee (OD 25mm) \| BS4825 \| 316L Legacy Part Number DK: TTBS0100S Dimensional Image Key: Thickness (T) mm: 1.5 Thickness (T) in: 0.06" OD mm: 25 OD in: 0.98" Length / Leg Length (L) mm: 65
Hygienic Data Center DWITB4101SD6L	Sweept Tee (OD 101,6mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	Sweept Tee	101.6(mm) / 4"(in)	2(mm) / 0.08"(in)	195(mm) / 7.68"(in)		316L
View Page → Sweept Tee (OD 101,6mm) \| BS4825 \| 316L Legacy Part Number DK: TSBS0400S Dimensional Image Key: Thickness (T) mm: 2 Thickness (T) in: 0.08" OD mm: 101.6 OD in: 4" Length / Leg Length (L) mm: 195
Hygienic Data Center DWITB4076SD6L	Sweept Tee (OD 76mm) \| BS4825 \| 316L	BS4825 \| 1.4404 \| ╦£ SS2348	Sweept Tee	76(mm) / 2.99"(in)	1.5(mm) / 0.06"(in)	155(mm) / 6.1"(in)		316L
View Page → Sweept Tee (OD 76mm) \| BS4825 \| 316L Legacy Part Number DK: TSBS0300S Dimensional Image Key: Thickness (T) mm: 1.5 Thickness (T) in: 0.06" OD mm: 76 OD in: 2.99" Length / Leg Length (L) mm: 155
