End Cap
Description

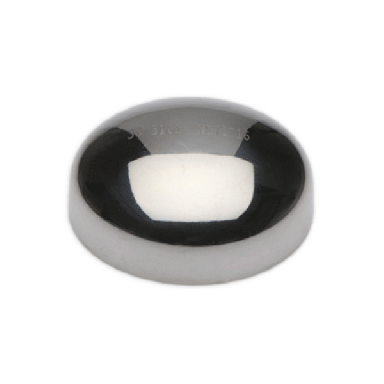

ACL End Cap weld fittings are manufactured from 316L stainless steel and provide a permanent or semi-permanent closure for tube ends in hygienic process systems. Available in a range of tube sizes and wall thicknesses to match standard tube specifications.
Specifications
- Standards: BS4825, DIN11850, ISO2037
- Surface finish: 0.8Ra µm minimum (internal and external)
- Materials comply with AD2000 (PED) and ASME VIII

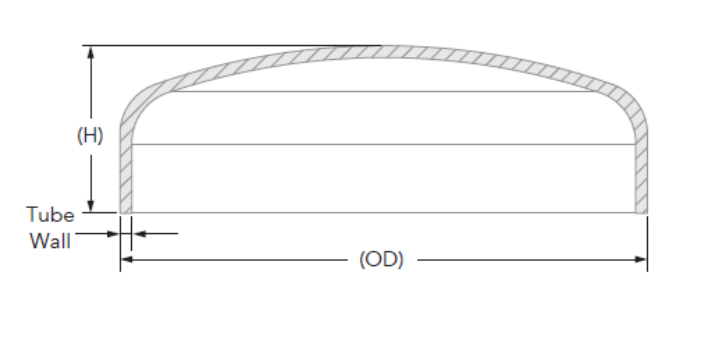

Dimensional Image
Features
- Hygienic end closure for stainless steel tubing
- Manufactured from 316L stainless steel as standard
- Internal and external surface finish to 0.8Ra µm or better
- Available in a range of tube sizes and standards
- Full laser marking for traceability
- 3.1 material certification available
Materials
- Material: 316L Stainless Steel as standard
- Alternative materials available on request
