Bend
Description

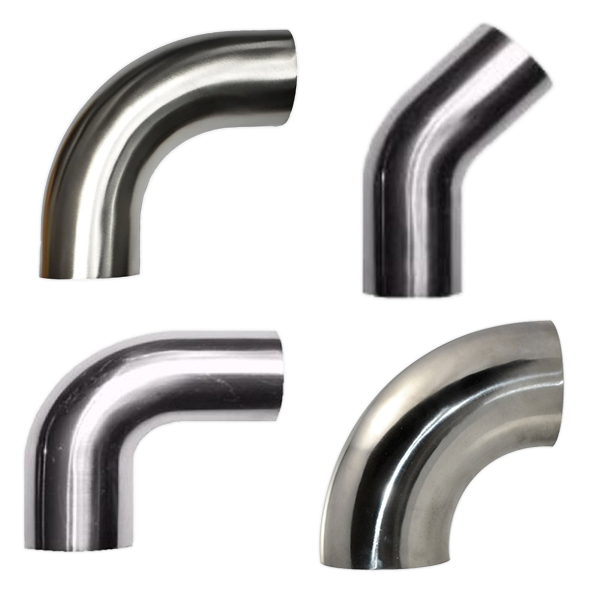

ACL Bend weld fittings are precision-manufactured from 316L stainless steel for use in hygienic process pipelines. Available in 45° and 90° configurations with a range of bend radii, ACL bends provide smooth, consistent direction changes with minimal dead legs and turbulence.
Specifications
- Standards: BS4825, DIN11850, ISO2037
- Surface finish: 0.8Ra µm minimum (internal and external)
- Materials comply with AD2000 (PED) and ASME VIII

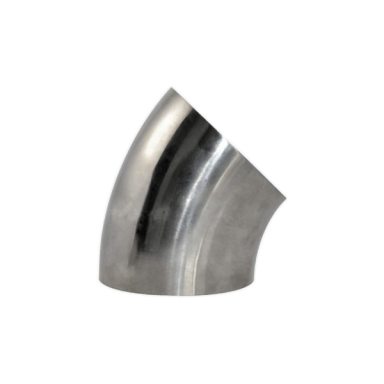

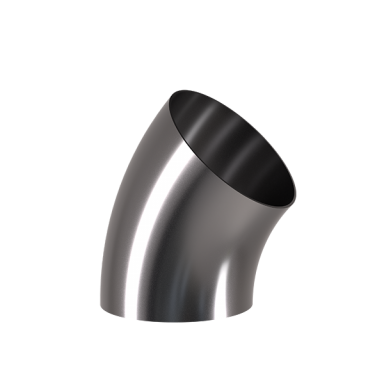

- Available in 45° and 90° with short and long radius options
Features
- Available in 45° and 90° configurations
- Range of bend radii available (short and long radius)
- Smooth, consistent direction change with minimal dead legs
- Manufactured from 316L stainless steel as standard
- Internal and external surface finish to 0.8Ra µm or better
- Full laser marking for traceability
- 3.1 material certification available
Materials
- Material: 316L Stainless Steel as standard
- Alternative materials available on request
