    Y-Piece


    Y-Piece
    Description

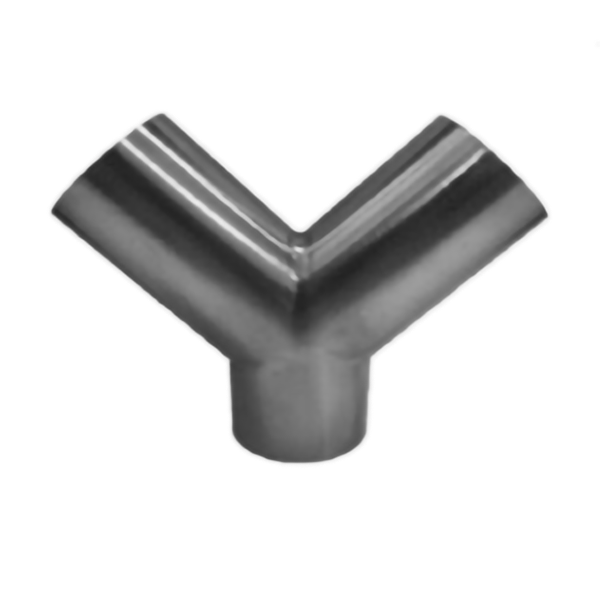

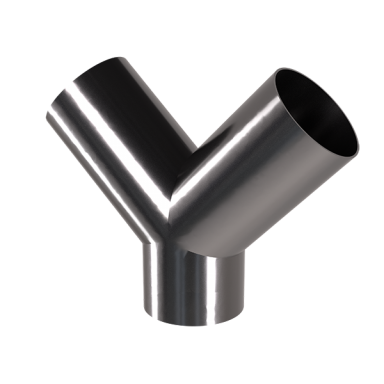

    ACL Y-Piece weld fittings are precision-manufactured from 316L stainless steel for use in hygienic process pipelines. The Y-piece allows a single pipeline to be split into two branches, or two branches to be combined into a single flow, with a smooth, hygienic internal bore to minimise dead legs and turbulence.

    Specifications
    • Standards: BS4825, DIN11850, ISO2037
    • Surface finish: 0.8Ra µm minimum (internal and external)
    • Materials comply with AD2000 (PED) and ASME VIII
    Features
    • Smooth Y-configuration for efficient flow splitting or combining
    • Manufactured from 316L stainless steel as standard
    • Internal and external surface finish to 0.8Ra µm or better
    • Available in a range of tube sizes and standards
    • Full laser marking for traceability
    • 3.1 material certification available
    Materials
    • Material: 316L Stainless Steel as standard
    • Alternative materials available on request
    Total: 6
    Industry
    PART#    		 Product
    Name    		 Standard Type Size Imperial Size Metric Size ISO OD OD 2 Material
    Add
    To Cart     LIST
    PRICE
    Hygienic
    DWYPB4101SD6L
    		Y-Piece (OD 101,6mm) | BS4825 | 316L BS4825 Y-Piece 101.6(mm)/4"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    View Page
     Y-Piece (OD 101,6mm) | BS4825 | 316L Legacy Part Number DK:   YSM0400S
    Hygienic
    DWYPB4076SD6L
    		Y-Piece (OD 76mm) | BS4825 | 316L BS4825 Y-Piece 76(mm)/2.99"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    View Page
     Y-Piece (OD 76mm) | BS4825 | 316L Legacy Part Number DK:   YSM0300S
    Hygienic
    DWYPB4063SD6L
    		Y-Piece (OD 63,5mm) | BS4825 | 316L BS4825 Y-Piece 63.5(mm)/2.5"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    View Page
     Y-Piece (OD 63,5mm) | BS4825 | 316L Legacy Part Number DK:   YSM0250S
    Hygienic
    DWYPB4051SD6L
    		Y-Piece (OD 51mm) | BS4825 | 316L BS4825 Y-Piece 51(mm)/2.01"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    View Page
     Y-Piece (OD 51mm) | BS4825 | 316L Legacy Part Number DK:   YSM0200S
    Hygienic
    DWYPB4038SD6L
    		Y-Piece (OD 38mm) | BS4825 | 316L BS4825 Y-Piece 38(mm)/1.5"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    View Page
     Y-Piece (OD 38mm) | BS4825 | 316L Legacy Part Number DK:   YSM0150S
    Hygienic
    DWYPB4025SD6L
    		Y-Piece (OD 25mm) | BS4825 | 316L BS4825 Y-Piece 25(mm)/0.98"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    View Page
     Y-Piece (OD 25mm) | BS4825 | 316L Legacy Part Number DK:   YSM0100S
    Y-Piece (OD 101,6mm) | BS4825 | 316L
    Hygienic
    DWYPB4101SD6L
    Request Price
    Y-Piece (OD 76mm) | BS4825 | 316L
    Hygienic
    DWYPB4076SD6L
    Request Price
    Y-Piece (OD 63,5mm) | BS4825 | 316L
    Hygienic
    DWYPB4063SD6L
    Request Price
    Y-Piece (OD 51mm) | BS4825 | 316L
    Hygienic
    DWYPB4051SD6L
    Request Price
    Y-Piece (OD 38mm) | BS4825 | 316L
    Hygienic
    DWYPB4038SD6L
    Request Price
    Y-Piece (OD 25mm) | BS4825 | 316L
    Hygienic
    DWYPB4025SD6L
    Request Price
