    Description

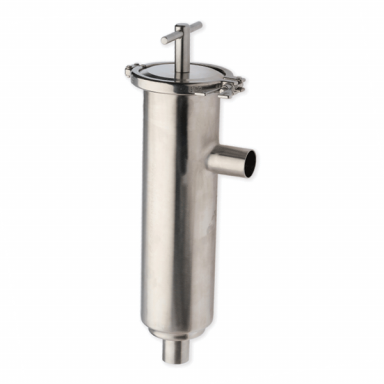

    ACL hygienic filters are designed for use in process pipelines in the Datacenter, Food & Beverage and Dairy industries. They provide reliable in-line filtration to protect downstream equipment and processes from particulate contamination. ACL filters are manufactured from 316L stainless steel and are fully compatible with ACL's range of hygienic clamps and fittings.

    The range includes angle filters and Y filters designed for efficient flow and easy screen removal and cleaning. Filters are available in a range of sizes and mesh specifications to suit diverse process requirements.

    Specifications
    • Surface finish: 0.8Ra µm minimum (product contact surfaces)
    • Compatible with BS4825, DIN32676 and ISO1127 tube standards
    • Available mesh sizes on request
    • Designed for CIP/SIP applications
    Features
    • Designed for hygienic in-line filtration applications
    • 316L stainless steel body and filter screen as standard
    • Fully compatible with ACL tri-clamp fittings
    • Angle design for efficient flow and easy maintenance
    • Available in a range of mesh sizes
    • Designed for CIP/SIP cleaning processes
    • High-quality surface finish on all product contact surfaces
    Materials
    • Body material: 316L Stainless Steel
    • Screen material: 316L Stainless Steel mesh
    • Seal materials: EPDM, Silicone, Viton available
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.
    Filters
    Filters Filters
    Clamps & Sealing Clamps & Sealing Fittings Fittings Weld Fittings Weld Fittings ASME BPE Fittings ASME BPE Fittings Sight Flow Indicators Sight Flow Indicators Valves Valves Maintenance Items Maintenance Items Single Use Single Use
    Total: 13
    Industry
    PART#    		 Product
    Name    		 Standard Material Grade Standard (EN) Standard (ASTM) Size (in) Size (mm) Flange (mm) Flange (in) OD (mm) OD (in) Length (mm) Length (in) Length 2 (mm) Length 2 (in) Width (mm) Width (in) Width 2 (mm) Width 2 (in) Gasket Seal Weight
    FCM6DF1191016L
    		Angle Filter (4") | Weld End | 316L (EPDM Mesh 60) Weld End 316L 1.4404 ˜ SS2348 4" 101.6 101.6 4" 470 18.5" 140 5.51" 140 5.51" 6.000000

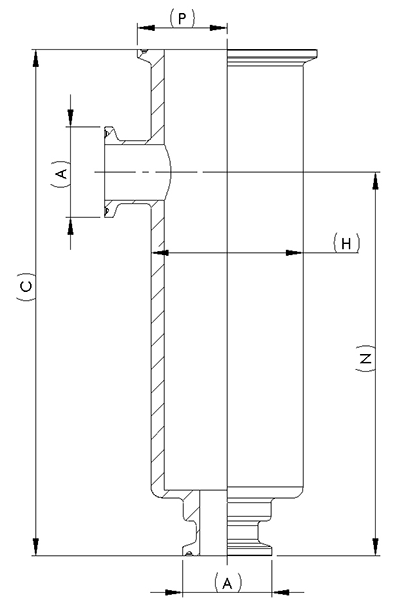

    dimensional image
    View Page → Angle Filter (4") | Weld End | 316L (EPDM Mesh 60) GTIN:  840384336247 Dimensional Image Key:
    • Length (C) mm:   640
    • OD (D) mm:   101.6
    • Distance (N) mm:   470
    • Length (C) in:   25.2"
    • OD (D) in:   4"
    • Distance (N) in:   18.5"
    • Width (H) mm:   140
    • Width (H) in:   5.51"
    • Distance 2 (P) mm:   140
    • Distance 2 (P) in:   5.51"
    FCM6DF0910766L
    		Angle Filter (3") | Weld End | 316L (EPDM Mesh 60) Weld End 316L 1.4404 ˜ SS2348 3" 76.2 76.2 3" 365 14.37" 114.3 4.5" 114.3 4.5" 5.000000
    dimensional image
    View Page → Angle Filter (3") | Weld End | 316L (EPDM Mesh 60) GTIN:  840384336230 Dimensional Image Key:
    • Length (C) mm:   510
    • OD (D) mm:   76.2
    • Distance (N) mm:   365
    • Length (C) in:   20.08"
    • OD (D) in:   3"
    • Distance (N) in:   14.37"
    • Width (H) mm:   114.3
    • Width (H) in:   4.5"
    • Distance 2 (P) mm:   114.3
    • Distance 2 (P) in:   4.5"
    FCM6DF0770636L
    		Angle Filter (2 1/2") | Weld End | 316L (EPDM Mesh 60) Weld End 316L 1.4404 ˜ SS2348 2 1/2" 63.5 63.5 2.5" 330 12.99" 101.6 4" 101.6 4" 5.000000
    dimensional image
    View Page → Angle Filter (2 1/2") | Weld End | 316L (EPDM Mesh 60) GTIN:  840384336223 Dimensional Image Key:
    • Length (C) mm:   460
    • OD (D) mm:   63.5
    • Distance (N) mm:   330
    • Length (C) in:   18.11"
    • OD (D) in:   2.5"
    • Distance (N) in:   12.99"
    • Width (H) mm:   101.6
    • Width (H) in:   4"
    • Distance 2 (P) mm:   101.6
    • Distance 2 (P) in:   4"
    FCM6DF0640516L
    		Angle Filter (2") | Weld End | 316L (EPDM Mesh 60) Weld End 316L 1.4404 ˜ SS2348 2" 50.8 50.8 2" 264 10.39" 89 3.5" 89 3.5" 5.000000
    dimensional image
    View Page → Angle Filter (2") | Weld End | 316L (EPDM Mesh 60) GTIN:  840384336216 Dimensional Image Key:
    • Length (C) mm:   369
    • OD (D) mm:   50.8
    • Distance (N) mm:   264
    • Length (C) in:   14.53"
    • OD (D) in:   2"
    • Distance (N) in:   10.39"
    • Width (H) mm:   89
    • Width (H) in:   3.5"
    • Distance 2 (P) mm:   89
    • Distance 2 (P) in:   3.5"
    FCM6DF0500386L
    		Angle Filter (1 1/2") | Weld End | 316L (EPDM Mesh 60) Weld End 316L 1.4404 ˜ SS2348 1 1/2" 38.1 38.1 1.5" 249 9.8" 76 2.99" 76 2.99" 4.000000
    dimensional image
    View Page → Angle Filter (1 1/2") | Weld End | 316L (EPDM Mesh 60) GTIN:  840384336209 Dimensional Image Key:
    • Length (C) mm:   344
    • OD (D) mm:   38.1
    • Distance (N) mm:   249
    • Length (C) in:   13.54"
    • OD (D) in:   1.5"
    • Distance (N) in:   9.8"
    • Width (H) mm:   76
    • Width (H) in:   2.99"
    • Distance 2 (P) mm:   76
    • Distance 2 (P) in:   2.99"
    FCM6DF0500256L
    		Angle Filter (1") | Weld End | 316L (EPDM Mesh 60) Weld End 316L 1.4404 ˜ SS2348 1" 25.4 25.4 1" 249 9.8" 76 2.99" 76 2.99" 4.000000
    dimensional image
    View Page → Angle Filter (1") | Weld End | 316L (EPDM Mesh 60) GTIN:  840384336193 Dimensional Image Key:
    • Length (C) mm:   344
    • OD (D) mm:   25.4
    • Distance (N) mm:   249
    • Length (C) in:   13.54"
    • OD (D) in:   1"
    • Distance (N) in:   9.8"
    • Width (H) mm:   76
    • Width (H) in:   2.99"
    • Distance 2 (P) mm:   76
    • Distance 2 (P) in:   2.99"
    FCM6DW1671546L
    		Angle Filter (6") | Ferrule End | 316L (EPDM Mesh 60) Ferrule End 316L 1.4404 ˜ SS2348 6" 152.4 167 6.57" 462 18.19" 251 9.88" 204 8.03" 0.000000
    dimensional image
    View Page → Angle Filter (6") | Ferrule End | 316L (EPDM Mesh 60) Dimensional Image Key:
    • Length (C) mm:   644.5
    • Flange (A) mm:   167
    • Flange (A) in:   6.57"
    • Distance (N) mm:   462
    • Length (C) in:   25.37"
    • Distance (N) in:   18.19"
    • Width (H) mm:   204
    • Width (H) in:   8.03"
    • Distance 2 (P) mm:   251
    • Distance 2 (P) in:   9.88"
    FCM6DW1191016L
    		Angle Filter (4") | Ferrule End | 316L (EPDM Mesh 60) Ferrule End 316L 1.4404 ˜ SS2348 4" 101.6 119 4.69" 486 19.13" 156 6.14" 140 5.51" 6.000000
    dimensional image
    View Page → Angle Filter (4") | Ferrule End | 316L (EPDM Mesh 60) GTIN:  840384336186 Dimensional Image Key:
    • Length (C) mm:   656
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • Distance (N) mm:   486
    • Length (C) in:   25.83"
    • Distance (N) in:   19.13"
    • Width (H) mm:   140
    • Width (H) in:   5.51"
    • Distance 2 (P) mm:   156
    • Distance 2 (P) in:   6.14"
    FCM6DW0910766L
    		Angle Filter (3") | Ferrule End | 316L (EPDM Mesh 60) Ferrule End 316L 1.4404 ˜ SS2348 3" 76.2 91 3.58" 377.5 14.86" 127 5" 114.3 4.5" 6.000000
    dimensional image
    View Page → Angle Filter (3") | Ferrule End | 316L (EPDM Mesh 60) GTIN:  840384336179 Dimensional Image Key:
    • Length (C) mm:   522.7
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • Distance (N) mm:   377.5
    • Length (C) in:   20.58"
    • Distance (N) in:   14.86"
    • Width (H) mm:   114.3
    • Width (H) in:   4.5"
    • Distance 2 (P) mm:   127
    • Distance 2 (P) in:   5"
    FCM6DW0770636L
    		Angle Filter (2 1/2") | Ferrule End | 316L (EPDM Mesh 60) Ferrule End 316L 1.4404 ˜ SS2348 2 1/2" 63.5 77.5 3.05" 342.7 13.49" 114.3 4.5" 101.6 4" 5.000000
    dimensional image
    View Page → Angle Filter (2 1/2") | Ferrule End | 316L (EPDM Mesh 60) GTIN:  840384336162 Dimensional Image Key:
    • Length (C) mm:   472.7
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • Distance (N) mm:   342.7
    • Length (C) in:   18.61"
    • Distance (N) in:   13.49"
    • Width (H) mm:   101.6
    • Width (H) in:   4"
    • Distance 2 (P) mm:   114.3
    • Distance 2 (P) in:   4.5"
    FCM6DW0640516L
    		Angle Filter (2") | Ferrule End | 316L (EPDM Mesh 60) Ferrule End 316L 1.4404 ˜ SS2348 2" 50.8 64 2.52" 276.7 10.89" 101.6 4" 89 3.5" 5.000000
    dimensional image
    View Page → Angle Filter (2") | Ferrule End | 316L (EPDM Mesh 60) GTIN:  840384336155 Dimensional Image Key:
    • Length (C) mm:   362
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • Distance (N) mm:   276.7
    • Length (C) in:   14.25"
    • Distance (N) in:   10.89"
    • Width (H) mm:   89
    • Width (H) in:   3.5"
    • Distance 2 (P) mm:   101.6
    • Distance 2 (P) in:   4"
    FCM6DW0500386L
    		Angle Filter (1 1/2") | Ferrule End | 316L (EPDM Mesh 60) Ferrule End 316L 1.4404 ˜ SS2348 1 1/2" 38.1 50.5 1.99" 250 9.84" 88.7 3.49" 76 2.99" 5.000000
    dimensional image
    View Page → Angle Filter (1 1/2") | Ferrule End | 316L (EPDM Mesh 60) GTIN:  840384336148 Dimensional Image Key:
    • Length (C) mm:   341
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • Distance (N) mm:   250
    • Length (C) in:   13.43"
    • Distance (N) in:   9.84"
    • Width (H) mm:   76
    • Width (H) in:   2.99"
    • Distance 2 (P) mm:   88.7
    • Distance 2 (P) in:   3.49"
    FCM6DW0500256L
    		Angle Filter (1") | Ferrule End | 316L (EPDM Mesh 60) Ferrule End 316L 1.4404 ˜ SS2348 1" 25.4 50.5 1.99" 250 9.84" 88.7 3.49" 76 2.99" 4.000000
    dimensional image
    View Page → Angle Filter (1") | Ferrule End | 316L (EPDM Mesh 60) GTIN:  840384336131 Dimensional Image Key:
    • Length (C) mm:   341
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • Distance (N) mm:   250
    • Length (C) in:   13.43"
    • Distance (N) in:   9.84"
    • Width (H) mm:   76
    • Width (H) in:   2.99"
    • Distance 2 (P) mm:   88.7
    • Distance 2 (P) in:   3.49"
