    ASME BPE Fittings


    ASME BPE Fittings
    Description

    ACL BPE fittings are manufactured to be ASME Bioprocessing Equipment (BPE) compliant, designed for use in the Pharmaceutical, Biotech and High-Purity industries. Available in a variety of configurations including elbows (90° and 45°), equal tees, reducing tees and cross pieces, ACL BPE fittings are produced from high-quality 316L stainless steel with exacting internal and external surface finishes.

    All BPE fittings are laser marked with material grade and heat number. 3.1 material certification is available online and a Declaration of Conformity is issued as standard.

    Specifications
    • Standard: ASME BPE
    • Surface finish: SF1 (0.5Ra µm) and SF4 (0.38Ra µm electropolished) available
    • Materials comply with AD2000 (PED) and ASME VIII
    • 3.1 material certification available
    Features
    • Manufactured to ASME BPE standard
    • Produced from 316L stainless steel as standard
    • Internal surface finish to SF1 (0.5Ra µm) and SF4 (0.38Ra µm electropolished) available
    • Full laser marking for traceability
    • 3.1 material certification available online
    • Declaration of Conformity issued as standard
    • Available in a wide range of tube sizes
    Materials
    • Material: 316L Stainless Steel as standard
    • Alternative materials available on request: 304L, hastelloy, titanium
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.

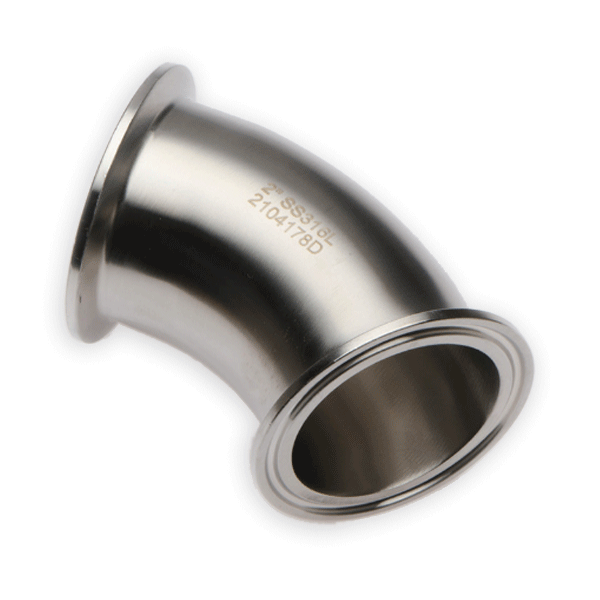

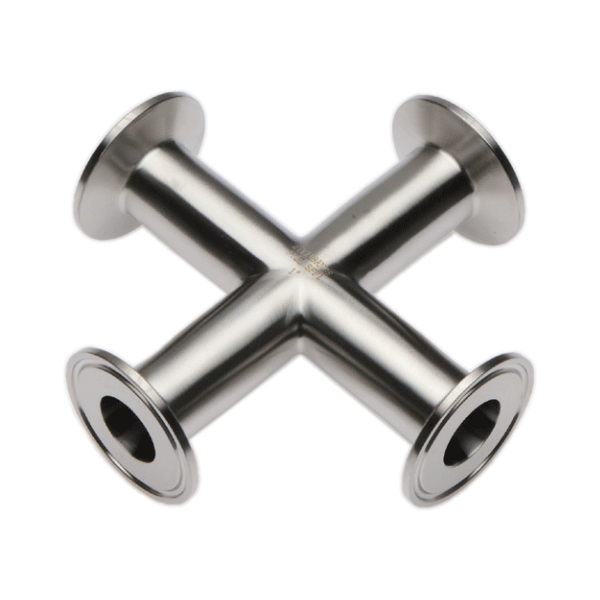

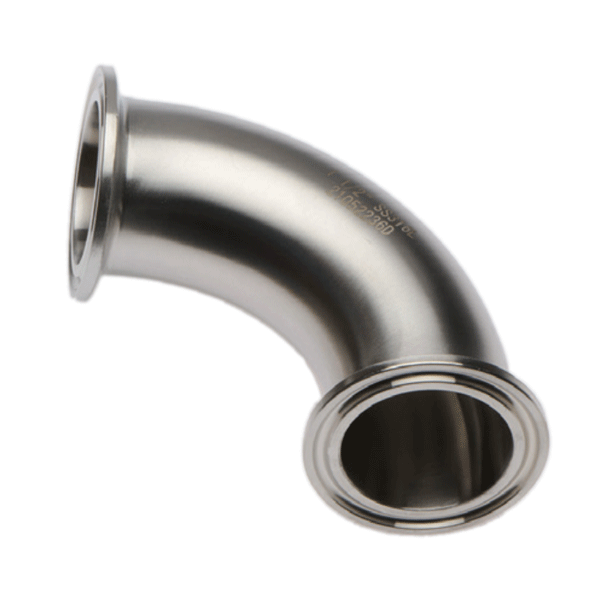

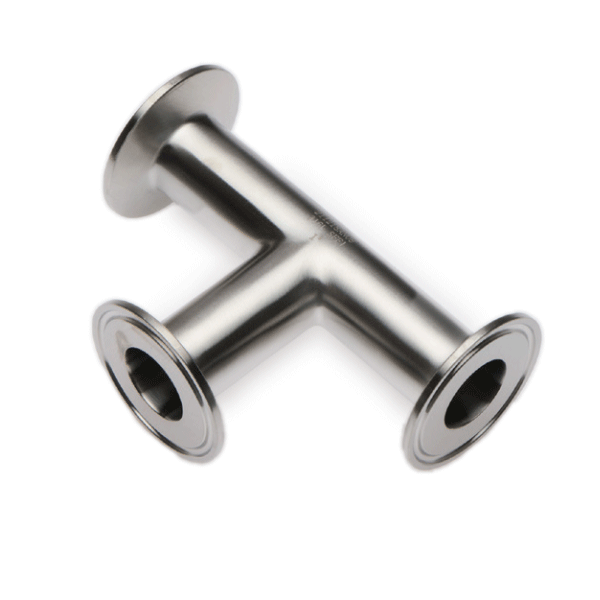

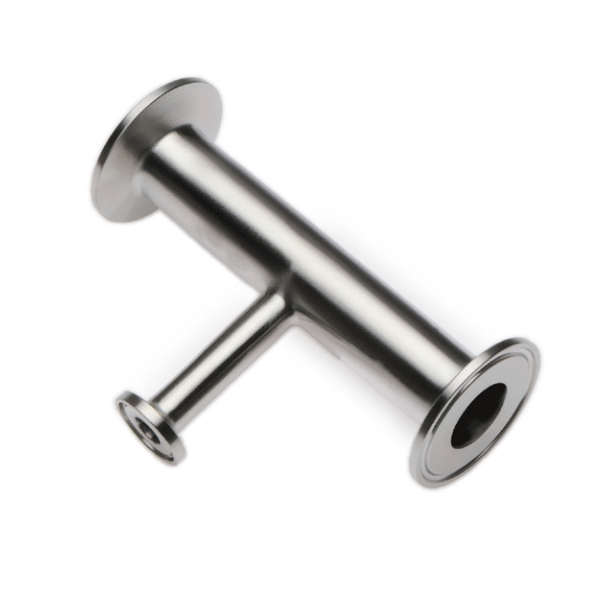

    Elbow 45° | DT17 | DT-4.1.1-6 Elbow 45° | DT17 | DT-4.1.1-6 Elbow 90° | DT16 | DT-4.3.3-3 (SF1 & SF4) Elbow 90° | DT16 | DT-4.3.3-3 (SF1 & SF4) Cross Piece | DT18 | DT-4.1.2-4 Cross Piece | DT18 | DT-4.1.2-4 Reducing Tee | DT19 | DT-4.1.2-8 Reducing Tee | DT19 | DT-4.1.2-8 Equal Tee | DT18 | DT-4.1.2-4 Equal Tee | DT18 | DT-4.1.2-4
    Total: 130
    Industry
    PART#    		 Product
    Name    		 Type Size Imperial Size Metric Size ISO Size 2 Imperial Size 2 Metric Flange Flange 2 ID OD Material Connection Length Surface Finish Connection Type
    Add
    To Cart     LIST
    PRICE
    Hygienic
    DFE4A1025635S16L
    		Hygienic BPE Fitting | BPE 45° Elbow (1/4") | 316L BPE 45° Elbow 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 45° Elbow (1/4") | 316L Legacy Part Number IE:   EL.BPE.45.025.SF1 Legacy Part Number UK:   EL.BPE.45.025.SF1

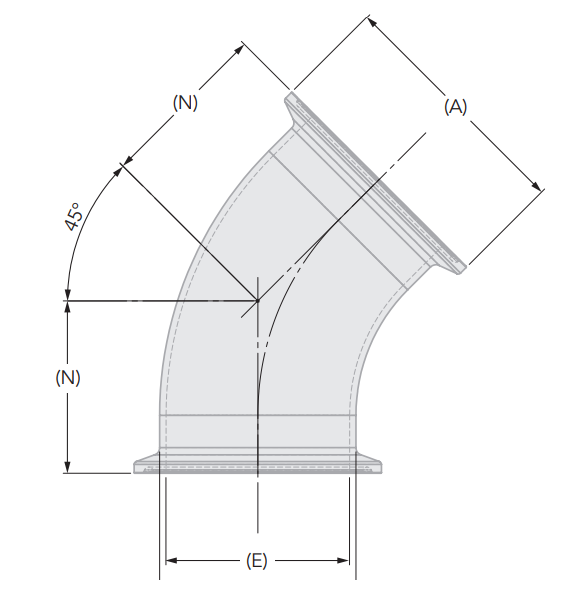

    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • ID (E) mm:  4.35
    • • OD (D) mm:  6.35
    • • Distance (N) mm:  25.4
    • • ID (E) in:  0.17"
    • • OD (D) in:  0.25"
    • • Distance (N) in:  1"
    Hygienic
    DFE4A1025952S16L
    		Hygienic BPE Fitting | BPE 45° Elbow (3/8") | 316L BPE 45° Elbow 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 45° Elbow (3/8") | 316L Legacy Part Number IE:   EL.BPE.45.038.SF1 Legacy Part Number UK:   EL.BPE.45.038.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • ID (E) mm:  7.75
    • • OD (D) mm:  9.53
    • • Distance (N) mm:  25.4
    • • ID (E) in:  0.31"
    • • OD (D) in:  0.38"
    • • Distance (N) in:  1"
    Hygienic
    DFE4A1025127S16L
    		Hygienic BPE Fitting | BPE 45° Elbow (1/2") | 316L BPE 45° Elbow 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 45° Elbow (1/2") | 316L Legacy Part Number IE:   EL.BPE.45.050.SF1 Legacy Part Number UK:   EL.BPE.45.050.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • ID (E) mm:  9.4
    • • OD (D) mm:  12.7
    • • Distance (N) mm:  25.4
    • • ID (E) in:  0.37"
    • • OD (D) in:  0.5"
    • • Distance (N) in:  1"
    Hygienic
    DFE4A1025195S16L
    		Hygienic BPE Fitting | BPE 45° Elbow (3/4") | 316L BPE 45° Elbow 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 45° Elbow (3/4") | 316L Legacy Part Number IE:   EL.BPE.45.075.SF1 Legacy Part Number UK:   EL.BPE.45.075.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • ID (E) mm:  15.75
    • • OD (D) mm:  19.05
    • • Distance (N) mm:  25.4
    • • ID (E) in:  0.62"
    • • OD (D) in:  0.75"
    • • Distance (N) in:  1"
    Hygienic
    DFE4A10500025S16L
    		Hygienic BPE Fitting | BPE 45° Elbow (1") | 316L BPE 45° Elbow 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 45° Elbow (1") | 316L Legacy Part Number IE:   EL.BPE.45.100.SF1 Legacy Part Number UK:   EL.BPE.45.100.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • ID (E) mm:  22.1
    • • OD (D) mm:  25.4
    • • Distance (N) mm:  28.58
    • • ID (E) in:  0.87"
    • • OD (D) in:  1"
    • • Distance (N) in:  1.13"
    Hygienic
    DFE4A10050038S16L
    		Hygienic BPE Fitting | BPE 45° Elbow (1 1/2") | 316L BPE 45° Elbow 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 45° Elbow (1 1/2") | 316L Legacy Part Number IE:   EL.BPE.45.150.SF1 Legacy Part Number UK:   EL.BPE.45.150.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • ID (E) mm:  34.8
    • • OD (D) mm:  38.1
    • • Distance (N) mm:  36.53
    • • ID (E) in:  1.37"
    • • OD (D) in:  1.5"
    • • Distance (N) in:  1.44"
    Hygienic
    DFE4A10064051S16L
    		Hygienic BPE Fitting | BPE 45° Elbow (2") | 316L BPE 45° Elbow 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 45° Elbow (2") | 316L Legacy Part Number IE:   EL.BPE.45.200.SF1 Legacy Part Number UK:   DFE4A10064051S16L
    Dimensional Image Key:
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • ID (E) mm:  47.5
    • • OD (D) mm:  50.8
    • • Distance (N) mm:  44.45
    • • ID (E) in:  1.87"
    • • OD (D) in:  2"
    • • Distance (N) in:  1.75"
    Hygienic
    DFE4A1077063S16L
    		Hygienic BPE Fitting | BPE 45° Elbow (2 1/2") | 316L BPE 45° Elbow 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 45° Elbow (2 1/2") | 316L Legacy Part Number IE:   EL.BPE.45.250.SF1 Legacy Part Number UK:   EL.BPE.45.250.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  77.5
    • • Flange (A) in:  3.05"
    • • ID (E) mm:  60.2
    • • OD (D) mm:  63.5
    • • Distance (N) mm:  52.4
    • • ID (E) in:  2.37"
    • • OD (D) in:  2.5"
    • • Distance (N) in:  2.06"
    Hygienic
    DFE4A1091076S16L
    		Hygienic BPE Fitting | BPE 45° Elbow (3") | 316L BPE 45° Elbow 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 45° Elbow (3") | 316L Legacy Part Number IE:   EL.BPE.45.300.SF1 Legacy Part Number UK:   EL.BPE.45.300.SF1.
    Dimensional Image Key:
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • ID (E) mm:  72.9
    • • OD (D) mm:  76.2
    • • Distance (N) mm:  60.33
    • • ID (E) in:  2.87"
    • • OD (D) in:  3"
    • • Distance (N) in:  2.38"
    Hygienic
    DFE4A1119101S16L
    		Hygienic BPE Fitting | BPE 45° Elbow (4") | 316L BPE 45° Elbow 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 45° Elbow (4") | 316L Legacy Part Number IE:   EL.BPE.45.400.SF1 Legacy Part Number UK:   EL.BPE.45.400.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69"
    • • ID (E) mm:  97.38
    • • OD (D) mm:  101.6
    • • Distance (N) mm:  79.38
    • • ID (E) in:  3.83"
    • • OD (D) in:  4"
    • • Distance (N) in:  3.13"
    Hygienic
    DFE4A1167152S16L
    		Hygienic BPE Fitting | BPE 45° Elbow (6") | 316L BPE 45° Elbow 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 45° Elbow (6") | 316L Legacy Part Number IE:   EL.BPE.45.600.SF1 Legacy Part Number UK:   EL.BPE.45.600.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  167
    • • Flange (A) in:  6.57"
    • • ID (E) mm:  146.86
    • • OD (D) mm:  152.4
    • • Distance (N) mm:  133.35
    • • ID (E) in:  5.78"
    • • OD (D) in:  6"
    • • Distance (N) in:  5.25"
    Pharmaceutical
    PFE4A1025635S16L
    		Pharmaceutical BPE Fitting | BPE 45° Elbow (1/4") | 316L BPE 45° Elbow 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Pharmaceutical BPE Fitting | BPE 45° Elbow (1/4") | 316L Legacy Part Number IE:   EL.BPE.45.025.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • ID (E) mm:  4.35
    • • OD (D) mm:  6.35
    • • Distance (N) mm:  25.4
    • • ID (E) in:  0.17"
    • • OD (D) in:  0.25"
    • • Distance (N) in:  1"
