    Valves


    Valves
    Description

    ACL offers a comprehensive range of hygienic valves designed for use in the Datacenter, Food & Beverage and Dairy industries. The range includes butterfly valves, 3-piece ball valves and ISO non-return valves (NRV).

    All ACL valves are designed for ease of installation, cleaning and maintenance, and are fully compatible with ACL's extensive range of hygienic fittings and clamps.

    Specifications
    • Surface finish: 0.8Ra µm minimum (product contact surfaces)
    • Compatible with BS4825, DIN32676 and ISO1127 standards
    • Materials comply with AD2000 (PED) and ASME VIII where applicable
    Features
    • Designed for hygienic and pharmaceutical process applications
    • Fully compatible with ACL clamp and fitting ranges
    • Easy to clean and maintain — minimal dead legs
    • Available in a range of sizes and configurations
    • High-quality internal and external surface finishes
    • 3.1 material certification available on request
    Materials
    • Body material: 316L Stainless Steel as standard
    • Seal/gasket materials: EPDM, Silicone, Viton available
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.

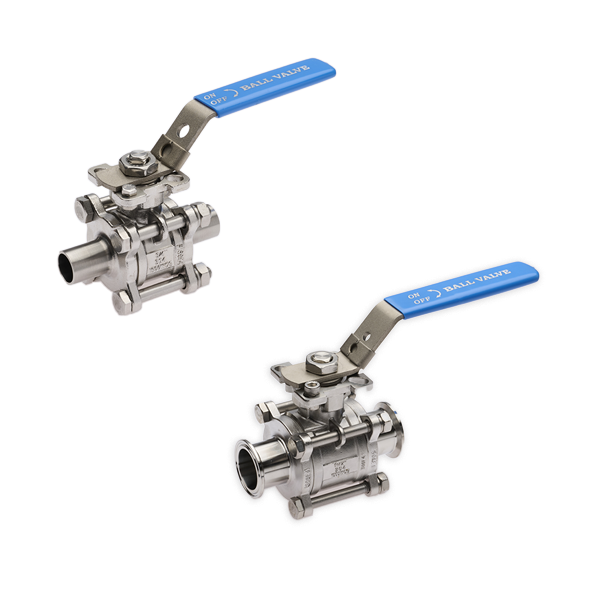

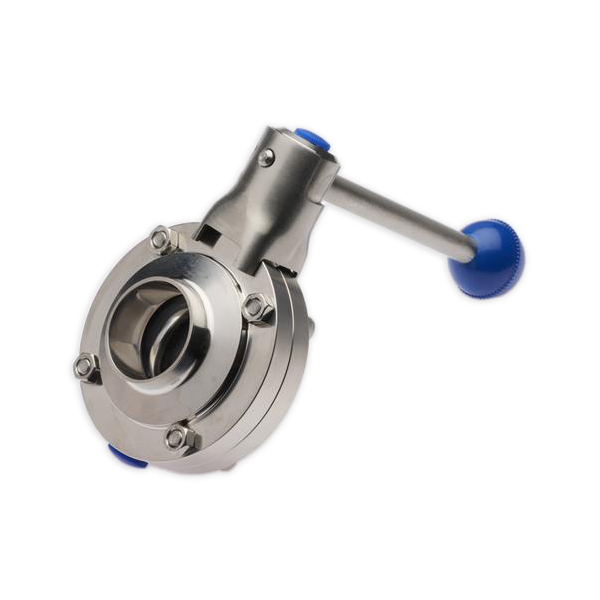

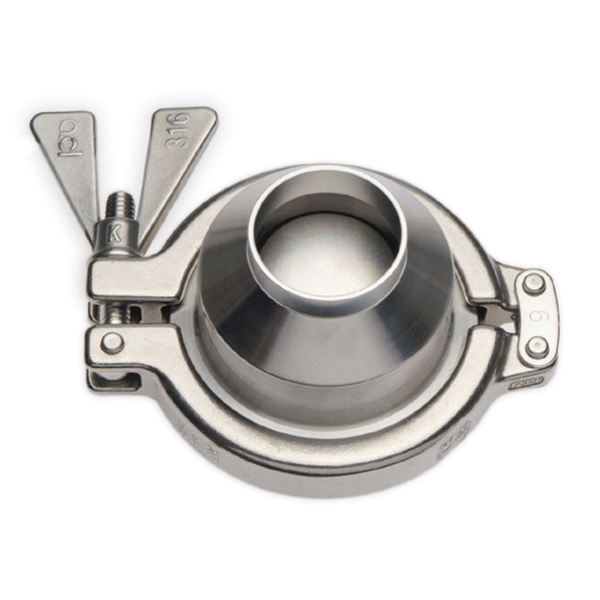

    ISO NRV Clamps ISO NRV Clamps 3 Piece Ball Valve 3 Piece Ball Valve Butterfly Valves Butterfly Valves
    Total: 40
    Industry
    PART#    		 Product
    Name    		 Type Size Imperial Size Metric Flange OD Material Connection
    Add
    To Cart     LIST
    PRICE
    Hygienic
    VC3PDF0251276L

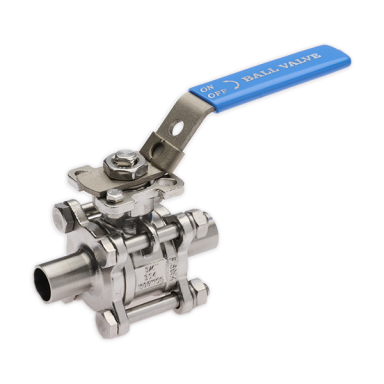

    		3 Piece Ball Valve (1/2") | Ferrule Connection | 316L 3 Piece Ball Valve - Ferrule Connection 1/2" 25.4(mm)/1"(in) 12.7(mm)/0.5"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     3 Piece Ball Valve (1/2") | Ferrule Connection | 316L

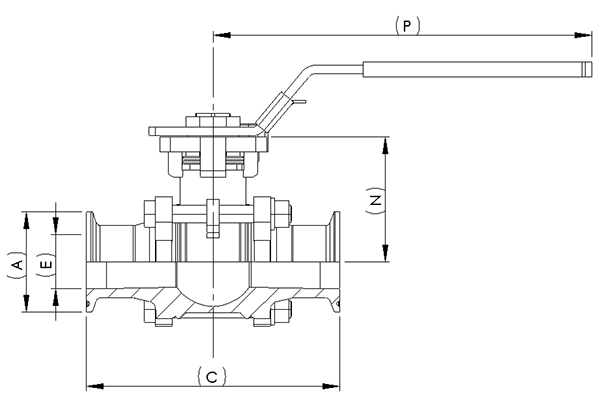

    Dimensional Image Key:
    • • Length (C) mm:  90.4
    • • Flange (A) mm:  25.4
    • • Flange (A) in:  1
    • • Length (C) in:  3.56"
    • • Tube OD (D) mm:  12.7
    • • Tube OD (D) in:  0.5"
    • • Tube ID (E) mm:  9.4
    • • Tube ID (E) in:  0.37"
    • • Handle Length (P) mm:  130
    • • Handle Length (P) in:  5.12"
    • • Height Handle (N) mm:  36.4
    • • Height Handle (N) in:  1.43"
    • • ID (mm):  9.4
    Hygienic
    VC3PDF0251956L
    		3 Piece Ball Valve (3/4") | Ferrule Connection | 316L 3 Piece Ball Valve - Ferrule Connection 3/4" 25.4(mm)/1"(in) 19.05(mm)/0.75"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     3 Piece Ball Valve (3/4") | Ferrule Connection | 316L
    Dimensional Image Key:
    • • Length (C) mm:  103.2
    • • Flange (A) mm:  25.4
    • • Flange (A) in:  1
    • • Length (C) in:  4.06"
    • • Tube OD (D) mm:  19.05
    • • Tube OD (D) in:  0.75"
    • • Tube ID (E) mm:  15.75
    • • Tube ID (E) in:  0.62"
    • • Handle Length (P) mm:  130
    • • Handle Length (P) in:  5.12"
    • • Height Handle (N) mm:  42.8
    • • Height Handle (N) in:  1.69"
    • • ID (mm):  15.75
    Hygienic
    VC3PDF0500256L
    		3 Piece Ball Valve (1") | Ferrule Connection | 316L 3 Piece Ball Valve - Ferrule Connection 1" 50.5(mm)/1.99"(in) 25.4(mm)/1"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     3 Piece Ball Valve (1") | Ferrule Connection | 316L
    Dimensional Image Key:
    • • Length (C) mm:  114
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99
    • • Length (C) in:  4.49"
    • • Tube OD (D) mm:  25.4
    • • Tube OD (D) in:  1"
    • • Tube ID (E) mm:  22.1
    • • Tube ID (E) in:  0.87"
    • • Handle Length (P) mm:  170
    • • Handle Length (P) in:  6.69"
    • • Height Handle (N) mm:  51.15
    • • Height Handle (N) in:  2.01"
    • • ID (mm):  22.1
    Hygienic
    VC3PDF0500316L
    		3 Piece Ball Valve (1 1/4") | Ferrule Connection | 316L 3 Piece Ball Valve - Ferrule Connection 1 1/4" 50.5(mm)/1.99"(in) 31.75(mm)/1.25"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     3 Piece Ball Valve (1 1/4") | Ferrule Connection | 316L
    Dimensional Image Key:
    • • Length (C) mm:  126
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99
    • • Length (C) in:  4.96"
    • • Tube OD (D) mm:  31.75
    • • Tube OD (D) in:  1.25"
    • • Tube ID (E) mm:  28.4
    • • Tube ID (E) in:  1.12"
    • • Handle Length (P) mm:  170
    • • Handle Length (P) in:  6.69"
    • • Height Handle (N) mm:  61
    • • Height Handle (N) in:  2.4"
    • • ID (mm):  28.4
    Hygienic
    VC3PDF0500386L
    		3 Piece Ball Valve (1 1/2") | Ferrule Connection | 316L 3 Piece Ball Valve - Ferrule Connection 1 1/2" 50.5(mm)/1.99"(in) 38.1(mm)/1.5"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     3 Piece Ball Valve (1 1/2") | Ferrule Connection | 316L
    Dimensional Image Key:
    • • Length (C) mm:  136.7
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99
    • • Length (C) in:  5.38"
    • • Tube OD (D) mm:  38.1
    • • Tube OD (D) in:  1.5"
    • • Tube ID (E) mm:  34.8
    • • Tube ID (E) in:  1.37"
    • • Handle Length (P) mm:  213
    • • Handle Length (P) in:  8.39"
    • • Height Handle (N) mm:  71.75
    • • Height Handle (N) in:  2.82"
    • • ID (mm):  34.8
    Hygienic
    VC3PDF0640516L
    		3 Piece Ball Valve (2") | Ferrule Connection | 316L 3 Piece Ball Valve - Ferrule Connection 2" 64(mm)/2.52"(in) 50.8(mm)/2"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     3 Piece Ball Valve (2") | Ferrule Connection | 316L
    Dimensional Image Key:
    • • Length (C) mm:  153.2
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52
    • • Length (C) in:  6.03"
    • • Tube OD (D) mm:  50.8
    • • Tube OD (D) in:  2"
    • • Tube ID (E) mm:  47.5
    • • Tube ID (E) in:  1.87"
    • • Handle Length (P) mm:  213
    • • Handle Length (P) in:  8.39"
    • • Height Handle (N) mm:  79.5
    • • Height Handle (N) in:  3.13"
    • • ID (mm):  47.5
    Hygienic
    VC3PDF0770636L
    		3 Piece Ball Valve (2 1/2") | Ferrule Connection | 316L 3 Piece Ball Valve - Ferrule Connection 2 1/2" 77.5(mm)/3.05"(in) 63.5(mm)/2.5"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     3 Piece Ball Valve (2 1/2") | Ferrule Connection | 316L
    Dimensional Image Key:
    • • Length (C) mm:  167.2
    • • Flange (A) mm:  77.5
    • • Flange (A) in:  3.05
    • • Length (C) in:  6.58"
    • • Tube OD (D) mm:  63.5
    • • Tube OD (D) in:  2.5"
    • • Tube ID (E) mm:  60.2
    • • Tube ID (E) in:  2.37"
    • • Handle Length (P) mm:  213
    • • Handle Length (P) in:  8.39"
    • • Height Handle (N) mm:  93.75
    • • Height Handle (N) in:  3.69"
    • • ID (mm):  60.2
    Hygienic
    VC3PDF0910766L
    		3 Piece Ball Valve (3") | Ferrule Connection | 316L 3 Piece Ball Valve - Ferrule Connection 3" 91(mm)/3.58"(in) 76.2(mm)/3"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     3 Piece Ball Valve (3") | Ferrule Connection | 316L
    Dimensional Image Key:
    • • Length (C) mm:  192.1
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58
    • • Length (C) in:  7.56"
    • • Tube OD (D) mm:  76.2
    • • Tube OD (D) in:  3"
    • • Tube ID (E) mm:  72.9
    • • Tube ID (E) in:  2.87"
    • • Handle Length (P) mm:  320
    • • Handle Length (P) in:  12.6"
    • • Height Handle (N) mm:  109.75
    • • Height Handle (N) in:  4.32"
    • • ID (mm):  72.9
    Hygienic
    VC3PDF1191016L
    		3 Piece Ball Valve (4ÔÇØ) | Ferrule Connection | 316L 3 Piece Ball Valve - Ferrule Connection 4" Ø 119(mm)/4.69"(in) 101.6(mm)/4"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     3 Piece Ball Valve (4ÔÇØ) | Ferrule Connection | 316L
    Dimensional Image Key:
    • • Length (C) mm:  239
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69
    • • Length (C) in:  9.41"
    • • Tube OD (D) mm:  101.6
    • • Tube OD (D) in:  4"
    • • Tube ID (E) mm:  97.4
    • • Tube ID (E) in:  3.83"
    • • Handle Length (P) mm:  320
    • • Handle Length (P) in:  12.6"
    • • Height Handle (N) mm:  122.75
    • • Height Handle (N) in:  4.83"
    • • ID (mm):  97.4
    Hygienic
    VC3PDW0251276L
    		3 Piece Ball Valve (1/2") | Weld Connection | 316L 3 Piece Ball Valve - Weld Connection 1/2" 12.7(mm)/0.5"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     3 Piece Ball Valve (1/2") | Weld Connection | 316L
    Dimensional Image Key:
    • • Length (C) mm:  90.4
    • • Length (C) in:  3.56"
    • • Tube OD (D) mm:  12.7
    • • Tube OD (D) in:  0.5"
    • • Tube ID (E) mm:  9.4
    • • Tube ID (E) in:  0.37"
    • • Handle Length (P) mm:  131
    • • Handle Length (P) in:  5.16"
    • • Height Handle (N) mm:  36.4
    • • Height Handle (N) in:  1.43"
    • • ID (mm):  9.4
    Hygienic
    VC3PDW0251956L
    		3 Piece Ball Valve (3/4") | Weld Connection | 316L 3 Piece Ball Valve - Weld Connection 3/4" 19.05(mm)/0.75"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     3 Piece Ball Valve (3/4") | Weld Connection | 316L
    Dimensional Image Key:
    • • Length (C) mm:  103.2
    • • Length (C) in:  4.06"
    • • Tube OD (D) mm:  19.05
    • • Tube OD (D) in:  0.75"
    • • Tube ID (E) mm:  15.75
    • • Tube ID (E) in:  0.62"
    • • Handle Length (P) mm:  131
    • • Handle Length (P) in:  5.16"
    • • Height Handle (N) mm:  42.8
    • • Height Handle (N) in:  1.69"
    • • ID (mm):  15.75
    Hygienic
    VC3PDW0500256L
    		3 Piece Ball Valve (1") | Weld Connection | 316L 3 Piece Ball Valve - Weld Connection 1" 25.4(mm)/1"(in) 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     3 Piece Ball Valve (1") | Weld Connection | 316L
    Dimensional Image Key:
    • • Length (C) mm:  114
    • • Length (C) in:  4.49"
    • • Tube OD (D) mm:  25.4
    • • Tube OD (D) in:  1"
    • • Tube ID (E) mm:  22.1
    • • Tube ID (E) in:  0.87"
    • • Handle Length (P) mm:  169
    • • Handle Length (P) in:  6.65"
    • • Height Handle (N) mm:  51.15
    • • Height Handle (N) in:  2.01"
    • • ID (mm):  22.1
    Prev 1 2 3 4 Next
    3 Piece Ball Valve (1/2") | Ferrule Connection | 316L
    Hygienic
    VC3PDF0251276L
    Request Price
    3 Piece Ball Valve (3/4") | Ferrule Connection | 316L
    Hygienic
    VC3PDF0251956L
    Request Price
    3 Piece Ball Valve (1") | Ferrule Connection | 316L
    Hygienic
    VC3PDF0500256L
    Request Price
    3 Piece Ball Valve (1 1/4") | Ferrule Connection | 316L
    Hygienic
    VC3PDF0500316L
    Request Price
    3 Piece Ball Valve (1 1/2") | Ferrule Connection | 316L
    Hygienic
    VC3PDF0500386L
    Request Price
    3 Piece Ball Valve (2") | Ferrule Connection | 316L
    Hygienic
    VC3PDF0640516L
    Request Price
    3 Piece Ball Valve (2 1/2") | Ferrule Connection | 316L
    Hygienic
    VC3PDF0770636L
    Request Price
    3 Piece Ball Valve (3") | Ferrule Connection | 316L
    Hygienic
    VC3PDF0910766L
    Request Price
    3 Piece Ball Valve (4ÔÇØ) | Ferrule Connection | 316L
    Hygienic
    VC3PDF1191016L
    Request Price
    3 Piece Ball Valve (1/2") | Weld Connection | 316L
    Hygienic
    VC3PDW0251276L
    Request Price
    3 Piece Ball Valve (3/4") | Weld Connection | 316L
    Hygienic
    VC3PDW0251956L
    Request Price
    3 Piece Ball Valve (1") | Weld Connection | 316L
    Hygienic
    VC3PDW0500256L
    Request Price
    Please Login To Order
    Prev 1 2 3 4 Next
