    Elbow 90° | DT16 | DT-4.3.3-3 (SF1 & SF4)


    Elbow 90° | DT16 | DT-4.3.3-3 (SF1 & SF4)
    Description

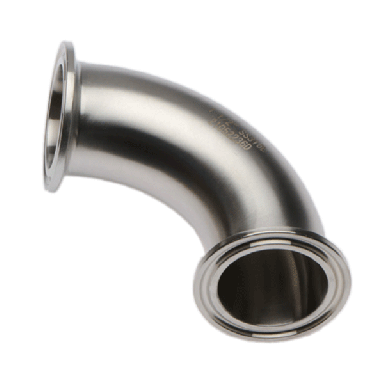

    ACL BPE 90º Elbows are manufactured to be ASME BPE standard DT-4.1.1-3 compliant. Designed for high-purity Pharmaceutical and Biotech process pipelines, these elbows provide a clean, consistent 90-degree direction change with minimal dead legs. Available in surface finish grades SF1 and SF4. Produced from 316L stainless steel.

    Specifications
    • Standard: ASME BPE DT-4.1.1-3
    • Surface finish: SF1 (0.5Ra µm) or SF4 (0.38Ra µm electropolished)
    • Materials comply with ASME VIII
    • 3.1 material certification available

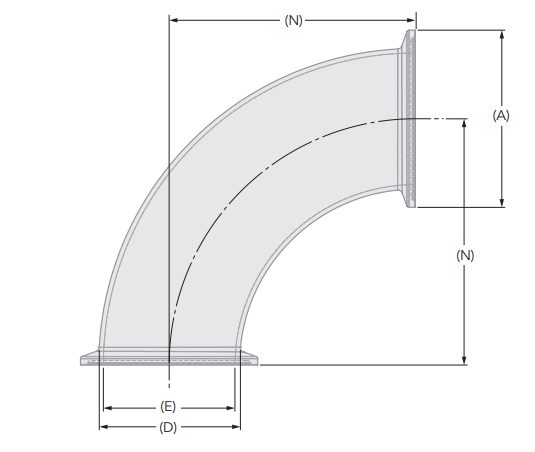

    Dimensional Image
    Features
    • Manufactured to ASME BPE standard DT-4.1.1-3
    • Clean 90-degree direction change with minimal dead leg
    • Available in SF1 and SF4 surface finish grades
    • Produced from 316L stainless steel
    • Full laser marking for traceability
    • 3.1 material certification available
    Materials
    • Material: 316L Stainless Steel as standard
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.
    Total: 44
    Industry
    PART#    		 Product
    Name    		 Type Size Imperial Size Metric Size ISO Size 2 Imperial Size 2 Metric Flange Flange 2 ID OD Material Connection Length Surface Finish Connection Type
    Add
    To Cart     LIST
    PRICE
    Hygienic
    DFE9A1025635S16L
    		Hygienic BPE Fitting | BPE 90° Elbow - SF1 (1/4") | 316L BPE 90° Elbow - SF1 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 90° Elbow - SF1 (1/4") | 316L Legacy Part Number IE:   EL.BPE.90.025.SF1 Legacy Part Number UK:   EL.BPE.90.025.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • ID (E) mm:  4.35
    • • OD (D) mm:  6.35
    • • Distance (N) mm:  41.28
    • • ID (E) in:  0.17"
    • • OD (D) in:  0.25"
    • • Distance (N) in:  1.63"
    Hygienic
    DFE9A1025952S16L
    		Hygienic BPE Fitting | BPE 90° Elbow - SF1 (3/8") | 316L BPE 90° Elbow - SF1 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 90° Elbow - SF1 (3/8") | 316L Legacy Part Number IE:   EL.BPE.90.038.SF1 Legacy Part Number UK:   EL.BPE.90.038.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • ID (E) mm:  7.75
    • • OD (D) mm:  9.53
    • • Distance (N) mm:  41.29
    • • ID (E) in:  0.31"
    • • OD (D) in:  0.38"
    • • Distance (N) in:  1.63"
    Hygienic
    DFE9A1025127S16L
    		Hygienic BPE Fitting | BPE 90° Elbow - SF1 (1/2") | 316L BPE 90° Elbow - SF1 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 90° Elbow - SF1 (1/2") | 316L Legacy Part Number IE:   EL.BPE.90.050.SF1 Legacy Part Number UK:   EL.BPE.90.050.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • ID (E) mm:  9.4
    • • OD (D) mm:  12.7
    • • Distance (N) mm:  41.3
    • • ID (E) in:  0.37"
    • • OD (D) in:  0.5"
    • • Distance (N) in:  1.63"
    Hygienic
    DFE9A1025195S16L
    		Hygienic BPE Fitting | BPE 90° Elbow - SF1 (3/4") | 316L BPE 90° Elbow - SF1 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 90° Elbow - SF1 (3/4") | 316L Legacy Part Number IE:   EL.BPE.90.075.SF1 Legacy Part Number UK:   EL.BPE.90.075.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • ID (E) mm:  15.75
    • • OD (D) mm:  19.05
    • • Distance (N) mm:  41.31
    • • ID (E) in:  0.62"
    • • OD (D) in:  0.75"
    • • Distance (N) in:  1.63"
    Hygienic
    DFE9A1050025S16L
    		Hygienic BPE Fitting | BPE 90° Elbow - SF1 (1") | 316L BPE 90° Elbow - SF1 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 90° Elbow - SF1 (1") | 316L Legacy Part Number IE:   EL.BPE.90.100.SF1 Legacy Part Number UK:   EL.BPE.90.100.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • ID (E) mm:  22.1
    • • OD (D) mm:  25.4
    • • Distance (N) mm:  50.8
    • • ID (E) in:  0.87"
    • • OD (D) in:  1"
    • • Distance (N) in:  2"
    Hygienic
    DFE9A1050038S16L
    		Hygienic BPE Fitting | BPE 90° Elbow - SF1 (1 1/2") | 316L BPE 90° Elbow - SF1 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 90° Elbow - SF1 (1 1/2") | 316L Legacy Part Number IE:   EL.BPE.90.150.SF1 Legacy Part Number UK:   EL.BPE.90.150.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • ID (E) mm:  34.8
    • • OD (D) mm:  38.1
    • • Distance (N) mm:  69.85
    • • ID (E) in:  1.37"
    • • OD (D) in:  1.5"
    • • Distance (N) in:  2.75"
    Hygienic
    DFE9A1064051S16L
    		Hygienic BPE Fitting | BPE 90° Elbow - SF1 (2") | 316L BPE 90° Elbow - SF1 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 90° Elbow - SF1 (2") | 316L Legacy Part Number IE:   EL.BPE.90.200.SF1 Legacy Part Number UK:   EL.BPE.90.200.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • ID (E) mm:  47.5
    • • OD (D) mm:  50.8
    • • Distance (N) mm:  88.9
    • • ID (E) in:  1.87"
    • • OD (D) in:  2"
    • • Distance (N) in:  3.5"
    Hygienic
    DFE9A1077063S16L
    		Hygienic BPE Fitting | BPE 90° Elbow - SF1 (2 1/2") | 316L BPE 90° Elbow - SF1 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 90° Elbow - SF1 (2 1/2") | 316L Legacy Part Number IE:   EL.BPE.90.250.SF1 Legacy Part Number UK:   EL.BPE.90.250.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  77.5
    • • Flange (A) in:  3.05"
    • • ID (E) mm:  60.2
    • • OD (D) mm:  63.5
    • • Distance (N) mm:  107.95
    • • ID (E) in:  2.37"
    • • OD (D) in:  2.5"
    • • Distance (N) in:  4.25"
    Hygienic
    DFE9A1091076S16L
    		Hygienic BPE Fitting | BPE 90° Elbow - SF1 (3") | 316L BPE 90° Elbow - SF1 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 90° Elbow - SF1 (3") | 316L Legacy Part Number IE:   EL.BPE.90.300.SF1 Legacy Part Number UK:   EL.BPE.90.300.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • ID (E) mm:  72.9
    • • OD (D) mm:  76.2
    • • Distance (N) mm:  127
    • • ID (E) in:  2.87"
    • • OD (D) in:  3"
    • • Distance (N) in:  5"
    Hygienic
    DFE9A1119101S16L
    		Hygienic BPE Fitting | BPE 90° Elbow - SF1 (4") | 316L BPE 90° Elbow - SF1 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 90° Elbow - SF1 (4") | 316L Legacy Part Number IE:   EL.BPE.90.400.SF1 Legacy Part Number UK:   EL.BPE.90.400.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69"
    • • ID (E) mm:  97.38
    • • OD (D) mm:  101.6
    • • Distance (N) mm:  168.28
    • • ID (E) in:  3.83"
    • • OD (D) in:  4"
    • • Distance (N) in:  6.63"
    Hygienic
    DFE9A1167152S16L
    		Hygienic BPE Fitting | BPE 90° Elbow - SF1 (6") | 316L BPE 90° Elbow - SF1 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 90° Elbow - SF1 (6") | 316L Legacy Part Number IE:   EL.BPE.90.600.SF1 Legacy Part Number UK:   EL.BPE.90.600.SF1
    Dimensional Image Key:
    • • Flange (A) mm:  167
    • • Flange (A) in:  6.57"
    • • ID (E) mm:  146.86
    • • OD (D) mm:  152.4
    • • Distance (N) mm:  266.7
    • • ID (E) in:  5.78"
    • • OD (D) in:  6"
    • • Distance (N) in:  10.5"
    Hygienic
    DFE9A1025635S46L
    		Hygienic BPE Fitting | BPE 90° Elbow - SF4 (1/4") | 316L BPE 90° Elbow - SF4 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic BPE Fitting | BPE 90° Elbow - SF4 (1/4") | 316L Legacy Part Number IE:   EL.BPE.90.025.SF4 Legacy Part Number UK:   EL.BPE.90.025.SF4
    Dimensional Image Key:
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • ID (E) mm:  4.35
    • • OD (D) mm:  6.35
    • • Distance (N) mm:  41.28
    • • ID (E) in:  0.17"
    • • OD (D) in:  0.25"
    • • Distance (N) in:  1.63"
