Equal Tee | DT18 | DT-4.1.2-4

Description

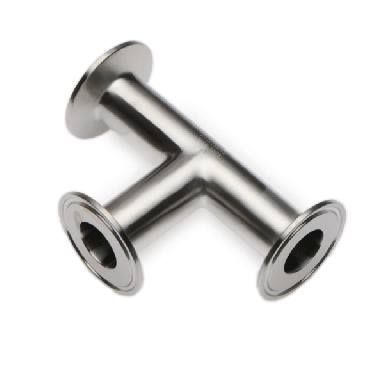

ACL BPE Equal Tees are manufactured to be ASME BPE standard DT-4.1.2-4 compliant. Designed for high-purity Pharmaceutical and Biotech process systems, these equal tees provide three equal-bore connections for clean, efficient flow distribution. Produced from 316L stainless steel with surface finishes to SF1 or SF4 as required.

Specifications

Standard: ASME BPE DT-4.1.2-4
Surface finish: SF1 (0.5Ra µm) or SF4 (0.38Ra µm electropolished)
Materials comply with ASME VIII
3.1 material certification available

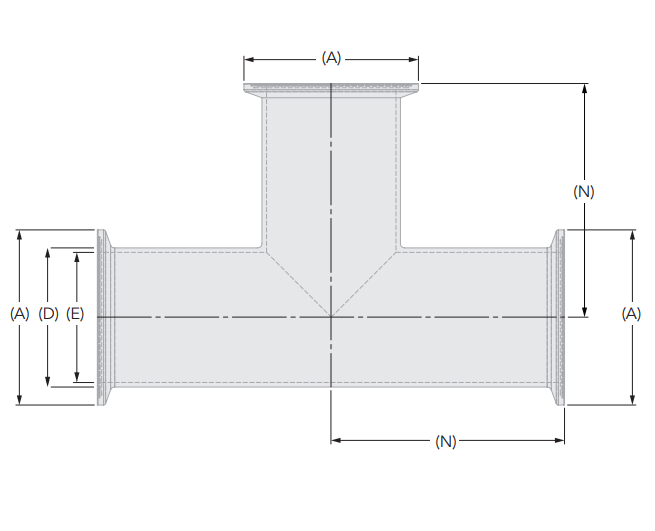

Dimensional Image

Features

Manufactured to ASME BPE standard DT-4.1.2-4
Three equal-bore connections for balanced flow
Available in SF1 and SF4 surface finish grades
Produced from 316L stainless steel
Full laser marking for traceability
3.1 material certification available

Materials

Material: 316L Stainless Steel as standard

Data Center

ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.

Industry PART#	Product Name	Type	Material	Add To Cart LIST PRICE
Hygienic DFTEA1025635S16L	Hygienic BPE Fitting \| BPE Equal Tee (1/4") \| 316L	BPE Equal Tee	316L	Contact Customer Service For Access To Availability & Ordering
View Page Hygienic BPE Fitting \| BPE Equal Tee (1/4") \| 316L Legacy Part Number IE: TP.BPE.025 Legacy Part Number UK: TP.BPE.025 Dimensional Image Key: • Flange (A) mm: 25 • Flange (A) in: 0.98" • ID (E) mm: 4.35 • Distance (N): 57.15 • OD (D) mm: 6.35 • Distance (N) mm: 57.15 • ID (E) in: 0.17" • OD (D) in: 0.25" • Distance (N) in: 2.25"
Hygienic DFTEA1025952S16L	Hygienic BPE Fitting \| BPE Equal Tee (3/8") \| 316L	BPE Equal Tee	316L	Contact Customer Service For Access To Availability & Ordering
View Page Hygienic BPE Fitting \| BPE Equal Tee (3/8") \| 316L Legacy Part Number IE: TP.BPE.038 Legacy Part Number UK: TP.BPE.038 Dimensional Image Key: • Flange (A) mm: 25 • Flange (A) in: 0.98" • ID (E) mm: 7.75 • Distance (N): 57.15 • OD (D) mm: 9.53 • Distance (N) mm: 57.15 • ID (E) in: 0.31" • OD (D) in: 0.38" • Distance (N) in: 2.25"
Hygienic DFTEA1025127S16L	Hygienic BPE Fitting \| BPE Equal Tee (1/2") \| 316L	BPE Equal Tee	316L	Contact Customer Service For Access To Availability & Ordering
View Page Hygienic BPE Fitting \| BPE Equal Tee (1/2") \| 316L Legacy Part Number IE: TP.BPE.050 Legacy Part Number UK: TP.BPE.050 Dimensional Image Key: • Flange (A) mm: 25 • Flange (A) in: 0.98" • ID (E) mm: 9.4 • Distance (N): 60.33 • OD (D) mm: 12.7 • Distance (N) mm: 60.33 • ID (E) in: 0.37" • OD (D) in: 0.5" • Distance (N) in: 2.38"
Hygienic DFTEA1025195S16L	Hygienic BPE Fitting \| BPE Equal Tee (3/4") \| 316L	BPE Equal Tee	316L	Contact Customer Service For Access To Availability & Ordering
View Page Hygienic BPE Fitting \| BPE Equal Tee (3/4") \| 316L Legacy Part Number IE: TP.BPE.075 Legacy Part Number UK: TP.BPE.075 Dimensional Image Key: • Flange (A) mm: 25 • Flange (A) in: 0.98" • ID (E) mm: 15.75 • Distance (N): 63.5 • OD (D) mm: 19.05 • Distance (N) mm: 63.5 • ID (E) in: 0.62" • OD (D) in: 0.75" • Distance (N) in: 2.5"
Hygienic DFTEA1050025S16L	Hygienic BPE Fitting \| BPE Equal Tee (1") \| 316L	BPE Equal Tee	316L	Contact Customer Service For Access To Availability & Ordering
View Page Hygienic BPE Fitting \| BPE Equal Tee (1") \| 316L Legacy Part Number IE: TP.BPE.100 Legacy Part Number UK: TP.BPE.100 Dimensional Image Key: • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • ID (E) mm: 22.1 • Distance (N): 66.68 • OD (D) mm: 25.4 • Distance (N) mm: 66.68 • ID (E) in: 0.87" • OD (D) in: 1" • Distance (N) in: 2.63"
Hygienic DFTEA1050038S16L	Hygienic BPE Fitting \| BPE Equal Tee (1 1/2") \| 316L	BPE Equal Tee	316L	Contact Customer Service For Access To Availability & Ordering
View Page Hygienic BPE Fitting \| BPE Equal Tee (1 1/2") \| 316L Legacy Part Number IE: TP.BPE.0150 Legacy Part Number UK: TP.BPE.0150 Dimensional Image Key: • Flange (A) mm: 50.5 • Flange (A) in: 1.99" • ID (E) mm: 34.8 • Distance (N): 73.03 • OD (D) mm: 38.1 • Distance (N) mm: 73.03 • ID (E) in: 1.37" • OD (D) in: 1.5" • Distance (N) in: 2.88"
Hygienic DFTEA1064051S16L	Hygienic BPE Fitting \| BPE Equal Tee (2") \| 316L	BPE Equal Tee	316L	Contact Customer Service For Access To Availability & Ordering
View Page Hygienic BPE Fitting \| BPE Equal Tee (2") \| 316L Legacy Part Number IE: TP.BPE.200 Legacy Part Number UK: TP.BPE.200 Dimensional Image Key: • Flange (A) mm: 64 • Flange (A) in: 2.52" • ID (E) mm: 47.5 • Distance (N): 85.73 • OD (D) mm: 50.8 • Distance (N) mm: 85.73 • ID (E) in: 1.87" • OD (D) in: 2" • Distance (N) in: 3.38"
Hygienic DFTEA1077063S16L	Hygienic BPE Fitting \| BPE Equal Tee (2 1/2") \| 316L	BPE Equal Tee	316L	Contact Customer Service For Access To Availability & Ordering
View Page Hygienic BPE Fitting \| BPE Equal Tee (2 1/2") \| 316L Legacy Part Number IE: TP.BPE.250 Legacy Part Number UK: TP.BPE.250 Dimensional Image Key: • Flange (A) mm: 77 • Flange (A) in: 3.03" • ID (E) mm: 60.2 • Distance (N): 92.08 • OD (D) mm: 63.5 • Distance (N) mm: 92.08 • ID (E) in: 2.37" • OD (D) in: 2.5" • Distance (N) in: 3.63"
Hygienic DFTEA1091076S46L	Hygienic BPE Fitting \| BPE Equal Tee (3") \| 316L	BPE Equal Tee	316L	Contact Customer Service For Access To Availability & Ordering
View Page Hygienic BPE Fitting \| BPE Equal Tee (3") \| 316L Legacy Part Number IE: TP.BPE.300 Legacy Part Number UK: TP.BPE.300 Dimensional Image Key: • Flange (A) mm: 91 • Flange (A) in: 3.58" • ID (E) mm: 72.9 • Distance (N): 98.43 • OD (D) mm: 76.2 • Distance (N) mm: 98.43 • ID (E) in: 2.87" • OD (D) in: 3" • Distance (N) in: 3.88"
Hygienic DFTEA1119101S16L	Hygienic BPE Fitting \| BPE Equal Tee (4") \| 316L	BPE Equal Tee	316L	Contact Customer Service For Access To Availability & Ordering
View Page Hygienic BPE Fitting \| BPE Equal Tee (4") \| 316L Legacy Part Number IE: TP.BPE.400 Legacy Part Number UK: TP.BPE.400 Dimensional Image Key: • Flange (A) mm: 119 • Flange (A) in: 4.69" • ID (E) mm: 97.38 • Distance (N): 120.65 • OD (D) mm: 101.6 • Distance (N) mm: 120.65 • ID (E) in: 3.83" • OD (D) in: 4" • Distance (N) in: 4.75"
Hygienic DFTEA167152S16L	Hygienic BPE Fitting \| BPE Equal Tee (6") \| 316L	BPE Equal Tee	316L	Contact Customer Service For Access To Availability & Ordering
View Page Hygienic BPE Fitting \| BPE Equal Tee (6") \| 316L Legacy Part Number IE: TP.BPE.600 Legacy Part Number UK: TP.BPE.600 Dimensional Image Key: • Flange (A) mm: 167 • Flange (A) in: 6.57" • ID (E) mm: 146.86 • Distance (N): 180.98 • OD (D) mm: 152.4 • Distance (N) mm: 180.98 • ID (E) in: 5.78" • OD (D) in: 6" • Distance (N) in: 7.13"
Pharmaceutical PFTEA1025635S16L	Pharmaceutical BPE Fitting \| BPE Equal Tee (1/4") \| 316L	BPE Equal Tee	316L	Contact Customer Service For Access To Availability & Ordering
View Page Pharmaceutical BPE Fitting \| BPE Equal Tee (1/4") \| 316L Legacy Part Number IE: TP.BPE.025 Dimensional Image Key: • Flange (A) mm: 25 • Flange (A) in: 0.98" • ID (E) mm: 4.35 • Distance (N): 57.15 • OD (D) mm: 6.35 • Distance (N) mm: 57.15 • ID (E) in: 0.17" • OD (D) in: 0.25" • Distance (N) in: 2.25"
