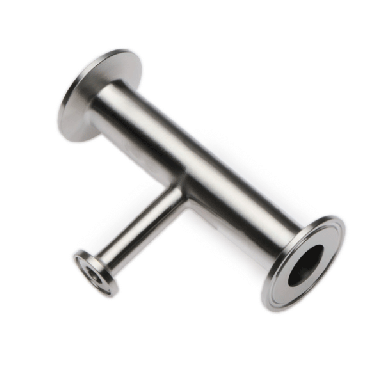

    Reducing Tee | DT19 | DT-4.1.2-8


    Reducing Tee | DT19 | DT-4.1.2-8
    Description
    BPE Reducing Tee DT-4.1.2-8; flatness of sealing face meets or exceeds guidelines​.
    Specifications
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​

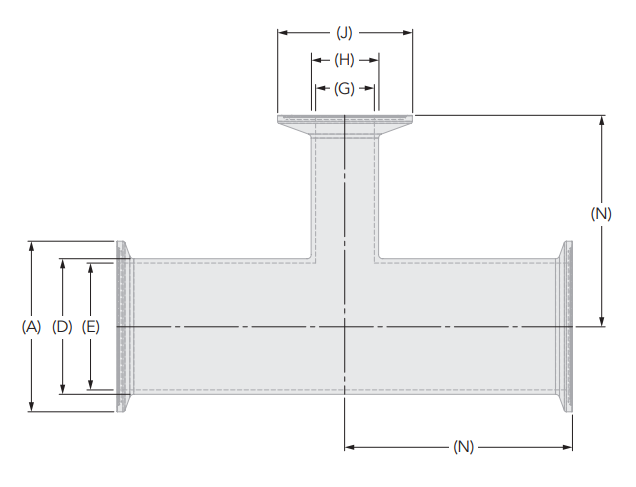

    Dimensional Image
    Features
    • Produced in the UK​
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
    • Circularity of components is within 0.1mm​
    ASME BPE Fittings / Reducing Tee | DT19 | DT-4.1.2-8
    Clamps & Sealing Clamps & Sealing Fittings Fittings Weld Fittings Weld Fittings ASME BPE Fittings ASME BPE Fittings Sight Flow Indicators Sight Flow Indicators Valves Valves Maintenance Items Maintenance Items Single Use Single Use Filters Filters
    Reducing Tee | DT19 | DT-4.1.2-8 Reducing Tee | DT19 | DT-4.1.2-8
    Elbow 45° | DT17 | DT-4.1.1-6 Elbow 45° | DT17 | DT-4.1.1-6 Elbow 90° | DT16 | DT-4.3.3-3 (SF1 & SF4) Elbow 90° | DT16 | DT-4.3.3-3 (SF1 & SF4) Cross Piece | DT18 | DT-4.1.2-4 Cross Piece | DT18 | DT-4.1.2-4 Equal Tee | DT18 | DT-4.1.2-4 Equal Tee | DT18 | DT-4.1.2-4
    Total: 10
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade Standard (EN) Size (in) Size (in) 2 OD (mm/in) ID (mm/in) Wall Thickness WT (mm/in) Surface Finish Center To End C (mm/in) Radius (mm/in)
    PFRSA1000195127S16L
    		Pharmaceutical BPE Fitting | BPE Reducing Tee (3/4" to 1/2") | 316L BPE Reducing Tee
    dimensional image
    View Page → Pharmaceutical BPE Fitting | BPE Reducing Tee (3/4" to 1/2") | 316L Legacy Part Number IE:  RT.BPE.075.050 Dimensional Image Key:
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   19.05
    • ID (E) mm:   15.75
    • OD 2 (H) mm:   12.7
    • ID 2 (G) mm:   9.4
    • Flange 2 (J):   25
    • Distance (N):   —
    • OD (D) mm:   19.05
    • Flange 1 (A) mm:   25
    • ID 1 (E) mm:   15.75
    • Flange 2 (J) mm:   25
    • Distance (N) mm:   63.5
    • ID (E) in:   0.62"
    • OD (D) in:   0.75"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.37"
    • OD 1 (D) in:   —
    • Distance (N) in:   2.5"
    • OD 2 (H) in:   0.5"
    PFRSA1000025127S16L
    		Pharmaceutical BPE Fitting | BPE Reducing Tee (1" to 1/2") | 316L BPE Reducing Tee
    dimensional image
    View Page → Pharmaceutical BPE Fitting | BPE Reducing Tee (1" to 1/2") | 316L Legacy Part Number IE:  RT.BPE.100.050 Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   25.4
    • ID (E) mm:   22.1
    • OD 2 (H) mm:   12.7
    • ID 2 (G) mm:   9.4
    • Flange 2 (J):   25
    • Distance (N):   —
    • OD (D) mm:   25.4
    • Flange 1 (A) mm:   50.5
    • ID 1 (E) mm:   22.1
    • Flange 2 (J) mm:   25
    • Distance (N) mm:   66.68
    • ID (E) in:   0.87"
    • OD (D) in:   1"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.37"
    • OD 1 (D) in:   —
    • Distance (N) in:   2.63"
    • OD 2 (H) in:   0.5"
    PFRSA1000025195S16L
    		Pharmaceutical BPE Fitting | BPE Reducing Tee (1" to 3/4") | 316L BPE Reducing Tee
    dimensional image
    View Page → Pharmaceutical BPE Fitting | BPE Reducing Tee (1" to 3/4") | 316L Legacy Part Number IE:  RT.BPE.100.075 Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   25.4
    • ID (E) mm:   22.1
    • OD 2 (H) mm:   19.05
    • ID 2 (G) mm:   15.75
    • Flange 2 (J):   25
    • Distance (N):   —
    • OD (D) mm:   25.4
    • Flange 1 (A) mm:   50.5
    • ID 1 (E) mm:   22.1
    • Flange 2 (J) mm:   25
    • Distance (N) mm:   66.68
    • ID (E) in:   0.87"
    • OD (D) in:   1"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.62"
    • OD 1 (D) in:   —
    • Distance (N) in:   2.63"
    • OD 2 (H) in:   0.75"
    PFRSA1000038127S16L
    		Pharmaceutical BPE Fitting | BPE Reducing Tee (1 1/2" to 1/2") | 316L BPE Reducing Tee
    dimensional image
    View Page → Pharmaceutical BPE Fitting | BPE Reducing Tee (1 1/2" to 1/2") | 316L Legacy Part Number IE:  RT.BPE.150.050 Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   38.1
    • ID (E) mm:   34.8
    • OD 2 (H) mm:   12.7
    • ID 2 (G) mm:   9.4
    • Flange 2 (J):   25
    • Distance (N):   —
    • OD (D) mm:   38.1
    • Flange 1 (A) mm:   50.5
    • ID 1 (E) mm:   34.8
    • Flange 2 (J) mm:   25
    • Distance (N) mm:   73.03
    • ID (E) in:   1.37"
    • OD (D) in:   1.5"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.37"
    • OD 1 (D) in:   —
    • Distance (N) in:   2.88"
    • OD 2 (H) in:   0.5"
    PFRSA1000038195S16L
    		Pharmaceutical BPE Fitting | BPE Reducing Tee (1 1/2" to 3/4") | 316L BPE Reducing Tee
    dimensional image
    View Page → Pharmaceutical BPE Fitting | BPE Reducing Tee (1 1/2" to 3/4") | 316L Legacy Part Number IE:  RT.BPE.150.075 Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   38.1
    • ID (E) mm:   34.8
    • OD 2 (H) mm:   19.05
    • ID 2 (G) mm:   15.75
    • Flange 2 (J):   25
    • Distance (N):   —
    • OD (D) mm:   38.1
    • Flange 1 (A) mm:   50.5
    • ID 1 (E) mm:   34.8
    • Flange 2 (J) mm:   25
    • Distance (N) mm:   73.03
    • ID (E) in:   1.37"
    • OD (D) in:   1.5"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.62"
    • OD 1 (D) in:   —
    • Distance (N) in:   2.88"
    • OD 2 (H) in:   0.75"
    PFRSA1000038025S16L
    		Pharmaceutical BPE Fitting | BPE Reducing Tee (1 1/2" to 1") | 316L BPE Reducing Tee
    dimensional image
    View Page → Pharmaceutical BPE Fitting | BPE Reducing Tee (1 1/2" to 1") | 316L Legacy Part Number IE:  RT.BPE.150.100 Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   38.1
    • ID (E) mm:   34.8
    • OD 2 (H) mm:   25.4
    • ID 2 (G) mm:   22.1
    • Flange 2 (J):   50.5
    • Distance (N):   —
    • OD (D) mm:   38.1
    • Flange 1 (A) mm:   50.5
    • ID 1 (E) mm:   34.8
    • Flange 2 (J) mm:   50.5
    • Distance (N) mm:   73.03
    • ID (E) in:   1.37"
    • OD (D) in:   1.5"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   1.99"
    • ID 2 (G) in:   0.87"
    • OD 1 (D) in:   —
    • Distance (N) in:   2.88"
    • OD 2 (H) in:   1"
    PFRSA1000051127S16L
    		Pharmaceutical BPE Fitting | BPE Reducing Tee (2" to 1/2") | 316L BPE Reducing Tee
    dimensional image
    View Page → Pharmaceutical BPE Fitting | BPE Reducing Tee (2" to 1/2") | 316L Legacy Part Number IE:  RT.BPE.200.050 Dimensional Image Key:
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • OD 1 (D) mm:   50.8
    • ID (E) mm:   47.5
    • OD 2 (H) mm:   12.7
    • ID 2 (G) mm:   9.4
    • Flange 2 (J):   25
    • Distance (N):   —
    • OD (D) mm:   50.8
    • Flange 1 (A) mm:   64
    • ID 1 (E) mm:   47.5
    • Flange 2 (J) mm:   25
    • Distance (N) mm:   85.73
    • ID (E) in:   1.87"
    • OD (D) in:   2"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.37"
    • OD 1 (D) in:   —
    • Distance (N) in:   3.38"
    • OD 2 (H) in:   0.5"
    PFRSA1000051195S16L
    		Pharmaceutical BPE Fitting | BPE Reducing Tee (2" to 3/4") | 316L BPE Reducing Tee
    dimensional image
    View Page → Pharmaceutical BPE Fitting | BPE Reducing Tee (2" to 3/4") | 316L Legacy Part Number IE:  RT.BPE.200.075 Dimensional Image Key:
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • OD 1 (D) mm:   50.8
    • ID (E) mm:   47.5
    • OD 2 (H) mm:   19.05
    • ID 2 (G) mm:   15.75
    • Flange 2 (J):   25
    • Distance (N):   —
    • OD (D) mm:   50.8
    • Flange 1 (A) mm:   64
    • ID 1 (E) mm:   47.5
    • Flange 2 (J) mm:   25
    • Distance (N) mm:   85.73
    • ID (E) in:   1.87"
    • OD (D) in:   2"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.62"
    • OD 1 (D) in:   —
    • Distance (N) in:   3.38"
    • OD 2 (H) in:   0.75"
    PFRSA1000051025S16L
    		Pharmaceutical BPE Fitting | BPE Reducing Tee (2" to 1") | 316L BPE Reducing Tee
    dimensional image
    View Page → Pharmaceutical BPE Fitting | BPE Reducing Tee (2" to 1") | 316L Legacy Part Number IE:  RT.BPE.200.100 Dimensional Image Key:
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • OD 1 (D) mm:   50.8
    • ID (E) mm:   47.5
    • OD 2 (H) mm:   25.4
    • ID 2 (G) mm:   22.1
    • Flange 2 (J):   50.5
    • Distance (N):   —
    • OD (D) mm:   50.8
    • Flange 1 (A) mm:   64
    • ID 1 (E) mm:   47.5
    • Flange 2 (J) mm:   50.5
    • Distance (N) mm:   85.73
    • ID (E) in:   1.87"
    • OD (D) in:   2"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   1.99"
    • ID 2 (G) in:   0.87"
    • OD 1 (D) in:   —
    • Distance (N) in:   3.38"
    • OD 2 (H) in:   1"
    PFRSA1000051038S16L
    		Pharmaceutical BPE Fitting | BPE Reducing Tee (2" to 1 1/2") | 316L BPE Reducing Tee
    dimensional image
    View Page → Pharmaceutical BPE Fitting | BPE Reducing Tee (2" to 1 1/2") | 316L Legacy Part Number IE:  RT.BPE.200.150 Dimensional Image Key:
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • OD 1 (D) mm:   50.8
    • ID (E) mm:   47.5
    • OD 2 (H) mm:   38.1
    • ID 2 (G) mm:   34.8
    • Flange 2 (J):   50.5
    • Distance (N):   —
    • OD (D) mm:   50.8
    • Flange 1 (A) mm:   64
    • ID 1 (E) mm:   47.5
    • Flange 2 (J) mm:   50.5
    • Distance (N) mm:   85.73
    • ID (E) in:   1.87"
    • OD (D) in:   2"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   1.99"
    • ID 2 (G) in:   1.37"
    • OD 1 (D) in:   —
    • Distance (N) in:   3.38"
    • OD 2 (H) in:   1.5"
    Pharmaceutical BPE Fitting | BPE Reducing Tee (3/4
    Pharmaceutical BPE Fitting | BPE Reducing Tee (3/4" to 1/2") | 316L
    PFRSA1000195127S16L
    Pharmaceutical BPE Fitting | BPE Reducing Tee (1
    Pharmaceutical BPE Fitting | BPE Reducing Tee (1" to 1/2") | 316L
    PFRSA1000025127S16L
    Pharmaceutical BPE Fitting | BPE Reducing Tee (1
    Pharmaceutical BPE Fitting | BPE Reducing Tee (1" to 3/4") | 316L
    PFRSA1000025195S16L
    Pharmaceutical BPE Fitting | BPE Reducing Tee (1 1/2
    Pharmaceutical BPE Fitting | BPE Reducing Tee (1 1/2" to 1/2") | 316L
    PFRSA1000038127S16L
    Pharmaceutical BPE Fitting | BPE Reducing Tee (1 1/2
    Pharmaceutical BPE Fitting | BPE Reducing Tee (1 1/2" to 3/4") | 316L
    PFRSA1000038195S16L
    Pharmaceutical BPE Fitting | BPE Reducing Tee (1 1/2
    Pharmaceutical BPE Fitting | BPE Reducing Tee (1 1/2" to 1") | 316L
    PFRSA1000038025S16L
    Pharmaceutical BPE Fitting | BPE Reducing Tee (2
    Pharmaceutical BPE Fitting | BPE Reducing Tee (2" to 1/2") | 316L
    PFRSA1000051127S16L
    Pharmaceutical BPE Fitting | BPE Reducing Tee (2
    Pharmaceutical BPE Fitting | BPE Reducing Tee (2" to 3/4") | 316L
    PFRSA1000051195S16L
    Pharmaceutical BPE Fitting | BPE Reducing Tee (2
    Pharmaceutical BPE Fitting | BPE Reducing Tee (2" to 1") | 316L
    PFRSA1000051025S16L
    Pharmaceutical BPE Fitting | BPE Reducing Tee (2
    Pharmaceutical BPE Fitting | BPE Reducing Tee (2" to 1 1/2") | 316L
    PFRSA1000051038S16L
