X Piece

Description

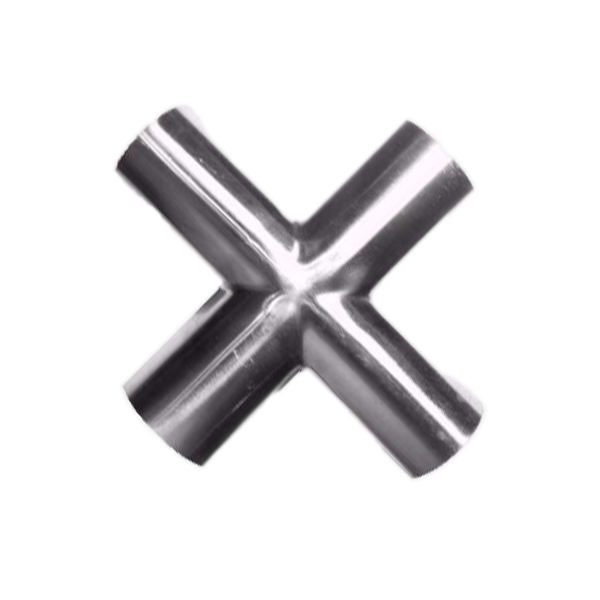

ACL X-Piece weld fittings are precision-manufactured from 316L stainless steel for use hygienic process pipelines. The four-way X configuration allows multi-directional flow distribution in hygienic process systems, with a smooth internal bore to minimise dead legs and turbulence.

Specifications

Standards: BS4825, DIN11850, ISO2037
Surface finish: 0.8Ra µm minimum (internal and external)
Materials comply with AD2000 (PED) and ASME VIII

Features

Four-way configuration for multi-directional flow distribution
Manufactured from 316L stainless steel as standard
Internal and external surface finish to 0.8Ra µm or better
Available in a range of tube sizes and standards
Full laser marking for traceability
3.1 material certification available

Materials

Material: 316L Stainless Steel as standard
Alternative materials available on request

Industry PART#	Product Name	Standard	Type	OD	Material	Add To Cart LIST PRICE
Hygienic DWXEA1076S16L	Hygienic X-Piece Equal (3") \| ASME BPE Compliant \| 316L	ASME BPE Compliant	X-Piece Equal		316L	Contact Customer Service For Access To Availability & Ordering
View Page Hygienic X-Piece Equal (3") \| ASME BPE Compliant \| 316L
Hygienic DWXEB4101SD6L	X-Piece Equal (OD 101,6mm) \| BS4825 \| 316L	BS4825	X-Piece Equal	101.6(mm)/4"(in)	316L	Contact Customer Service For Access To Availability & Ordering
View Page X-Piece Equal (OD 101,6mm) \| BS4825 \| 316L Legacy Part Number DK: XLSM0400S
Hygienic DWXEB4076SD6L	X-Piece Equal (OD 76mm) \| BS4825 \| 316L	BS4825	X-Piece Equal	76(mm)/2.99"(in)	316L	Contact Customer Service For Access To Availability & Ordering
View Page X-Piece Equal (OD 76mm) \| BS4825 \| 316L Legacy Part Number DK: XLSM0300S
Hygienic DWXEB4063SD6L	X-Piece Equal (OD 63,5mm) \| BS4825 \| 316L	BS4825	X-Piece Equal	63.5(mm)/2.5"(in)	316L	Contact Customer Service For Access To Availability & Ordering
View Page X-Piece Equal (OD 63,5mm) \| BS4825 \| 316L Legacy Part Number DK: XLSM0250S
Hygienic DWXEB4051SD6L	X-Piece Equal (OD 51mm) \| BS4825 \| 316L	BS4825	X-Piece Equal	51(mm)/2.01"(in)	316L	Contact Customer Service For Access To Availability & Ordering
View Page X-Piece Equal (OD 51mm) \| BS4825 \| 316L Legacy Part Number DK: XLSM0200S
Hygienic DWXEB4038SD6L	X-Piece Equal (OD 38mm) \| BS4825 \| 316L	BS4825	X-Piece Equal	38(mm)/1.5"(in)	316L	Contact Customer Service For Access To Availability & Ordering
View Page X-Piece Equal (OD 38mm) \| BS4825 \| 316L Legacy Part Number DK: XLSM0150S
Hygienic DWXEB4025SD6L	X-Piece Equal (OD 25mm) \| BS4825 \| 316L	BS4825	X-Piece Equal	25(mm)/0.98"(in)	316L	Contact Customer Service For Access To Availability & Ordering
View Page X-Piece Equal (OD 25mm) \| BS4825 \| 316L Legacy Part Number DK: XLSM0100S
