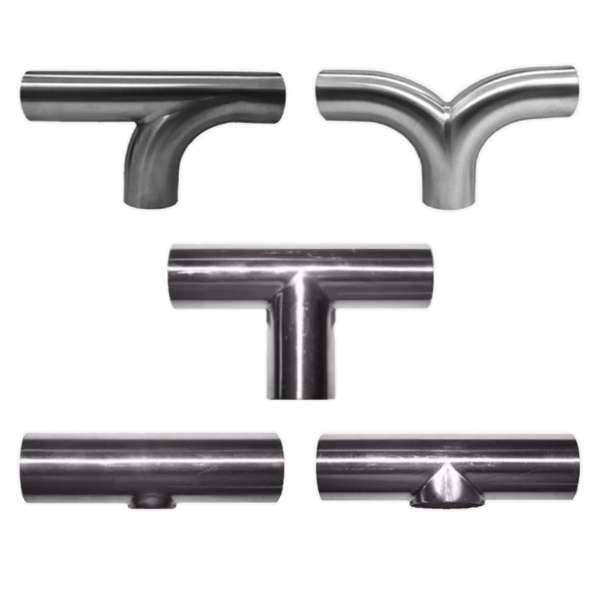

    Tee


    Tee
    Description

    ACL Tee weld fittings are precision-manufactured from 316L stainless steel for use in hygienic process pipelines. Available in equal and reducing configurations, ACL tees provide three-way flow distribution with a smooth, hygienic internal bore designed to minimise dead legs and turbulence.

    Specifications
    • Standards: BS4825, DIN11850, ISO2037
    • Surface finish: 0.8Ra µm minimum (internal and external)
    • Materials comply with AD2000 (PED) and ASME VIII
    Features
    • Equal and reducing configurations available
    • Smooth internal bore minimises dead legs
    • Manufactured from 316L stainless steel as standard
    • Internal and external surface finish to 0.8Ra µm or better
    • Available in a range of tube sizes and standards
    • Full laser marking for traceability
    • 3.1 material certification available
    Materials
    • Material: 316L Stainless Steel as standard
    • Alternative materials available on request
    Weld Fittings / Tee
    Clamps & Sealing Clamps & Sealing Fittings Fittings Weld Fittings Weld Fittings ASME BPE Fittings ASME BPE Fittings Sight Flow Indicators Sight Flow Indicators Valves Valves Maintenance Items Maintenance Items Single Use Single Use Filters Filters
    Tee Tee
    End Cap End Cap Bend Bend X Piece X Piece Y-Piece Y-Piece Reducer Reducer
    Total: 57
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade Standard (EN) Standard (ASTM) Size DN Size (mm) Size (mm) 2 OD (mm) OD (in) Wall Thickness WT (mm) Wall Thickness WT (in) Height (mm) Height (in) Center To End C (mm) Center To End C (in) Weight
    DWTIB4101SD6L

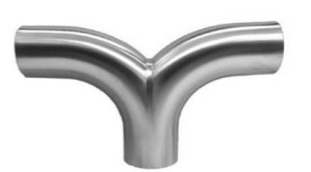

    		Seagull Tee (OD 101,6mm) | BS4825 | 316L BS4825 Seagull Tee 316L 1.4404 ˜ SS2348 101.6 4" 2 0.08" 0.180000

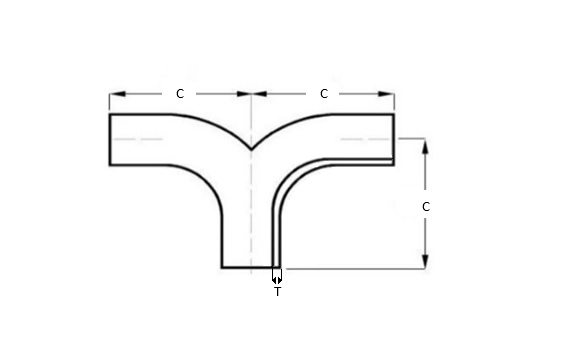

    dimensional image
    View Page → Seagull Tee (OD 101,6mm) | BS4825 | 316L GTIN:  840384327290 Legacy Part Number DK:  TTBS0400S Dimensional Image Key:
    • Thickness (T) mm:   2
    • Thickness (T) in:   0.08"
    • OD mm:   101.6
    • OD in:   4"
    • Length / Leg Length (L) mm:   195
    DWTIB4076SD6L
    		Seagull Tee (OD 76mm) | BS4825 | 316L BS4825 Seagull Tee 316L 1.4404 ˜ SS2348 76 2.99" 1.5 0.06" 0.180000
    dimensional image
    View Page → Seagull Tee (OD 76mm) | BS4825 | 316L GTIN:  840384327283 Legacy Part Number DK:  TTBS0300S Dimensional Image Key:
    • Thickness (T) mm:   1.5
    • Thickness (T) in:   0.06"
    • OD mm:   76
    • OD in:   2.99"
    • Length / Leg Length (L) mm:   155
    DWTIB4063SD6L
    		Seagull Tee (OD 63,5mm) | BS4825 | 316L BS4825 Seagull Tee 316L 1.4404 ˜ SS2348 63.5 2.5" 1.5 0.06" 0.180000
    dimensional image
    View Page → Seagull Tee (OD 63,5mm) | BS4825 | 316L GTIN:  840384327276 Legacy Part Number DK:  TTBS0250S Dimensional Image Key:
    • Thickness (T) mm:   1.5
    • Thickness (T) in:   0.06"
    • OD mm:   63.5
    • OD in:   2.5"
    • Length / Leg Length (L) mm:   135
    DWTIB4051SD6L
    		Seagull Tee (OD 51mm) | BS4825 | 316L BS4825 Seagull Tee 316L 1.4404 ˜ SS2348 51 2.01" 1.5 0.06" 0.000000
    dimensional image
    View Page → Seagull Tee (OD 51mm) | BS4825 | 316L GTIN:  840384327269 Legacy Part Number DK:  TTBS0200S Dimensional Image Key:
    • Thickness (T) mm:   1.5
    • Thickness (T) in:   0.06"
    • OD mm:   51
    • OD in:   2.01"
    • Length / Leg Length (L) mm:   110
    DWTIB4038SD6L
    		Seagull Tee (OD 38mm) | BS4825 | 316L BS4825 Seagull Tee 316L 1.4404 ˜ SS2348 38 1.5" 1.5 0.06" 0.300000
    dimensional image
    View Page → Seagull Tee (OD 38mm) | BS4825 | 316L GTIN:  840384327252 Legacy Part Number DK:  TTBS0150S Dimensional Image Key:
    • Thickness (T) mm:   1.5
    • Thickness (T) in:   0.06"
    • OD mm:   38
    • OD in:   1.5"
    • Length / Leg Length (L) mm:   85
    DWTIB4025SD6L
    		Seagull Tee (OD 25mm) | BS4825 | 316L BS4825 Seagull Tee 316L 1.4404 ˜ SS2348 25 0.98" 1.5 0.06" 0.180000
    dimensional image
    View Page → Seagull Tee (OD 25mm) | BS4825 | 316L GTIN:  840384327245 Legacy Part Number DK:  TTBS0100S Dimensional Image Key:
    • Thickness (T) mm:   1.5
    • Thickness (T) in:   0.06"
    • OD mm:   25
    • OD in:   0.98"
    • Length / Leg Length (L) mm:   65
    DWITB4101SD6L

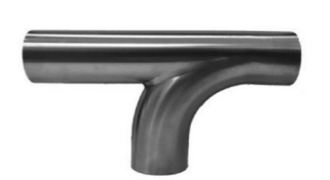

    		Sweept Tee (OD 101,6mm) | BS4825 | 316L BS4825 Sweept Tee 316L 1.4404 ˜ SS2348 101.6 4" 2 0.08" 0.180000

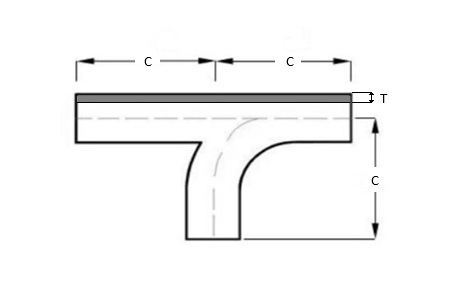

    dimensional image
    View Page → Sweept Tee (OD 101,6mm) | BS4825 | 316L GTIN:  840384326989 Legacy Part Number DK:  TSBS0400S Dimensional Image Key:
    • Thickness (T) mm:   2
    • Thickness (T) in:   0.08"
    • OD mm:   101.6
    • OD in:   4"
    • Length / Leg Length (L) mm:   195
    DWITB4076SD6L
    		Sweept Tee (OD 76mm) | BS4825 | 316L BS4825 Sweept Tee 316L 1.4404 ˜ SS2348 76 2.99" 1.5 0.06" 0.000000
    dimensional image
    View Page → Sweept Tee (OD 76mm) | BS4825 | 316L GTIN:  840384326972 Legacy Part Number DK:  TSBS0300S Dimensional Image Key:
    • Thickness (T) mm:   1.5
    • Thickness (T) in:   0.06"
    • OD mm:   76
    • OD in:   2.99"
    • Length / Leg Length (L) mm:   155
    DWITB4063SD6L
    		Sweept Tee (OD 63,5mm) | BS4825 | 316L BS4825 Sweept Tee 316L 1.4404 ˜ SS2348 63.5 2.5" 1.5 0.06" 0.180000
    dimensional image
    View Page → Sweept Tee (OD 63,5mm) | BS4825 | 316L GTIN:  840384326965 Legacy Part Number DK:  TSBS0250S Dimensional Image Key:
    • Thickness (T) mm:   1.5
    • Thickness (T) in:   0.06"
    • OD mm:   63.5
    • OD in:   2.5"
    • Length / Leg Length (L) mm:   135
    DWITB4051SD6L
    		Sweept Tee (OD 51mm) | BS4825 | 316L BS4825 Sweept Tee 316L 1.4404 ˜ SS2348 51 2.01" 1.5 0.06" 0.180000
    dimensional image
    View Page → Sweept Tee (OD 51mm) | BS4825 | 316L GTIN:  840384326958 Legacy Part Number DK:  TSBS0200S Dimensional Image Key:
    • Thickness (T) mm:   1.5
    • Thickness (T) in:   0.06"
    • OD mm:   51
    • OD in:   2.01"
    • Length / Leg Length (L) mm:   110
    DWITB4038SD6L
    		Sweept Tee (OD 38mm) | BS4825 | 316L BS4825 Sweept Tee 316L 1.4404 ˜ SS2348 38 1.5" 1.5 0.06" 0.180000
    dimensional image
    View Page → Sweept Tee (OD 38mm) | BS4825 | 316L GTIN:  840384326941 Legacy Part Number DK:  TSBS0150S Dimensional Image Key:
    • Thickness (T) mm:   1.5
    • Thickness (T) in:   0.06"
    • OD mm:   38
    • OD in:   1.5"
    • Length / Leg Length (L) mm:   85
    DWITB4025SD6L
    		Sweept Tee (OD 25mm) | BS4825 | 316L BS4825 Sweept Tee 316L 1.4404 ˜ SS2348 25 0.98" 1.5 0.06" 0.180000
    dimensional image
    View Page → Sweept Tee (OD 25mm) | BS4825 | 316L GTIN:  840384326934 Legacy Part Number DK:  TSBS0100S Dimensional Image Key:
    • Thickness (T) mm:   1.5
    • Thickness (T) in:   0.06"
    • OD mm:   25
    • OD in:   0.98"
    • Length / Leg Length (L) mm:   65
    DWTSD2018SD6L
    		Hygienic Tee Equal (DN15) | DIN 32676 Series 2 | 316L 0.180000
    View Page → Hygienic Tee Equal (DN15) | DIN 32676 Series 2 | 316L GTIN:  840384327023 Legacy Part Number DK:  TSDI0018S
    DWTES8076SD6L

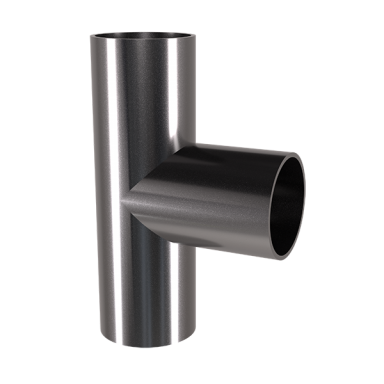

    		Tee Equal (OD 76mm) | SMS 3008 | 316L SMS 3008 Tee Equal 316L 1.4404 ˜ SS2348 76 2.99" 2 0.08" 110 4.33" 0.000000
    View Page → Tee Equal (OD 76mm) | SMS 3008 | 316L GTIN:  840384326637 Legacy Part Number DK:  TLSM0300S
    DWTES8063SD6L
    		Tee Equal (OD 63,5mm) | SMS 3008 | 316L SMS 3008 Tee Equal 316L 1.4404 ˜ SS2348 63.5 2.5" 1.6 0.06" 105 4.13" 0.180000
    View Page → Tee Equal (OD 63,5mm) | SMS 3008 | 316L GTIN:  840384326620 Legacy Part Number DK:  TLSM0250S
    DWTES8051SD6L
    		Tee Equal (OD 51mm) | SMS 3008 | 316L SMS 3008 Tee Equal 316L 1.4404 ˜ SS2348 51 2.01" 1.2 0.05" 82 3.23" 0.180000
    View Page → Tee Equal (OD 51mm) | SMS 3008 | 316L GTIN:  840384326613 Legacy Part Number DK:  TLSM0200S
    DWTES8038SD6L
    		Tee Equal (OD 38mm) | SMS 3008 | 316L SMS 3008 Tee Equal 316L 1.4404 ˜ SS2348 38 1.5" 1.2 0.05" 70 2.76" 0.180000
    View Page → Tee Equal (OD 38mm) | SMS 3008 | 316L GTIN:  840384326606 Legacy Part Number DK:  TLSM0150S
    DWTSS8032SD6L
    		Hygienic Tee Equal (32mm) | SMS 3008 | 316L 0.180000
    View Page → Hygienic Tee Equal (32mm) | SMS 3008 | 316L GTIN:  840384327184 Legacy Part Number DK:  TSSM0125S
    DWTES8025SD6L
    		Tee Equal (OD 25mm) | SMS 3008 | 316L SMS 3008 Tee Equal 316L 1.4404 ˜ SS2348 25 0.98" 1.2 0.05" 55 2.17" 0.100000
    View Page → Tee Equal (OD 25mm) | SMS 3008 | 316L GTIN:  840384326583 Legacy Part Number DK:  TLSM0100S
    DWTES8018SD6L
    		Tee Equal (OD 18mm) | SMS 3008 | 316L SMS 3008 Tee Equal 316L 1.4404 ˜ SS2348 18 0.71" 1 0.04" 0.000000
    View Page → Tee Equal (OD 18mm) | SMS 3008 | 316L
    DWTSD2154SD6L
    		Hygienic Tee Equal (154mm) | DIN 32676 Series 2 | 316L 0.180000
    View Page → Hygienic Tee Equal (154mm) | DIN 32676 Series 2 | 316L GTIN:  840384327153 Legacy Part Number DK:  TSDI0600
    DWTES8012SD6L
    		Tee Equal (OD 12mm) | SMS 3008 | 316L SMS 3008 Tee Equal 316L 1.4404 ˜ SS2348 12 0.47" 1 0.04" 0.000000
    View Page → Tee Equal (OD 12mm) | SMS 3008 | 316L
    DWTES8101SD6L
    		Tee Equal (OD 101,6mm) | SMS 3008 | 316L SMS 3008 Tee Equal 316L 1.4404 ˜ SS2348 101.6 4" 2 0.08" 150 5.91" 0.180000
    View Page → Tee Equal (OD 101,6mm) | SMS 3008 | 316L GTIN:  840384326644 Legacy Part Number DK:  TLSM0400S
    DWTSD2085SD6L
    		Tee Short (DN 80) | DIN 32676 Series 2 | 316L DIN 32676 Series 2 Tee Short 316L 1.4404 ˜ SS2348 DN 80 85 3.35" 2 0.08" 90 3.54" 0.180000
    View Page → Tee Short (DN 80) | DIN 32676 Series 2 | 316L GTIN:  840384327092 Legacy Part Number DK:  TSDI0080S
    Prev 1 2 3 Next

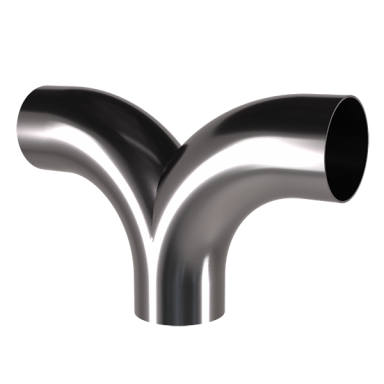

    Seagull Tee (OD 101,6mm) | BS4825 | 316L
    Seagull Tee (OD 101,6mm) | BS4825 | 316L
    Hygienic
    Data Center
    DWTIB4101SD6L
    Seagull Tee (OD 76mm) | BS4825 | 316L
    Seagull Tee (OD 76mm) | BS4825 | 316L
    Hygienic
    Data Center
    DWTIB4076SD6L
    Seagull Tee (OD 63,5mm) | BS4825 | 316L
    Seagull Tee (OD 63,5mm) | BS4825 | 316L
    Hygienic
    Data Center
    DWTIB4063SD6L
    Seagull Tee (OD 51mm) | BS4825 | 316L
    Seagull Tee (OD 51mm) | BS4825 | 316L
    Hygienic
    Data Center
    DWTIB4051SD6L
    Seagull Tee (OD 38mm) | BS4825 | 316L
    Seagull Tee (OD 38mm) | BS4825 | 316L
    Hygienic
    Data Center
    DWTIB4038SD6L
    Seagull Tee (OD 25mm) | BS4825 | 316L
    Seagull Tee (OD 25mm) | BS4825 | 316L
    Hygienic
    Data Center
    DWTIB4025SD6L

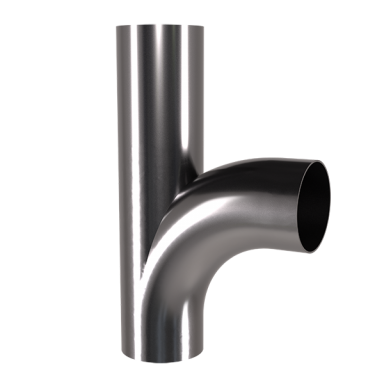

    Sweept Tee (OD 101,6mm) | BS4825 | 316L
    Sweept Tee (OD 101,6mm) | BS4825 | 316L
    Hygienic
    Data Center
    DWITB4101SD6L
    Sweept Tee (OD 76mm) | BS4825 | 316L
    Sweept Tee (OD 76mm) | BS4825 | 316L
    Hygienic
    Data Center
    DWITB4076SD6L
    Sweept Tee (OD 63,5mm) | BS4825 | 316L
    Sweept Tee (OD 63,5mm) | BS4825 | 316L
    Hygienic
    Data Center
    DWITB4063SD6L
    Sweept Tee (OD 51mm) | BS4825 | 316L
    Sweept Tee (OD 51mm) | BS4825 | 316L
    Hygienic
    Data Center
    DWITB4051SD6L
    Sweept Tee (OD 38mm) | BS4825 | 316L
    Sweept Tee (OD 38mm) | BS4825 | 316L
    Hygienic
    Data Center
    DWITB4038SD6L
    Sweept Tee (OD 25mm) | BS4825 | 316L
    Sweept Tee (OD 25mm) | BS4825 | 316L
    Hygienic
    Data Center
    DWITB4025SD6L
    Hygienic Tee Equal (DN15) | DIN 32676 Series 2 | 316L
    Hygienic Tee Equal (DN15) | DIN 32676 Series 2 | 316L
    DWTSD2018SD6L
    Tee Equal (OD 76mm) | SMS 3008 | 316L
    Tee Equal (OD 76mm) | SMS 3008 | 316L
    Hygienic
    Data Center
    DWTES8076SD6L
    Tee Equal (OD 63,5mm) | SMS 3008 | 316L
    Tee Equal (OD 63,5mm) | SMS 3008 | 316L
    Hygienic
    Data Center
    DWTES8063SD6L
    Tee Equal (OD 51mm) | SMS 3008 | 316L
    Tee Equal (OD 51mm) | SMS 3008 | 316L
    Hygienic
    Data Center
    DWTES8051SD6L
    Tee Equal (OD 38mm) | SMS 3008 | 316L
    Tee Equal (OD 38mm) | SMS 3008 | 316L
    Hygienic
    Data Center
    DWTES8038SD6L
    Hygienic Tee Equal (32mm) | SMS 3008 | 316L
    Hygienic Tee Equal (32mm) | SMS 3008 | 316L
    DWTSS8032SD6L
    Tee Equal (OD 25mm) | SMS 3008 | 316L
    Tee Equal (OD 25mm) | SMS 3008 | 316L
    Hygienic
    Data Center
    DWTES8025SD6L
    Tee Equal (OD 18mm) | SMS 3008 | 316L
    Tee Equal (OD 18mm) | SMS 3008 | 316L
    Hygienic
    DWTES8018SD6L
    Hygienic Tee Equal (154mm) | DIN 32676 Series 2 | 316L
    Hygienic Tee Equal (154mm) | DIN 32676 Series 2 | 316L
    DWTSD2154SD6L
    Tee Equal (OD 12mm) | SMS 3008 | 316L
    Tee Equal (OD 12mm) | SMS 3008 | 316L
    Hygienic
    DWTES8012SD6L
    Tee Equal (OD 101,6mm) | SMS 3008 | 316L
    Tee Equal (OD 101,6mm) | SMS 3008 | 316L
    Hygienic
    Data Center
    DWTES8101SD6L

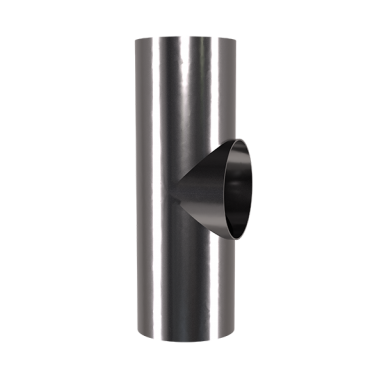

    Tee Short (DN 80) | DIN 32676 Series 2 | 316L
