    SMS 3008/3017


    SMS 3008/3017
    Description

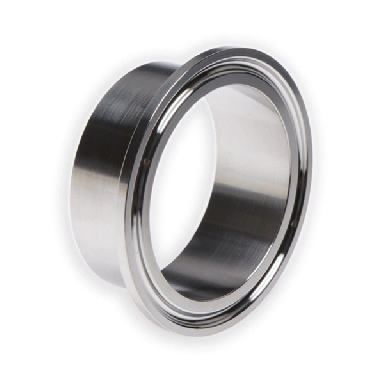

    ACL® SMS 3008/3017 Ferrules; material 1.4404. Flatness of sealing face meets or exceeds guidelines.

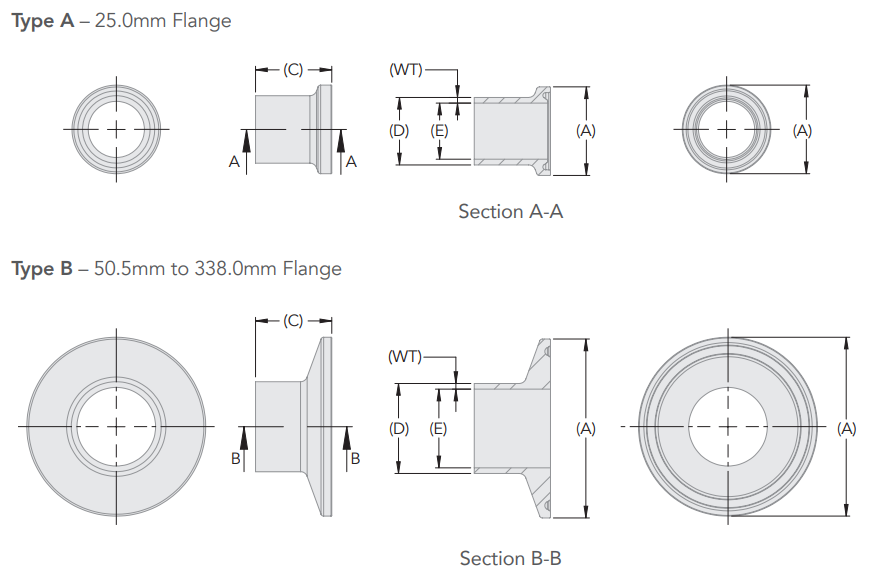

    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    Materials
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    Ferrules / SMS 3008/3017
    Tri-Clamps Tri-Clamps Safety Tri-Clamps Safety Tri-Clamps Ferrules Ferrules Tri-Clamp Gaskets Tri-Clamp Gaskets
    SMS 3008/3017 SMS 3008/3017
    BS 4825 Part 3 BS 4825 Part 3 BS Schedule 5 BS Schedule 5 BS Schedule 10 BS Schedule 10 BS Schedule 40 BS Schedule 40 ASME BPE Compliant ASME BPE Compliant DIN 32676 Table A Short DIN 32676 Table A Short DIN 32676 Table A Long DIN 32676 Table A Long DIN 32676 Table B Short DIN 32676 Table B Short DIN 32676 Table B Long DIN 32676 Table B Long DIN 32676 Table C Short DIN 32676 Table C Short DIN 32676 Table C Long DIN 32676 Table C Long ISO 1127 Standard ISO 1127 Standard ISO 1127 Variation ISO 1127 Variation Mini Series Ultra-Bore Metric & Imperial Mini Series Ultra-Bore Metric & Imperial SWG SWG MPW Tank MPW Tank
    Total: 31
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade EN Standard Size (in) Size (DN) Size (mm) Flange A (mm) Flange A (in) OD (mm) OD (in) ID (mm) ID (in) Wall Thickness (mm) Wall Thickness (in) Length (mm) Length (in) Surface Finish Manufactured Weight
    FDS8025018021SD6L
    		Ferrule (0,75") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) SMS 3008 316L 1.4404 3/4" 18 25 0.98" 18 0.71" 16 0.63" 1 0.04" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (0,75") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SM8.0075 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   18
    • Wall (WT) mm:   1
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   18
    • Tube OD (D) in:   0.71"
    • Tube ID (E) mm:   16
    • Tube ID (E) in:   0.63"
    • ID mm:   16
    FDS8050025021SD6L
    		Ferrule (1") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) SMS 3008 316L 1.4404 1" 25 50.5 1.99" 25 0.98" 22.6 0.89" 1.2 0.05" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.072000
    dimensional image
    View Page → Ferrule (1") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FRD.SM8.0100 - *1" FERRULE 316L (25 x 1.2) Legacy Part Number DK:  FRDSM80100 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   25
    • Wall (WT) mm:   1.2
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.05"
    • Tube OD (D) mm:   25
    • Tube OD (D) in:   0.98"
    • Tube ID (E) mm:   22.6
    • Tube ID (E) in:   0.89"
    • ID mm:   22.6
    FDS8050038021SD6L
    		Ferrule (1,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) SMS 3008 316L 1.4404 1 1/2" 38 50.5 1.99" 38 1.5" 35.6 1.4" 1.2 0.05" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.048000
    dimensional image
    View Page → Ferrule (1,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FRD.SM8.0150 - *1.1/2" FERRULE 316L (38 x Legacy Part Number DK:  FRDSM80150 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   38
    • Wall (WT) mm:   1.2
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.05"
    • Tube OD (D) mm:   38
    • Tube OD (D) in:   1.5"
    • Tube ID (E) mm:   35.6
    • Tube ID (E) in:   1.4"
    • ID mm:   35.6
    FDS8064051021SD6L
    		Ferrule (2") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) SMS 3008 316L 1.4404 2" 51 64 2.52" 51 2.01" 48.6 1.91" 1.2 0.05" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.062000
    dimensional image
    View Page → Ferrule (2") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FRD.SM8.0200 - * 2" FERRULE 316L (51 x Legacy Part Number DK:  FRDSM80200 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • OD 1 (D) mm:   51
    • Wall (WT) mm:   1.2
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.05"
    • Tube OD (D) mm:   51
    • Tube OD (D) in:   2.01"
    • Tube ID (E) mm:   48.6
    • Tube ID (E) in:   1.91"
    • ID mm:   48.6
    FDS8077063021SD6L
    		Ferrule (2,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) SMS 3008 316L 1.4404 2 1/2" 63.5 77.5 3.05" 63.5 2.5" 60.3 2.37" 1.6 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (2,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SM8.0250 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • OD 1 (D) mm:   63.5
    • Wall (WT) mm:   1.6
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   63.5
    • Tube OD (D) in:   2.5"
    • Tube ID (E) mm:   60.3
    • Tube ID (E) in:   2.37"
    • ID mm:   60.3
    FDS8091076021SD6L
    		Ferrule (3") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) SMS 3008 316L 1.4404 3" 76.1 91 3.58" 76.1 3" 72.9 2.87" 1.6 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.062000
    dimensional image
    View Page → Ferrule (3") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SM8.0300 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • OD 1 (D) mm:   76.1
    • Wall (WT) mm:   1.6
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   76.1
    • Tube OD (D) in:   3"
    • Tube ID (E) mm:   72.9
    • Tube ID (E) in:   2.87"
    • ID mm:   72.9
    FDS8106089021SD6L
    		Ferrule (3,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) SMS 3008 316L 1.4404 3 1/2" 89 106 4.17" 89 3.5" 85 3.35" 2 0.08" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (3,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SM8.0350 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   106
    • Flange (A) in:   4.17"
    • OD 1 (D) mm:   89
    • Wall (WT) mm:   2
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.08"
    • Tube OD (D) mm:   89
    • Tube OD (D) in:   3.5"
    • Tube ID (E) mm:   85
    • Tube ID (E) in:   3.35"
    • ID mm:   85
    FDS8119101021SD6L
    		Ferrule (4") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) SMS 3008 316L 1.4404 4" 101.6 119 4.69" 101.6 4" 97.6 3.84" 2 0.08" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.060000
    dimensional image
    View Page → Ferrule (4") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SM8.0400 - 4" FERRULE 316L - 21.5mm LONG (101.6 OD x 2mm Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • OD 1 (D) mm:   101.6
    • Wall (WT) mm:   2
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.08"
    • Tube OD (D) mm:   101.6
    • Tube OD (D) in:   4"
    • Tube ID (E) mm:   97.6
    • Tube ID (E) in:   3.84"
    • ID mm:   97.6
    FDS7050025021SD6L
    		Ferrule (1") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra) SMS 3017 316L 1.4404 1" 25 50.5 1.99" 25.6 1.01" 22.6 0.89" 1.5 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.074000
    dimensional image
    View Page → Ferrule (1") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FRD.SM7.0100 - *1" FERRULE 316L (25.6 x Legacy Part Number DK:  FRDSM70100 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   25.6
    • Wall (WT) mm:   1.5
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   25.6
    • Tube OD (D) in:   1.01"
    • Tube ID (E) mm:   22.6
    • Tube ID (E) in:   0.89"
    • ID mm:   22.6
    FDS7050034021SD6L
    		Ferrule (1 1/4") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra) SMS 3017 316L 1.4404 1 1/4" 33.7 50.5 1.99" 33.7 1.33" 30.7 1.21" 1.5 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (1 1/4") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SM7.0125 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   33.7
    • Wall (WT) mm:   1.5
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   33.7
    • Tube OD (D) in:   1.33"
    • Tube ID (E) mm:   30.7
    • Tube ID (E) in:   1.21"
    • ID mm:   30.7
    FDS7050038021SD6L
    		Ferrule (1,5") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra) SMS 3017 316L 1.4404 1 1/2" 38 50.5 1.99" 38 1.5" 35.6 1.4" 1.5 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 1.000000
    dimensional image
    View Page → Ferrule (1,5") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FRD.SM7.0150 -*1.1/2" FER 38.6x1.5 Legacy Part Number DK:  FRDSM70150 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   38
    • Wall (WT) mm:   1.5
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   38
    • Tube OD (D) in:   1.5"
    • Tube ID (E) mm:   35.6
    • Tube ID (E) in:   1.4"
    • ID mm:   35.6
    FDS7064051021SD6L
    		Ferrule (2") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra) SMS 3017 316L 1.4404 2" 51 64 2.52" 51 2.01" 48.6 1.91" 1.6 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 1.000000
    dimensional image
    View Page → Ferrule (2") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FRD.SM7.0200 - * 2" FERRULE 316L (51.6 x Legacy Part Number DK:  FRDSM70200 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • OD 1 (D) mm:   51
    • Wall (WT) mm:   1.6
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   51
    • Tube OD (D) in:   2.01"
    • Tube ID (E) mm:   48.6
    • Tube ID (E) in:   1.91"
    • ID mm:   48.6
    FDS7077064021SD6L
    		Ferrule (2,5") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra) SMS 3017 316L 1.4404 2 1/2" 63.5 77.5 3.05" 63.5 2.5" 60.3 2.37" 1.9 0.07" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.106000
    dimensional image
    View Page → Ferrule (2,5") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FRD.SM7.0250 - *2.1/2" FERRULE 316L Legacy Part Number DK:  FRDSM70250 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • OD 1 (D) mm:   63.5
    • Wall (WT) mm:   1.9
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.07"
    • Tube OD (D) mm:   64.1
    • Tube OD (D) in:   2.52"
    • Tube ID (E) mm:   60.3
    • Tube ID (E) in:   2.37"
    • ID mm:   60.3
    FDS7091076021SD6L
    		Ferrule (3") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra) SMS 3017 316L 1.4404 3" 76.1 91 3.58" 76.1 3" 72.9 2.87" 1.9 0.07" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.132000
    dimensional image
    View Page → Ferrule (3") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FRD.SM7.0300 - * 3" FERRULE 316L (76.7 x Legacy Part Number DK:  FRDSM70300 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • OD 1 (D) mm:   76.1
    • Wall (WT) mm:   1.9
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.07"
    • Tube OD (D) mm:   76.1
    • Tube OD (D) in:   3"
    • Tube ID (E) mm:   72.9
    • Tube ID (E) in:   2.87"
    • ID mm:   72.9
    FDS7106089021SD6L
    		Ferrule (3 1/2") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra) SMS 3017 316L 1.4404 3 1/2" 88.9 106 4.17" 88.9 3.5" 84.9 3.34" 2.45 0.1" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (3 1/2") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SM7.0350 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   106
    • Flange (A) in:   4.17"
    • OD 1 (D) mm:   88.9
    • Wall (WT) mm:   2.45
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.1"
    • Tube OD (D) mm:   88.9
    • Tube OD (D) in:   3.5"
    • Tube ID (E) mm:   84.9
    • Tube ID (E) in:   3.34"
    • ID mm:   84.9
    FDS7119102021SD6L
    		Ferrule (4") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra) SMS 3017 316L 1.4404 4" 101.6 119 4.69" 101.6 4" 97.6 3.84" 2.45 0.1" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.224000
    dimensional image
    View Page → Ferrule (4") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FRD.SM7.0400 - *4" FERRULE 316L (102.5 x Legacy Part Number DK:  FRDSM70400 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • OD 1 (D) mm:   101.6
    • Wall (WT) mm:   2.45
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.1"
    • Tube OD (D) mm:   102.5
    • Tube OD (D) in:   4.04"
    • Tube ID (E) mm:   97.6
    • Tube ID (E) in:   3.84"
    • ID mm:   97.6
    FPS8025018021SD6L
    		Ferrule (0,75") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) SMS 3008 316L 1.4404 3/4" 18 25 0.98" 18 0.71" 16 0.63" 1 0.04" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.200000
    dimensional image
    View Page → Ferrule (0,75") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SM8.0075 Legacy Part Number DK:  FRSM80075 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   18
    • Wall (WT) mm:   1
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   18
    • Tube OD (D) in:   0.71"
    • Tube ID (E) mm:   16
    • Tube ID (E) in:   0.63"
    • ID mm:   16
    FPS8050025021SD6L
    		Ferrule (1") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) SMS 3008 316L 1.4404 1" 25 50.5 1.99" 25 0.98" 22.6 0.89" 1.2 0.05" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.070000
    dimensional image
    View Page → Ferrule (1") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SM8.0100 - 1" FERRULE 316L (25mm x Legacy Part Number DK:  FRSM80100PHARMA Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   25
    • Wall (WT) mm:   1.2
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.05"
    • Tube OD (D) mm:   25
    • Tube OD (D) in:   0.98"
    • Tube ID (E) mm:   22.6
    • Tube ID (E) in:   0.89"
    • ID mm:   22.6
    FPS8050038021SD6L
    		Ferrule (1,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) SMS 3008 316L 1.4404 1 1/2" 38 50.5 1.99" 38 1.5" 35.6 1.4" 1.2 0.05" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.050000
    dimensional image
    View Page → Ferrule (1,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SM8.0150 - 1.1/2" FERRULE 316L (38 x Legacy Part Number DK:  FRSM80150PHARMA Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   38
    • Wall (WT) mm:   1.2
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.05"
    • Tube OD (D) mm:   38
    • Tube OD (D) in:   1.5"
    • Tube ID (E) mm:   35.6
    • Tube ID (E) in:   1.4"
    • ID mm:   35.6
    FPS8064051021SD6L
    		Ferrule (2") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) SMS 3008 316L 1.4404 2" 51 64 2.52" 51 2.01" 48.6 1.91" 1.2 0.05" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.070000
    dimensional image
    View Page → Ferrule (2") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SM8.0200 - 2" FERRULE 316L (51 x 1.2) - Legacy Part Number DK:  FRSM80200PHARMA Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • OD 1 (D) mm:   51
    • Wall (WT) mm:   1.2
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.05"
    • Tube OD (D) mm:   51
    • Tube OD (D) in:   2.01"
    • Tube ID (E) mm:   48.6
    • Tube ID (E) in:   1.91"
    • ID mm:   48.6
    FPS8077063021SD6L
    		Ferrule (2,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) SMS 3008 316L 1.4404 2 1/2" 63.5 77.5 3.05" 63.5 2.5" 60.3 2.37" 1.6 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.108000
    dimensional image
    View Page → Ferrule (2,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SM8.0250 - 21/2" FERRULE 316L (63.5 x Legacy Part Number DK:  FRSM80250PHARMA Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • OD 1 (D) mm:   63.5
    • Wall (WT) mm:   1.6
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   63.5
    • Tube OD (D) in:   2.5"
    • Tube ID (E) mm:   60.3
    • Tube ID (E) in:   2.37"
    • ID mm:   60.3
    FPS8091076021SD6L
    		Ferrule (3") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) SMS 3008 316L 1.4404 3" 76.1 91 3.58" 76.1 3" 72.9 2.87" 1.6 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.120000
    dimensional image
    View Page → Ferrule (3") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SM8.0300 Legacy Part Number DK:  FRSM80300PHARMA Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • OD 1 (D) mm:   76.1
    • Wall (WT) mm:   1.6
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   76.1
    • Tube OD (D) in:   3"
    • Tube ID (E) mm:   72.9
    • Tube ID (E) in:   2.87"
    • ID mm:   72.9
    FPS8106089021SD6L
    		Ferrule (3,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) SMS 3008 316L 1.4404 3 1/2" 89 106 4.17" 89 3.5" 85 3.35" 2 0.08" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (3,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.SM8.0350 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   106
    • Flange (A) in:   4.17"
    • OD 1 (D) mm:   89
    • Wall (WT) mm:   2
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.08"
    • Tube OD (D) mm:   89
    • Tube OD (D) in:   3.5"
    • Tube ID (E) mm:   85
    • Tube ID (E) in:   3.35"
    • ID mm:   85
    FPS8119101021SD6L
    		Pharmaceutical Ferrule (4") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    dimensional image
    View Page → Pharmaceutical Ferrule (4") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  4" SMS 3008 FERRULE 0.8Ra 316L Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • OD 1 (D) mm:   101.6
    • Wall (WT) mm:   2
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.08"
    • Tube OD (D) mm:   101.6
    • Tube OD (D) in:   4"
    • Tube ID (E) mm:   97.6
    • Tube ID (E) in:   3.84"
    Prev 1 2 Next
    Ferrule (0,75
    Ferrule (0,75") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDS8025018021SD6L
    Ferrule (1
    Ferrule (1") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDS8050025021SD6L
    Ferrule (1,5
    Ferrule (1,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDS8050038021SD6L
    Ferrule (2
    Ferrule (2") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDS8064051021SD6L
    Ferrule (2,5
    Ferrule (2,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDS8077063021SD6L
    Ferrule (3
    Ferrule (3") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDS8091076021SD6L
    Ferrule (3,5
    Ferrule (3,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDS8106089021SD6L
    Ferrule (4
    Ferrule (4") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDS8119101021SD6L
    Ferrule (1
    Ferrule (1") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDS7050025021SD6L
    Ferrule (1 1/4
    Ferrule (1 1/4") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDS7050034021SD6L
    Ferrule (1,5
    Ferrule (1,5") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDS7050038021SD6L
    Ferrule (2
    Ferrule (2") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDS7064051021SD6L
    Ferrule (2,5
    Ferrule (2,5") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDS7077064021SD6L
    Ferrule (3
    Ferrule (3") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDS7091076021SD6L
    Ferrule (3 1/2
    Ferrule (3 1/2") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDS7106089021SD6L
    Ferrule (4
    Ferrule (4") | SMS 3017 | Length 21,5mm | 316L (0.8 Ra)
    Hygienic
    FDS7119102021SD6L
    Ferrule (0,75
    Ferrule (0,75") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    Pharmaceutical
    FPS8025018021SD6L
    Ferrule (1
    Ferrule (1") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    Pharmaceutical
    FPS8050025021SD6L
    Ferrule (1,5
    Ferrule (1,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    Pharmaceutical
    FPS8050038021SD6L
    Ferrule (2
    Ferrule (2") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    Pharmaceutical
    FPS8064051021SD6L
    Ferrule (2,5
    Ferrule (2,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    Pharmaceutical
    FPS8077063021SD6L
    Ferrule (3
    Ferrule (3") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    Pharmaceutical
    FPS8091076021SD6L
    Ferrule (3,5
    Ferrule (3,5") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    Pharmaceutical
    FPS8106089021SD6L
    Pharmaceutical Ferrule (4
    Pharmaceutical Ferrule (4") | SMS 3008 | Length 21,5mm | 316L (0.8 Ra)
    FPS8119101021SD6L
    Prev 1 2 Next
