    DIN 32676 Table B Long


    DIN 32676 Table B Long
    Description

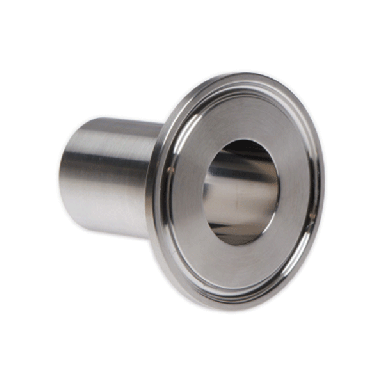

    ACL DIN 32676 Tabel B Ferrules, long (28.6mm - 66mm), material 1.4404. Flatness of sealing face meets or exceeds guidelines.

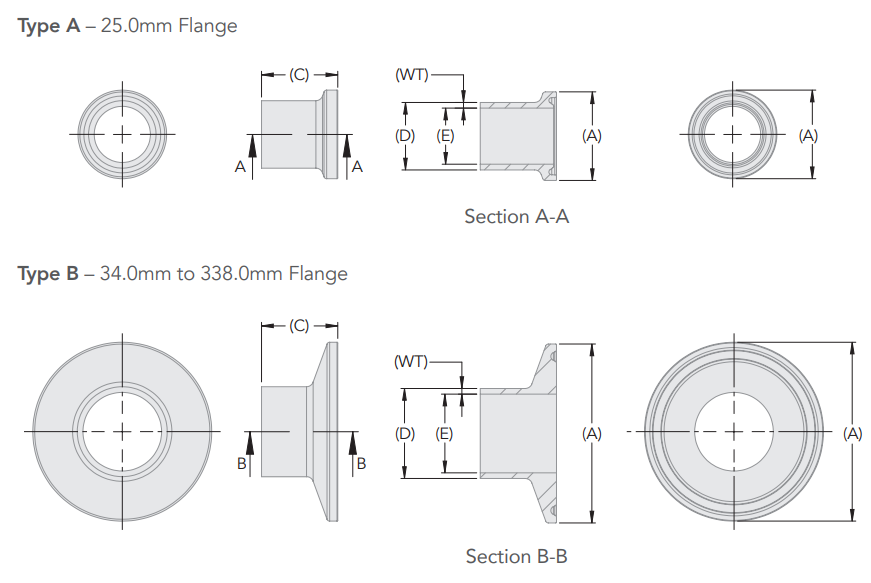

    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: DIN 32676
    • Durability: 0.8Ra um Int
    Materials
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    • 316L / 1.4404
    Total: 30
    Industry
    PART#    		 Product
    Name    		 Standard Type Size Imperial Size Metric Size ISO Flange Nut Type Material Pressure Rating ID OD Length Closing mechanism
    Add
    To Cart     LIST
    PRICE
    Pharmaceutical
    FPDB025010286SD6L
    		Pharmaceutical Ferrule (DN06) | DIN 32676 Table B (Long) | Length 28,6mm | 316L (0.8 Ra) DIN 32676 Table B Long DIN 32676 Table B Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Pharmaceutical Ferrule (DN06) | DIN 32676 Table B (Long) | Length 28,6mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNBL.006
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  10.2
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  10.2
    • • Tube OD (D) in:  0.4"
    • • Tube ID (E) mm:  7
    • • Tube ID (E) in:  0.28"
    Pharmaceutical
    FPDB025013286SD6L
    		Pharmaceutical Ferrule (DN08) | DIN 32676 Table B (Long) | Length 28,6mm | 316L (0.8 Ra) DIN 32676 Table B Long DIN 32676 Table B Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Pharmaceutical Ferrule (DN08) | DIN 32676 Table B (Long) | Length 28,6mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNBL.008
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  13.5
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  13.5
    • • Tube OD (D) in:  0.53"
    • • Tube ID (E) mm:  10.3
    • • Tube ID (E) in:  0.41"
    Pharmaceutical
    FPDB025017286SD6L
    		Pharmaceutical Ferrule (DN10) | DIN 32676 Table B (Long) | Length 28,6mm | 316L (0.8 Ra) DIN 32676 Table B Long DIN 32676 Table B Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Pharmaceutical Ferrule (DN10) | DIN 32676 Table B (Long) | Length 28,6mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNBL.010
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  17.2
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  17.2
    • • Tube OD (D) in:  0.68"
    • • Tube ID (E) mm:  14
    • • Tube ID (E) in:  0.55"
    Pharmaceutical
    FPDB050021286SD6L
    		Pharmaceutical Ferrule (DN15) | DIN 32676 Table B (Long) | Length 28,6mm | 316L (0.8 Ra) DIN 32676 Table B Long DIN 32676 Table B Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Pharmaceutical Ferrule (DN15) | DIN 32676 Table B (Long) | Length 28,6mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNBL.015
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  21.3
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  21.3
    • • Tube OD (D) in:  0.84"
    • • Tube ID (E) mm:  18.1
    • • Tube ID (E) in:  0.71"
    Pharmaceutical
    FPDB050026286SD6L
    		Pharmaceutical Ferrule (DN20) | DIN 32676 Table B (Long) | Length 28,6mm | 316L (0.8 Ra) DIN 32676 Table B Long DIN 32676 Table B Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Pharmaceutical Ferrule (DN20) | DIN 32676 Table B (Long) | Length 28,6mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNBL.020
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  26.9
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  26.9
    • • Tube OD (D) in:  1.06"
    • • Tube ID (E) mm:  23.7
    • • Tube ID (E) in:  0.93"
    Pharmaceutical
    FPDB050033036SD6L
    		Pharmaceutical Ferrule (DN25) | DIN 32676 Table B (Long) | Length 36mm | 316L (0.8 Ra) DIN 32676 Table B Long DIN 32676 Table B Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Pharmaceutical Ferrule (DN25) | DIN 32676 Table B (Long) | Length 36mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNBL.025
    Dimensional Image Key:
    • • Length (C) mm:  36
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  33.7
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.42"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  33.7
    • • Tube OD (D) in:  1.33"
    • • Tube ID (E) mm:  29.7
    • • Tube ID (E) in:  1.17"
    Pharmaceutical
    FPDB064042036SD6L
    		Ferrule (DN 42.4) | DIN 32676 Table B | Length 36mm | 316L (0,8 Ra) DIN 32676 Table B Long DN 42.4(DIN) 64(mm)/2.52"(in) 316L 1.51"(in) 42.4(mm)/1.67"(in) 36(mm)/1.42"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (DN 42.4) | DIN 32676 Table B | Length 36mm | 316L (0,8 Ra) Legacy Part Number UK:   FR.DNBL.032
    Dimensional Image Key:
    • • Length (C) mm:  36
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • OD 1 (D) mm:  42.4
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.42"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  42.4
    • • Tube OD (D) in:  1.67"
    • • Tube ID (E) mm:  38.4
    • • Tube ID (E) in:  1.51"
    • • ID (mm):  38.4
    Pharmaceutical
    FPDB064048036SD6L
    		Ferrule (DN 48.3) | DIN 32676 Table B | Length 36mm | 316L (0,8 Ra) DIN 32676 Table B Long DN 48.3(DIN) 64(mm)/2.52"(in) 316L 1.74"(in) 48.3(mm)/1.9"(in) 36(mm)/1.42"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (DN 48.3) | DIN 32676 Table B | Length 36mm | 316L (0,8 Ra) Legacy Part Number UK:   FR.DNBL.040
    Dimensional Image Key:
    • • Length (C) mm:  36
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • OD 1 (D) mm:  48.3
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.42"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  48.3
    • • Tube OD (D) in:  1.9"
    • • Tube ID (E) mm:  44.3
    • • Tube ID (E) in:  1.74"
    • • ID (mm):  44.3
    Pharmaceutical
    FPDB077060036SD6L
    		Ferrule (DN 60.3) | DIN 32676 Table B | Length 36mm | 316L (0,8 Ra) DIN 32676 Table B Long DN 60.3(DIN) 77.5(mm)/3.05"(in) 316L 2.22"(in) 60.3(mm)/2.37"(in) 36(mm)/1.42"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (DN 60.3) | DIN 32676 Table B | Length 36mm | 316L (0,8 Ra) Legacy Part Number UK:   FR.DNBL.050
    Dimensional Image Key:
    • • Length (C) mm:  36
    • • Flange (A) mm:  77.5
    • • Flange (A) in:  3.05"
    • • OD 1 (D) mm:  60.3
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.42"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  60.3
    • • Tube OD (D) in:  2.37"
    • • Tube ID (E) mm:  56.3
    • • Tube ID (E) in:  2.22"
    • • ID (mm):  56.3
    Pharmaceutical
    FPDB091076048SD6L
    		Ferrule (DN 76.1) | DIN 32676 Table B | Length 48mm | 316L (0,8 Ra) DIN 32676 Table B Long DN 76.1(DIN) 91(mm)/3.58"(in) 316L 2.84"(in) 76.1(mm)/3"(in) 48(mm)/1.89"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (DN 76.1) | DIN 32676 Table B | Length 48mm | 316L (0,8 Ra) Legacy Part Number UK:   FR.DNBL.065
    Dimensional Image Key:
    • • Length (C) mm:  48
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • OD 1 (D) mm:  76.1
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.89"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  76.1
    • • Tube OD (D) in:  3"
    • • Tube ID (E) mm:  72.1
    • • Tube ID (E) in:  2.84"
    • • ID (mm):  72.1
    Pharmaceutical
    FPDB106088048SD6L
    		Pharmaceutical Ferrule (DN80) | DIN 32676 Table B (Long) | Length 48mm | 316L (0.8 Ra) DIN 32676 Table B Long DIN 32676 Table B Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Pharmaceutical Ferrule (DN80) | DIN 32676 Table B (Long) | Length 48mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNBL.080
    Dimensional Image Key:
    • • Length (C) mm:  48
    • • Flange (A) mm:  106
    • • Flange (A) in:  4.17"
    • • OD 1 (D) mm:  88.9
    • • Wall (WT) mm:  2.3
    • • Length (C) in:  1.89"
    • • Wall (WT) in:  0.09"
    • • Tube OD (D) mm:  88.9
    • • Tube OD (D) in:  3.5"
    • • Tube ID (E) mm:  84.3
    • • Tube ID (E) in:  3.32"
    Pharmaceutical
    FPDB130114048SD6L
    		Ferrule (DN 114.3) | DIN 32676 Table B | Length 48mm | 316L (0,8 Ra) DIN 32676 Table B Long DN 114.3(DIN) 130(mm)/5.12"(in) 316L 4.32"(in) 114.3(mm)/4.5"(in) 48(mm)/1.89"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (DN 114.3) | DIN 32676 Table B | Length 48mm | 316L (0,8 Ra) Legacy Part Number UK:   FR.DNBL.100
    Dimensional Image Key:
    • • Length (C) mm:  48
    • • Flange (A) mm:  130
    • • Flange (A) in:  5.12"
    • • OD 1 (D) mm:  114.3
    • • Wall (WT) mm:  2.3
    • • Length (C) in:  1.89"
    • • Wall (WT) in:  0.09"
    • • Tube OD (D) mm:  114.3
    • • Tube OD (D) in:  4.5"
    • • Tube ID (E) mm:  109.7
    • • Tube ID (E) in:  4.32"
    • • ID (mm):  109.7
