    ISO 1127 Variation


    ISO 1127 Variation
    Description

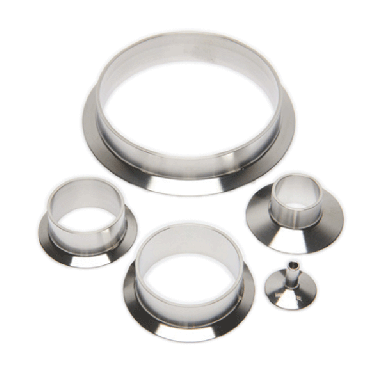

    ACL ISO 1127 Ferrules, variations, material 1.4404. Flatness of sealing face meets or exceeds guidelines.

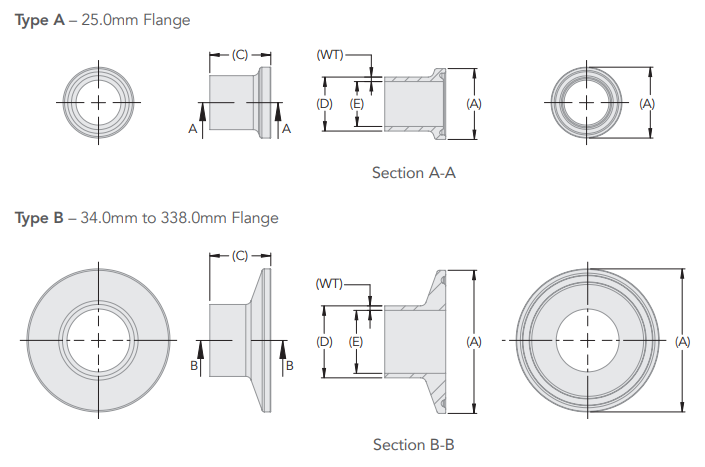

    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: ISO 1127
    • Durability: 0.8Ra um Int
    Materials
    • 316L / 1.4404
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    Total: 18
    Industry
    PART#    		 Product
    Name    		 Standard Type Size Imperial Size Metric Size ISO Flange Nut Type Material Pressure Rating ID OD Length Closing mechanism
    Add
    To Cart     LIST
    PRICE
    Hygienic
    FDI8034013018SD6L
    		Ferrule (DN 8) | ISO 1127-Variation | Length 18mm | 316L (0.8 Ra) ISO 1127 - Variation ISO1127 Variations DN 8(DIN) 34(mm)/1.34"(in) 316L 0.41"(in) 13.5(mm)/0.53"(in) 18(mm)/0.71"(in)
    Contact Customer Service For
    Access To Availability & Ordering

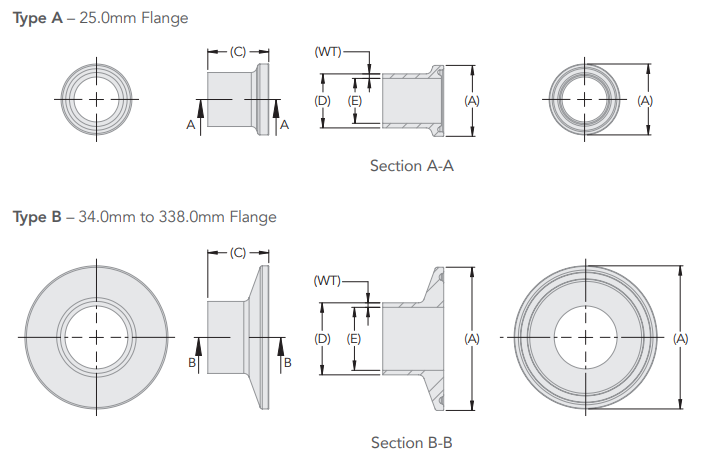

    dimensional image
    View Page
     Ferrule (DN 8) | ISO 1127-Variation | Length 18mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.IS1X.D008.A
    Dimensional Image Key:
    • • Length (C) mm:  18
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  13.5
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  0.71"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  13.5
    • • Tube OD (D) in:  0.53"
    • • Tube ID (E) mm:  10.3
    • • Tube ID (E) in:  0.41"
    • • ID (mm):  10.3
    Hygienic
    FDI8050013021SD6L
    		Ferrule (DN 8) | ISO 1127-Variation | Length 21,5mm | 316L (0.8 Ra) ISO 1127 - Variation ISO1127 Variations DN 8(DIN) 50.5(mm)/1.99"(in) 316L 0.41"(in) 13.5(mm)/0.53"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (DN 8) | ISO 1127-Variation | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.IS1X.D008.B
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  13.5
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  13.5
    • • Tube OD (D) in:  0.53"
    • • Tube ID (E) mm:  10.3
    • • Tube ID (E) in:  0.41"
    • • ID (mm):  10.3
    Hygienic
    FDI8034017018SD6L
    		Ferrule (DN 10) | ISO 1127-Variation | Length 18mm | 316L (0.8 Ra) ISO 1127 - Variation ISO1127 Variations DN 10(DIN) 34(mm)/1.34"(in) 316L 0.55"(in) 17.2(mm)/0.68"(in) 18(mm)/0.71"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (DN 10) | ISO 1127-Variation | Length 18mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.IS1X.D010.A
    Dimensional Image Key:
    • • Length (C) mm:  18
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  17.2
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  0.71"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  17.2
    • • Tube OD (D) in:  0.68"
    • • Tube ID (E) mm:  14
    • • Tube ID (E) in:  0.55"
    • • ID (mm):  14
    Hygienic
    FDI8050017021SD6L
    		Hygienic Ferrule (DN 10) | ISO1127 Variations | Length 21,5mm | 316L (0.8 Ra) ISO1127 Variations ISO1127 Variations 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (DN 10) | ISO1127 Variations | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.IS1X.D010.B
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  17.2
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  17.2
    • • Tube OD (D) in:  0.68"
    • • Tube ID (E) mm:  14
    • • Tube ID (E) in:  0.55"
    Hygienic
    FDI8034021018SD6L
    		Hygienic Ferrule (DN 15) | ISO1127 Variations | Length 18mm | 316L (0.8 Ra) ISO1127 Variations ISO1127 Variations 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (DN 15) | ISO1127 Variations | Length 18mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.IS1X.D015.A
    Dimensional Image Key:
    • • Length (C) mm:  18
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  21.3
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  0.71"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  21.3
    • • Tube OD (D) in:  0.84"
    • • Tube ID (E) mm:  18.1
    • • Tube ID (E) in:  0.71"
    Hygienic
    FDI8050026021SD6L
    		Ferrule (DN 20) | ISO 1127 Variations | Length 21,5mm | 316L (0.8 Ra) ISO 1127 - Variation ISO1127 Variations DN 20(DIN) 50.5(mm)/1.99"(in) 316L 0.93"(in) 26.9(mm)/1.06"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (DN 20) | ISO 1127 Variations | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.IS1X.D020.A
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  26.9
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  26.9
    • • Tube OD (D) in:  1.06"
    • • Tube ID (E) mm:  23.7
    • • Tube ID (E) in:  0.93"
    • • ID (mm):  23.7
    Hygienic
    FDI8050033021SD6L
    		Ferrule (DN 25) | ISO 1127 Variations | Length 21,5mm | 316L (0.8 Ra) ISO 1127 - Variation ISO1127 Variations DN 25(DIN) 50.5(mm)/1.99"(in) 316L 1.2"(in) 33.7(mm)/1.33"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (DN 25) | ISO 1127 Variations | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.IS1X.D025.A
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  33.7
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  33.7
    • • Tube OD (D) in:  1.33"
    • • Tube ID (E) mm:  30.5
    • • Tube ID (E) in:  1.2"
    • • ID (mm):  30.5
    Hygienic
    FDI8050034021SD6L
    		Ferrule (DN 25) | ISO 1127 Variations | Length 21,5mm | 316L (0.8 Ra) ISO 1127 - Variation ISO1127 Variations DN 25(DIN) 50.5(mm)/1.99"(in) 316L 1.23"(in) 33.7(mm)/1.33"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (DN 25) | ISO 1127 Variations | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.IS1X.D025.B
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  33.7
    • • Wall (WT) mm:  1.2
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.05"
    • • Tube OD (D) mm:  33.7
    • • Tube OD (D) in:  1.33"
    • • Tube ID (E) mm:  31.3
    • • Tube ID (E) in:  1.23"
    • • ID (mm):  31.3
    Hygienic
    FDI8091076021SD6L
    		Ferrule (DN 65) | ISO 1127 Variations | Length 21,5mm | 316L (0.8 Ra) ISO 1127 - Variation ISO1127 Variations DN 65(DIN) 91(mm)/3.58"(in) 316L 2.87"(in) 76.1(mm)/3"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (DN 65) | ISO 1127 Variations | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.IS1X.D065.A
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • OD 1 (D) mm:  76.1
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  76.1
    • • Tube OD (D) in:  3"
    • • Tube ID (E) mm:  72.9
    • • Tube ID (E) in:  2.87"
    • • ID (mm):  72.9
    Pharmaceutical
    FPI8034013018SD6L
    		Ferrule (DN 8) | ISO 1127-Variation | Length 18mm | 316L (0.8 Ra) ISO 1127 - Variations ISO1127 Variations DN 8(DIN) 34(mm)/1.34"(in) 316L 0.41"(in) 13.5(mm)/0.53"(in) 18(mm)/0.71"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (DN 8) | ISO 1127-Variation | Length 18mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.IS1X.D008.A - ISO1127 DN8 FERRULE 34fl Legacy Part Number DK:   FRIS1XD008A
    Dimensional Image Key:
    • • Length (C) mm:  18
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  13.5
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  0.71"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  13.5
    • • Tube OD (D) in:  0.53"
    • • Tube ID (E) mm:  10.3
    • • Tube ID (E) in:  0.41"
    • • ID (mm):  10.3
    Pharmaceutical
    FPI8050013021SD6L
    		Ferrule (DN 8) | ISO 1127-Variation | Length 21,5mm | 316L (0.8 Ra) ISO 1127 - Variations ISO1127 Variations DN 8(DIN) 50.5(mm)/1.99"(in) 316L 0.41"(in) 13.5(mm)/0.53"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (DN 8) | ISO 1127-Variation | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.IS1X.D008.B - ISO1127 DN8 FERRULE 50.5F Legacy Part Number DK:   FRIS1XD008B
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  13.5
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  13.5
    • • Tube OD (D) in:  0.53"
    • • Tube ID (E) mm:  10.3
    • • Tube ID (E) in:  0.41"
    • • ID (mm):  10.3
    Pharmaceutical
    FPI8034017018SD6L
    		Ferrule (DN 10) | ISO 1127-Variation | Length 18mm | 316L (0.8 Ra) ISO 1127 - Variations ISO1127 Variations DN 10(DIN) 34(mm)/1.34"(in) 316L 0.55"(in) 17.2(mm)/0.68"(in) 18(mm)/0.71"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (DN 10) | ISO 1127-Variation | Length 18mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.IS1X.D010.A- ISO1127 DN10 FERRULE 34FL Legacy Part Number DK:   FRIS1XD010A
    Dimensional Image Key:
    • • Length (C) mm:  18
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  17.2
    • • Wall (WT) mm:  1.6
    • • Length (C) in:  0.71"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  17.2
    • • Tube OD (D) in:  0.68"
    • • Tube ID (E) mm:  14
    • • Tube ID (E) in:  0.55"
    • • ID (mm):  14
