DIN 32676 Table B Short

Description

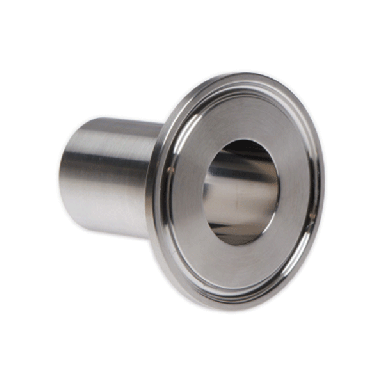

ACL DIN 32676 Tabel B Ferrules, short (12.7mm - 28mm), material 1.4404. Flatness of sealing face meets or exceeds guidelines.

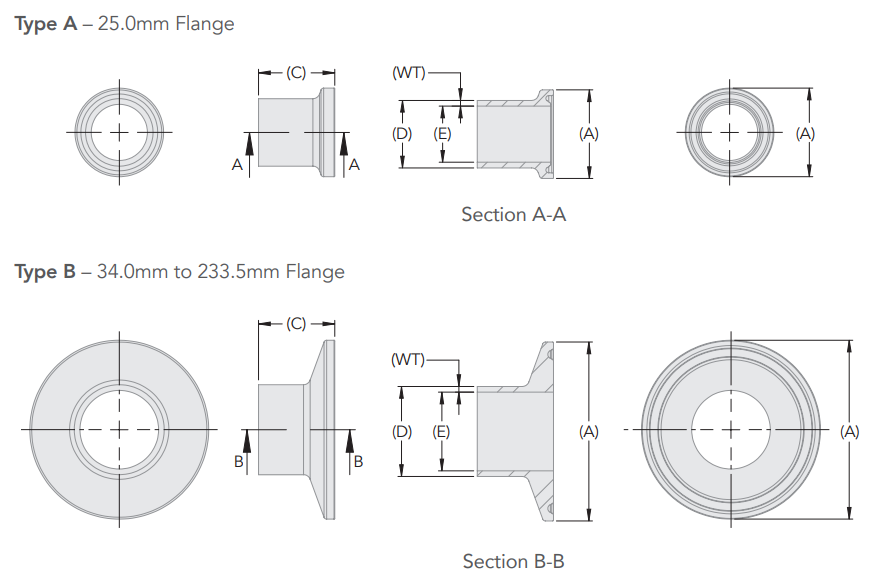

Dimensional Image

Features

Quality checks by ACL are at the highest level for fitting manufacturers: JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
Flatness of sealing face meets or exceeds guidelines
Circularity of components is within 0.1mm
Compatibility: DIN 32676
Durability: 0.8Ra um Int

Materials

Materials are AD2000 (PED) and ASME VIII
Surface finish is 0.8Ra um minimum
316L / 1.4404

Ferrules / DIN 32676 Table B Short

DIN 32676 Table B Short

DIN 32676 Table A Short

DIN 32676 Table A Long

DIN 32676 Table B Long

DIN 32676 Table C Short

DIN 32676 Table C Long

ISO 1127 Standard

ISO 1127 Variation

Mini Series Ultra-Bore Metric & Imperial

SMS 3008/3017

SWG

MPW Tank

Industry PART#	Product Name	Standard	Type	Material Grade	EN Standard	Size (DN)	Flange A (mm)	Flange A (in)	OD (mm)	OD (in)	ID (mm)	ID (in)	Wall Thickness (mm)	Wall Thickness (in)	Length (mm)	Length (in)	Surface Finish	Manufactured	Weight
Pharmaceutical FPDB025010127SD6L	Ferrule (DN 10.2) \| DIN 32676 Table B \| Length 12,7mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 10.2	25	0.98"	10.2	0.4"	7	0.28"	1.6	0.06"	12.7	0.5"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 10.2) \| DIN 32676 Table B \| Length 12,7mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.006 Dimensional Image Key: Length (C) mm: 12.7 Flange (A) mm: 25 Flange (A) in: 0.98" OD 1 (D) mm: 10.2 Wall (WT) mm: 1.6 Length (C) in: 0.5" Wall (WT) in: 0.06" Tube OD (D) mm: 10.2 Tube OD (D) in: 0.4" Tube ID (E) mm: 7 Tube ID (E) in: 0.28" ID mm: 7
Pharmaceutical FPDB025013127SD6L	Ferrule (DN 13.5) \| DIN 32676 Table B \| Length 12,7mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 13.5	25	0.98"	13.5	0.53"	10.3	0.41"	1.6	0.06"	12.7	0.5"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 13.5) \| DIN 32676 Table B \| Length 12,7mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.008 Dimensional Image Key: Length (C) mm: 12.7 Flange (A) mm: 25 Flange (A) in: 0.98" OD 1 (D) mm: 13.5 Wall (WT) mm: 1.6 Length (C) in: 0.5" Wall (WT) in: 0.06" Tube OD (D) mm: 13.5 Tube OD (D) in: 0.53" Tube ID (E) mm: 10.3 Tube ID (E) in: 0.41" ID mm: 10.3
Pharmaceutical FPDB025017018SD6L	Ferrule (DN 17.2) \| DIN 32676 Table B \| Length 18mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 17.2	25	0.98"	17.2	0.68"	14	0.55"	1.6	0.06"	18	0.71"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 17.2) \| DIN 32676 Table B \| Length 18mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.010 Dimensional Image Key: Length (C) mm: 18 Flange (A) mm: 25 Flange (A) in: 0.98" OD 1 (D) mm: 17.2 Wall (WT) mm: 1.6 Length (C) in: 0.71" Wall (WT) in: 0.06" Tube OD (D) mm: 17.2 Tube OD (D) in: 0.68" Tube ID (E) mm: 14 Tube ID (E) in: 0.55" ID mm: 14
Pharmaceutical FPDB050021018SD6L	Ferrule (DN 21.3) \| DIN 32676 Table B \| Length 18mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 21.3	50.5	1.99"	21.3	0.84"	18.1	0.71"	1.6	0.06"	18	0.71"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 21.3) \| DIN 32676 Table B \| Length 18mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.015 Dimensional Image Key: Length (C) mm: 18 Flange (A) mm: 50.5 Flange (A) in: 1.99" OD 1 (D) mm: 21.3 Wall (WT) mm: 1.6 Length (C) in: 0.71" Wall (WT) in: 0.06" Tube OD (D) mm: 21.3 Tube OD (D) in: 0.84" Tube ID (E) mm: 18.1 Tube ID (E) in: 0.71" ID mm: 18.1
Pharmaceutical FPDB050027018SD6L	Ferrule (DN 26.9) \| DIN 32676 Table B \| Length 18mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 26.9	50.5	1.99"	26.9	1.06"	23.7	0.93"	1.6	0.06"	18	0.71"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 26.9) \| DIN 32676 Table B \| Length 18mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.020 Dimensional Image Key: Length (C) mm: 18 Flange (A) mm: 50.5 Flange (A) in: 1.99" OD 1 (D) mm: 26.9 Wall (WT) mm: 1.6 Length (C) in: 0.71" Wall (WT) in: 0.06" Tube OD (D) mm: 26.9 Tube OD (D) in: 1.06" Tube ID (E) mm: 23.7 Tube ID (E) in: 0.93" ID mm: 23.7
Pharmaceutical FPDB050034021SD6L	Ferrule (DN 33.7) \| DIN 32676 Table B \| Length 21,5mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 33.7	50.5	1.99"	33.7	1.33"	29.7	1.17"	2	0.08"	21.5	0.85"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 33.7) \| DIN 32676 Table B \| Length 21,5mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.025 Dimensional Image Key: Length (C) mm: 21.5 Flange (A) mm: 50.5 Flange (A) in: 1.99" OD 1 (D) mm: 33.7 Wall (WT) mm: 2 Length (C) in: 0.85" Wall (WT) in: 0.08" Tube OD (D) mm: 33.7 Tube OD (D) in: 1.33" Tube ID (E) mm: 29.7 Tube ID (E) in: 1.17" ID mm: 29.7
Pharmaceutical FPDB064048021SD6L	Ferrule (DN 48.3) \| DIN 32676 Table B \| Length 21,5mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 48.3	64	2.52"	48.3	1.9"	44.3	1.74"	2	0.08"	21.5	0.85"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 48.3) \| DIN 32676 Table B \| Length 21,5mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.040 Dimensional Image Key: Length (C) mm: 21.5 Flange (A) mm: 64 Flange (A) in: 2.52" OD 1 (D) mm: 48.3 Wall (WT) mm: 2 Length (C) in: 0.85" Wall (WT) in: 0.08" Tube OD (D) mm: 48.3 Tube OD (D) in: 1.9" Tube ID (E) mm: 44.3 Tube ID (E) in: 1.74" ID mm: 44.3
Pharmaceutical FPDB077060021SD6L	Ferrule (DN 60.3) \| DIN 32676 Table B \| Length 21,5mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 60.3	77.5	3.05"	60.3	2.37"	56.3	2.22"	2	0.08"	21.5	0.85"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 60.3) \| DIN 32676 Table B \| Length 21,5mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.050 Dimensional Image Key: Length (C) mm: 21.5 Flange (A) mm: 77.5 Flange (A) in: 3.05" OD 1 (D) mm: 60.3 Wall (WT) mm: 2 Length (C) in: 0.85" Wall (WT) in: 0.08" Tube OD (D) mm: 60.3 Tube OD (D) in: 2.37" Tube ID (E) mm: 56.3 Tube ID (E) in: 2.22" ID mm: 56.3
Pharmaceutical FPDB091076021SD6L	Ferrule (DN 76.1) \| DIN 32676 Table B \| Length 28mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 76.1	91	3.58"	76.1	3"	72.1	2.84"	2	0.08"	28	1.1"	0.8 Ra	3.1b Certified - Solid Bar	163.190000
View Page → Ferrule (DN 76.1) \| DIN 32676 Table B \| Length 28mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.065 Dimensional Image Key: Length (C) mm: 28 Flange (A) mm: 91 Flange (A) in: 3.58" OD 1 (D) mm: 76.1 Wall (WT) mm: 2 Length (C) in: 1.1" Wall (WT) in: 0.08" Tube OD (D) mm: 76.1 Tube OD (D) in: 3" Tube ID (E) mm: 72.1 Tube ID (E) in: 2.84" ID mm: 72.1
Pharmaceutical FPDB106089028SD6L	Ferrule (DN 88.9) \| DIN 32676 Table B \| Length 28mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 88.9	106	4.17"	88.9	3.5"	84.3	3.32"	2.3	0.09"	28	1.1"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 88.9) \| DIN 32676 Table B \| Length 28mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.080 Dimensional Image Key: Length (C) mm: 28 Flange (A) mm: 106 Flange (A) in: 4.17" OD 1 (D) mm: 88.9 Wall (WT) mm: 2.3 Length (C) in: 1.1" Wall (WT) in: 0.09" Tube OD (D) mm: 88.9 Tube OD (D) in: 3.5" Tube ID (E) mm: 84.3 Tube ID (E) in: 3.32" ID mm: 84.3
Pharmaceutical FPDB130114028SD6L	Ferrule (DN 114.3) \| DIN 32676 Table B \| Length 28mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 114.3	130	5.12"	114.3	4.5"	109.7	4.32"	2.3	0.09"	28	1.1"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 114.3) \| DIN 32676 Table B \| Length 28mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.100 Dimensional Image Key: Length (C) mm: 28 Flange (A) mm: 130 Flange (A) in: 5.12" OD 1 (D) mm: 114.3 Wall (WT) mm: 2.3 Length (C) in: 1.1" Wall (WT) in: 0.09" Tube OD (D) mm: 114.3 Tube OD (D) in: 4.5" Tube ID (E) mm: 109.7 Tube ID (E) in: 4.32" ID mm: 109.7
Pharmaceutical FPDB155140028SD6L	Ferrule (DN 139.7) \| DIN 32676 Table B \| Length 28mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 139.7	155	6.1"	139.7	5.5"	134.5	5.3"	2.6	0.1"	28	1.1"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 139.7) \| DIN 32676 Table B \| Length 28mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.125 Dimensional Image Key: Length (C) mm: 28 Flange (A) mm: 155 Flange (A) in: 6.1" OD 1 (D) mm: 139.7 Wall (WT) mm: 2.6 Length (C) in: 1.1" Wall (WT) in: 0.1" Tube OD (D) mm: 139.7 Tube OD (D) in: 5.5" Tube ID (E) mm: 134.5 Tube ID (E) in: 5.3" ID mm: 134.5
Pharmaceutical FPDB183168028SD6L	Ferrule (DN 168.3) \| DIN 32676 Table B \| Length 28mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 168.3	183	7.2"	168.3	6.63"	163.1	6.42"	2.6	0.1"	28	1.1"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 168.3) \| DIN 32676 Table B \| Length 28mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.150 Dimensional Image Key: Length (C) mm: 28 Flange (A) mm: 183 Flange (A) in: 7.2" OD 1 (D) mm: 168.3 Wall (WT) mm: 2.6 Length (C) in: 1.1" Wall (WT) in: 0.1" Tube OD (D) mm: 168.3 Tube OD (D) in: 6.63" Tube ID (E) mm: 163.1 Tube ID (E) in: 6.42" ID mm: 163.1
Pharmaceutical FPDB233219028SD6L	Ferrule (DN 219.1) \| DIN 32676 Table B \| Length 28mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 219.1	233.5	9.19"	219.1	8.63"	213.9	8.42"	2.6	0.1"	28	1.1"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 219.1) \| DIN 32676 Table B \| Length 28mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.200 Dimensional Image Key: Length (C) mm: 28 Flange (A) mm: 233.5 Flange (A) in: 9.19" OD 1 (D) mm: 219.1 Wall (WT) mm: 2.6 Length (C) in: 1.1" Wall (WT) in: 0.1" Tube OD (D) mm: 219.1 Tube OD (D) in: 8.63" Tube ID (E) mm: 213.9 Tube ID (E) in: 8.42" ID mm: 213.9
Hygienic FDDB025010127SD6L	Ferrule (DN 10.2) \| DIN 32676 Table B \| Length 12,7mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 10.2	25	0.98"	10.2	0.4"	7	0.28"	1.6	0.06"	12.7	0.5"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 10.2) \| DIN 32676 Table B \| Length 12,7mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.006 Dimensional Image Key: Length (C) mm: 12.7 Flange (A) mm: 25 Flange (A) in: 0.98" OD 1 (D) mm: 10.2 Wall (WT) mm: 1.6 Length (C) in: 0.5" Wall (WT) in: 0.06" Tube OD (D) mm: 10.2 Tube OD (D) in: 0.4" Tube ID (E) mm: 7 Tube ID (E) in: 0.28" ID mm: 7
Hygienic FDDB025013127SD6L	Ferrule (DN 13.5) \| DIN 32676 Table B \| Length 12,7mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 13.5	25	0.98"	13.5	0.53"	10.3	0.41"	1.6	0.06"	12.7	0.5"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 13.5) \| DIN 32676 Table B \| Length 12,7mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.008 Dimensional Image Key: Length (C) mm: 12.7 Flange (A) mm: 25 Flange (A) in: 0.98" OD 1 (D) mm: 13.5 Wall (WT) mm: 1.6 Length (C) in: 0.5" Wall (WT) in: 0.06" Tube OD (D) mm: 13.5 Tube OD (D) in: 0.53" Tube ID (E) mm: 10.3 Tube ID (E) in: 0.41" ID mm: 10.3
Hygienic FDDB025017018SD6L	Ferrule (DN 17.2) \| DIN 32676 Table B \| Length 18mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 17.2	25	0.98"	17.2	0.68"	14	0.55"	1.6	0.06"	18	0.71"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 17.2) \| DIN 32676 Table B \| Length 18mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.010 Dimensional Image Key: Length (C) mm: 18 Flange (A) mm: 25 Flange (A) in: 0.98" OD 1 (D) mm: 17.2 Wall (WT) mm: 1.6 Length (C) in: 0.71" Wall (WT) in: 0.06" Tube OD (D) mm: 17.2 Tube OD (D) in: 0.68" Tube ID (E) mm: 14 Tube ID (E) in: 0.55" ID mm: 14
Hygienic FDDB050021018SD6L	Ferrule (DN 21.3) \| DIN 32676 Table B \| Length 18mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 21.3	50.5	1.99"	21.3	0.84"	18.1	0.71"	1.6	0.06"	18	0.71"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 21.3) \| DIN 32676 Table B \| Length 18mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.015 Dimensional Image Key: Length (C) mm: 18 Flange (A) mm: 50.5 Flange (A) in: 1.99" OD 1 (D) mm: 21.3 Wall (WT) mm: 1.6 Length (C) in: 0.71" Wall (WT) in: 0.06" Tube OD (D) mm: 21.3 Tube OD (D) in: 0.84" Tube ID (E) mm: 18.1 Tube ID (E) in: 0.71" ID mm: 18.1
Hygienic FDDB050027018SD6L	Ferrule (DN 26.9) \| DIN 32676 Table B \| Length 18mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 26.9	50.5	1.99"	26.9	1.06"	23.7	0.93"	1.6	0.06"	18	0.71"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 26.9) \| DIN 32676 Table B \| Length 18mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.020 Dimensional Image Key: Length (C) mm: 18 Flange (A) mm: 50.5 Flange (A) in: 1.99" OD 1 (D) mm: 26.9 Wall (WT) mm: 1.6 Length (C) in: 0.71" Wall (WT) in: 0.06" Tube OD (D) mm: 26.9 Tube OD (D) in: 1.06" Tube ID (E) mm: 23.7 Tube ID (E) in: 0.93" ID mm: 23.7
Hygienic FDDB050034021SD6L	Ferrule (DN 33.7) \| DIN 32676 Table B \| Length 21,5mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 33.7	50.5	1.99"	33.7	1.33"	29.7	1.17"	2	0.08"	21.5	0.85"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 33.7) \| DIN 32676 Table B \| Length 21,5mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.025 Dimensional Image Key: Length (C) mm: 21.5 Flange (A) mm: 50.5 Flange (A) in: 1.99" OD 1 (D) mm: 33.7 Wall (WT) mm: 2 Length (C) in: 0.85" Wall (WT) in: 0.08" Tube OD (D) mm: 33.7 Tube OD (D) in: 1.33" Tube ID (E) mm: 29.7 Tube ID (E) in: 1.17" ID mm: 29.7
Hygienic FDDB064048021SD6L	Ferrule (DN 48.3) \| DIN 32676 Table B \| Length 21,5mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 48.3	64	2.52"	48.3	1.9"	44.3	1.74"	2	0.08"	21.5	0.85"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 48.3) \| DIN 32676 Table B \| Length 21,5mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.040 Dimensional Image Key: Length (C) mm: 21.5 Flange (A) mm: 64 Flange (A) in: 2.52" OD 1 (D) mm: 48.3 Wall (WT) mm: 2 Length (C) in: 0.85" Wall (WT) in: 0.08" Tube OD (D) mm: 48.3 Tube OD (D) in: 1.9" Tube ID (E) mm: 44.3 Tube ID (E) in: 1.74" ID mm: 44.3
Hygienic FDDB077060021SD6L	Ferrule (DN 60.3) \| DIN 32676 Table B \| Length 21,5mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 60.3	77.5	3.05"	60.3	2.37"	56.3	2.22"	2	0.08"	21.5	0.85"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 60.3) \| DIN 32676 Table B \| Length 21,5mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.050 Dimensional Image Key: Length (C) mm: 21.5 Flange (A) mm: 77.5 Flange (A) in: 3.05" OD 1 (D) mm: 60.3 Wall (WT) mm: 2 Length (C) in: 0.85" Wall (WT) in: 0.08" Tube OD (D) mm: 60.3 Tube OD (D) in: 2.37" Tube ID (E) mm: 56.3 Tube ID (E) in: 2.22" ID mm: 56.3
Hygienic FDDB091076021SD6L	Ferrule (DN 76.1) \| DIN 32676 Table B \| Length 28mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 76.1	91	3.58"	76.1	3"	72.1	2.84"	2	0.08"	28	1.1"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 76.1) \| DIN 32676 Table B \| Length 28mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.065 Dimensional Image Key: Length (C) mm: 28 Flange (A) mm: 91 Flange (A) in: 3.58" OD 1 (D) mm: 76.1 Wall (WT) mm: 2 Length (C) in: 1.1" Wall (WT) in: 0.08" Tube OD (D) mm: 76.1 Tube OD (D) in: 3" Tube ID (E) mm: 72.1 Tube ID (E) in: 2.84" ID mm: 72.1
Hygienic FDDB106089028SD6L	Ferrule (DN 88.9) \| DIN 32676 Table B \| Length 28mm \| 316L (0,8 Ra)	DIN 32676 Table B	Short	316L	1.4404	DN 88.9	106	4.17"	88.9	3.5"	84.3	3.32"	2.3	0.09"	28	1.1"	0.8 Ra	3.1b Certified - Solid Bar	0.000000
View Page → Ferrule (DN 88.9) \| DIN 32676 Table B \| Length 28mm \| 316L (0,8 Ra) Legacy Part Number UK: FR.DNBS.080 Dimensional Image Key: Length (C) mm: 28 Flange (A) mm: 106 Flange (A) in: 4.17" OD 1 (D) mm: 88.9 Wall (WT) mm: 2.3 Length (C) in: 1.1" Wall (WT) in: 0.09" Tube OD (D) mm: 88.9 Tube OD (D) in: 3.5" Tube ID (E) mm: 84.3 Tube ID (E) in: 3.32" ID mm: 84.3
