    DIN 32676 Table A Short


    DIN 32676 Table A Short

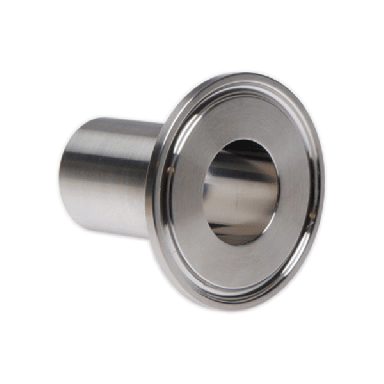

    Description
    ACL DIN 32676 Tabel A Ferrules, Short. Material 316L / 1.4404. Flatness of sealing face meets or exceeds guidelines.
    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: DIN 32676
    • Durability: 0.8Ra um Int
    Materials
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    • 316L / 1.4404
    Total: 30
    Industry
    PART#    		 Product
    Name    		 Standard Type Size Imperial Size Metric Size ISO Flange Nut Type Material Pressure Rating ID OD Length Closing mechanism
    Add
    To Cart     LIST
    PRICE
    Hygienic
    FDDA025008012SD6L
    		Hygienic Ferrule (DN06) | DIN 32676 Table A (Short) | Length 12,7mm | 316L (0.8 Ra) DIN 32676 Table A Short DIN 32676 Table A Short 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (DN06) | DIN 32676 Table A (Short) | Length 12,7mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNAS.006

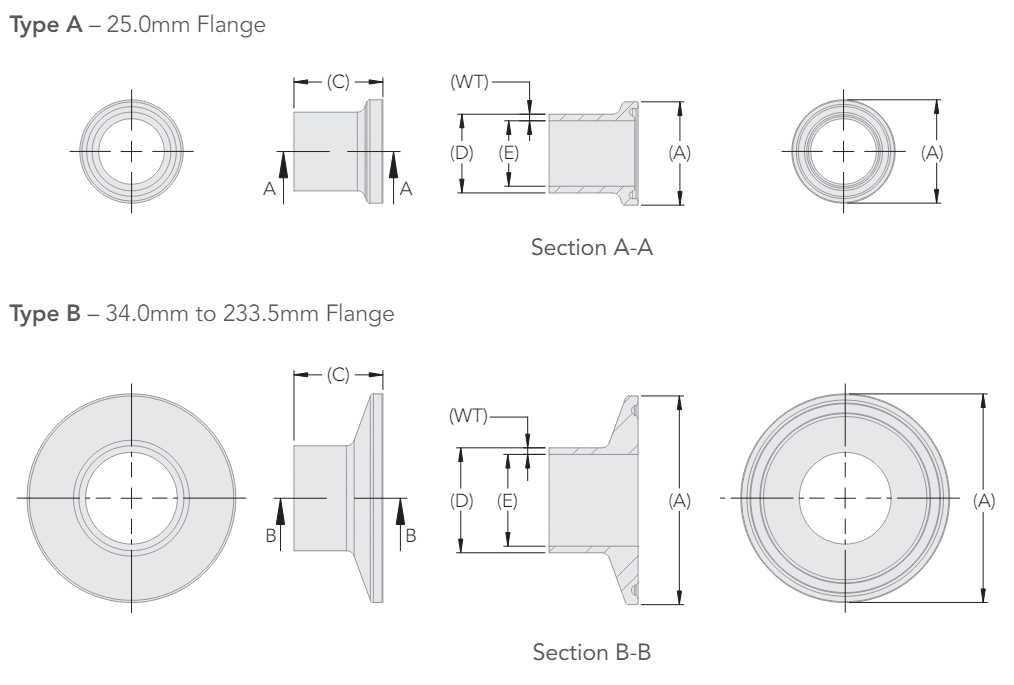

    Dimensional Image Key:
    • • Length (C) mm:  12.7
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  8
    • • Wall (WT) mm:  1
    • • Length (C) in:  0.5"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  8
    • • Tube OD (D) in:  0.31"
    • • Tube ID (E) mm:  6
    • • Tube ID (E) in:  0.24"
    Hygienic
    FDDA025010012SD6L
    		Hygienic Ferrule (DN08) | DIN 32676 Table A (Short) | Length 12,7mm | 316L (0.8 Ra) DIN 32676 Table A Short DIN 32676 Table A Short 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (DN08) | DIN 32676 Table A (Short) | Length 12,7mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNAS.008
    Dimensional Image Key:
    • • Length (C) mm:  12.7
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  10
    • • Wall (WT) mm:  1
    • • Length (C) in:  0.5"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  10
    • • Tube OD (D) in:  0.39"
    • • Tube ID (E) mm:  8
    • • Tube ID (E) in:  0.31"
    Hygienic
    FDD2034013018SD6L
    		Ferrule (DN 10) | DIN 32676 Table A / Series 2 | Length 18mm | 316L (0.8 Ra) DIN 32676 Table A / Series 2 Short DN 10(DIN) 34(mm)/1.34"(in) 316L 0.39"(in) 13(mm)/0.51"(in) 18(mm)/0.71"(in)
      Log In or Create a
    Free Account to Purchase
    $6.27
    dimensional image
    View Page
     Ferrule (DN 10) | DIN 32676 Table A / Series 2 | Length 18mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.DN.010 - * DIN 10 FERRULE 316L - Legacy Part Number DK:   FRDDN010
    Dimensional Image Key:
    • • Length (C) mm:  18
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  13
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  0.71"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  13
    • • Tube OD (D) in:  0.51"
    • • Tube ID (E) mm:  10
    • • Tube ID (E) in:  0.39"
    • • ID (mm):  10
    Hygienic
    FDD2034019018SD6L
    		Ferrule (DN 15) | DIN 32676 Table A / Series 2 | Length 18mm | 316L (0.8 Ra) DIN 32676 Table A / Series 2 Short DN 15(DIN) 34(mm)/1.34"(in) 316L 0.63"(in) 19(mm)/0.75"(in) 18(mm)/0.71"(in)
      Log In or Create a
    Free Account to Purchase
    $5.29
    dimensional image
    View Page
     Ferrule (DN 15) | DIN 32676 Table A / Series 2 | Length 18mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.DN.015 - * DIN 15 FERRULE 316L - Legacy Part Number DK:   FRDDN015
    Dimensional Image Key:
    • • Length (C) mm:  18
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  19
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  0.71"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  19
    • • Tube OD (D) in:  0.75"
    • • Tube ID (E) mm:  16
    • • Tube ID (E) in:  0.63"
    • • ID (mm):  16
    Hygienic
    FDD2034023018SD6L
    		Ferrule (DN 20) | DIN 32676 Table A / Series 2 | Length 18mm | 316L (0.8 Ra) DIN 32676 Table A / Series 2 Short DN 20(DIN) 34(mm)/1.34"(in) 316L 0.79"(in) 23(mm)/0.91"(in) 18(mm)/0.71"(in)
      Log In or Create a
    Free Account to Purchase
    $5.29
    dimensional image
    View Page
     Ferrule (DN 20) | DIN 32676 Table A / Series 2 | Length 18mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.DN.020 - * DIN 20 FERRULE 316L - Legacy Part Number DK:   FRDDN020
    Dimensional Image Key:
    • • Length (C) mm:  18
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  23
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  0.71"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  23
    • • Tube OD (D) in:  0.91"
    • • Tube ID (E) mm:  20
    • • Tube ID (E) in:  0.79"
    • • ID (mm):  20
    Hygienic
    FDD2050029021SD6L
    		Ferrule (DN 25) | DIN 32676 Table A / Series 2 | Length 21,5mm | 316L (0.8 Ra) DIN 32676 Table A / Series 2 Short DN 25(DIN) 50.5(mm)/1.99"(in) 316L 1.02"(in) 29(mm)/1.14"(in) 21.5(mm)/0.85"(in)
      Log In or Create a
    Free Account to Purchase
    $5.61
    dimensional image
    View Page
     Ferrule (DN 25) | DIN 32676 Table A / Series 2 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.DN.025 - * DIN 25 FERRULE 316L - Legacy Part Number DK:   FRDDN025
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  29
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  29
    • • Tube OD (D) in:  1.14"
    • • Tube ID (E) mm:  26
    • • Tube ID (E) in:  1.02"
    • • ID (mm):  26
    Hygienic
    FDD2050035021SD6L
    		Ferrule (DN 32) | DIN 32676 Table A / Series 2 | Length 21,5mm | 316L (0.8 Ra) DIN 32676 Table A / Series 2 Short DN 32(DIN) 50.5(mm)/1.99"(in) 316L 1.26"(in) 35(mm)/1.38"(in) 21.5(mm)/0.85"(in)
      Log In or Create a
    Free Account to Purchase
    $5.68
    dimensional image
    View Page
     Ferrule (DN 32) | DIN 32676 Table A / Series 2 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.DN.032 - * DIN 32 FERRULE 316L - Legacy Part Number DK:   FRDDN032
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  35
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  35
    • • Tube OD (D) in:  1.38"
    • • Tube ID (E) mm:  32
    • • Tube ID (E) in:  1.26"
    • • ID (mm):  32
    Hygienic
    FDD2050041021SD6L
    		Ferrule (DN 40) | DIN 32676 Table A / Series 2 | Length 21,5mm | 316L (0.8 Ra) DIN 32676 Table A / Series 2 Short DN 40(DIN) 50.5(mm)/1.99"(in) 316L 1.5"(in) 41(mm)/1.61"(in) 21.5(mm)/0.85"(in)
      Log In or Create a
    Free Account to Purchase
    $4.84
    dimensional image
    View Page
     Ferrule (DN 40) | DIN 32676 Table A / Series 2 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.DN.040 - * DIN 40 FERRULE 316L - Legacy Part Number DK:   FRDDN040
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  41
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  41
    • • Tube OD (D) in:  1.61"
    • • Tube ID (E) mm:  38
    • • Tube ID (E) in:  1.5"
    • • ID (mm):  38
    Hygienic
    FDD2064053021SD6L
    		Ferrule (DN 50) | DIN 32676 Table A / Series 2 | Length 21,5mm | 316L (0.8 Ra) DIN 32676 Table A / Series 2 Short DN 50(DIN) 64(mm)/2.52"(in) 316L 1.97"(in) 53(mm)/2.09"(in) 21.5(mm)/0.85"(in)
      Log In or Create a
    Free Account to Purchase
    $6.15
    dimensional image
    View Page
     Ferrule (DN 50) | DIN 32676 Table A / Series 2 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.DN.050 - * DIN 50 FERRULE 316L - Legacy Part Number DK:   FRDDN050
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • OD 1 (D) mm:  53
    • • Wall (WT) mm:  2
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  53
    • • Tube OD (D) in:  2.09"
    • • Tube ID (E) mm:  50
    • • Tube ID (E) in:  1.97"
    • • ID (mm):  50
    Hygienic
    FDD2091070028SD6L
    		Ferrule (DN 65) | DIN 32676 Table A / Series 2 | Length 28mm | 316L (0.8 Ra) DIN 32676 Table A / Series 2 Short DN 65(DIN) 91(mm)/3.58"(in) 316L 2.6"(in) 70(mm)/2.76"(in) 28(mm)/1.1"(in)
      Log In or Create a
    Free Account to Purchase
    $13.92
    dimensional image
    View Page
     Ferrule (DN 65) | DIN 32676 Table A / Series 2 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.DN.065 - * DIN 65 FERRULE 316L - Legacy Part Number DK:   FRDDN065
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • OD 1 (D) mm:  70
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  70
    • • Tube OD (D) in:  2.76"
    • • Tube ID (E) mm:  66
    • • Tube ID (E) in:  2.6"
    • • ID (mm):  66
    Hygienic
    FDD2106085028SD6L
    		Ferrule (DN 80) | DIN 32676 Table A / Series 2 | Length 28mm | 316L (0.8 Ra) DIN 32676 Table A / Series 2 Short DN 80(DIN) 106(mm)/4.17"(in) 316L 3.19"(in) 85(mm)/3.35"(in) 28(mm)/1.1"(in)
      Log In or Create a
    Free Account to Purchase
    $17.24
    dimensional image
    View Page
     Ferrule (DN 80) | DIN 32676 Table A / Series 2 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.DN.080 - * DIN 80 FERRULE 316L - Legacy Part Number DK:   FRDDN080
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  106
    • • Flange (A) in:  4.17"
    • • OD 1 (D) mm:  85
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  85
    • • Tube OD (D) in:  3.35"
    • • Tube ID (E) mm:  81
    • • Tube ID (E) in:  3.19"
    • • ID (mm):  81
    Hygienic
    FDD2119104028SD6L
    		Ferrule (DN 100) | DIN 32676 Table A / Series 2 | Length 28mm | 316L (0.8 Ra) DIN 32676 Table A / Series 2 Short DN 100(DIN) 119(mm)/4.69"(in) 316L 3.94"(in) 104(mm)/4.09"(in) 28(mm)/1.1"(in)
      Log In or Create a
    Free Account to Purchase
    $18.77
    dimensional image
    View Page
     Ferrule (DN 100) | DIN 32676 Table A / Series 2 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.DN.100 - * DIN 100 FERRULE 316L - Legacy Part Number DK:   FRDDN100
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69"
    • • OD 1 (D) mm:  104
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  104
    • • Tube OD (D) in:  4.09"
    • • Tube ID (E) mm:  100
    • • Tube ID (E) in:  3.94"
    • • ID (mm):  100
