    BS Schedule 40


    BS Schedule 40

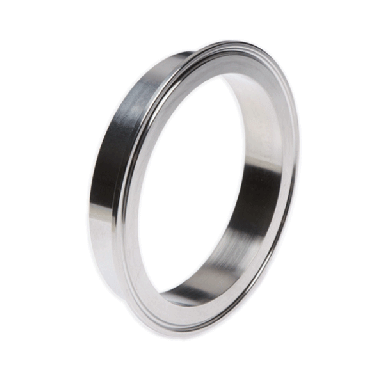

    Description
    BS Schedule 40 Ferrules. Flatness of sealing face meets or exceeds guidelines. Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​.

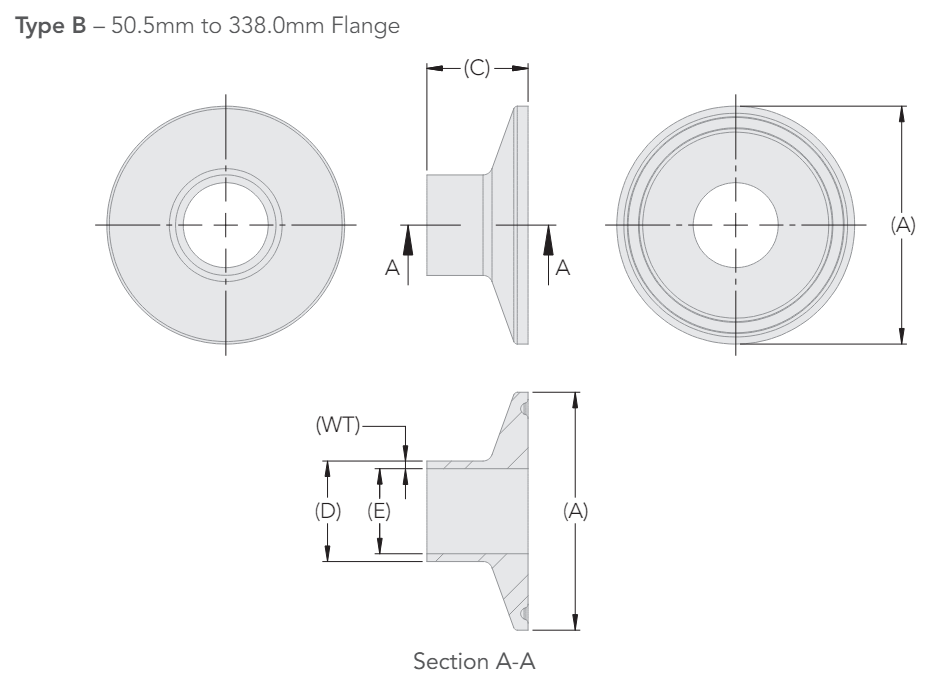

    Dimensional Image
    Features
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: BS4825-3
    • Durability: 0.8Ra um Int
    Materials
    • 316L / 1.4404 3.1 Certified – Solid Bar
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum
    Total: 30
    Industry
    PART#    		 Product
    Name    		 Standard Type Size Imperial Size Metric Size ISO Flange Nut Type Material Pressure Rating ID OD Length Closing mechanism
    Add
    To Cart     LIST
    PRICE
    Hygienic
    FDB3050021021SD6L
    		Ferrule (0,5") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 40 BS Schedule 40 1/2" 50.5(mm)/1.99"(in) 316L 0.62"(in) 21.34(mm)/0.84"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (0,5") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS40.0050
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • Wall (WT) mm:  2.77
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.11"
    • • Tube OD (D) mm:  21.34
    • • Tube OD (D) in:  0.84"
    • • Tube ID (E) mm:  15.8
    • • Tube ID (E) in:  0.62"
    • • ID (mm):  15.8
    Hygienic
    FDB3050026021SD6L
    		Ferrule (0,75") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 40 BS Schedule 40 3/4" 50.5(mm)/1.99"(in) 316L 0.82"(in) 26.67(mm)/1.05"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (0,75") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS40.0075
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • Wall (WT) mm:  2.87
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.11"
    • • Tube OD (D) mm:  26.67
    • • Tube OD (D) in:  1.05"
    • • Tube ID (E) mm:  20.93
    • • Tube ID (E) in:  0.82"
    • • ID (mm):  20.93
    Hygienic
    FDB3050033021SD6L
    		Ferrule (1") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 40 BS Schedule 40 1" 50.5(mm)/1.99"(in) 316L 1.05"(in) 33.4(mm)/1.31"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (1") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS40.0100
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • Wall (WT) mm:  3.38
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.13"
    • • Tube OD (D) mm:  33.4
    • • Tube OD (D) in:  1.31"
    • • Tube ID (E) mm:  26.64
    • • Tube ID (E) in:  1.05"
    • • ID (mm):  26.64
    Hygienic
    FDB3064042021SD6L
    		Ferrule (1,25") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 40 BS Schedule 40 1 1/4" 64(mm)/2.52"(in) 316L 1.38"(in) 42.16(mm)/1.66"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (1,25") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS40.0125
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • Wall (WT) mm:  3.56
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.14"
    • • Tube OD (D) mm:  42.16
    • • Tube OD (D) in:  1.66"
    • • Tube ID (E) mm:  35.04
    • • Tube ID (E) in:  1.38"
    • • ID (mm):  35.04
    Hygienic
    FDB3064048021SD6L
    		Ferrule (1,5") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 40 BS Schedule 40 1 1/2" 64(mm)/2.52"(in) 316L 1.61"(in) 48.26(mm)/1.9"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (1,5") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS40.0150
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • Wall (WT) mm:  3.69
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.15"
    • • Tube OD (D) mm:  48.26
    • • Tube OD (D) in:  1.9"
    • • Tube ID (E) mm:  40.88
    • • Tube ID (E) in:  1.61"
    • • ID (mm):  40.88
    Hygienic
    FDB3077060021SD6L
    		Ferrule (2") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 40 BS Schedule 40 2" 77.5(mm)/3.05"(in) 316L 2.07"(in) 60.32(mm)/2.37"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (2") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS40.0200
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  77.5
    • • Flange (A) in:  3.05"
    • • Wall (WT) mm:  3.91
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.15"
    • • Tube OD (D) mm:  60.32
    • • Tube OD (D) in:  2.37"
    • • Tube ID (E) mm:  52.51
    • • Tube ID (E) in:  2.07"
    • • ID (mm):  52.51
    Hygienic
    FDB3091073021SD6L
    		Ferrule (2,5") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 40 BS Schedule 40 2 1/2" 91(mm)/3.58"(in) 316L 2.47"(in) 73.03(mm)/2.88"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (2,5") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS40.0250
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • Wall (WT) mm:  5.16
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.2"
    • • Tube OD (D) mm:  73.03
    • • Tube OD (D) in:  2.88"
    • • Tube ID (E) mm:  62.71
    • • Tube ID (E) in:  2.47"
    • • ID (mm):  62.71
    Hygienic
    FDB3106088021SD6L
    		Hygienic Ferrule (3") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 40 BS Schedule 40 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (3") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS40.0300
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  106
    • • Flange (A) in:  4.17"
    • • Wall (WT) mm:  5.49
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.22"
    • • Tube OD (D) mm:  88.9
    • • Tube OD (D) in:  3.5"
    • • Tube ID (E) mm:  77.92
    • • Tube ID (E) in:  3.07"
    Hygienic
    FDB3119101021SD6L
    		Ferrule (3,5") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) BS Schedule 40 BS Schedule 40 3 1/2" 119(mm)/4.69"(in) 316L 3.55"(in) 101.6(mm)/4"(in) 21.5(mm)/0.85"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (3,5") | BS Schedule 40 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS40.0350
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69"
    • • Wall (WT) mm:  5.74
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.23"
    • • Tube OD (D) mm:  101.6
    • • Tube OD (D) in:  4"
    • • Tube ID (E) mm:  90.12
    • • Tube ID (E) in:  3.55"
    • • ID (mm):  90.12
    Hygienic
    FDB3130114028SD6L
    		Ferrule (4") | BS Schedule 40 | Length 28mm | 316L (0.8 Ra) BS Schedule 40 BS Schedule 40 4" 130(mm)/5.12"(in) 316L 4.03"(in) 114.3(mm)/4.5"(in) 28(mm)/1.1"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (4") | BS Schedule 40 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS40.0400
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  130
    • • Flange (A) in:  5.12"
    • • Wall (WT) mm:  6.02
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.24"
    • • Tube OD (D) mm:  114.3
    • • Tube OD (D) in:  4.5"
    • • Tube ID (E) mm:  102.26
    • • Tube ID (E) in:  4.03"
    • • ID (mm):  102.26
    Hygienic
    FDB3155141028SD6L
    		Ferrule (5") | BS Schedule 40 | Length 28mm | 316L (0.8 Ra) BS Schedule 40 BS Schedule 40 5" 155(mm)/6.1"(in) 316L 5.05"(in) 141.3(mm)/5.56"(in) 28(mm)/1.1"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (5") | BS Schedule 40 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS40.0500
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  155
    • • Flange (A) in:  6.1"
    • • Wall (WT) mm:  6.55
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.26"
    • • Tube OD (D) mm:  141.3
    • • Tube OD (D) in:  5.56"
    • • Tube ID (E) mm:  128.2
    • • Tube ID (E) in:  5.05"
    • • ID (mm):  128.2
    Hygienic
    FDB3183168028SD6L
    		Ferrule (6") | BS Schedule 40 | Length 28mm | 316L (0.8 Ra) BS Schedule 40 BS Schedule 40 6" 183(mm)/7.2"(in) 316L 6.07"(in) 168.28(mm)/6.63"(in) 28(mm)/1.1"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Ferrule (6") | BS Schedule 40 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS40.0600
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  183
    • • Flange (A) in:  7.2"
    • • Wall (WT) mm:  7.11
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.28"
    • • Tube OD (D) mm:  168.28
    • • Tube OD (D) in:  6.63"
    • • Tube ID (E) mm:  154.06
    • • Tube ID (E) in:  6.07"
    • • ID (mm):  154.06
