    DIN 32676 Table C Short


    DIN 32676 Table C Short
    Description

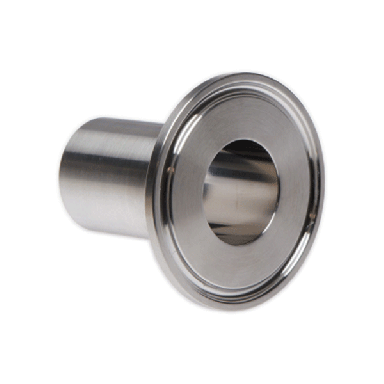

    ACL DIN 32676 Tabel C Ferrules, short (12.7mm - 28mm), material 1.4404 low sulphur. Flatness of sealing face meets or exceeds guidelines.

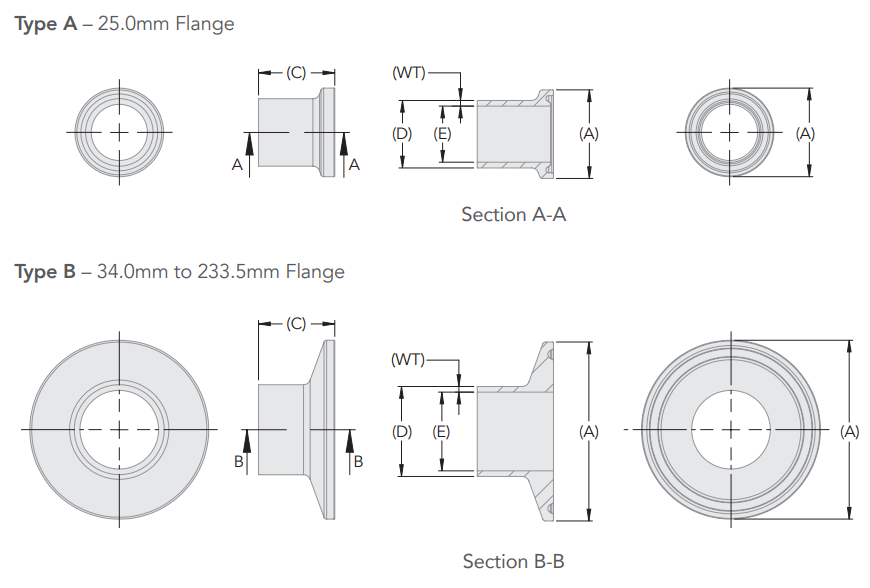

    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: DIN 32676
    • Durability: 0.8Ra um Int
    Materials
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    • 316L / 1.4404
    Ferrules / DIN 32676 Table C Short
    Tri-Clamps Tri-Clamps Safety Tri-Clamps Safety Tri-Clamps Ferrules Ferrules Tri-Clamp Gaskets Tri-Clamp Gaskets
    DIN 32676 Table C Short DIN 32676 Table C Short
    BS 4825 Part 3 BS 4825 Part 3 BS Schedule 5 BS Schedule 5 BS Schedule 10 BS Schedule 10 BS Schedule 40 BS Schedule 40 ASME BPE Compliant ASME BPE Compliant DIN 32676 Table A Short DIN 32676 Table A Short DIN 32676 Table A Long DIN 32676 Table A Long DIN 32676 Table B Short DIN 32676 Table B Short DIN 32676 Table B Long DIN 32676 Table B Long DIN 32676 Table C Long DIN 32676 Table C Long ISO 1127 Standard ISO 1127 Standard ISO 1127 Variation ISO 1127 Variation Mini Series Ultra-Bore Metric & Imperial Mini Series Ultra-Bore Metric & Imperial SMS 3008/3017 SMS 3008/3017 SWG SWG MPW Tank MPW Tank
    Total: 22
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade EN Standard Size (in) Size (DN) Size (mm) Flange A (mm) Flange A (in) OD (mm) OD (in) ID (mm) ID (in) Wall Thickness (mm) Wall Thickness (in) Length (mm) Length (in) Surface Finish Manufactured Weight
    FPDC025635012SD6L
    		Ferrule (1/4") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 1/4" 25 0.98" 6.35 0.25" 4.57 0.18" 0.89 0.04" 12.7 0.5" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (1/4") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.025 Dimensional Image Key:
    • Length (C) mm:   12.7
    • Flange (A) mm:   25.4
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   6.35
    • Wall (WT) mm:   0.89
    • Length (C) in:   0.5"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   6.35
    • Tube OD (D) in:   0.25"
    • Tube ID (E) mm:   4.57
    • Tube ID (E) in:   0.18"
    • ID mm:   4.57
    FPDC025952012SD6L
    		Ferrule (3/8") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 3/8" 25 0.98" 9.52 0.37" 7.74 0.3" 0.89 0.04" 12.7 0.5" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (3/8") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.038 Dimensional Image Key:
    • Length (C) mm:   12.7
    • Flange (A) mm:   25.4
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   9.52
    • Wall (WT) mm:   0.89
    • Length (C) in:   0.5"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   9.525
    • Tube OD (D) in:   0.38"
    • Tube ID (E) mm:   7.74
    • Tube ID (E) in:   0.3"
    • ID mm:   7.74
    FPDC025127012SD6L
    		Ferrule (1/2") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 1/2" 25 0.98" 12.7 0.5" 9.4 0.37" 1.65 0.06" 12.7 0.5" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (1/2") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.050 Dimensional Image Key:
    • Length (C) mm:   12.7
    • Flange (A) mm:   25.4
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   10.7
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.5"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   12.7
    • Tube OD (D) in:   0.5"
    • Tube ID (E) mm:   9.4
    • Tube ID (E) in:   0.37"
    • ID mm:   9.4
    FPDC025195012SD6L
    		Ferrule (3/4") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 3/4" 25 0.98" 19.05 0.75" 15.75 0.62" 1.65 0.06" 12.7 0.5" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (3/4") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.075 Dimensional Image Key:
    • Length (C) mm:   12.7
    • Flange (A) mm:   25.4
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   19.05
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.5"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   19.05
    • Tube OD (D) in:   0.75"
    • Tube ID (E) mm:   15.75
    • Tube ID (E) in:   0.62"
    • ID mm:   15.75
    FPDC050025021SD6L
    		Ferrule (1") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 1" 50.5 1.99" 25.4 1" 22.1 0.87" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (1") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.100 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   25.4
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   25.4
    • Tube OD (D) in:   1"
    • Tube ID (E) mm:   22.1
    • Tube ID (E) in:   0.87"
    • ID mm:   22.1
    FPDC050038021SD6L
    		Ferrule (1 1/2") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 1 1/2" 50.5 1.99" 38.1 1.5" 34.8 1.37" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (1 1/2") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.150 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   38.1
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   38.1
    • Tube OD (D) in:   1.5"
    • Tube ID (E) mm:   34.8
    • Tube ID (E) in:   1.37"
    • ID mm:   34.8
    FPDC064051021SD6L
    		Ferrule (2") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 2" 64 2.52" 50.8 2" 47.5 1.87" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (2") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.200 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • OD 1 (D) mm:   50.8
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   50.8
    • Tube OD (D) in:   2"
    • Tube ID (E) mm:   47.5
    • Tube ID (E) in:   1.87"
    • ID mm:   47.5
    FPDC077063028SD6L
    		Ferrule (2 1/2") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 2 1/2" 77.5 3.05" 63.5 2.5" 60.2 2.37" 1.65 0.06" 28 1.1" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (2 1/2") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.250 Dimensional Image Key:
    • Length (C) mm:   28
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • OD 1 (D) mm:   63.5
    • Wall (WT) mm:   1.65
    • Length (C) in:   1.1"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   63.5
    • Tube OD (D) in:   2.5"
    • Tube ID (E) mm:   60.2
    • Tube ID (E) in:   2.37"
    • ID mm:   60.2
    FPDC091076028SD6L
    		Ferrule (3") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 3" 91 3.58" 76.2 3" 72.9 2.87" 1.65 0.06" 28 1.1" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (3") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.300 Dimensional Image Key:
    • Length (C) mm:   28
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • OD 1 (D) mm:   76.2
    • Wall (WT) mm:   1.65
    • Length (C) in:   1.1"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   76.2
    • Tube OD (D) in:   3"
    • Tube ID (E) mm:   72.9
    • Tube ID (E) in:   2.87"
    • ID mm:   72.9
    FPDC119101028SD6L
    		Ferrule (4") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 4" 119 4.69" 101.6 4" 97.38 3.83" 2.11 0.08" 28 1.1" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (4") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.400 Dimensional Image Key:
    • Length (C) mm:   28
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • OD 1 (D) mm:   101.6
    • Wall (WT) mm:   2.11
    • Length (C) in:   1.1"
    • Wall (WT) in:   0.08"
    • Tube OD (D) mm:   101.6
    • Tube OD (D) in:   4"
    • Tube ID (E) mm:   97.38
    • Tube ID (E) in:   3.83"
    • ID mm:   97.38
    FPDC167154028SD6L
    		Ferrule (6") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 6" 167 6.57" 152.4 6" 146.86 5.78" 2.77 0.11" 28 1.1" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (6") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.600 Dimensional Image Key:
    • Length (C) mm:   28
    • Flange (A) mm:   167
    • Flange (A) in:   6.57"
    • OD 1 (D) mm:   152.4
    • Wall (WT) mm:   2.77
    • Length (C) in:   1.1"
    • Wall (WT) in:   0.11"
    • Tube OD (D) mm:   152.4
    • Tube OD (D) in:   6"
    • Tube ID (E) mm:   146.86
    • Tube ID (E) in:   5.78"
    • ID mm:   146.86
    FDDC025635012SD6L
    		Ferrule (1/4") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 1/4" 25 0.98" 6.35 0.25" 4.57 0.18" 0.89 0.04" 12.7 0.5" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (1/4") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.025 Dimensional Image Key:
    • Length (C) mm:   12.7
    • Flange (A) mm:   25.4
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   6.35
    • Wall (WT) mm:   0.89
    • Length (C) in:   0.5"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   6.35
    • Tube OD (D) in:   0.25"
    • Tube ID (E) mm:   4.57
    • Tube ID (E) in:   0.18"
    • ID mm:   4.57
    FDDC025952012SD6L
    		Ferrule (3/8") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 3/8" 25 0.98" 9.52 0.37" 7.74 0.3" 0.89 0.04" 12.7 0.5" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (3/8") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.038 Dimensional Image Key:
    • Length (C) mm:   12.7
    • Flange (A) mm:   25.4
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   9.52
    • Wall (WT) mm:   0.89
    • Length (C) in:   0.5"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   9.525
    • Tube OD (D) in:   0.38"
    • Tube ID (E) mm:   7.74
    • Tube ID (E) in:   0.3"
    • ID mm:   7.74
    FDDC025127012SD6L
    		Ferrule (1/2") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 1/2" 25 0.98" 12.7 0.5" 9.4 0.37" 1.65 0.06" 12.7 0.5" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (1/2") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.050 Dimensional Image Key:
    • Length (C) mm:   12.7
    • Flange (A) mm:   25.4
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   10.7
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.5"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   12.7
    • Tube OD (D) in:   0.5"
    • Tube ID (E) mm:   9.4
    • Tube ID (E) in:   0.37"
    • ID mm:   9.4
    FDDC025195012SD6L
    		Ferrule (3/4") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 3/4" 25 0.98" 19.05 0.75" 15.75 0.62" 1.65 0.06" 12.7 0.5" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (3/4") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.075 Dimensional Image Key:
    • Length (C) mm:   12.7
    • Flange (A) mm:   25.4
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   19.05
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.5"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   19.05
    • Tube OD (D) in:   0.75"
    • Tube ID (E) mm:   15.75
    • Tube ID (E) in:   0.62"
    • ID mm:   15.75
    FDDC050025021SD6L
    		Ferrule (1") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 1" 50.5 1.99" 25.4 1" 22.1 0.87" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (1") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.100 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   25.4
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   25.4
    • Tube OD (D) in:   1"
    • Tube ID (E) mm:   22.1
    • Tube ID (E) in:   0.87"
    • ID mm:   22.1
    FDDC050038021SD6L
    		Ferrule (1 1/2") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 1 1/2" 50.5 1.99" 38.1 1.5" 34.8 1.37" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (1 1/2") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.150 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   38.1
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   38.1
    • Tube OD (D) in:   1.5"
    • Tube ID (E) mm:   34.8
    • Tube ID (E) in:   1.37"
    • ID mm:   34.8
    FDDC064051021SD6L
    		Ferrule (2") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 2" 64 2.52" 50.8 2" 47.5 1.87" 1.65 0.06" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (2") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.200 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • OD 1 (D) mm:   50.8
    • Wall (WT) mm:   1.65
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   50.8
    • Tube OD (D) in:   2"
    • Tube ID (E) mm:   47.5
    • Tube ID (E) in:   1.87"
    • ID mm:   47.5
    FDDC077063028SD6L
    		Ferrule (2 1/2") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 2 1/2" 77.5 3.05" 63.5 2.5" 60.2 2.37" 1.65 0.06" 28 1.1" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (2 1/2") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.250 Dimensional Image Key:
    • Length (C) mm:   28
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • OD 1 (D) mm:   63.5
    • Wall (WT) mm:   1.65
    • Length (C) in:   1.1"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   63.5
    • Tube OD (D) in:   2.5"
    • Tube ID (E) mm:   60.2
    • Tube ID (E) in:   2.37"
    • ID mm:   60.2
    FDDC091076028SD6L
    		Ferrule (3") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 3" 91 3.58" 76.2 3" 72.9 2.87" 1.65 0.06" 28 1.1" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (3") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.300 Dimensional Image Key:
    • Length (C) mm:   28
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • OD 1 (D) mm:   76.2
    • Wall (WT) mm:   1.65
    • Length (C) in:   1.1"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   76.2
    • Tube OD (D) in:   3"
    • Tube ID (E) mm:   72.9
    • Tube ID (E) in:   2.87"
    • ID mm:   72.9
    FDDC119101028SD6L
    		Ferrule (4") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 4" 119 4.69" 101.6 4" 97.38 3.83" 2.11 0.08" 28 1.1" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (4") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.400 Dimensional Image Key:
    • Length (C) mm:   28
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • OD 1 (D) mm:   101.6
    • Wall (WT) mm:   2.11
    • Length (C) in:   1.1"
    • Wall (WT) in:   0.08"
    • Tube OD (D) mm:   101.6
    • Tube OD (D) in:   4"
    • Tube ID (E) mm:   97.38
    • Tube ID (E) in:   3.83"
    • ID mm:   97.38
    FDDC167154028SD6L
    		Ferrule (6") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra) DIN 32676 Table C Short 316L 1.4404 6" 167 6.57" 152.4 6" 146.86 5.78" 2.77 0.11" 28 1.1" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (6") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra) Legacy Part Number UK:  FR.DNCS.600 Dimensional Image Key:
    • Length (C) mm:   28
    • Flange (A) mm:   167
    • Flange (A) in:   6.57"
    • OD 1 (D) mm:   152.4
    • Wall (WT) mm:   2.77
    • Length (C) in:   1.1"
    • Wall (WT) in:   0.11"
    • Tube OD (D) mm:   152.4
    • Tube OD (D) in:   6"
    • Tube ID (E) mm:   146.86
    • Tube ID (E) in:   5.78"
    • ID mm:   146.86
    Ferrule (1/4
    Ferrule (1/4") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra)
    Pharmaceutical
    FPDC025635012SD6L
    Ferrule (3/8
    Ferrule (3/8") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra)
    Pharmaceutical
    FPDC025952012SD6L
    Ferrule (1/2
    Ferrule (1/2") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra)
    Pharmaceutical
    FPDC025127012SD6L
    Ferrule (3/4
    Ferrule (3/4") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra)
    Pharmaceutical
    FPDC025195012SD6L
    Ferrule (1
    Ferrule (1") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra)
    Pharmaceutical
    FPDC050025021SD6L
    Ferrule (1 1/2
    Ferrule (1 1/2") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra)
    Pharmaceutical
    FPDC050038021SD6L
    Ferrule (2
    Ferrule (2") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra)
    Pharmaceutical
    FPDC064051021SD6L
    Ferrule (2 1/2
    Ferrule (2 1/2") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra)
    Pharmaceutical
    FPDC077063028SD6L
    Ferrule (3
    Ferrule (3") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra)
    Pharmaceutical
    FPDC091076028SD6L
    Ferrule (4
    Ferrule (4") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra)
    Pharmaceutical
    FPDC119101028SD6L
    Ferrule (6
    Ferrule (6") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra)
    Pharmaceutical
    FPDC167154028SD6L
    Ferrule (1/4
    Ferrule (1/4") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra)
    Hygienic
    FDDC025635012SD6L
    Ferrule (3/8
    Ferrule (3/8") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra)
    Hygienic
    FDDC025952012SD6L
    Ferrule (1/2
    Ferrule (1/2") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra)
    Hygienic
    FDDC025127012SD6L
    Ferrule (3/4
    Ferrule (3/4") | DIN 32676 Table C | Length 12,7mm | 316L (0,8 Ra)
    Hygienic
    FDDC025195012SD6L
    Ferrule (1
    Ferrule (1") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra)
    Hygienic
    FDDC050025021SD6L
    Ferrule (1 1/2
    Ferrule (1 1/2") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra)
    Hygienic
    FDDC050038021SD6L
    Ferrule (2
    Ferrule (2") | DIN 32676 Table C | Length 21,5mm | 316L (0,8 Ra)
    Hygienic
    FDDC064051021SD6L
    Ferrule (2 1/2
    Ferrule (2 1/2") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra)
    Hygienic
    FDDC077063028SD6L
    Ferrule (3
    Ferrule (3") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra)
    Hygienic
    FDDC091076028SD6L
    Ferrule (4
    Ferrule (4") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra)
    Hygienic
    FDDC119101028SD6L
    Ferrule (6
    Ferrule (6") | DIN 32676 Table C | Length 28mm | 316L (0,8 Ra)
    Hygienic
    FDDC167154028SD6L
