    MPW Tank


    MPW Tank

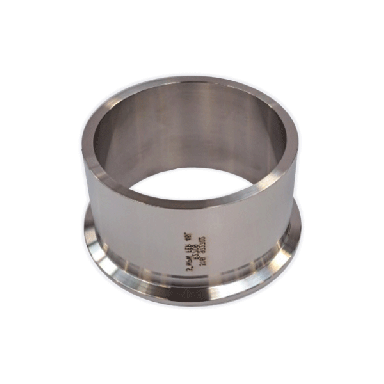

    Description
    MPW Tank Ferrules; material 1.4404, sizes 1" to 8". Flatness of sealing face meets or exceeds guidelines.

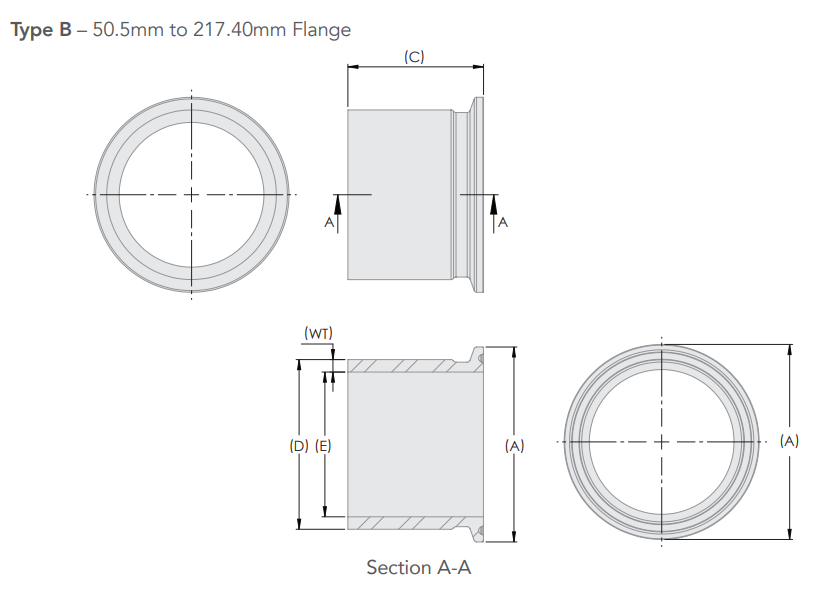

    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: BS4825-3
    • Durability: 0.51Ra um Int
    Materials
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    • 316L / 1,4404 3,1 Certified – Solid Bar
    Ferrules / MPW Tank
    Tri-Clamps Tri-Clamps Safety Tri-Clamps Safety Tri-Clamps Ferrules Ferrules Tri-Clamp Gaskets Tri-Clamp Gaskets
    MPW Tank MPW Tank
    BS 4825 Part 3 BS 4825 Part 3 BS Schedule 5 BS Schedule 5 BS Schedule 10 BS Schedule 10 BS Schedule 40 BS Schedule 40 ASME BPE Compliant ASME BPE Compliant DIN 32676 Table A Short DIN 32676 Table A Short DIN 32676 Table A Long DIN 32676 Table A Long DIN 32676 Table B Short DIN 32676 Table B Short DIN 32676 Table B Long DIN 32676 Table B Long DIN 32676 Table C Short DIN 32676 Table C Short DIN 32676 Table C Long DIN 32676 Table C Long ISO 1127 Standard ISO 1127 Standard ISO 1127 Variation ISO 1127 Variation Mini Series Ultra-Bore Metric & Imperial Mini Series Ultra-Bore Metric & Imperial SMS 3008/3017 SMS 3008/3017 SWG SWG
    Total: 16
    Industry
    PART#    		 Product
    Name    		 Standard Material Grade EN Standard Size (in) Flange A (mm) Flange A (in) OD (mm) OD (in) ID (mm) ID (in) Wall Thickness (mm) Wall Thickness (in) Length (mm) Length (in) Surface Finish Manufactured Weight
    FPM1050029041SD6L
    		Ferrule (1") | 14 MPW TANK | Length 41,3mm | 316L (0.8 Ra) 14 MPW Tank 316L 1.4404 1" 50.5 1.99" 29.46 1.16" 22.1 0.87" 3.68 0.14" 41.3 1.63" 0.8 Ra 3.1b Certified - Solid Bar 0.142400
    dimensional image
    View Page → Ferrule (1") | 14 MPW TANK | Length 41,3mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MPW.0100 - 1" 14 MPW TANK FERRULE 316L Legacy Part Number DK:  FRMPW0100 Dimensional Image Key:
    • Length (C) mm:   41.3
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   29.46
    • Wall (WT) mm:   3.68
    • Length (C) in:   1.63"
    • Wall (WT) in:   0.14"
    • Tube OD (D) mm:   29.46
    • Tube OD (D) in:   1.16"
    • Tube ID (E) mm:   22.1
    • Tube ID (E) in:   0.87"
    • ID mm:   22.1
    FPM1050042041SD6L
    		Ferrule (1,5") | 14 MPW TANK | Length 41,3mm | 316L (0.8 Ra) 14 MPW Tank 316L 1.4404 1 1/2" 50.5 1.99" 42.57 1.68" 34.8 1.37" 3.89 0.15" 41.3 1.63" 0.8 Ra 3.1b Certified - Solid Bar 0.161300
    dimensional image
    View Page → Ferrule (1,5") | 14 MPW TANK | Length 41,3mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MPW.0150 -1 1/2" TANK FERRULE - 41.3mmL Legacy Part Number DK:  FRMPW0150 Dimensional Image Key:
    • Length (C) mm:   41.3
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   42.57
    • Wall (WT) mm:   3.89
    • Length (C) in:   1.63"
    • Wall (WT) in:   0.15"
    • Tube OD (D) mm:   42.57
    • Tube OD (D) in:   1.68"
    • Tube ID (E) mm:   34.8
    • Tube ID (E) in:   1.37"
    • ID mm:   34.8
    FPM1064055044SD6L
    		Ferrule (2") | 14 MPW TANK | Length 44,5mm | 316L (0.8 Ra) 14 MPW Tank 316L 1.4404 2" 64 2.52" 55.68 2.19" 47.5 1.87" 4.09 0.16" 44.5 1.75" 0.8 Ra 3.1b Certified - Solid Bar 0.130000
    dimensional image
    View Page → Ferrule (2") | 14 MPW TANK | Length 44,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MPW.0200 - 2" 14MPW TANK FERRULE 316L - Legacy Part Number DK:  FRMPW0200 Dimensional Image Key:
    • Length (C) mm:   44.5
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • OD 1 (D) mm:   55.68
    • Wall (WT) mm:   4.09
    • Length (C) in:   1.75"
    • Wall (WT) in:   0.16"
    • Tube OD (D) mm:   55.68
    • Tube OD (D) in:   2.19"
    • Tube ID (E) mm:   47.5
    • Tube ID (E) in:   1.87"
    • ID mm:   47.5
    FPM1077068044SD6L
    		Ferrule (2,5") | 14 MPW TANK | Length 44,5mm | 316L (0.8 Ra) 14 MPW Tank 316L 1.4404 2 1/2" 77.5 3.05" 68.78 2.71" 60.2 2.37" 4.29 0.17" 44.5 1.75" 0.8 Ra 3.1b Certified - Solid Bar 0.327400
    dimensional image
    View Page → Ferrule (2,5") | 14 MPW TANK | Length 44,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MPW.0250 - 2 1/2" 14 MPW FERRULES Legacy Part Number DK:  FRMPW0250 Dimensional Image Key:
    • Length (C) mm:   44.5
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • OD 1 (D) mm:   68.78
    • Wall (WT) mm:   4.29
    • Length (C) in:   1.75"
    • Wall (WT) in:   0.17"
    • Tube OD (D) mm:   68.78
    • Tube OD (D) in:   2.71"
    • Tube ID (E) mm:   60.2
    • Tube ID (E) in:   2.37"
    • ID mm:   60.2
    FPM1091081046SD6L
    		Ferrule (3") | 14 MPW TANK | Length 46mm | 316L (0.8 Ra) 14 MPW Tank 316L 1.4404 3" 91 3.58" 81.89 3.22" 72.9 2.87" 4.5 0.18" 46 1.81" 0.8 Ra 3.1b Certified - Solid Bar 0.430000
    dimensional image
    View Page → Ferrule (3") | 14 MPW TANK | Length 46mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MPW.0300 - 3" 14 MPW FERRULE 316L - Legacy Part Number DK:  FRMPW0300 Dimensional Image Key:
    • Length (C) mm:   46
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • OD 1 (D) mm:   81.89
    • Wall (WT) mm:   4.5
    • Length (C) in:   1.81"
    • Wall (WT) in:   0.18"
    • Tube OD (D) mm:   81.89
    • Tube OD (D) in:   3.22"
    • Tube ID (E) mm:   72.9
    • Tube ID (E) in:   2.87"
    • ID mm:   72.9
    FPM1119108054SD6L
    		Ferrule (4") | 14 MPW TANK | Length 54mm | 316L (0.8 Ra) 14 MPW Tank 316L 1.4404 4" 119 4.69" 108.1 4.26" 97.38 3.83" 5.36 0.21" 54 2.13" 0.8 Ra 3.1b Certified - Solid Bar 0.780000
    dimensional image
    View Page → Ferrule (4") | 14 MPW TANK | Length 54mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MPW.0400 - 4" 14MPW TANK FERRULE 316L - Legacy Part Number DK:  FRMPW0400 Dimensional Image Key:
    • Length (C) mm:   54
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • OD 1 (D) mm:   108.1
    • Wall (WT) mm:   5.36
    • Length (C) in:   2.13"
    • Wall (WT) in:   0.21"
    • Tube OD (D) mm:   108.1
    • Tube OD (D) in:   4.26"
    • Tube ID (E) mm:   97.38
    • Tube ID (E) in:   3.83"
    • ID mm:   97.38
    FPM1167157063SD6L
    		Ferrule (6") | 14 MPW TANK | Length 63,5mm | 316L (0.8 Ra) 14 MPW Tank 316L 1.4404 6" 167 6.57" 157.28 6.19" 146.25 5.76" 5.52 0.22" 63.5 2.5" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (6") | 14 MPW TANK | Length 63,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MPW.0600 Dimensional Image Key:
    • Length (C) mm:   63.5
    • Flange (A) mm:   167
    • Flange (A) in:   6.57"
    • OD 1 (D) mm:   157.28
    • Wall (WT) mm:   5.52
    • Length (C) in:   2.5"
    • Wall (WT) in:   0.22"
    • Tube OD (D) mm:   157.28
    • Tube OD (D) in:   6.19"
    • Tube ID (E) mm:   146.25
    • Tube ID (E) in:   5.76"
    • ID mm:   146.25
    FPM1217208063SD6L
    		Ferrule (8") | 14 MPW TANK | Length 63,5mm | 316L (0.8 Ra) 14 MPW Tank 316L 1.4404 8" 217.4 8.56" 208.08 8.19" 197.08 7.76" 5.52 0.22" 63.5 2.5" 0.8 Ra 3.1b Certified - Solid Bar 1.920000
    dimensional image
    View Page → Ferrule (8") | 14 MPW TANK | Length 63,5mm | 316L (0.8 Ra) Legacy Part Number UK:  8ÔÇØ- 14MPW TANK FERRULE 316L ÔÇô 63.5mm LONG 316L 0.8Ra Dimensional Image Key:
    • Length (C) mm:   63.5
    • Flange (A) mm:   217.4
    • Flange (A) in:   8.56"
    • OD 1 (D) mm:   208.08
    • Wall (WT) mm:   5.52
    • Length (C) in:   2.5"
    • Wall (WT) in:   0.22"
    • Tube OD (D) mm:   208.08
    • Tube OD (D) in:   8.19"
    • Tube ID (E) mm:   197.08
    • Tube ID (E) in:   7.76"
    • ID mm:   197.08
    FDM1050029041SD6L
    		Ferrule (1") | 14 MPW TANK | Length 41,3mm | 316L (0.8 Ra) 14 MPW Tank 316L 1.4404 1" 50.5 1.99" 29.46 1.16" 22.1 0.87" 3.68 0.14" 41.3 1.63" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (1") | 14 MPW TANK | Length 41,3mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MPW.0100 Dimensional Image Key:
    • Length (C) mm:   41.3
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   29.46
    • Wall (WT) mm:   3.68
    • Length (C) in:   1.63"
    • Wall (WT) in:   0.14"
    • Tube OD (D) mm:   29.46
    • Tube OD (D) in:   1.16"
    • Tube ID (E) mm:   22.1
    • Tube ID (E) in:   0.87"
    • ID mm:   22.1
    FDM1050042041SD6L
    		Ferrule (1,5") | 14 MPW TANK | Length 41,3mm | 316L (0.8 Ra) 14 MPW Tank 316L 1.4404 1 1/2" 50.5 1.99" 42.57 1.68" 34.8 1.37" 3.89 0.15" 41.3 1.63" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (1,5") | 14 MPW TANK | Length 41,3mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MPW.0150 Dimensional Image Key:
    • Length (C) mm:   41.3
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   42.57
    • Wall (WT) mm:   3.89
    • Length (C) in:   1.63"
    • Wall (WT) in:   0.15"
    • Tube OD (D) mm:   42.57
    • Tube OD (D) in:   1.68"
    • Tube ID (E) mm:   34.8
    • Tube ID (E) in:   1.37"
    • ID mm:   34.8
    FDM1064055044SD6L
    		Ferrule (2") | 14 MPW TANK | Length 44,5mm | 316L (0.8 Ra) 14 MPW Tank 316L 1.4404 2" 64 2.52" 55.68 2.19" 47.5 1.87" 4.09 0.16" 44.5 1.75" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (2") | 14 MPW TANK | Length 44,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MPW.0200 Dimensional Image Key:
    • Length (C) mm:   44.5
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • OD 1 (D) mm:   55.68
    • Wall (WT) mm:   4.09
    • Length (C) in:   1.75"
    • Wall (WT) in:   0.16"
    • Tube OD (D) mm:   55.68
    • Tube OD (D) in:   2.19"
    • Tube ID (E) mm:   47.5
    • Tube ID (E) in:   1.87"
    • ID mm:   47.5
    FDM1077068044SD6L
    		Ferrule (2,5") | 14 MPW TANK | Length 44,5mm | 316L (0.8 Ra) 14 MPW Tank 316L 1.4404 2 1/2" 77.5 3.05" 68.78 2.71" 60.2 2.37" 4.29 0.17" 44.5 1.75" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (2,5") | 14 MPW TANK | Length 44,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MPW.0250 Dimensional Image Key:
    • Length (C) mm:   44.5
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • OD 1 (D) mm:   68.78
    • Wall (WT) mm:   4.29
    • Length (C) in:   1.75"
    • Wall (WT) in:   0.17"
    • Tube OD (D) mm:   68.78
    • Tube OD (D) in:   2.71"
    • Tube ID (E) mm:   60.2
    • Tube ID (E) in:   2.37"
    • ID mm:   60.2
    FDM1091081046SD6L
    		Ferrule (3") | 14 MPW TANK | Length 46mm | 316L (0.8 Ra) 14 MPW Tank 316L 1.4404 3" 91 3.58" 81.89 3.22" 72.9 2.87" 4.5 0.18" 46 1.81" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (3") | 14 MPW TANK | Length 46mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MPW.0300 Dimensional Image Key:
    • Length (C) mm:   46
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • OD 1 (D) mm:   81.89
    • Wall (WT) mm:   4.5
    • Length (C) in:   1.81"
    • Wall (WT) in:   0.18"
    • Tube OD (D) mm:   81.89
    • Tube OD (D) in:   3.22"
    • Tube ID (E) mm:   72.9
    • Tube ID (E) in:   2.87"
    • ID mm:   72.9
    FDM1119108054SD6L
    		Ferrule (4") | 14 MPW TANK | Length 54mm | 316L (0.8 Ra) 14 MPW Tank 316L 1.4404 4" 119 4.69" 108.1 4.26" 97.38 3.83" 5.36 0.21" 54 2.13" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (4") | 14 MPW TANK | Length 54mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MPW.0400 Dimensional Image Key:
    • Length (C) mm:   54
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • OD 1 (D) mm:   108.1
    • Wall (WT) mm:   5.36
    • Length (C) in:   2.13"
    • Wall (WT) in:   0.21"
    • Tube OD (D) mm:   108.1
    • Tube OD (D) in:   4.26"
    • Tube ID (E) mm:   97.38
    • Tube ID (E) in:   3.83"
    • ID mm:   97.38
    FDM1167157063SD6L
    		Ferrule (6") | 14 MPW TANK | Length 63,5mm | 316L (0.8 Ra) 14 MPW Tank 316L 1.4404 6" 167 6.57" 157.28 6.19" 146.25 5.76" 5.52 0.22" 63.5 2.5" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (6") | 14 MPW TANK | Length 63,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MPW.0600 Dimensional Image Key:
    • Length (C) mm:   63.5
    • Flange (A) mm:   167
    • Flange (A) in:   6.57"
    • OD 1 (D) mm:   157.28
    • Wall (WT) mm:   5.52
    • Length (C) in:   2.5"
    • Wall (WT) in:   0.22"
    • Tube OD (D) mm:   157.28
    • Tube OD (D) in:   6.19"
    • Tube ID (E) mm:   146.25
    • Tube ID (E) in:   5.76"
    • ID mm:   146.25
    FDM1217208063SD6L
    		Ferrule (8") | 14 MPW TANK | Length 63,5mm | 316L (0.8 Ra) 14 MPW Tank 316L 1.4404 8" 217.4 8.56" 208.08 8.19" 197.08 7.76" 5.52 0.22" 63.5 2.5" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (8") | 14 MPW TANK | Length 63,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MPW.0800 Dimensional Image Key:
    • Length (C) mm:   63.5
    • Flange (A) mm:   217.4
    • Flange (A) in:   8.56"
    • OD 1 (D) mm:   208.08
    • Wall (WT) mm:   5.52
    • Length (C) in:   2.5"
    • Wall (WT) in:   0.22"
    • Tube OD (D) mm:   208.08
    • Tube OD (D) in:   8.19"
    • Tube ID (E) mm:   197.08
    • Tube ID (E) in:   7.76"
    • ID mm:   197.08
