    BS 4825 Part 3


    BS 4825 Part 3
    Description

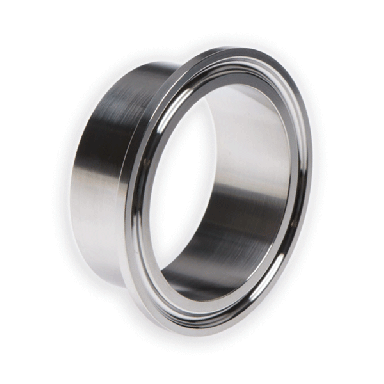

    BS 4825 Part 3 Ferrules, stainless steel BS 4825 compatible, flatness of sealing face meets or exceeds guidelines. Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​.

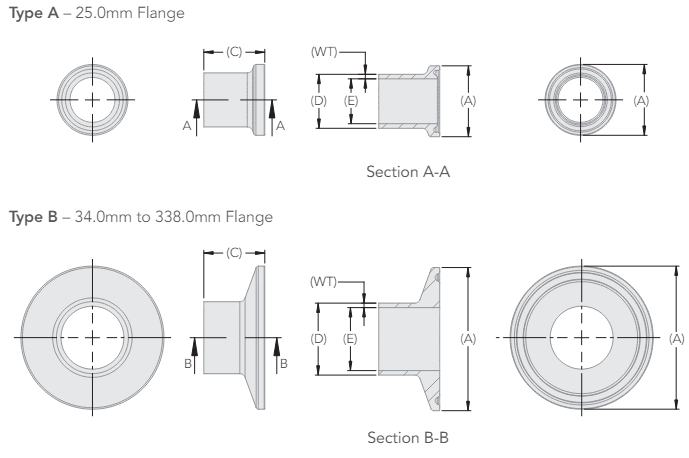

    Dimensional Image
    Features
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: BS4825-3
    • Durability: 0.8Ra um Int
    Materials
    • 316L / 1.4404 3.1 Certified – Solid Bar
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum
    Total: 36
    Industry
    PART#    		 Product
    Name    		 Standard Type Size Imperial Size Metric Size ISO Flange Nut Type Material Pressure Rating ID OD Length Closing mechanism
    Add
    To Cart     LIST
    PRICE
    Hygienic
    FDB4025127021SD6L
    		Ferrule (0,5") | BS4825 | Length 21,5mm | 316L (0.8 Ra) BS4825 Part 3 BS4825 Part 3 1/2" 25(mm)/0.98"(in) 316L 10(MAWP)/145.04(PSI) 0.37"(in) 12.7(mm)/0.5"(in) 21.5(mm)/0.85"(in)
      Log In or Create a
    Free Account to Purchase
    $5.89
    dimensional image
    View Page
     Ferrule (0,5") | BS4825 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.BS.0050 - * 1/2" FERRULE 316L - 21.5mm Legacy Part Number DK:   FRMSI050, FRBS0050
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  25.4
    • • Flange (A) in:  1"
    • • Wall (WT) mm:  1.59
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.06"
    • • Thickness (T) in:  0.062992126
    • • Tube OD (D) mm:  12.7
    • • Tube OD (D) in:  0.5"
    • • Tube ID (E) mm:  9.52
    • • Tube ID (E) in:  0.37"
    • • ID (mm):  9.52
    Hygienic
    FDB4025195021SD6L
    		Ferrule (0,75") | BS4825 | Length 21,5mm | 316L (0.8 Ra) BS4825 Part 3 BS4825 Part 3 3/4" 25(mm)/0.98"(in) 316L 50(MAWP)/725.19(PSI) 0.62"(in) 19.05(mm)/0.75"(in) 21.5(mm)/0.85"(in)
      Log In or Create a
    Free Account to Purchase
    $4.42
    dimensional image
    View Page
     Ferrule (0,75") | BS4825 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.BS.0075 - * 3/4" FERRULE 316L - 21.5mm Legacy Part Number DK:   FRMSI075/FRBS0075
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  25.4
    • • Flange (A) in:  1"
    • • Wall (WT) mm:  1.59
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.06"
    • • Thickness (T) in:  0.062992126
    • • Tube OD (D) mm:  19.05
    • • Tube OD (D) in:  0.75"
    • • Tube ID (E) mm:  15.87
    • • Tube ID (E) in:  0.62"
    • • ID (mm):  15.87
    Hygienic
    FDB4050025021SD6L
    		Ferrule (1") | BS4825 | Length 21,5mm | 316L (0.8 Ra) BS4825 Part 3 BS4825 Part 3 1" 50.5(mm)/1.99"(in) 316L 50(MAWP)/725.19(PSI) 0.87"(in) 25.65(mm)/1.01"(in) 21.5(mm)/0.85"(in)
      Log In or Create a
    Free Account to Purchase
    $5.44
    dimensional image
    View Page
     Ferrule (1") | BS4825 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.BS.0100 - * 1" FERRULE 316L - 21.5mm Legacy Part Number DK:   FRDBS0100
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • Wall (WT) mm:  1.73
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.07"
    • • Thickness (T) in:  0.067913386
    • • Tube OD (D) mm:  25.65
    • • Tube OD (D) in:  1.01"
    • • Tube ID (E) mm:  22.2
    • • Tube ID (E) in:  0.87"
    • • ID (mm):  22.2
    Hygienic
    FDB4050038021SD6L
    		Ferrule (1,5") | BS4825 | Length 21,5mm | 316L (0.8 Ra) BS4825 Part 3 BS4825 Part 3 1 1/2" 50.5(mm)/1.99"(in) 316L 50(MAWP)/725.19(PSI) 1.37"(in) 38.35(mm)/1.51"(in) 21.5(mm)/0.85"(in)
      Log In or Create a
    Free Account to Purchase
    $6.39
    dimensional image
    View Page
     Ferrule (1,5") | BS4825 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.BS.0150 - * 1 1/2" FERRULE 316L - Legacy Part Number DK:   FRDBS0150
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • Wall (WT) mm:  1.73
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.07"
    • • Thickness (T) in:  0.067913386
    • • Tube OD (D) mm:  38.35
    • • Tube OD (D) in:  1.51"
    • • Tube ID (E) mm:  34.9
    • • Tube ID (E) in:  1.37"
    • • ID (mm):  34.9
    Hygienic
    FDB4064051021SD6L
    		Ferrule (2") | BS4825 | Length 21,5mm | 316L (0.8 Ra) BS4825 Part 3 BS4825 Part 3 2" 64(mm)/2.52"(in) 316L 50(MAWP)/725.19(PSI) 1.87"(in) 51.05(mm)/2.01"(in) 21.5(mm)/0.85"(in)
      Log In or Create a
    Free Account to Purchase
    $6.20
    dimensional image
    View Page
     Ferrule (2") | BS4825 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.BS.0200 - * 2" FERRULE 316L - 21.5mm Legacy Part Number DK:   FRDBS0200
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • Wall (WT) mm:  1.73
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.07"
    • • Thickness (T) in:  0.067913386
    • • Tube OD (D) mm:  51.05
    • • Tube OD (D) in:  2.01"
    • • Tube ID (E) mm:  47.6
    • • Tube ID (E) in:  1.87"
    • • ID (mm):  47.6
    Hygienic
    FDB4077063021SD6L
    		Ferrule (2,5") | BS4825 | Length 21,5mm | 316L (0.8 Ra) BS4825 Part 3 BS4825 Part 3 2 1/2" 77.5(mm)/3.05"(in) 316L 50(MAWP)/725.19(PSI) 2.37"(in) 63.75(mm)/2.51"(in) 21.5(mm)/0.85"(in)
      Log In or Create a
    Free Account to Purchase
    $8.28
    dimensional image
    View Page
     Ferrule (2,5") | BS4825 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.BS.0250 - * 2 1/2" FERRULE 316L - Legacy Part Number DK:   FRSM80250,FRBS0250
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  77.5
    • • Flange (A) in:  3.05"
    • • Wall (WT) mm:  1.73
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.07"
    • • Thickness (T) in:  0.062992126
    • • Tube OD (D) mm:  63.75
    • • Tube OD (D) in:  2.51"
    • • Tube ID (E) mm:  60.3
    • • Tube ID (E) in:  2.37"
    • • ID (mm):  60.3
    Hygienic
    FDB4091076021SD6L
    		Ferrule (3") | BS4825 | Length 21,5mm | 316L (0.8 Ra) BS4825 Part 3 BS4825 Part 3 3" 91(mm)/3.58"(in) 316L 40(MAWP)/580.15(PSI) 2.87"(in) 76.45(mm)/3.01"(in) 21.5(mm)/0.85"(in)
      Log In or Create a
    Free Account to Purchase
    $9.98
    dimensional image
    View Page
     Ferrule (3") | BS4825 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.BS.0300 - * 3" NS FERRULE 316L - Legacy Part Number DK:   FRSM80300,FRBS0300,D065
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • Wall (WT) mm:  1.73
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.07"
    • • Thickness (T) in:  0.059055118
    • • Tube OD (D) mm:  76.45
    • • Tube OD (D) in:  3.01"
    • • Tube ID (E) mm:  73
    • • Tube ID (E) in:  2.87"
    • • ID (mm):  73
    Hygienic
    FDB4119101021SD6L
    		Hygienic Ferrule (4") | BS4825 | Length 21,5mm | 316L (0.8 Ra) BS4825 BS4825 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (4") | BS4825 | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS.0400
    Dimensional Image Key:
    • • Length (C) mm:  21.5
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69"
    • • Wall (WT) mm:  2.13
    • • Length (C) in:  0.85"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  101.85
    • • Tube OD (D) in:  4.01"
    • • Tube ID (E) mm:  97.6
    • • Tube ID (E) in:  3.84"
    Hygienic
    FDB4144127028SD6L
    		Hygienic Ferrule (5") | BS4825 | Length 28mm | 316L (0.8 Ra) BS4825 BS4825 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (5") | BS4825 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.BS.0500
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  144.4
    • • Flange (A) in:  5.69"
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  127
    • • Tube OD (D) in:  5"
    • • Tube ID (E) mm:  123
    • • Tube ID (E) in:  4.84"
    Hygienic
    FDB4167154028SD6L
    		Ferrule (6") | BS4825 | Length 28mm | 316L (0.8 Ra) BS4825 Part 3 BS4825 Part 3 6" 167(mm)/6.57"(in) 316L 35(MAWP)/507.63(PSI) 5.91"(in) 154(mm)/6.06"(in) 28(mm)/1.1"(in)
      Log In or Create a
    Free Account to Purchase
    $36.74
    dimensional image
    View Page
     Ferrule (6") | BS4825 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.BS.0600 - * 6" FERRULE 316L - 28mm Legacy Part Number DK:   FRSM80400,FRBS0400
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  167
    • • Flange (A) in:  6.57"
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.08"
    • • Thickness (T) in:  0.047244094
    • • Tube OD (D) mm:  154
    • • Tube OD (D) in:  6.06"
    • • Tube ID (E) mm:  150
    • • Tube ID (E) in:  5.91"
    • • ID (mm):  150
    Hygienic
    FDB4183169028SD6L
    		Ferrule (6,625") | BS4825 | Length 28mm | 316L (0.8 Ra) BS4825 Part 3 BS4825 Part 3 6 5/8" 183(mm)/7.2"(in) 316L 30(MAWP)/435.11(PSI) 6.42"(in) 169.35(mm)/6.67"(in) 28(mm)/1.1"(in)
      Log In or Create a
    Free Account to Purchase
    $96.84
    dimensional image
    View Page
     Ferrule (6,625") | BS4825 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.BS.0658 - * 6.5/8" FERRULE 316L - 28mm Legacy Part Number DK:   FRDBS0658
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  183
    • • Flange (A) in:  7.2"
    • • Wall (WT) mm:  3.13
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.12"
    • • Thickness (T) in:  0.101870079
    • • Tube OD (D) mm:  169.35
    • • Tube OD (D) in:  6.67"
    • • Tube ID (E) mm:  163.1
    • • Tube ID (E) in:  6.42"
    • • ID (mm):  163.1
    Hygienic
    FDB4217204028SD6L
    		Ferrule (8") | BS4825 | Length 28mm | 316L (0.8 Ra) BS4825 Part 3 BS4825 Part 3 8" 217.4(mm)/8.56"(in) 316L 30(MAWP)/435.11(PSI) 7.87"(in) 204(mm)/8.03"(in) 28(mm)/1.1"(in)
      Log In or Create a
    Free Account to Purchase
    $51.33
    dimensional image
    View Page
     Ferrule (8") | BS4825 | Length 28mm | 316L (0.8 Ra) Legacy Part Number UK:   FRD.BS.0800 - * 8" FERRULE 316L - 28mm Legacy Part Number DK:   FRDDNX150,FRBS0600
    Dimensional Image Key:
    • • Length (C) mm:  28
    • • Flange (A) mm:  217.4
    • • Flange (A) in:  8.56"
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.1"
    • • Wall (WT) in:  0.08"
    • • Thickness (T) in:  0.062992126
    • • Tube OD (D) mm:  204
    • • Tube OD (D) in:  8.03"
    • • Tube ID (E) mm:  200
    • • Tube ID (E) in:  7.87"
    • • ID (mm):  200
