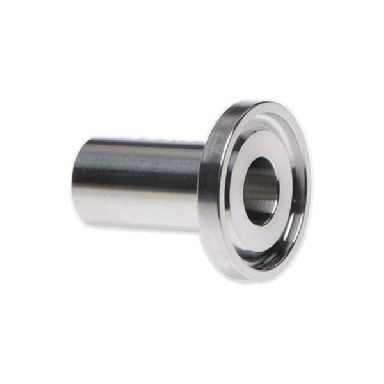

    Mini Series Ultra-Bore Metric & Imperial


    Mini Series Ultra-Bore Metric & Imperial
    Description
    Mini-Series Ultra-Bore Ferrules Metric & Imperial; material 1.4404. Flatness of sealing face meets or exceeds guidelines.

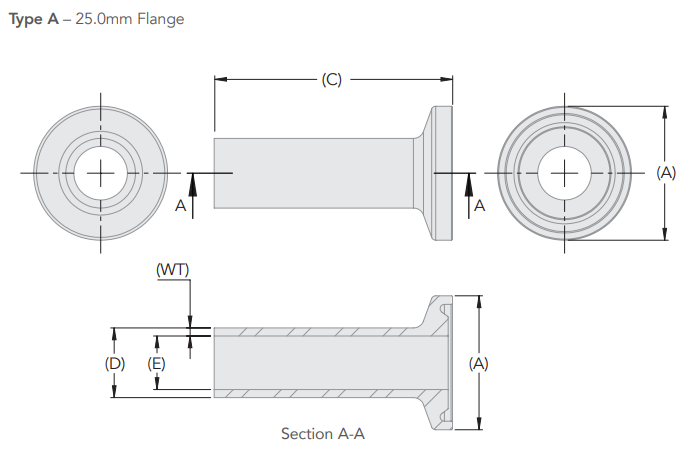

    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    Materials
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    Ferrules / Mini Series Ultra-Bore Metric & Imperial
    Tri-Clamps Tri-Clamps Safety Tri-Clamps Safety Tri-Clamps Ferrules Ferrules Tri-Clamp Gaskets Tri-Clamp Gaskets
    Mini Series Ultra-Bore Metric & Imperial Mini Series Ultra-Bore Metric & Imperial
    BS 4825 Part 3 BS 4825 Part 3 BS Schedule 5 BS Schedule 5 BS Schedule 10 BS Schedule 10 BS Schedule 40 BS Schedule 40 ASME BPE Compliant ASME BPE Compliant DIN 32676 Table A Short DIN 32676 Table A Short DIN 32676 Table A Long DIN 32676 Table A Long DIN 32676 Table B Short DIN 32676 Table B Short DIN 32676 Table B Long DIN 32676 Table B Long DIN 32676 Table C Short DIN 32676 Table C Short DIN 32676 Table C Long DIN 32676 Table C Long ISO 1127 Standard ISO 1127 Standard ISO 1127 Variation ISO 1127 Variation SMS 3008/3017 SMS 3008/3017 SWG SWG MPW Tank MPW Tank
    Total: 9
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade EN Standard Size (in) Size (DN) Size (mm) Flange A (mm) Flange A (in) OD (mm) OD (in) ID (mm) ID (in) Wall Thickness (mm) Wall Thickness (in) Length (mm) Length (in) Surface Finish Manufactured Weight
    FDM2025006021SD6L
    		Ferrule (6 x 4) | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Mini-series Ultra-Bore - Metric 316L 1.4404 6 x 4 25 0.98" 6 0.24" 4 0.16" 1 0.04" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.020000
    dimensional image
    View Page → Ferrule (6 x 4) | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FRD.MS.0604 - * 1/2" (6mm x 4m) FERRULE Legacy Part Number DK:  FRDMS0604 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   6
    • Wall (WT) mm:   1
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   6
    • Tube OD (D) in:   0.24"
    • Tube ID (E) mm:   4
    • Tube ID (E) in:   0.16"
    • ID mm:   4
    FDM2025008021SD6L
    		Ferrule (8 x 6) | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Mini-series Ultra-Bore - Metric 316L 1.4404 8 x 6 25 0.98" 8 0.31" 6 0.24" 1 0.04" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.020000
    dimensional image
    View Page → Ferrule (8 x 6) | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FRD.MS.0806 - * 1/2" (8mm x6mm) FERRULE Legacy Part Number DK:  FRDMS0806 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   8
    • Wall (WT) mm:   1
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   8
    • Tube OD (D) in:   0.31"
    • Tube ID (E) mm:   6
    • Tube ID (E) in:   0.24"
    • ID mm:   6
    FDM2025010021SD6L
    		Ferrule (10 x 8) | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Mini-series Ultra-Bore - Metric 316L 1.4404 10 x 8 25 0.98" 10 0.39" 8 0.31" 1 0.04" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.020000
    dimensional image
    View Page → Ferrule (10 x 8) | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FRD.MS.1008 - * 1/2" (10mm x8mm)FERRULE Legacy Part Number DK:  FRDMS1008 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   10
    • Wall (WT) mm:   1
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   10
    • Tube OD (D) in:   0.39"
    • Tube ID (E) mm:   8
    • Tube ID (E) in:   0.31"
    • ID mm:   8
    FDM2025012021SD6L
    		Ferrule (12 x 10) | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Mini-series Ultra-Bore - Metric 316L 1.4404 12 x 10 25 0.98" 12 0.47" 10 0.39" 1 0.04" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.020000
    dimensional image
    View Page → Ferrule (12 x 10) | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FRD.MS.1210 -* 1/2" (12mm x10mm)FERRULE Legacy Part Number DK:  FRDMS1210 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   12
    • Wall (WT) mm:   1
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   12
    • Tube OD (D) in:   0.47"
    • Tube ID (E) mm:   10
    • Tube ID (E) in:   0.39"
    • ID mm:   10
    FDM2025014021SD6L
    		Ferrule (14 x 12) | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Mini-series Ultra-Bore - Metric 316L 1.4404 14 x 12 25 0.98" 14 0.55" 12 0.47" 1 0.04" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.020000
    dimensional image
    View Page → Ferrule (14 x 12) | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FRD.MS.1412 - *1/2"(14mm x 12mm) FERRULE Legacy Part Number DK:  FRDMS1412 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   14
    • Wall (WT) mm:   1
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   14
    • Tube OD (D) in:   0.55"
    • Tube ID (E) mm:   12
    • Tube ID (E) in:   0.47"
    • ID mm:   12
    FDM2025016021SD6L
    		Ferrule (16 x 14) | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Mini-series Ultra-Bore - Metric 316L 1.4404 16 x 14 25 0.98" 16 0.63" 14 0.55" 1 0.04" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.020000
    dimensional image
    View Page → Ferrule (16 x 14) | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FRD.MS.1614 - *1/2"(16mm x 14mm) FERRULE Legacy Part Number DK:  FRDMS1614 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   16
    • Wall (WT) mm:   1
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   16
    • Tube OD (D) in:   0.63"
    • Tube ID (E) mm:   14
    • Tube ID (E) in:   0.55"
    • ID mm:   14
    FDM2025018021SD6L
    		Ferrule (18 x 16) | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Mini-series Ultra-Bore - Metric 316L 1.4404 18 x 16 25 0.98" 18 0.71" 16 0.63" 1 0.04" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.020000
    dimensional image
    View Page → Ferrule (18 x 16) | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FRD.MS.1816 -* 1/2" (18mm x 16mm)FERRULE Legacy Part Number DK:  FRDMS1816 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   18
    • Wall (WT) mm:   1
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   18
    • Tube OD (D) in:   0.71"
    • Tube ID (E) mm:   16
    • Tube ID (E) in:   0.63"
    • ID mm:   16
    FDM2025635021SD6L
    		Ferrule (0,25") | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Mini-series Ultra-Bore - Imperial 316L 1.4404 1/4" 25 0.98" 6.35 0.25" 4.57 0.18" 0.89 0.04" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (0,25") | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MSI.025 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   6.35
    • Wall (WT) mm:   0.89
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   6.35
    • Tube OD (D) in:   0.25"
    • Tube ID (E) mm:   4.57
    • Tube ID (E) in:   0.18"
    • ID mm:   4.57
    FDM2025952021SD6L
    		Ferrule (0,375") | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Mini-series Ultra-Bore - Imperial 316L 1.4404 3/8" 25 0.98" 9.53 0.38" 7.71 0.3" 0.91 0.04" 21.5 0.85" 0.8 Ra 3.1b Certified - Solid Bar 0.000000
    dimensional image
    View Page → Ferrule (0,375") | Mini-Series Ultra-Bore | Length 21,5mm | 316L (0.8 Ra) Legacy Part Number UK:  FR.MSI.038 Dimensional Image Key:
    • Length (C) mm:   21.5
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • OD 1 (D) mm:   9.53
    • Wall (WT) mm:   0.91
    • Length (C) in:   0.85"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   9.53
    • Tube OD (D) in:   0.38"
    • Tube ID (E) mm:   7.71
    • Tube ID (E) in:   0.3"
    • ID mm:   7.71
