    ASME BPE Compliant


    ASME BPE Compliant

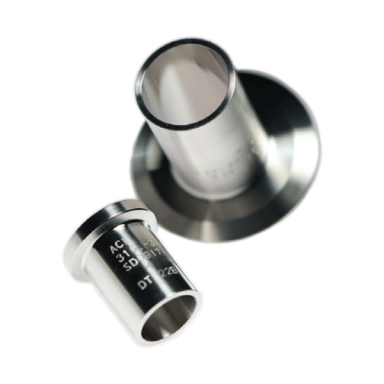

    Description
    ASME BPE compliant ferrules, designed and manufactured to ASME BPE dimensional and surface finish requirements; 1.4404 low sulphur /3.1 certified – solid bar material. Flatness of sealing face meets or exceeds guidelines.

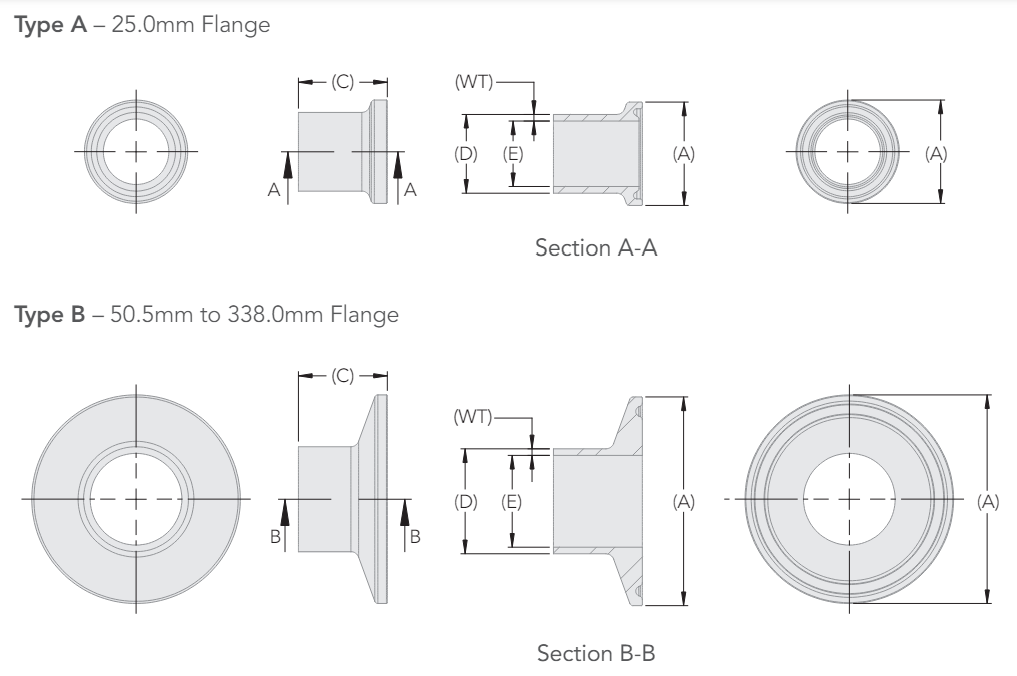

    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers
    • JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Sizes: ½” – 12” V DN 10 – 50
    • Compatibility: BS4825-3
    • Durability: 0.8Ra um Int
    ​
    Materials
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    • 316L / 1.4404 3.1 Certified – Solid Bar
    Ferrules / ASME BPE Compliant
    Tri-Clamps Tri-Clamps Safety Tri-Clamps Safety Tri-Clamps Ferrules Ferrules Tri-Clamp Gaskets Tri-Clamp Gaskets Select Series Tri-Clamps Select Series Tri-Clamps
    ASME BPE Compliant ASME BPE Compliant
    BS 4825 Part 3 BS 4825 Part 3 BS Schedule 5 BS Schedule 5 BS Schedule 10 BS Schedule 10 BS Schedule 40 BS Schedule 40 DIN 32676 Table A Short DIN 32676 Table A Short DIN 32676 Table A Long DIN 32676 Table A Long DIN 32676 Table B Short DIN 32676 Table B Short DIN 32676 Table B Long DIN 32676 Table B Long DIN 32676 Table C Short DIN 32676 Table C Short DIN 32676 Table C Long DIN 32676 Table C Long ISO 1127 Standard ISO 1127 Standard ISO 1127 Variation ISO 1127 Variation Mini Series Ultra-Bore Metric & Imperial Mini Series Ultra-Bore Metric & Imperial SMS 3008/3017 SMS 3008/3017 SWG SWG MPW Tank MPW Tank
    Total: 132
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade EN Standard Size (in) Flange A (mm) Flange A (in) OD (mm) OD (in) ID (mm) ID (in) Wall Thickness (mm) Wall Thickness (in) Length (mm) Length (in) Surface Finish Weight
    FPA1025635028S1B6
    		Pharmaceutical Ferrule (0,25") | ASME BPE Compliant | Length 28,5mm | 316L low sulphur (SF1)
    dimensional image
    View Page → Pharmaceutical Ferrule (0,25") | ASME BPE Compliant | Length 28,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  0.25" x 28.5 Long ASME BPE FERRULE 316L SF1 Dimensional Image Key:
    • Length (C) mm:   28.5
    • Flange (A) mm:   25.4
    • Flange (A) in:   1"
    • OD 1 (D) mm:   6.35
    • Wall (WT) mm:   0.89
    • Length (C) in:   1.12"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   6.35
    • Tube OD (D) in:   0.25"
    • Tube ID (E) mm:   4.57
    • Tube ID (E) in:   0.18"
    FPA1025952028S1B6
    		Ferrule (0,375") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 3/8" 25.4 1" 9.52 0.37" 7.74 0.3" 0.89 0.04" 28.5 1.12" SF1 0.000000
    dimensional image
    View Page → Ferrule (0,375") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPES.0038 Dimensional Image Key:
    • Length (C) mm:   28.5
    • Flange (A) mm:   25.4
    • Flange (A) in:   1"
    • OD 1 (D) mm:   9.52
    • Wall (WT) mm:   0.89
    • Length (C) in:   1.12"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   9.525
    • Tube OD (D) in:   0.38"
    • Tube ID (E) mm:   7.74
    • Tube ID (E) in:   0.3"
    • ID mm:   7.74
    FPA1025127028S1B6
    		Ferrule (0,5") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 1/2" 25.4 1" 12.7 0.5" 9.4 0.37" 1.65 0.06" 28.5 1.12" SF1 0.020000
    dimensional image
    View Page → Ferrule (0,5") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPES.0050.SF1 -*1/2"ASME BPE 28.58L FER Legacy Part Number DK:  FRBPES0050SF1 Dimensional Image Key:
    • Length (C) mm:   28.5
    • Flange (A) mm:   25.4
    • Flange (A) in:   1"
    • OD 1 (D) mm:   10.7
    • Wall (WT) mm:   1.65
    • Length (C) in:   1.12"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   12.7
    • Tube OD (D) in:   0.5"
    • Tube ID (E) mm:   9.4
    • Tube ID (E) in:   0.37"
    • ID mm:   9.4
    FPA1025195028S1B6
    		Ferrule (0,75") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 3/4" 25.4 1" 19.05 0.75" 15.75 0.62" 1.65 0.06" 28.5 1.12" SF1 0.033200
    dimensional image
    View Page → Ferrule (0,75") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPES.0075.SF1 -* 3/4"ASME BPE28.58L FER Legacy Part Number DK:  FRBPES0075SF1 Dimensional Image Key:
    • Length (C) mm:   28.5
    • Flange (A) mm:   25.4
    • Flange (A) in:   1"
    • OD 1 (D) mm:   19..05
    • Wall (WT) mm:   1.65
    • Length (C) in:   1.12"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   19.05
    • Tube OD (D) in:   0.75"
    • Tube ID (E) mm:   15.75
    • Tube ID (E) in:   0.62"
    • ID mm:   15.75
    FPA1050025028S1B6
    		Ferrule (1") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 1" 50.5 1.99" 25.4 1" 22.1 0.87" 1.65 0.06" 28.5 1.12" SF1 0.083000
    dimensional image
    View Page → Ferrule (1") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  1" ASME BPE FERRULE 28.5L 316L SF1 Dimensional Image Key:
    • Length (C) mm:   28.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   25.4
    • Wall (WT) mm:   1.65
    • Length (C) in:   1.12"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   25.4
    • Tube OD (D) in:   1"
    • Tube ID (E) mm:   22.1
    • Tube ID (E) in:   0.87"
    • ID mm:   22.1
    FPA1050038028S1B6
    		Ferrule (1,5") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 1 1/2" 50.5 1.99" 38.1 1.5" 34.8 1.37" 1.65 0.06" 28.5 1.12" SF1 0.082000
    dimensional image
    View Page → Ferrule (1,5") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPES.0150.SF1 -1 1/2" ASME BPE 28.58L Legacy Part Number DK:  FRBPES0150SF1 Dimensional Image Key:
    • Length (C) mm:   28.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   38.1
    • Wall (WT) mm:   1.65
    • Length (C) in:   1.12"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   38.1
    • Tube OD (D) in:   1.5"
    • Tube ID (E) mm:   34.8
    • Tube ID (E) in:   1.37"
    • ID mm:   34.8
    FPA1064051028S1B6
    		Ferrule (2") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 2" 64 2.52" 50.8 2" 47.5 1.87" 1.65 0.06" 28.5 1.12" SF1 0.090000
    dimensional image
    View Page → Ferrule (2") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPES.0200.SF1 - * 2"ASME BPE 28.58L FER Legacy Part Number DK:  FRBPES0200SF1 Dimensional Image Key:
    • Length (C) mm:   28.5
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • OD 1 (D) mm:   50.8
    • Wall (WT) mm:   1.65
    • Length (C) in:   1.12"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   50.8
    • Tube OD (D) in:   2"
    • Tube ID (E) mm:   47.5
    • Tube ID (E) in:   1.87"
    • ID mm:   47.5
    FPA1077063028S1B6
    		Ferrule (2,5") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 2 1/2" 77.5 3.05" 63.5 2.5" 60.2 2.37" 1.65 0.06" 28.5 1.12" SF1 0.120000
    dimensional image
    View Page → Ferrule (2,5") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPES.0250.SF1 -*21/2" ASME BPE 28.58L Legacy Part Number DK:  FRBPES0250SF1 Dimensional Image Key:
    • Length (C) mm:   28.5
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • OD 1 (D) mm:   63.5
    • Wall (WT) mm:   1.65
    • Length (C) in:   1.12"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   63.5
    • Tube OD (D) in:   2.5"
    • Tube ID (E) mm:   60.2
    • Tube ID (E) in:   2.37"
    • ID mm:   60.2
    FPA1091076028S1B6
    		Ferrule (3") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 3" 91 3.58" 76.2 3" 72.9 2.87" 1.65 0.06" 28.5 1.12" SF1 0.150000
    dimensional image
    View Page → Ferrule (3") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPES.0300.SF1 - 3" ASME BPE 28.58L FER Legacy Part Number DK:  FRBPES0300SF1 Dimensional Image Key:
    • Length (C) mm:   28.5
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • OD 1 (D) mm:   76.2
    • Wall (WT) mm:   1.65
    • Length (C) in:   1.12"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   76.2
    • Tube OD (D) in:   3"
    • Tube ID (E) mm:   72.9
    • Tube ID (E) in:   2.87"
    • ID mm:   72.9
    FPA1119101028S1B6
    		Ferrule (4") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 4" 119 4.69" 101.6 4" 97.38 3.83" 2.11 0.08" 28.5 1.12" SF1 0.250000
    dimensional image
    View Page → Ferrule (4") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPES.0400.SF1 - 4" ASME BPE 28.58L FER Legacy Part Number DK:  FRBPES0400SF1 Dimensional Image Key:
    • Length (C) mm:   28.5
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • OD 1 (D) mm:   101.6
    • Wall (WT) mm:   2.11
    • Length (C) in:   1.12"
    • Wall (WT) in:   0.08"
    • Tube OD (D) mm:   101.6
    • Tube OD (D) in:   4"
    • Tube ID (E) mm:   97.38
    • Tube ID (E) in:   3.83"
    • ID mm:   97.38
    FPA1167152028S1B6
    		Pharmaceutical Ferrule (6") | ASME BPE Compliant | Length 28,5mm | 316L low sulphur (SF1) 0.990000
    dimensional image
    View Page → Pharmaceutical Ferrule (6") | ASME BPE Compliant | Length 28,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPES.0600 Dimensional Image Key:
    • Length (C) mm:   28.5
    • Flange (A) mm:   167
    • Flange (A) in:   6.57"
    • OD 1 (D) mm:   152.4
    • Wall (WT) mm:   2.77
    • Length (C) in:   1.12"
    • Wall (WT) in:   0.11"
    • Tube OD (D) mm:   152.4
    • Tube OD (D) in:   6"
    • Tube ID (E) mm:   146.86
    • Tube ID (E) in:   5.78"
    FPA1025635044S1B6
    		Ferrule (0,25") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 1/4" 25.4 1" 6.35 0.25" 4.57 0.18" 0.89 0.04" 44.5 1.75" SF1 0.020000
    dimensional image
    View Page → Ferrule (0,25") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPEL.0025.SF1 - 1/4" ASME BPE 44.5L FER Legacy Part Number DK:  FRBPEL0025SF1 Dimensional Image Key:
    • Length (C) mm:   44.5
    • Flange (A) mm:   25.4
    • Flange (A) in:   1"
    • OD 1 (D) mm:   6.35
    • Wall (WT) mm:   0.89
    • Length (C) in:   1.75"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   6.35
    • Tube OD (D) in:   0.25"
    • Tube ID (E) mm:   4.57
    • Tube ID (E) in:   0.18"
    • ID mm:   4.57
    FPA1025952044S1B6
    		Ferrule (0,375") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 3/8" 25.4 1" 9.52 0.37" 7.74 0.3" 0.89 0.04" 44.5 1.75" SF1 0.020000
    dimensional image
    View Page → Ferrule (0,375") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPEL.0038.SF1 - 3/8" ASME BPE 44.5L FER Legacy Part Number DK:  FRBPEL0038SF1 Dimensional Image Key:
    • Length (C) mm:   44.5
    • Flange (A) mm:   25.4
    • Flange (A) in:   1"
    • OD 1 (D) mm:   9.52
    • Wall (WT) mm:   0.89
    • Length (C) in:   1.75"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   9.525
    • Tube OD (D) in:   0.38"
    • Tube ID (E) mm:   7.74
    • Tube ID (E) in:   0.3"
    • ID mm:   7.74
    FPA1025127044S1B6
    		Ferrule (0,5") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 1/2" 25.4 1" 12.7 0.5" 9.4 0.37" 1.65 0.06" 44.5 1.75" SF1 0.030000
    dimensional image
    View Page → Ferrule (0,5") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPEL.0050.SF1 - 1/2" ASME BPE 44.5L FER Legacy Part Number DK:  FRBPEL0050SF1 Dimensional Image Key:
    • Length (C) mm:   44.5
    • Flange (A) mm:   25.4
    • Flange (A) in:   1"
    • OD 1 (D) mm:   10.7
    • Wall (WT) mm:   1.65
    • Length (C) in:   1.75"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   12.7
    • Tube OD (D) in:   0.5"
    • Tube ID (E) mm:   9.4
    • Tube ID (E) in:   0.37"
    • ID mm:   9.4
    FPA1025195044S1B6
    		Ferrule (0,75") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 3/4" 25.4 1" 19.05 0.75" 15.75 0.62" 1.65 0.06" 44.5 1.75" SF1 0.040000
    dimensional image
    View Page → Ferrule (0,75") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPEL.0075.SF1 - *3/4"ASME BPE 44.5L FER Legacy Part Number DK:  FRBPEL0075SF1 Dimensional Image Key:
    • Length (C) mm:   44.5
    • Flange (A) mm:   25.4
    • Flange (A) in:   1"
    • OD 1 (D) mm:   19..05
    • Wall (WT) mm:   1.65
    • Length (C) in:   1.75"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   19.05
    • Tube OD (D) in:   0.75"
    • Tube ID (E) mm:   15.75
    • Tube ID (E) in:   0.62"
    • ID mm:   15.75
    FPA1050025044S1B6
    		Ferrule (1") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 1" 50.5 1.99" 25.4 1" 22.1 0.87" 1.65 0.06" 44.5 1.75" SF1 0.100000
    dimensional image
    View Page → Ferrule (1") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPEL.0100.SF1 - * 1" ASME BPE 44.5LFER Legacy Part Number DK:  FRBPEL0100SF1 Dimensional Image Key:
    • Length (C) mm:   44.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   25.4
    • Wall (WT) mm:   1.65
    • Length (C) in:   1.75"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   25.4
    • Tube OD (D) in:   1"
    • Tube ID (E) mm:   22.1
    • Tube ID (E) in:   0.87"
    • ID mm:   22.1
    FPA1050038044S1B6
    		Ferrule (1,5") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 1 1/2" 50.5 1.99" 38.1 1.5" 34.8 1.37" 1.65 0.06" 44.5 1.75" SF1 0.090000
    dimensional image
    View Page → Ferrule (1,5") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPEL.0150.SF1 -*11/2"ASME BPE 44.5L FER Legacy Part Number DK:  FRBPEL0150SF1 Dimensional Image Key:
    • Length (C) mm:   44.5
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • OD 1 (D) mm:   38.1
    • Wall (WT) mm:   1.65
    • Length (C) in:   1.75"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   38.1
    • Tube OD (D) in:   1.5"
    • Tube ID (E) mm:   34.8
    • Tube ID (E) in:   1.37"
    • ID mm:   34.8
    FPA1064051057S1B6
    		Ferrule (2") | ASME BPE | Length 57,2mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 2" 64 2.52" 50.8 2" 47.5 1.87" 1.65 0.06" 57.2 2.25" SF1 0.150000
    dimensional image
    View Page → Ferrule (2") | ASME BPE | Length 57,2mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPEL.0200.SF1 - 2" ASME BPE 57.2L FER Legacy Part Number DK:  FRBPEL0200SF1 Dimensional Image Key:
    • Length (C) mm:   57.2
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • OD 1 (D) mm:   50.8
    • Wall (WT) mm:   1.65
    • Length (C) in:   2.25"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   50.8
    • Tube OD (D) in:   2"
    • Tube ID (E) mm:   47.5
    • Tube ID (E) in:   1.87"
    • ID mm:   47.5
    FPA1077063057S1B6
    		Ferrule (2,5") | ASME BPE | Length 57,2mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 2 1/2" 77.5 3.05" 63.5 2.5" 60.2 2.37" 1.65 0.06" 57.2 2.25" SF1 0.193500
    dimensional image
    View Page → Ferrule (2,5") | ASME BPE | Length 57,2mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPEL.0250.SF1 - 21/2"ASME BPE 57.15LFER Legacy Part Number DK:  FRBPEL0250SF1 Dimensional Image Key:
    • Length (C) mm:   57.2
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • OD 1 (D) mm:   63.5
    • Wall (WT) mm:   1.65
    • Length (C) in:   2.25"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   63.5
    • Tube OD (D) in:   2.5"
    • Tube ID (E) mm:   60.2
    • Tube ID (E) in:   2.37"
    • ID mm:   60.2
    FPA1091076057S1B6
    		Ferrule (3") | ASME BPE | Length 57,2mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 3" 91 3.58" 76.2 3" 72.9 2.87" 1.65 0.06" 57.2 2.25" SF1 0.295900
    dimensional image
    View Page → Ferrule (3") | ASME BPE | Length 57,2mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPEL.0300.SF1 - 3" ASME BPE 57.15L FER Legacy Part Number DK:  FRBPEL0300SF1 Dimensional Image Key:
    • Length (C) mm:   57.2
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • OD 1 (D) mm:   76.2
    • Wall (WT) mm:   1.65
    • Length (C) in:   2.25"
    • Wall (WT) in:   0.06"
    • Tube OD (D) mm:   76.2
    • Tube OD (D) in:   3"
    • Tube ID (E) mm:   72.9
    • Tube ID (E) in:   2.87"
    • ID mm:   72.9
    FPA1119101057S1B6
    		Ferrule (4") | ASME BPE | Length 57,2mm | 316L low sulphur (SF1) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 4" 119 4.69" 101.6 4" 97.38 3.83" 2.11 0.08" 57.2 2.25" SF1 0.395800
    dimensional image
    View Page → Ferrule (4") | ASME BPE | Length 57,2mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPEL.0400.SF1 - * 4"ASME BPE 57.15LFER Legacy Part Number DK:  FRBPEL0400SF1 Dimensional Image Key:
    • Length (C) mm:   57.2
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • OD 1 (D) mm:   101.6
    • Wall (WT) mm:   2.11
    • Length (C) in:   2.25"
    • Wall (WT) in:   0.08"
    • Tube OD (D) mm:   101.6
    • Tube OD (D) in:   4"
    • Tube ID (E) mm:   97.38
    • Tube ID (E) in:   3.83"
    • ID mm:   97.38
    FPA1167152076S1B6
    		Pharmaceutical Ferrule (6") | ASME BPE Compliant | Length 76,1mm | 316L low sulphur (SF1) 0.990000
    dimensional image
    View Page → Pharmaceutical Ferrule (6") | ASME BPE Compliant | Length 76,1mm | 316L low sulphur (SF1) Legacy Part Number UK:  FR.BPEL.0600.SF1 - 6" ASME BPE FERRULE Legacy Part Number DK:  FRBPEL0600SF1 Dimensional Image Key:
    • Length (C) mm:   76.1
    • Flange (A) mm:   167
    • Flange (A) in:   6.57"
    • OD 1 (D) mm:   152.4
    • Wall (WT) mm:   2.77
    • Length (C) in:   3"
    • Wall (WT) in:   0.11"
    • Tube OD (D) mm:   152.4
    • Tube OD (D) in:   6"
    • Tube ID (E) mm:   146.86
    • Tube ID (E) in:   5.78"
    FPA1025635028S2B6
    		Ferrule (0,25") | ASME BPE | Length 28,5mm | 316L low sulphur (SF2) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 1/4" 25.4 1" 6.35 0.25" 4.57 0.18" 0.89 0.04" 28.5 1.12" SF2 0.000000
    dimensional image
    View Page → Ferrule (0,25") | ASME BPE | Length 28,5mm | 316L low sulphur (SF2) Legacy Part Number UK:  FR.BPES.0025 Dimensional Image Key:
    • Length (C) mm:   28.5
    • Flange (A) mm:   25.4
    • Flange (A) in:   1"
    • OD 1 (D) mm:   6.35
    • Wall (WT) mm:   0.89
    • Length (C) in:   1.12"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   6.35
    • Tube OD (D) in:   0.25"
    • Tube ID (E) mm:   4.57
    • Tube ID (E) in:   0.18"
    • ID mm:   4.57
    FPA1025952028S2B6
    		Ferrule (0,375") | ASME BPE | Length 28,5mm | 316L low sulphur (SF2) ASME BPE ASME BPE 316L Low Sulphur 1.4435 LS 3/8" 25.4 1" 9.52 0.37" 7.74 0.3" 0.89 0.04" 28.5 1.12" SF2 0.000000
    dimensional image
    View Page → Ferrule (0,375") | ASME BPE | Length 28,5mm | 316L low sulphur (SF2) Legacy Part Number UK:  FR.BPES.0038 Dimensional Image Key:
    • Length (C) mm:   28.5
    • Flange (A) mm:   25.4
    • Flange (A) in:   1"
    • OD 1 (D) mm:   9.52
    • Wall (WT) mm:   0.89
    • Length (C) in:   1.12"
    • Wall (WT) in:   0.04"
    • Tube OD (D) mm:   9.525
    • Tube OD (D) in:   0.38"
    • Tube ID (E) mm:   7.74
    • Tube ID (E) in:   0.3"
    • ID mm:   7.74
    Prev 1 2 3 4 … 6 Next
    Pharmaceutical Ferrule (0,25
    Pharmaceutical Ferrule (0,25") | ASME BPE Compliant | Length 28,5mm | 316L low sulphur (SF1)
    FPA1025635028S1B6
    Ferrule (0,375
    Ferrule (0,375") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1025952028S1B6
    Ferrule (0,5
    Ferrule (0,5") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1025127028S1B6
    Ferrule (0,75
    Ferrule (0,75") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1025195028S1B6
    Ferrule (1
    Ferrule (1") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1050025028S1B6
    Ferrule (1,5
    Ferrule (1,5") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1050038028S1B6
    Ferrule (2
    Ferrule (2") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1064051028S1B6
    Ferrule (2,5
    Ferrule (2,5") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1077063028S1B6
    Ferrule (3
    Ferrule (3") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1091076028S1B6
    Ferrule (4
    Ferrule (4") | ASME BPE | Length 28,5mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1119101028S1B6
    Pharmaceutical Ferrule (6
    Pharmaceutical Ferrule (6") | ASME BPE Compliant | Length 28,5mm | 316L low sulphur (SF1)
    FPA1167152028S1B6
    Ferrule (0,25
    Ferrule (0,25") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1025635044S1B6
    Ferrule (0,375
    Ferrule (0,375") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1025952044S1B6
    Ferrule (0,5
    Ferrule (0,5") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1025127044S1B6
    Ferrule (0,75
    Ferrule (0,75") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1025195044S1B6
    Ferrule (1
    Ferrule (1") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1050025044S1B6
    Ferrule (1,5
    Ferrule (1,5") | ASME BPE | Length 44,5mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1050038044S1B6
    Ferrule (2
    Ferrule (2") | ASME BPE | Length 57,2mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1064051057S1B6
    Ferrule (2,5
    Ferrule (2,5") | ASME BPE | Length 57,2mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1077063057S1B6
    Ferrule (3
    Ferrule (3") | ASME BPE | Length 57,2mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1091076057S1B6
    Ferrule (4
    Ferrule (4") | ASME BPE | Length 57,2mm | 316L low sulphur (SF1)
    Pharmaceutical
    FPA1119101057S1B6
    Pharmaceutical Ferrule (6
    Pharmaceutical Ferrule (6") | ASME BPE Compliant | Length 76,1mm | 316L low sulphur (SF1)
    FPA1167152076S1B6
    Ferrule (0,25
    Ferrule (0,25") | ASME BPE | Length 28,5mm | 316L low sulphur (SF2)
    Pharmaceutical
    FPA1025635028S2B6
    Ferrule (0,375
    Ferrule (0,375") | ASME BPE | Length 28,5mm | 316L low sulphur (SF2)
    Pharmaceutical
    FPA1025952028S2B6
    Prev 1 2 3 4 … 6 Next
