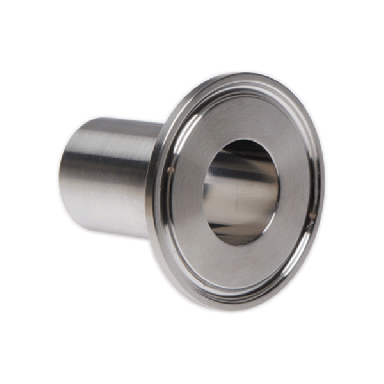

    DIN 32676 Table A Long


    DIN 32676 Table A Long
    Description
    ACL DIN 32676 Tabel A Ferrules, Long. Material 316L / 1.4404. Flatness of sealing face meets or exceeds guidelines.

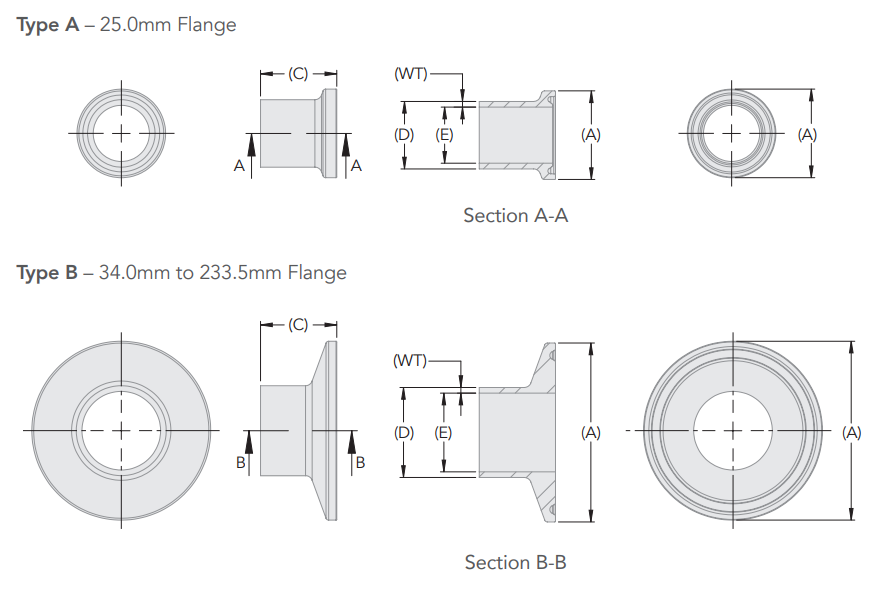

    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC​
    • Flatness of sealing face meets or exceeds guidelines​
    • Circularity of components is within 0.1mm​
    • Compatibility: DIN 32676
    • Durability: 0.8Ra um Int
    Materials
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    • 316L / 1.4404
    Total: 30
    Industry
    PART#    		 Product
    Name    		 Standard Type Size Imperial Size Metric Size ISO Flange Nut Type Material Pressure Rating ID OD Length Closing mechanism
    Add
    To Cart     LIST
    PRICE
    Hygienic
    FDDA025008028SD6L
    		Hygienic Ferrule (DN06) | DIN 32676 Table A (Long) | Length 28,6mm | 316L (0.8 Ra) DIN 32676 Table A Long DIN 32676 Table A Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (DN06) | DIN 32676 Table A (Long) | Length 28,6mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNAL.006
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  8
    • • Wall (WT) mm:  1
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  8
    • • Tube OD (D) in:  0.31"
    • • Tube ID (E) mm:  6
    • • Tube ID (E) in:  0.24"
    Hygienic
    FDDA025010028SD6L
    		Hygienic Ferrule (DN08) | DIN 32676 Table A (Long) | Length 28,6mm | 316L (0.8 Ra) DIN 32676 Table A Long DIN 32676 Table A Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (DN08) | DIN 32676 Table A (Long) | Length 28,6mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNAL.008
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  25
    • • Flange (A) in:  0.98"
    • • OD 1 (D) mm:  10
    • • Wall (WT) mm:  1
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.04"
    • • Tube OD (D) mm:  10
    • • Tube OD (D) in:  0.39"
    • • Tube ID (E) mm:  8
    • • Tube ID (E) in:  0.31"
    Hygienic
    FDDA034013028SD6L
    		Hygienic Ferrule (DN10) | DIN 32676 Table A (Long) | Length 28,6mm | 316L (0.8 Ra) DIN 32676 Table A Long DIN 32676 Table A Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (DN10) | DIN 32676 Table A (Long) | Length 28,6mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNAL.010
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  13
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  13
    • • Tube OD (D) in:  0.51"
    • • Tube ID (E) mm:  10
    • • Tube ID (E) in:  0.39"
    Hygienic
    FDDA034019028SD6L
    		Hygienic Ferrule (DN15) | DIN 32676 Table A (Long) | Length 28,6mm | 316L (0.8 Ra) DIN 32676 Table A Long DIN 32676 Table A Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (DN15) | DIN 32676 Table A (Long) | Length 28,6mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNAL.015
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  19
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  19
    • • Tube OD (D) in:  0.75"
    • • Tube ID (E) mm:  16
    • • Tube ID (E) in:  0.63"
    Hygienic
    FDDA034023028SD6L
    		Hygienic Ferrule (DN20) | DIN 32676 Table A (Long) | Length 28,6mm | 316L (0.8 Ra) DIN 32676 Table A Long DIN 32676 Table A Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (DN20) | DIN 32676 Table A (Long) | Length 28,6mm | 316L (0.8 Ra) Legacy Part Number UK:   DN20 FERRULE DIN32676-A 28.6 Long 0.8Ra 316L
    Dimensional Image Key:
    • • Length (C) mm:  28.6
    • • Flange (A) mm:  34
    • • Flange (A) in:  1.34"
    • • OD 1 (D) mm:  23
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  1.13"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  23
    • • Tube OD (D) in:  0.91"
    • • Tube ID (E) mm:  20
    • • Tube ID (E) in:  0.79"
    Hygienic
    FDDA050029036SD6L
    		Hygienic Ferrule (DN25) | DIN 32676 Table A (Long) | Length 36mm | 316L (0.8 Ra) DIN 32676 Table A Long DIN 32676 Table A Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (DN25) | DIN 32676 Table A (Long) | Length 36mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNAL.025
    Dimensional Image Key:
    • • Length (C) mm:  36
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  29
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  1.42"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  29
    • • Tube OD (D) in:  1.14"
    • • Tube ID (E) mm:  26
    • • Tube ID (E) in:  1.02"
    Hygienic
    FDDA050035036SD6L
    		Hygienic Ferrule (DN32) | DIN 32676 Table A (Long) | Length 36mm | 316L (0.8 Ra) DIN 32676 Table A Long DIN 32676 Table A Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (DN32) | DIN 32676 Table A (Long) | Length 36mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNAL.032
    Dimensional Image Key:
    • • Length (C) mm:  36
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  35
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  1.42"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  35
    • • Tube OD (D) in:  1.38"
    • • Tube ID (E) mm:  32
    • • Tube ID (E) in:  1.26"
    Hygienic
    FDDA050041036SD6L
    		Hygienic Ferrule (DN40) | DIN 32676 Table A (Long) | Length 36mm | 316L (0.8 Ra) DIN 32676 Table A Long DIN 32676 Table A Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (DN40) | DIN 32676 Table A (Long) | Length 36mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNAL.040
    Dimensional Image Key:
    • • Length (C) mm:  36
    • • Flange (A) mm:  50.5
    • • Flange (A) in:  1.99"
    • • OD 1 (D) mm:  41
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  1.42"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  41
    • • Tube OD (D) in:  1.61"
    • • Tube ID (E) mm:  38
    • • Tube ID (E) in:  1.5"
    Hygienic
    FDDA064053036SD6L
    		Hygienic Ferrule (DN50) | DIN 32676 Table A (Long) | Length 36mm | 316L (0.8 Ra) DIN 32676 Table A Long DIN 32676 Table A Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (DN50) | DIN 32676 Table A (Long) | Length 36mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNAL.050
    Dimensional Image Key:
    • • Length (C) mm:  36
    • • Flange (A) mm:  64
    • • Flange (A) in:  2.52"
    • • OD 1 (D) mm:  53
    • • Wall (WT) mm:  1.5
    • • Length (C) in:  1.42"
    • • Wall (WT) in:  0.06"
    • • Tube OD (D) mm:  53
    • • Tube OD (D) in:  2.09"
    • • Tube ID (E) mm:  50
    • • Tube ID (E) in:  1.97"
    Hygienic
    FDDA091070048SD6L
    		Hygienic Ferrule (DN65) | DIN 32676 Table A (Long) | Length 48mm | 316L (0.8 Ra) DIN 32676 Table A Long DIN 32676 Table A Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (DN65) | DIN 32676 Table A (Long) | Length 48mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNAL.065
    Dimensional Image Key:
    • • Length (C) mm:  48
    • • Flange (A) mm:  91
    • • Flange (A) in:  3.58"
    • • OD 1 (D) mm:  70
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.89"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  70
    • • Tube OD (D) in:  2.76"
    • • Tube ID (E) mm:  66
    • • Tube ID (E) in:  2.6"
    Hygienic
    FDDA106085048SD6L
    		Hygienic Ferrule (DN80) | DIN 32676 Table A (Long) | Length 48mm | 316L (0.8 Ra) DIN 32676 Table A Long DIN 32676 Table A Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (DN80) | DIN 32676 Table A (Long) | Length 48mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNAL.080
    Dimensional Image Key:
    • • Length (C) mm:  48
    • • Flange (A) mm:  106
    • • Flange (A) in:  4.17"
    • • OD 1 (D) mm:  85
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.89"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  85
    • • Tube OD (D) in:  3.35"
    • • Tube ID (E) mm:  81
    • • Tube ID (E) in:  3.19"
    Hygienic
    FDDA119104048SD6L
    		Hygienic Ferrule (DN100) | DIN 32676 Table A (Long) | Length 48mm | 316L (0.8 Ra) DIN 32676 Table A Long DIN 32676 Table A Long 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Hygienic Ferrule (DN100) | DIN 32676 Table A (Long) | Length 48mm | 316L (0.8 Ra) Legacy Part Number UK:   FR.DNAL.100
    Dimensional Image Key:
    • • Length (C) mm:  48
    • • Flange (A) mm:  119
    • • Flange (A) in:  4.69"
    • • OD 1 (D) mm:  104
    • • Wall (WT) mm:  2
    • • Length (C) in:  1.89"
    • • Wall (WT) in:  0.08"
    • • Tube OD (D) mm:  104
    • • Tube OD (D) in:  4.09"
    • • Tube ID (E) mm:  100
    • • Tube ID (E) in:  3.94"
