Type SH (Single-Bolt | Double-Hinge) 316

Description

Sanitary (pharmaceutical) SH 316 stainless steel single bolt, double hinge clamps are corrosion resistant, and polished to a high quality surface finish for cleanability. SH 316 clamps are designed and optimised for installation and maintenance, a proven design in the industry for over 30 years. SH316 clamps are for use in normal to heavy duty pharmaceutical applications.

Installation

Supplied assembled: double pin design allows the union to self-align (no pinch points on the gasket).

Specifications

316 / 1.4308 stainless steel
Wing nut & hex nut compatible
Single bolt, double rivet hinge plate layout
Tested by TUV, Forbairt, FORCE

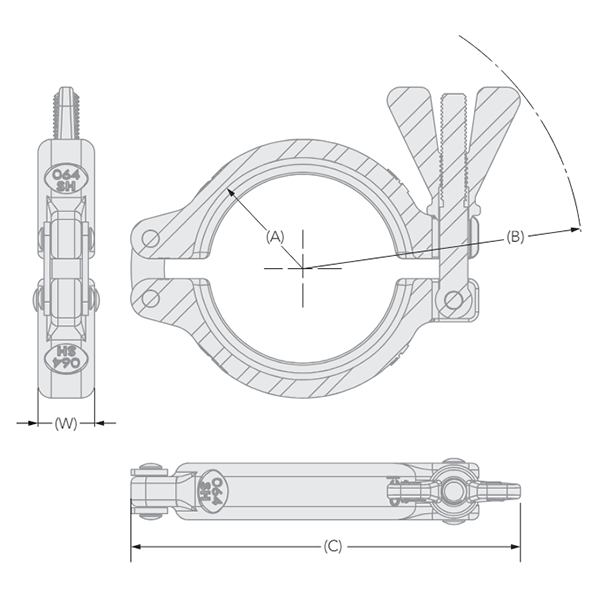

Dimensional Image

(A) Flange
(B) Radius
(C) Length
(W) Width

Features

Clamps are tested periodically to ensure safety and consistency.
Minimum of 0.8Ra um surface finish (external).
Fastener options designed to resist galling.
Clamps are sized between batches to ensure consistency of fit on the union.
Majority of clamp MAWP are calculated to ASME VIII APP 24.
Reduction of CO2. The Euro-Pure clamp is designed to reduce the amount of CO2 used in all aspects of the product life-cycle.
Tested by TUV, Forbairt, FORCE. Currently testing is underway for A2000-A5 (PED) on some of clamp ranges (TUV approved testing).
Packaged loose, in cardboard boxes. No plastic.

Tri-Clamps / Type SH (Single-Bolt | Double-Hinge) 316

Select Series Tri-Clamps

Type SH (Single-Bolt | Double-Hinge) 316

Type SL 304

Type SH (Double Bolt) 316

Euro-Pure® 316

Type SSH (Brass Nuts) 304

Type ASME VIII 316

3 Segment 304

13MHHM Nylon

Industry PART#	Product Name	Type	Material Grade	EN Standard	ASTM Standard	Size (in)	Size (DIN)	Size (ISO)	Closing Mechanism	Nut Type	Safety	Pressure Rating (bar)	Pressure Rating (psi)	Flange A (mm)	Flange A (in)	Width (mm)	Width (in)	Weight
Pharmaceutical SHWN0002506	Tri-Clamp (1/4" - 3/4") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	1/4" - 3/4"	DN 6-8	DN 8-10	2-Pin	Wingnut	No	50	725.19	25.4	1"	17	0.67"	0.150000
View Page → Tri-Clamp (1/4" - 3/4") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384300842 Legacy Part Number IE: CL.SH.0050 Legacy Part Number UK: CL.SH.0050 - 1/2" - 3/4" SH CLAMP 316 Legacy Part Number DK: CLSH0050 Dimensional Image Key: Flange (A) mm: 25.4 Flange (A) in: 1" B in: 2.56" B mm: 65 C mm: 75 C in: 2.95" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0005006	Tri-Clamp (1" - 1 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	1" - 1 1/2"	DN 25-40	DN 15-20-25	2-Pin	Wingnut	No	50	725.19	50.5	1.99"	17	0.67"	0.246400
View Page → Tri-Clamp (1" - 1 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384300859 Legacy Part Number IE: CL.SH.0100 Legacy Part Number UK: CL.SH.0100 - 1" - 1 1/2" SH CLAMP 316 Legacy Part Number DK: CLSH0100 Dimensional Image Key: Flange (A) mm: 50.5 Flange (A) in: 2" B in: 3.03" B mm: 77 C mm: 102 C in: 4.02" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0006406	Tri-Clamp (2") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	2"	DN 50	DN 32-40	2-Pin	Wingnut	No	50	725.19	64	2.52"	17	0.67"	0.316000
View Page → Tri-Clamp (2") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384300866 Legacy Part Number IE: CL.SH.0200 Legacy Part Number UK: CL.SH.0200 - 2" SH CLAMP 316 Legacy Part Number DK: CLSH0200 Dimensional Image Key: Flange (A) mm: 64 Flange (A) in: 2 1/2" B in: 3.66" B mm: 93 C mm: 123 C in: 4.84" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0003406	Tri-Clamp (DN 10) \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	DN10	DN 10-15-20		2-Pin	Wingnut	No	50	725.19	34	1.34"	17	0.67"	0.160000
View Page → Tri-Clamp (DN 10) \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384301023 Legacy Part Number IE: CL.SH.D010 Legacy Part Number UK: CL.SH.D010 - DIN 10/15/20 SH CLAMP 316 Legacy Part Number DK: CLSHD010 Dimensional Image Key: Flange (A) mm: 34 Flange (A) in: 1 3/8" B in: 2.64" B mm: 67 C mm: 85 C in: 3.35" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0009106	Tri-Clamp (3") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	3"	DN 65	DN 65	2-Pin	Wingnut	No	40	580.15	91	3.58"	17	0.67"	0.402000
View Page → Tri-Clamp (3") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384300880 Legacy Part Number IE: CL.SH.0300 Legacy Part Number UK: CL.SH.0300 - 3" SH CLAMP 316 Legacy Part Number DK: CLSH0300 Dimensional Image Key: Flange (A) mm: 91 Flange (A) in: 3 1/2" B in: 4.13" B mm: 105 C mm: 150 C in: 5.91" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0010606	Tri-Clamp (3 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	3 1/2"	DN 80	DN 80	2-Pin	Wingnut	No	40	580.15	106	4.17"	17	0.67"	0.428000
View Page → Tri-Clamp (3 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384300897 Legacy Part Number IE: CL.SH.0350 Legacy Part Number UK: CL.SH.0350 - 3 1/2" SH CLAMP 316 Legacy Part Number DK: CLSH0350 Dimensional Image Key: Flange (A) mm: 106 Flange (A) in: 4 1/8" B in: 4.33" B mm: 110 C mm: 165 C in: 6.50" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0011906	Tri-Clamp (4") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	4"	DN 100		2-Pin	Wingnut	No	35	507.63	119	4.69"	17	0.67"	0.530000
View Page → Tri-Clamp (4") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384300903 Legacy Part Number IE: CL.SH.0400 Legacy Part Number UK: CL.SH.0400 - 4" SH CLAMP 316 Legacy Part Number DK: CLSH0400 Dimensional Image Key: Flange (A) mm: 119 Flange (A) in: 4 3/4" B in: 4.69" B mm: 119 C mm: 185 C in: 7.28" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0013006	Tri-Clamp (4 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	4 1/2"		DN 100	2-Pin	Wingnut	No	30	435.11	130	5.12"	17	0.67"	0.568000
View Page → Tri-Clamp (4 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384300910 Legacy Part Number IE: CL.SH.0450 Legacy Part Number UK: CL.SH.0450 - 4 1/2" SH CLAMP 316 Legacy Part Number DK: CLSH0450 Dimensional Image Key: Flange (A) mm: 130 Flange (A) in: 5 1/8" B in: 4.69" B mm: 119 C mm: 191 C in: 7.52" W mm: 17 W in: 0.67"
Pharmaceutical SHWN0014406	Tri-Clamp (5") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	5"			2-Pin	Wingnut	No	30	435.11	144.4	5.69"	19	0.75"	0.734000
View Page → Tri-Clamp (5") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384300927 Legacy Part Number IE: CL.SH.0500 Legacy Part Number UK: CL.SH.0500 - 5" SH CLAMP 316 Legacy Part Number DK: CLSH0500 Dimensional Image Key: Flange (A) mm: 144.4 Flange (A) in: 5 5/8" B in: 5.16" B mm: 131 C mm: 215 C in: 8.46" W mm: 19 W in: 0.75"
Pharmaceutical SHWN0015506	Tri-Clamp (5 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	5 1/2"	DN 125	DN 125	2-Pin	Wingnut	No	30	435.11	155	6.1"	24	0.94"	1.360000
View Page → Tri-Clamp (5 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384300934 Legacy Part Number IE: CL.SH.0550 Legacy Part Number UK: CL.SH.0550 - 5 1/2" SH CLAMP 316 (SINGLE Legacy Part Number DK: CLSH0550 Dimensional Image Key: Flange (A) mm: 155 Flange (A) in: 6 1/8" B in: 6.10" B mm: 155 C mm: 252 C in: 9.92" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0016706	Tri-Clamp (6") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	6"			2-Pin	Wingnut	No	30	435.11	167	6.57"	24	0.94"	1.378000
View Page → Tri-Clamp (6") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384300941 Legacy Part Number IE: CL.SH.0600 Legacy Part Number UK: CL.SH.0600 - 6" SH CLAMP 316 (SINGLE BOLT) Legacy Part Number DK: CLSH0600 Dimensional Image Key: Flange (A) mm: 167 Flange (A) in: 6 5/8" B in: 6.14" B mm: 156 C mm: 262 C in: 10.31" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0018306	Tri-Clamp (6 5/8") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	6 5/8"	DN 150	DN 150	2-Pin	Wingnut	No	25	362.6	183	7.2"	24	0.94"	1.446000
View Page → Tri-Clamp (6 5/8") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384300958 Legacy Part Number IE: CL.SH.0658 Legacy Part Number UK: CL.SH.0658 - 6 5/8" SH CLAMP 316 (SINGLE Legacy Part Number DK: CLSH0658 Dimensional Image Key: Flange (A) mm: 183 Flange (A) in: 7 1/4" B in: 6.46" B mm: 164 C mm: 280 C in: 11.02" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0021706	Tri-Clamp (8") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	8"			2-Pin	Wingnut	No	20	290.08	217.4	8.56"	24	0.94"	2.014000
View Page → Tri-Clamp (8") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384300965 Legacy Part Number IE: CL.SH.0800 Legacy Part Number UK: CL.SH.0800 - 8" SH CLAMP 316 (SINGLE BOLT) Legacy Part Number DK: CLSH0800 Dimensional Image Key: Flange (A) mm: 217.4 Flange (A) in: 8 1/2" B in: 7.24" B mm: 184 C mm: 325 C in: 12.80" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0023306	Tri-Clamp (8 5/8") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	8 5/8"	DN 200	DN 200	2-Pin	Wingnut	No	20	290.08	233.5	9.19"	24	0.94"	2.198000
View Page → Tri-Clamp (8 5/8") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384300972 Legacy Part Number IE: CL.SH.0858 Legacy Part Number UK: CL.SH.0858 - 8 5/8" SH CLAMP 316 (SINGLE Legacy Part Number DK: CLSH0858 Dimensional Image Key: Flange (A) mm: 233.5 Flange (A) in: 9 1/8" B in: 7.28" B mm: 185 C mm: 326 C in: 12.83" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0026806	Tri-Clamp (10") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	10"	DN 250		2-Pin	Wingnut	No	16	232.06	268	10.55"	24	0.94"	2.730000
View Page → Tri-Clamp (10") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384300989 Legacy Part Number IE: CL.SH.1000 Legacy Part Number UK: CL.SH.1000 - 10" SH CLAMP 316 (SINGLE Legacy Part Number DK: CLSH1000 Dimensional Image Key: Flange (A) mm: 268 Flange (A) in: 10 1/2" B in: 7.72" B mm: 196 C mm: 366 C in: 14.41" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0028606	Tri-Clamp (10 5/8") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	10 5/8"		DN 250	2-Pin	Wingnut	No	16	232.06	286.1	11.26"	24	0.94"	2.874000
View Page → Tri-Clamp (10 5/8") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384300996 Legacy Part Number IE: CL.SH.1058 Legacy Part Number UK: CL.SH.1058 - 10 5/8" SH CLAMP 316 (SINGLE Legacy Part Number DK: CLSH1058 Dimensional Image Key: Flange (A) mm: 286.1 Flange (A) in: 11 1/4" B in: 8.07" B mm: 205 C mm: 384 C in: 15.12" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0031906	Tri-Clamp (12") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	12"	DN 300		2-Pin	Wingnut	No	10	145.04	319	12.56"	24	0.94"	3.204000
View Page → Tri-Clamp (12") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384301009 Legacy Part Number IE: CL.SH.1200 Legacy Part Number UK: CL.SH.1200 - 12" SH CLAMP 316 (SINGLE Legacy Part Number DK: CLSH1200 Dimensional Image Key: Flange (A) mm: 319 Flange (A) in: 12 1/2" B in: 9.09" B mm: 231 C mm: 430 C in: 16.93" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0033806	Tri-Clamp (12 5/8") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	12 5/8"		DN 300	2-Pin	Wingnut	No	10	145.04	338	13.31"	24	0.94"	3.364000
View Page → Tri-Clamp (12 5/8") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384301016 Legacy Part Number IE: CL.SH.1258 Legacy Part Number UK: CL.SH.1258 - 12 5/8" SH CLAMP 316 (SINGLE Legacy Part Number DK: CLSH1258 Dimensional Image Key: Flange (A) mm: 338 Flange (A) in: 13 1/4" B in: 8.98" B mm: 228 C mm: 425 C in: 16.73" W mm: 24 W in: 0.94"
Pharmaceutical SHWN0007706	Tri-Clamp (2 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	2 1/2"		DN 50	2-Pin	Wingnut	No	50	725.19	77.5	3.05"	17	0.67"	0.362000
View Page → Tri-Clamp (2 1/2") \| Type SH \| Stainless Steel 316 \| Wingnut GTIN: 840384300873 Legacy Part Number IE: CL.SH.0250 Legacy Part Number UK: CL.SH.0250 - 2 1/2" SH CLAMP 316 Legacy Part Number DK: CLSH0250 Dimensional Image Key: Flange (A) mm: 77.5 Flange (A) in: 3" B in: 3.94" B mm: 100 C mm: 140 C in: 5.51" W mm: 17 W in: 0.67"
