Type SSH (Brass Nuts) 304L

Description

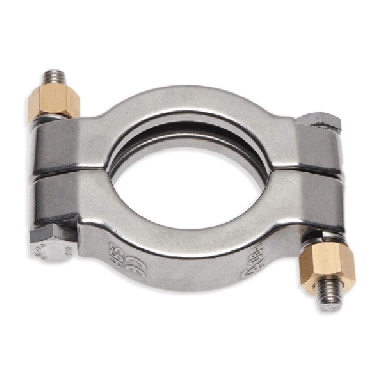

Acl double bolt high pressure 304 clamp. Two segment, bolted assembly; double bolted with spring washer, barrel polished. SSH304 clamps are for use in normal to heavy duty applications.

Specifications

Heavy duty design
Very high FOS Calculated to ASME VIII APP 24
Tested by TUV and FORCE

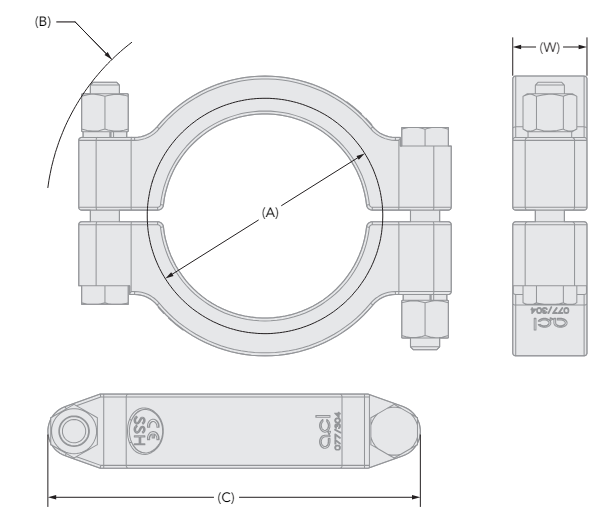

Dimensional Image

Features

Material: 304 / 1.4308
Application: Hygienic
Hinge Layout: Separate Segments

Industry PART#	Product Name	Type	Size Imperial	Size Metric	Size ISO	Flange	Nut Type	Material	Pressure Rating	Length	Closing mechanism	Add To Cart LIST PRICE
Hygienic SSBX0002504	Tri-Clamp (1/4" - 3/4") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut	SSH	1/4" - 3/4"	DN 6-8(DIN)	DN 8-10(ISO)	25.4(mm)/1"(in)	Brass Hex nut	304L	75(MAWP)/1087.79(PSI)	65(mm)/2.56"(in)	2 Hex Bolt & Nut	Log In or Create a Free Account to Purchase $20.35
View Page Tri-Clamp (1/4" - 3/4") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut Legacy Part Number IE: CL.SSH.0050.4 Legacy Part Number UK: CL.SSH.0050.6 - 1/2" - 3/4" SSH CLAMP 316 Legacy Part Number DK: CLSSH00504 Dimensional Image Key: • Flange (A) mm: 25.4 • Flange (A) in: 1" • B in: 1.46" • B mm: 37 • C mm: 65 • C in: 2.56" • W mm: 16 • W in: 0.63"
Hygienic SSBX0003404	Tri-Clamp (DN 10) \| Type SSH \| Stainless Steel 304L \| Brass Hex nut	SSH	DN10	DN 10-15-20(DIN)		34(mm)/1.34"(in)	Brass Hex nut	304L	75(MAWP)/1087.79(PSI)	74(mm)/2.91"(in)	2 Hex Bolt & Nut	Log In or Create a Free Account to Purchase $19.55
View Page Tri-Clamp (DN 10) \| Type SSH \| Stainless Steel 304L \| Brass Hex nut Legacy Part Number IE: CL.SSH.D010.4 Legacy Part Number UK: CL.SSH.D010.6 - DIN 10/15/20 SSH CLAMP 316 Legacy Part Number DK: CLSSHD0106 Dimensional Image Key: • Flange (A) mm: 34 • Flange (A) in: 1 3/8" • B in: 1.65" • B mm: 42 • C mm: 74 • C in: 2.91" • W mm: 18 • W in: 0.71"
Hygienic SSBX0005004	Tri-Clamp (1" - 1 1/2") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut	SSH	1" - 1 1/2"	DN 25-40(DIN)	DN 15-20-25(ISO)	50.5(mm)/1.99"(in)	Brass Hex nut	304L	75(MAWP)/1087.79(PSI)	103(mm)/4.06"(in)	2 Hex Bolt & Nut	Log In or Create a Free Account to Purchase $53.25
View Page Tri-Clamp (1" - 1 1/2") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut Legacy Part Number IE: CL.SSH.0100.4 Legacy Part Number UK: CL.SSH.0100.4 - 1 -1 1/2" SSH BR CLAMP 304 Legacy Part Number DK: CLSSH01004 Dimensional Image Key: • Flange (A) mm: 50.5 • Flange (A) in: 2" • B in: 2.52" • B mm: 64 • C mm: 103 • C in: 4.06" • W mm: 26 • W in: 1.02"
Hygienic SSBX0006404	Tri-Clamp (2") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut	SSH	2"	DN 50(DIN)	DN 32-40(ISO)	64(mm)/2.52"(in)	Brass Hex nut	304L	75(MAWP)/1087.79(PSI)	113(mm)/4.45"(in)	2 Hex Bolt & Nut	Log In or Create a Free Account to Purchase $63.93
View Page Tri-Clamp (2") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut Legacy Part Number IE: CL.SSH.0200.4 Legacy Part Number UK: CL.SSH.0200.4 - 2" SSH CLAMP 304 - BRASS Legacy Part Number DK: CLSSH02004 Dimensional Image Key: • Flange (A) mm: 64 • Flange (A) in: 2 1/2" • B in: 2.87" • B mm: 73 • C mm: 113 • C in: 4.45" • W mm: 26 • W in: 1.02"
Hygienic SSBX0007704	Tri-Clamp (2 1/2") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut	SSH	2 1/2"		DN 50(ISO)	77.5(mm)/3.05"(in)	Brass Hex nut	304L	75(MAWP)/1087.79(PSI)	128(mm)/5.04"(in)	2 Hex Bolt & Nut	Log In or Create a Free Account to Purchase $73.02
View Page Tri-Clamp (2 1/2") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut Legacy Part Number IE: CL.SSH.0250.4 Legacy Part Number UK: CL.SSH.0250.4 - 2 1/2" SSH CLAMP 304 - Legacy Part Number DK: CLSSH02504 Dimensional Image Key: • Flange (A) mm: 77.5 • Flange (A) in: 3" • B in: 3.15" • B mm: 80 • C mm: 128 • C in: 5.04" • W mm: 26 • W in: 1.02"
Hygienic SSBX0009104	Tri-Clamp (3") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut	SSH	3"	DN 65(DIN)	DN 65(ISO)	91(mm)/3.58"(in)	Brass Hex nut	304L	60(MAWP)/870.23(PSI)	137(mm)/5.39"(in)	2 Hex Bolt & Nut	Log In or Create a Free Account to Purchase $86.34
View Page Tri-Clamp (3") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut Legacy Part Number IE: CL.SSH.0300.4 Legacy Part Number UK: CL.SSH.0300.4 - 3" SSH CLAMP 304 - BRASS Legacy Part Number DK: CLSSH03004 Dimensional Image Key: • Flange (A) mm: 91 • Flange (A) in: 3 1/2" • B in: 3.39" • B mm: 86 • C mm: 137 • C in: 5.39" • W mm: 26 • W in: 1.02"
Hygienic SSBX0010604	Tri-Clamp (3 1/2") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut	SSH	3 1/2"	DN 80(DIN)	DN 80(ISO)	106(mm)/4.17"(in)	Brass Hex nut	304L	60(MAWP)/870.23(PSI)	150(mm)/5.91"(in)	2 Hex Bolt & Nut	Log In or Create a Free Account to Purchase $91.12
View Page Tri-Clamp (3 1/2") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut Legacy Part Number IE: CL.SSH.0350.4 Legacy Part Number UK: CL.SSH.0350.4 - 3 1/2" SSH CLAMP 304 - Legacy Part Number DK: CLSSH03504 Dimensional Image Key: • Flange (A) mm: 106 • Flange (A) in: 4 1/8" • B in: 3.70" • B mm: 94 • C mm: 150 • C in: 5.91" • W mm: 26 • W in: 1.02"
Hygienic SSBX0011904	Tri-Clamp (4") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut	SSH	4"	DN 100(DIN)		119(mm)/4.69"(in)	Brass Hex nut	304L	53(MAWP)/768.7(PSI)	165(mm)/6.5"(in)	2 Hex Bolt & Nut	Log In or Create a Free Account to Purchase $112.02
View Page Tri-Clamp (4") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut Legacy Part Number IE: CL.SSH.0400.4 Legacy Part Number UK: CL.SSH.0400.4 - 4" SSH CLAMP 304 - BRASS Legacy Part Number DK: CLSSH04004 Dimensional Image Key: • Flange (A) mm: 119 • Flange (A) in: 4 3/4" • B in: 4.02" • B mm: 102 • C mm: 165 • C in: 6.50" • W mm: 26 • W in: 1.02"
Hygienic SSBX0013004	Tri-Clamp (4 1/2") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut	SSH	4 1/2"		DN 100(ISO)	130(mm)/5.12"(in)	Brass Hex nut	304L	45(MAWP)/652.67(PSI)	174(mm)/6.85"(in)	2 Hex Bolt & Nut	Log In or Create a Free Account to Purchase $123.00
View Page Tri-Clamp (4 1/2") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut Legacy Part Number IE: CL.SSH.0450.4 Legacy Part Number UK: CL.SSH.0450.4 - 4 1/2" SSH CLAMP 304 - Legacy Part Number DK: CLSSH04504 Dimensional Image Key: • Flange (A) mm: 130 • Flange (A) in: 5 1/8" • B in: 4.13" • B mm: 105 • C mm: 174 • C in: 6.85" • W mm: 26 • W in: 1.02"
Hygienic SSBX0014404	Tri-Clamp (5") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut	SSH	5"			144.4(mm)/5.69"(in)	Brass Hex nut	304L	45(MAWP)/652.67(PSI)	208(mm)/8.19"(in)	2 Hex Bolt & Nut	Log In or Create a Free Account to Purchase $161.80
View Page Tri-Clamp (5") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut Legacy Part Number IE: CL.SSH.0500.4 Legacy Part Number DK: CLSSH05004 Dimensional Image Key: • Flange (A) mm: 144.4 • Flange (A) in: 5 5/8" • B in: 4.61" • B mm: 117 • C mm: 208 • C in: 8.19" • W mm: 18 • W in: 0.71"
Hygienic SSBX0015504	Tri-Clamp (5 1/2") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut	SSH	5 1/2"	DN 125(DIN)	DN 125(ISO)	155(mm)/6.1"(in)	Brass Hex nut	304L	45(MAWP)/652.67(PSI)	226(mm)/8.9"(in)	2 Hex Bolt & Nut	Log In or Create a Free Account to Purchase $216.44
View Page Tri-Clamp (5 1/2") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut Legacy Part Number IE: CL.SSH.0550.4 Legacy Part Number DK: CLSSH05504 Dimensional Image Key: • Flange (A) mm: 155 • Flange (A) in: 6 1/8" • B in: 4.92" • B mm: 125 • C mm: 226 • C in: 8.90" • W mm: 26 • W in: 1.02"
Hygienic SSBX0016704	Tri-Clamp (6") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut	SSH	6"			167(mm)/6.57"(in)	Brass Hex nut	304L	45(MAWP)/652,67(PSI)	240(mm)/9.45"(in)	2 Hex Bolt & Nut	Log In or Create a Free Account to Purchase $178.86
View Page Tri-Clamp (6") \| Type SSH \| Stainless Steel 304L \| Brass Hex nut Legacy Part Number IE: CL.SSH.0600.4 Legacy Part Number UK: CL.SSH.0600.B - 6" SSH CLAMP 304 - BRASS Legacy Part Number DK: CLSSH06004 Dimensional Image Key: • Flange (A) mm: 167 • Flange (A) in: 6 5/8" • B in: 5.20" • B mm: 132 • C mm: 240 • C in: 9.45" • W mm: 26 • W in: 1.02"
