13MHHM Nylon

Description

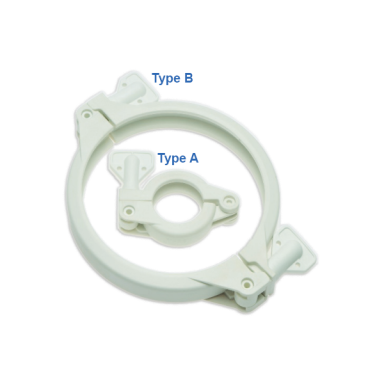

Nylon Clamp Thumb screw nylon tri-clamp – 13MHM

Specifications

Maximum tightening torque 2NM (1.48 LB/F)
Maximum operating pressure 10 bar (145psi) @ 20°C (68°F)

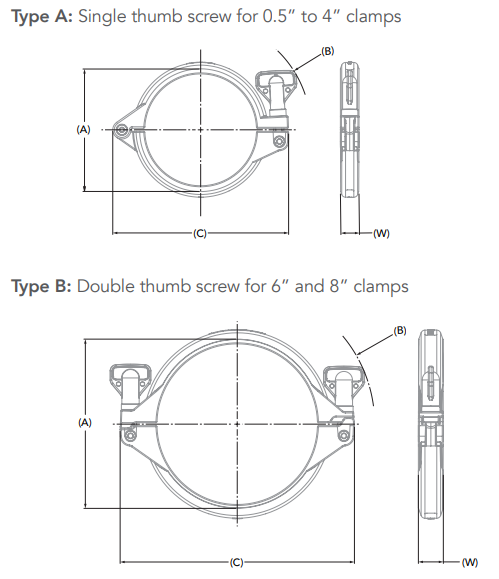

Dimensional Image

Industry PART#	Product Name	Standard	Type	Size Imperial	Size Metric	Size ISO	Flange	Nut Type	Material	Pressure Rating	ID	OD	Length	Closing mechanism	Add To Cart LIST PRICE
Pharmaceutical PSWN00025NY	Tri-Clamp (1/4" - 3/4") \| Type NY \| Nylon \| Wingnut		NY	1/4" - 3/4"	DN 6-8(DIN)	DN 8-10(ISO)	25.4(mm)/1"(in)	Wingnut	Nylon	10(MAWP)/145.04(PSI)			60(mm)/2.36"(in)	1-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (1/4" - 3/4") \| Type NY \| Nylon \| Wingnut Legacy Part Number UK: 1/2" - 3/4" PLASTIC CLAMP Dimensional Image Key: • Flange (A) mm: 25.4 • Flange (A) in: 1" • B in: 2.48" • B mm: 63 • C mm: 60 • C in: 2.36" • W mm: 18 • W in: 0.71"
Pharmaceutical PSWN00050NY	Tri-Clamp (1" - 1 1/2") \| Type NY \| Nylon \| Wingnut		NY	1" - 1 1/2"	DN 25-40(DIN)	DN 15-20-25(ISO)	50.5(mm)/1.99"(in)	Wingnut	Nylon	10(MAWP)/145.04(PSI)			85(mm)/3.35"(in)	1-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (1" - 1 1/2") \| Type NY \| Nylon \| Wingnut Legacy Part Number UK: 1 " - 1 1/2" PLASTIC CLAMP Dimensional Image Key: • Flange (A) mm: 50.5 • Flange (A) in: 2" • B in: 3.07" • B mm: 78 • C mm: 85 • C in: 3.35" • W mm: 18 • W in: 0.71"
Pharmaceutical PSWN00064NY	Tri-Clamp (2") \| Type NY \| Nylon \| Wingnut		NY	2"	DN 50(DIN)	DN 32-40(ISO)	64(mm)/2.52"(in)	Wingnut	Nylon	8(MAWP)/116.03(PSI)			99(mm)/3.9"(in)	1-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (2") \| Type NY \| Nylon \| Wingnut Legacy Part Number UK: 2" PLASTIC CLAMP Dimensional Image Key: • Flange (A) mm: 64 • Flange (A) in: 2 1/2" • B in: 3.23" • B mm: 82 • C mm: 99 • C in: 3.90" • W mm: 18 • W in: 0.71"
Pharmaceutical PSWN00077NY	Tri-Clamp (2 1/2") \| Type NY \| Nylon \| Wingnut		NY	2 1/2"		DN 50(ISO)	77.5(mm)/3.05"(in)	Wingnut	Nylon	8(MAWP)/116.03(PSI)			112(mm)/4.41"(in)	1-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (2 1/2") \| Type NY \| Nylon \| Wingnut Legacy Part Number UK: 2.5" PLASTIC CLAMP Dimensional Image Key: • Flange (A) mm: 77.5 • Flange (A) in: 3" • B in: 3.50" • B mm: 89 • C mm: 112 • C in: 4.41" • W mm: 18 • W in: 0.71"
Pharmaceutical PSWN00106NY	Tri-Clamp (3 1/2") \| Type NY \| Nylon \| Wingnut		NY	3 1/2"	DN 80(DIN)	DN 80(ISO)	106(mm)/4.17"(in)	Wingnut	Nylon	8(MAWP)/116.03(PSI)			140(mm)/5.51"(in)	1-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (3 1/2") \| Type NY \| Nylon \| Wingnut Dimensional Image Key: • Flange (A) mm: 106 • Flange (A) in: 4 1/8" • B in: 4.06" • B mm: 103 • C mm: 140 • C in: 5.51" • W mm: 18 • W in: 0.71"
Pharmaceutical PSWN00119NY	Tri-Clamp (4") \| Type NY \| Nylon \| Wingnut		NY	4"	DN 100(DIN)		119(mm)/4.69"(in)	Wingnut	Nylon	6(MAWP)/87.02(PSI)			154(mm)/6.06"(in)	1-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (4") \| Type NY \| Nylon \| Wingnut Legacy Part Number UK: 4" PLASTIC CLAMP Dimensional Image Key: • Flange (A) mm: 119 • Flange (A) in: 4 3/4" • B in: 4.33" • B mm: 110 • C mm: 154 • C in: 6.06" • W mm: 18 • W in: 0.71"
Pharmaceutical PSWN00167NY	Tri-Clamp (6") \| Type NY (Double Bolt) \| Nylon \| Wingnut		NY	6"			167(mm)/6.57"(in)	Wingnut	Nylon	3.5(MAWP)/50.76(PSI)			216(mm)/8.5"(in)	2-Bolt	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (6") \| Type NY (Double Bolt) \| Nylon \| Wingnut Legacy Part Number UK: 6" PLASTIC CLAMP Dimensional Image Key: • Flange (A) mm: 167 • Flange (A) in: 6 5/8" • B in: 6.14" • B mm: 156 • C mm: 216 • C in: 8.50" • W mm: 24 • W in: 0.94"
Pharmaceutical PSWN00217NY	Tri-Clamp (8") \| Type NY (Double Bolt) \| Nylon \| Wingnut		NY	8"			217.4(mm)/8.56"(in)	Wingnut	Nylon	2(MAWP)/29.01(PSI)			271(mm)/10.67"(in)	2-Bolt	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (8") \| Type NY (Double Bolt) \| Nylon \| Wingnut Legacy Part Number UK: 8" PLASTIC CLAMP Dimensional Image Key: • Flange (A) mm: 217.4 • Flange (A) in: 8 1/2" • B in: 7.24" • B mm: 184 • C mm: 271 • C in: 10.67" • W mm: 24 • W in: 0.94"
