Euro-Pure® 316

Description

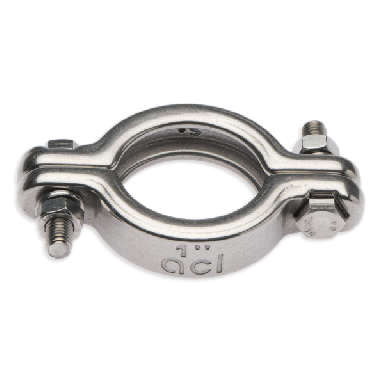

ACL Euro-Pure® clamp, stainless nut, 316L 2 segment bolted assembly. Double bolted clamp with spring washer barrel, polished. Euro pure clamps are made for normal to heavy duty application. Higher strength to weight ratio than any other clamp.

Installation

Ease of installation. Hinge layout; separate segments, bolted assembly.

Specifications

Hot Forged to EN10243-1
Approved for AD2000-A5 (PED)
316 / 1.4404 Stainless steel

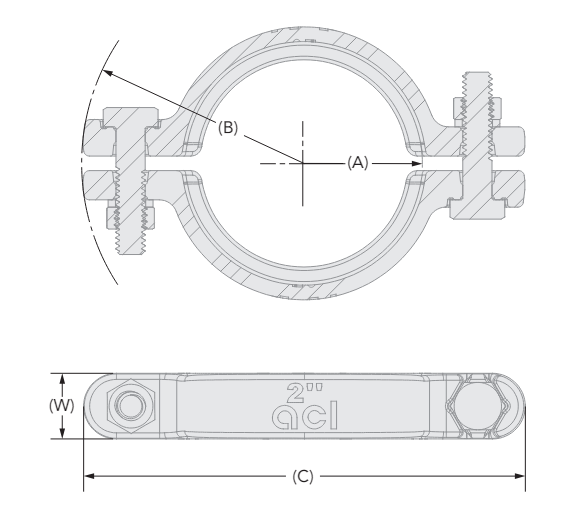

Dimensional Image

Features

Hex nut compatible
Lightweight design
Strength maintained due to forging

Tri-Clamps / Euro-Pure® 316

Select Series Tri-Clamps

Euro-Pure® 316

Type SH (Single-Bolt | Double-Hinge) 316

Type SL 304

Type SH (Double Bolt) 316

Type SSH (Brass Nuts) 304

Type ASME VIII 316

3 Segment 304

13MHHM Nylon

Industry PART#	Product Name	Type	Material Grade	EN Standard	ASTM Standard	Size (in)	Size (DIN)	Size (ISO)	Closing Mechanism	Nut Type	Safety	Pressure Rating (bar)	Pressure Rating (psi)	Flange A (mm)	Flange A (in)	Width (mm)	Width (in)	Weight
Pharmaceutical Data Center EPHX0002506	Tri-Clamp (1/4" - 3/4") \| Type EURO-PURE (Double Bolt) \| Stainless Steel 316 \| Hex Nut	EURO-PURE	316	1.4408	J92900	1/4" - 3/4"	DN 6-8	DN 8-10	2-Bolt	Hex Nut	No	140	2030.53	25.4	1"	18	0.71"	0.172000
View Page → Tri-Clamp (1/4" - 3/4") \| Type EURO-PURE (Double Bolt) \| Stainless Steel 316 \| Hex Nut Legacy Part Number IE: CL.EP.0050 Legacy Part Number UK: CL.EP.0050 - 1/2" - 3/4" EURO PURE CLAMP Legacy Part Number DK: CLEP0050 Dimensional Image Key: Flange (A) mm: 25.4 Flange (A) in: 1" B in: 1.50" B mm: 38 C mm: 73 C in: 2.87" W mm: 18 W in: 0.71"
Pharmaceutical Data Center EPHX0005006	Tri-Clamp (1" - 1 1/2") \| Type EURO-PURE (Double Bolt) \| Stainless Steel 316 \| Hex Nut	EURO-PURE	316	1.4408	J92900	1" - 1 1/2"	DN 25-40	DN 15-20-25	2-Bolt	Hex Nut	No	125	1812.98	50.5	1.99"	18	0.71"	0.262000
View Page → Tri-Clamp (1" - 1 1/2") \| Type EURO-PURE (Double Bolt) \| Stainless Steel 316 \| Hex Nut Legacy Part Number IE: CL.EP.0100 Legacy Part Number UK: CL.EP.0100 - 1" - 1 1/2" EURO PURE CLAMP Legacy Part Number DK: CLEP0100 Dimensional Image Key: Flange (A) mm: 50.5 Flange (A) in: 2" B in: 2.05" B mm: 52 C mm: 94 C in: 3.70" W mm: 18 W in: 0.71"
Pharmaceutical Data Center EPHX0006406	Tri-Clamp (2") \| Type EURO-PURE (Double Bolt) \| Stainless Steel 316 \| Hex Nut	EURO-PURE	316	1.4408	J92900	2"	DN 50	DN 32-40	2-Bolt	Hex Nut	No	95	1377.86	64	2.52"	18	0.71"	0.314000
View Page → Tri-Clamp (2") \| Type EURO-PURE (Double Bolt) \| Stainless Steel 316 \| Hex Nut Legacy Part Number IE: CL.EP.0200 Legacy Part Number UK: CL.EP.0200 - 2" EURO PURE CLAMP Legacy Part Number DK: CLEP0200 Dimensional Image Key: Flange (A) mm: 64 Flange (A) in: 2 1/2" B in: 2.40" B mm: 61 C mm: 121 C in: 4.76" W mm: 18 W in: 0.71"
Pharmaceutical Data Center EPHX0007706	Tri-Clamp (2 1/2") \| Type EURO-PURE (Double Bolt) \| Stainless Steel 316 \| Hex Nut	EURO-PURE	316	1.4408	J92900	2 1/2"		DN 50	2-Bolt	Hex Nut	No	90	1305.34	77.5	3.05"	18	0.71"	0.360000
View Page → Tri-Clamp (2 1/2") \| Type EURO-PURE (Double Bolt) \| Stainless Steel 316 \| Hex Nut Legacy Part Number IE: CL.EP.0250 Legacy Part Number UK: CL.EP.0250 - 2 1/2" EURO PURE CLAMP Legacy Part Number DK: CLEP0250 Dimensional Image Key: Flange (A) mm: 77.5 Flange (A) in: 3" B in: 2.68" B mm: 68 C mm: 132 C in: 5.20" W mm: 18 W in: 0.71"
Pharmaceutical Data Center EPHX0009106	Tri-Clamp (3") \| Type EURO-PURE (Double Bolt) \| Stainless Steel 316 \| Hex Nut	EURO-PURE	316	1.4408	J92900	3"	DN 65	DN 65	2-Bolt	Hex Nut	No	70	1015.27	91	3.58"	18	0.71"	0.380000
View Page → Tri-Clamp (3") \| Type EURO-PURE (Double Bolt) \| Stainless Steel 316 \| Hex Nut Legacy Part Number IE: CL.EP.0300 Legacy Part Number UK: CL.EP.0300 - 3" EURO PURE CLAMP Legacy Part Number DK: CLEP0300 Dimensional Image Key: Flange (A) mm: 91 Flange (A) in: 3 1/2" B in: 2.87" B mm: 73 C mm: 141 C in: 5.55" W mm: 18 W in: 0.71"
Pharmaceutical Data Center EPHX0011906	Tri-Clamp (4") \| Type EURO-PURE (Double Bolt) \| Stainless Steel 316 \| Hex Nut	EURO-PURE	316	1.4408	J92900	4"	DN 100		2-Bolt	Hex Nut	No	40	580.15	119	4.69"	18	0.71"	0.180000
View Page → Tri-Clamp (4") \| Type EURO-PURE (Double Bolt) \| Stainless Steel 316 \| Hex Nut Legacy Part Number IE: CL.EP.0400 Legacy Part Number UK: CL.EP.0400 - 4" EURO PURE CLAMP Legacy Part Number DK: CLEP0400 Dimensional Image Key: Flange (A) mm: 119 Flange (A) in: 4 3/4" B in: 3.50" B mm: 89 C mm: 170 C in: 6.69" W mm: 18 W in: 0.71"
