Type SH (Double Bolt) 316

Description

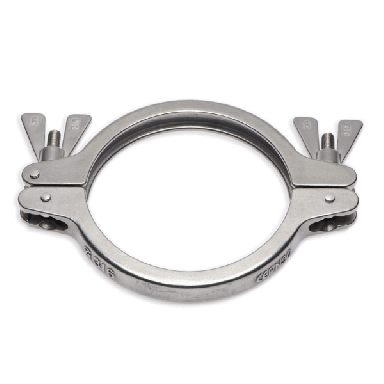

Sanitary (pharmaceutical) SH 316 stainless steel double bolt clamps with length adjustable eyebolts are corrosion resistant, and polished to a high quality surface finish for cleanability. SH 316 clamps are designed and optimised for installation and maintenance, a proven design in the industry for over 30 years. SH316 clamps are for use in normal to heavy duty pharmaceutical applications.

Installation

Ease of Installation: parts can be partially disassembled to reduce the loss of components during maintenance. Swing bolt design is more forgiving than through bolts.

Specifications

316 / 1.4408 stainless steel
Wing nut & hex nut compatible
Double bolt, length adjustable eyebolt
Tested by TUV, Forbairt, FORCE

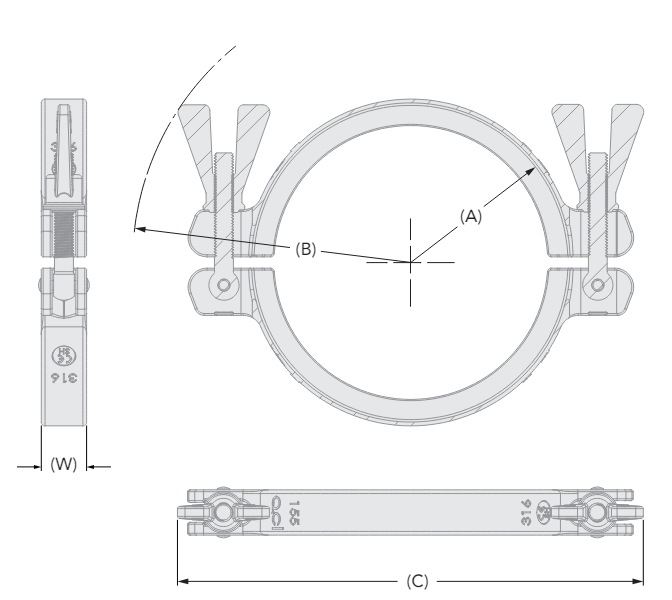

Dimensional Image

Features

Clamps are tested periodically to ensure safety and consistency.
Minimum of 0.8Ra um surface finish (external).
Fastener options designed to resist galling.
Clamps are sized between batches to ensure consistency of fit on the union.
Majority of clamp MAWP are calculated to ASME VIII APP 24.
Reduction of CO2. The Euro-Pure clamp is designed to reduce the amount of CO2 used in all aspects of the product life-cycle.
Clamps (2.5" to 5" SAF) - designed for AD2000-A5 (PED). Testing to be concluded.
Packaged loose, in cardboard boxes. No plastic.

Tri-Clamps / Type SH (Double Bolt) 316

Select Series Tri-Clamps

Type SH (Double Bolt) 316

Type SH (Single-Bolt | Double-Hinge) 316

Type SL 304

Euro-Pure® 316

Type SSH (Brass Nuts) 304

Type ASME VIII 316

3 Segment 304

13MHHM Nylon

Industry PART#	Product Name	Type	Material Grade	EN Standard	ASTM Standard	Size (in)	Size (DIN)	Size (ISO)	Closing Mechanism	Nut Type	Safety	Pressure Rating (bar)	Pressure Rating (psi)	Flange A (mm)	Flange A (in)	Width (mm)	Width (in)	Weight
Pharmaceutical SHWNDW07706	Tri-Clamp (2 1/2") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	2 1/2"		DN 50	2-Bolt	Wingnut	No	50	725.19	77.5	3.05"	19	0.75"	3.438000
View Page → Tri-Clamp (2 1/2") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut GTIN: 77.5 Dimensional Image Key: Flange (A) mm: 77.5 B mm: 75.7 C mm: 123.8 W mm: 19
Pharmaceutical SHWNDW09106	Tri-Clamp (3") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	3"	DN 65	DN 65	2-Bolt	Wingnut	No	40	580.15	91	3.58"	19	0.75"	3.438000
View Page → Tri-Clamp (3") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut GTIN: 91 Dimensional Image Key: Flange (A) mm: 91 B mm: 80.9 C mm: 136.3 W mm: 19
Pharmaceutical SHWNDW10606	Tri-Clamp (4") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	3 1/2"	DN 80	DN 80	2-Bolt	Wingnut	No	40	580.15	106	4.17"	19	0.75"	3.438000
View Page → Tri-Clamp (4") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut GTIN: 106 Dimensional Image Key: Flange (A) mm: 106 B mm: 87.3 C mm: 151.3 W mm: 19
Pharmaceutical SHWNDW11906	Tri-Clamp (4 1/2") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	4"	DN 100		2-Bolt	Wingnut	No	35	507.63	119	4.69"	19	0.75"	3.438000
View Page → Tri-Clamp (4 1/2") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut GTIN: 119 Dimensional Image Key: Flange (A) mm: 119 B mm: 93 C mm: 164.3 W mm: 19
Pharmaceutical SHWNDW13006	Tri-Clamp (5") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	4 1/2"		DN 100	2-Bolt	Wingnut	No	30	435.11	130	5.12"	19	0.75"	3.438000
View Page → Tri-Clamp (5") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut GTIN: 130 Dimensional Image Key: Flange (A) mm: 130 B mm: 87.4 C mm: 176.6 W mm: 19
Pharmaceutical SHWNDW14406	Tri-Clamp (5 1/2") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	5"			2-Bolt	Wingnut	No	30	435.11	144	5.67"	19	0.75"	3.438000
View Page → Tri-Clamp (5 1/2") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut GTIN: 144 Dimensional Image Key: Flange (A) mm: 144 B mm: 106.1 C mm: 193.5 W mm: 19
Pharmaceutical SHWNDW15506	Tri-Clamp (5 1/2") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	5 1/2"	DN 125	DN 125	2-Bolt	Wingnut	No	30	435.11	155	6.1"	24	0.94"	1.430000
View Page → Tri-Clamp (5 1/2") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut GTIN: 840384301412 Legacy Part Number IE: CL.SHD.0550 Legacy Part Number UK: CL.SHD.0550 - 5 1/2" SH CLAMP 316 (DOUBLE Legacy Part Number DK: CLSHD0550 Dimensional Image Key: Flange (A) mm: 155 Flange (A) in: 6 1/8" B in: 6.10" B mm: 155 C mm: 265 C in: 10.43" W mm: 24 W in: 0.94"
Pharmaceutical SHWNDW16706	Tri-Clamp (6") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	6"			2-Bolt	Wingnut	No	30	435.11	167	6.57"	24	0.94"	1.438000
View Page → Tri-Clamp (6") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut GTIN: 840384301429 Legacy Part Number IE: CL.SHD.0600 Legacy Part Number UK: CL.SHD.0600 - 6" SH CLAMP 316 (DOUBLE Legacy Part Number DK: CLSHD0600 Dimensional Image Key: Flange (A) mm: 167 Flange (A) in: 6 5/8" B in: 6.14" B mm: 156 C mm: 277 C in: 10.91" W mm: 24 W in: 0.94"
Pharmaceutical SHWNDW18306	Tri-Clamp (6 5/8") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	6 5/8"	DN 150	DN 150	2-Bolt	Wingnut	No	25	362.6	183	7.2"	24	0.94"	1.522000
View Page → Tri-Clamp (6 5/8") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut GTIN: 840384301436 Legacy Part Number IE: CL.SHD.0658 Legacy Part Number UK: CL.SHD.0658 - 6 5/8" SH CLAMP 316 (DOUBLE Legacy Part Number DK: CLSHD0658 Dimensional Image Key: Flange (A) mm: 183 Flange (A) in: 7 1/4" B in: 6.46" B mm: 164 C mm: 297 C in: 11.69" W mm: 24 W in: 0.94"
Pharmaceutical SHWNDW21706	Tri-Clamp (8") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	8"			2-Bolt	Wingnut	No	20	290.08	217.4	8.56"	24	0.94"	2.086000
View Page → Tri-Clamp (8") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut GTIN: 840384301443 Legacy Part Number IE: CL.SHD.0800 Legacy Part Number UK: CL.SHD.0800 - 8" SH CLAMP 316 (DOUBLE Legacy Part Number DK: CLSHD0800 Dimensional Image Key: Flange (A) mm: 217.4 Flange (A) in: 8 1/2" B in: 7.24" B mm: 184 C mm: 332 C in: 13.07" W mm: 24 W in: 0.94"
Pharmaceutical SHWNDW23306	Tri-Clamp (8 5/8") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	8 5/8"	DN 200	DN 200	2-Bolt	Wingnut	No	20	290.08	233.5	9.19"	24	0.94"	2.284000
View Page → Tri-Clamp (8 5/8") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut GTIN: 840384301450 Legacy Part Number IE: CL.SHD.0858 Legacy Part Number UK: CL.SHD.0858 - 8 5/8" SH CLAMP 316 (DOUBLE Legacy Part Number DK: CLSHD0858 Dimensional Image Key: Flange (A) mm: 233.5 Flange (A) in: 9 1/8" B in: 7.28" B mm: 185 C mm: 353 C in: 13.90" W mm: 24 W in: 0.94"
Pharmaceutical SHWNDW26806	Tri-Clamp (10") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	10"	DN 250		2-Bolt	Wingnut	No	16	232.06	268	10.55"	24	0.94"	2.784000
View Page → Tri-Clamp (10") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut GTIN: 840384301467 Legacy Part Number IE: CL.SHD.1000 Legacy Part Number UK: CL.SHD.1000 - 10" SH CLAMP 316 (DOUBLE Legacy Part Number DK: CLSHD1000 Dimensional Image Key: Flange (A) mm: 268 Flange (A) in: 10 1/2" B in: 8.07" B mm: 205 C mm: 382 C in: 15.04" W mm: 24 W in: 0.94"
Pharmaceutical SHWNDW28606	Tri-Clamp (10 5/8") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	10 5/8"		DN 250	2-Bolt	Wingnut	No	16	232.06	286.1	11.26"	24	0.94"	2.950000
View Page → Tri-Clamp (10 5/8") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut GTIN: 840384301474 Legacy Part Number IE: CL.SHD.1058 Legacy Part Number UK: CL.SHD.1058 - 10 5/8" SH CLAMP 316 (DOUBLE Legacy Part Number DK: CLSHD1058 Dimensional Image Key: Flange (A) mm: 286.1 Flange (A) in: 11 1/4" B in: 8.39" B mm: 213 C mm: 405 C in: 15.94" W mm: 24 W in: 0.94"
Pharmaceutical SHWNDW31906	Tri-Clamp (12") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	12"	DN 300		2-Bolt	Wingnut	No	10	145.04	319	12.56"	24	0.94"	3.438000
View Page → Tri-Clamp (12") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut GTIN: 840384301481 Legacy Part Number IE: CL.SHD.1200 Legacy Part Number UK: CL.SHD.1200 - 12" SH CLAMP 316 (DOUBLE Legacy Part Number DK: CLSHD1200 Dimensional Image Key: Flange (A) mm: 319 Flange (A) in: 12 1/2" B in: 9.53" B mm: 242 C mm: 458 C in: 18.03" W mm: 24 W in: 0.94"
Pharmaceutical SHWNDW33806	Tri-Clamp (12 5/8") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut	SH	316	1.4408	J92900	12 5/8"		DN 300	2-Bolt	Wingnut	No	10	145.04	338	13.31"	24	0.94"	3.274000
View Page → Tri-Clamp (12 5/8") \| Type SH (Double Bolt) \| Stainless Steel 316 \| Wingnut GTIN: 840384301498 Legacy Part Number IE: CL.SHD.1258 Legacy Part Number UK: CL.SHD.1258 - 12 5/8" SH CLAMP 316 (DOUBLE Legacy Part Number DK: CLSHD1258 Dimensional Image Key: Flange (A) mm: 338 Flange (A) in: 13 1/4" B in: 9.57" B mm: 243 C mm: 463 C in: 18.23" W mm: 24 W in: 0.94"
