    SMS Fittings


    SMS Fittings
    Description

    ACL SMS fittings are manufactured in accordance with the SMS 1145 standard for use in the Food & Beverage and Dairy industries. The range covers the complete SMS union system including male fittings (long and short), nuts, liners (long and short), blanks, blind nuts (with chain) and union gaskets. All SMS fittings are produced from 316L stainless steel with surface finishes meeting or exceeding the SMS standard requirements.

    Full laser marking and 3.1 material certification are available, with a Declaration of Conformity issued as standard.

    Specifications
    • Standard: SMS 1145
    • Surface finish: 0.8Ra µm minimum
    • Materials comply with AD2000 (PED) and ASME VIII
    • 3.1 material certification available
    Features
    • Manufactured to SMS 1145 standard

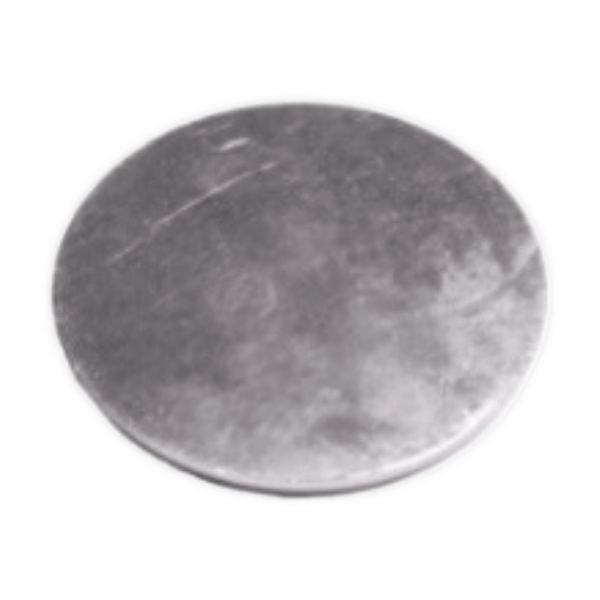

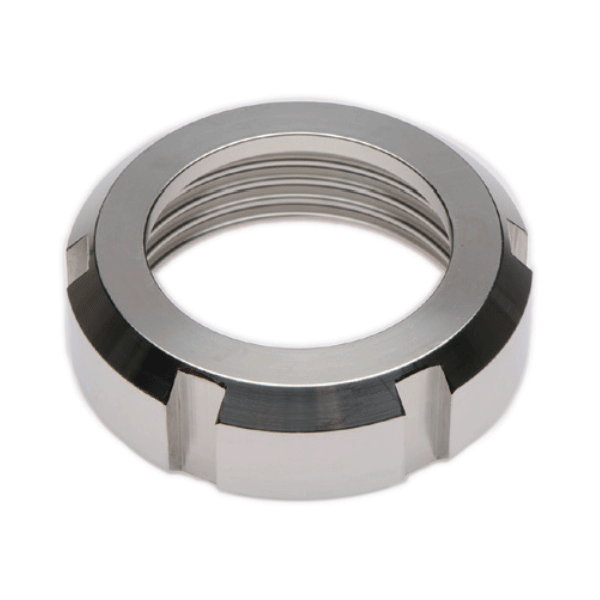

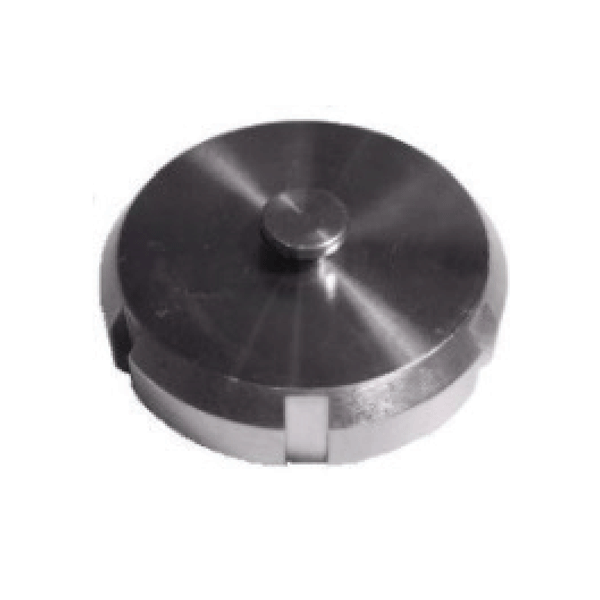

    • Complete system: male, nuts, liners, blanks, blind nuts and gaskets
    • Produced from 316L stainless steel as standard
    • Surface finish to 0.8Ra µm or better
    • Full laser marking for traceability
    • 3.1 material certification available
    • Declaration of Conformity issued as standard
    Materials
    • Material: 316L Stainless Steel as standard
    • Alternative materials available on request
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.
    Union Fittings / SMS Fittings
    Adapters Adapters Hose Adapters Hose Adapters Reducers Reducers Union Fittings Union Fittings Blanks Blanks
    SMS Fittings SMS Fittings
    Spanner Spanner DS Fittings DS Fittings DIN Fittings DIN Fittings RJT Fittings RJT Fittings IDF Fittings IDF Fittings

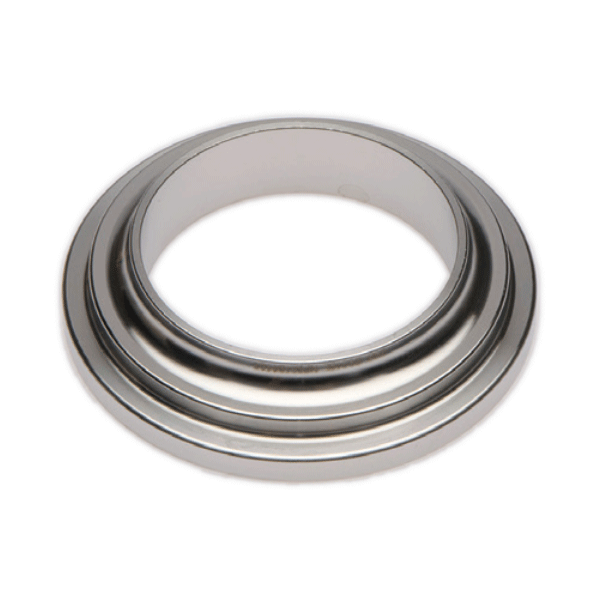

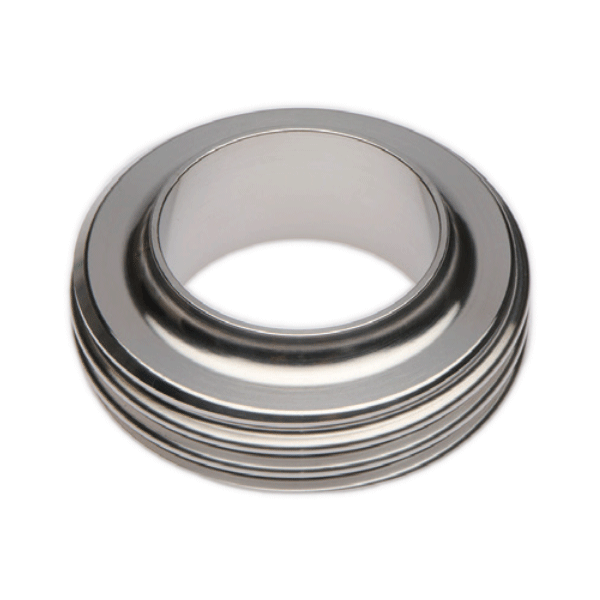

    SMS Male Long & Short SMS Male Long & Short SMS Liners Long & Short SMS Liners Long & Short SMS Nuts SMS Nuts SMS Blanks SMS Blanks SMS Blind Nuts, with Chain SMS Blind Nuts, with Chain SMS Union Gasket, Unlipped SMS Union Gasket, Unlipped
    Total: 60
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade Size (in) Size (DIN) Male / Female Weight
    GUULSM025EK

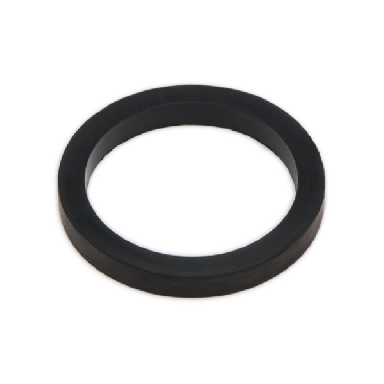

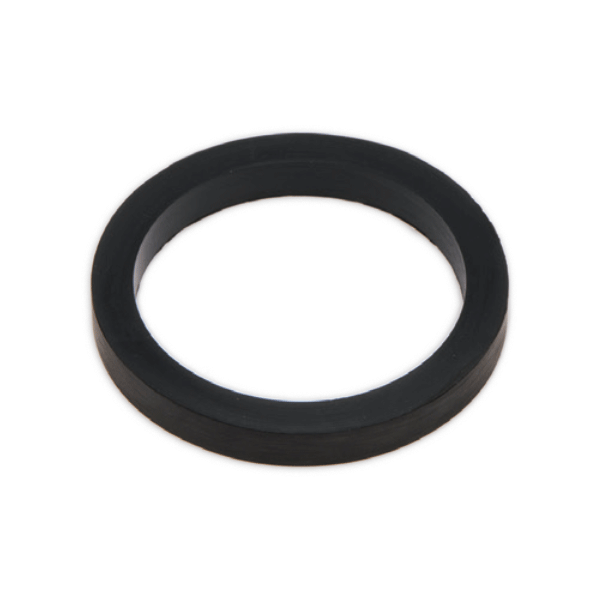

    		SMS Union (1") | Gasket | EPDM SMS Gasket EPDM 1" 0.100000

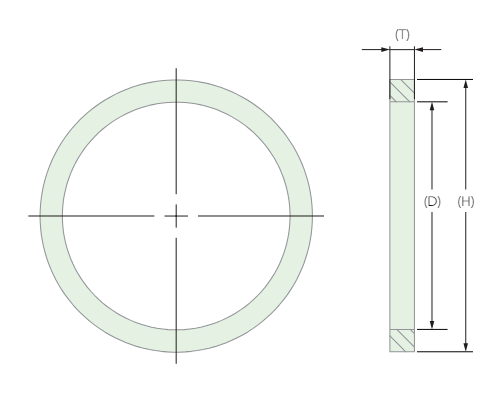

    dimensional image
    View Page → SMS Union (1") | Gasket | EPDM GTIN:  840384333215 Legacy Part Number DK:  PESM0100 Dimensional Image Key:
    • OD (H) mm:   32
    • ID (D) mm:   25
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   1.26"
    • Thickness (T) in:   0.22"
    • OD (H) in:   1.26
    • ID (D) in:   0.98"
    • ID mm:   25
    GUULSM038EK
    		SMS Union (1 1/2") | Gasket | EPDM SMS Gasket EPDM 1 1/2" 0.050000
    dimensional image
    View Page → SMS Union (1 1/2") | Gasket | EPDM GTIN:  840384333284 Legacy Part Number DK:  PESM0150 Dimensional Image Key:
    • OD (H) mm:   48
    • ID (D) mm:   38
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   1.89"
    • Thickness (T) in:   0.22"
    • OD (H) in:   1.89
    • ID (D) in:   1.5"
    • ID mm:   38
    GUULSM051EK
    		SMS Union (2") | Gasket | EPDM SMS Gasket EPDM 2" 0.120000
    dimensional image
    View Page → SMS Union (2") | Gasket | EPDM GTIN:  840384333352 Legacy Part Number DK:  PESM0200 Dimensional Image Key:
    • OD (H) mm:   61
    • ID (D) mm:   51
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   2.4"
    • Thickness (T) in:   0.22"
    • OD (H) in:   2.41
    • ID (D) in:   2.01"
    • ID mm:   51
    GUULSM063EK
    		SMS Union (2 1/2") | Gasket | EPDM SMS Gasket EPDM 2 1/2" 0.150000
    dimensional image
    View Page → SMS Union (2 1/2") | Gasket | EPDM GTIN:  840384333420 Legacy Part Number DK:  PESM0250 Dimensional Image Key:
    • OD (H) mm:   73.5
    • ID (D) mm:   63.5
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   2.89"
    • Thickness (T) in:   0.22"
    • OD (H) in:   2.89
    • ID (D) in:   2.5"
    • ID mm:   63.5
    GUULSM076EK
    		SMS Union (3") | Gasket | EPDM SMS Gasket EPDM 3" 0.170000
    dimensional image
    View Page → SMS Union (3") | Gasket | EPDM GTIN:  840384333499 Legacy Part Number DK:  PESM0300 Dimensional Image Key:
    • OD (H) mm:   86
    • ID (D) mm:   76.1
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   3.39"
    • Thickness (T) in:   0.22"
    • OD (H) in:   3.39
    • ID (D) in:   3"
    • ID mm:   76.1
    GUULSM101EK
    		SMS Union (4") | Gasket | EPDM SMS Gasket EPDM 4" 0.200000
    dimensional image
    View Page → SMS Union (4") | Gasket | EPDM GTIN:  840384333567 Legacy Part Number DK:  PESM0400 Dimensional Image Key:
    • OD (H) mm:   114
    • ID (D) mm:   101.6
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   4.49"
    • Thickness (T) in:   0.22"
    • OD (H) in:   4.49
    • ID (D) in:   4"
    • ID mm:   101.6
    GUULSM025NT
    		SMS Union (1") | Gasket | Nitrile (NBR) SMS Gasket Nitrile (NBR) 1" 0.100000
    dimensional image
    View Page → SMS Union (1") | Gasket | Nitrile (NBR) GTIN:  840384333222 Legacy Part Number DK:  PNSM0100 Dimensional Image Key:
    • OD (H) mm:   32
    • ID (D) mm:   25
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   1.26"
    • Thickness (T) in:   0.22"
    • OD (H) in:   1.26
    • ID (D) in:   0.98"
    • ID mm:   25
    GUULSM038NT
    		SMS Union (1 1/2") | Gasket | Nitrile (NBR) SMS Gasket Nitrile (NBR) 1 1/2" 0.050000
    dimensional image
    View Page → SMS Union (1 1/2") | Gasket | Nitrile (NBR) GTIN:  840384333291 Legacy Part Number DK:  PNSM0150 Dimensional Image Key:
    • OD (H) mm:   48
    • ID (D) mm:   38
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   1.89"
    • Thickness (T) in:   0.22"
    • OD (H) in:   1.89
    • ID (D) in:   1.5"
    • ID mm:   38
    GUULSM051NT
    		SMS Union (2") | Gasket | Nitrile (NBR) SMS Gasket Nitrile (NBR) 2" 0.120000
    dimensional image
    View Page → SMS Union (2") | Gasket | Nitrile (NBR) GTIN:  840384333369 Legacy Part Number DK:  PNSM0200 Dimensional Image Key:
    • OD (H) mm:   61
    • ID (D) mm:   51
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   2.4"
    • Thickness (T) in:   0.22"
    • OD (H) in:   2.41
    • ID (D) in:   2.01"
    • ID mm:   51
    GUULSM063NT
    		SMS Union (2 1/2") | Gasket | Nitrile (NBR) SMS Gasket Nitrile (NBR) 2 1/2" 0.150000
    dimensional image
    View Page → SMS Union (2 1/2") | Gasket | Nitrile (NBR) GTIN:  840384333437 Legacy Part Number DK:  PNSM0250 Dimensional Image Key:
    • OD (H) mm:   73.5
    • ID (D) mm:   63.5
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   2.89"
    • Thickness (T) in:   0.22"
    • OD (H) in:   2.89
    • ID (D) in:   2.5"
    • ID mm:   63.5
    GUULSM076NT
    		SMS Union (3") | Gasket | Nitrile (NBR) SMS Gasket Nitrile (NBR) 3" 0.017000
    dimensional image
    View Page → SMS Union (3") | Gasket | Nitrile (NBR) GTIN:  840384333505 Legacy Part Number DK:  PNSM0300 Dimensional Image Key:
    • OD (H) mm:   86
    • ID (D) mm:   76.1
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   3.39"
    • Thickness (T) in:   0.22"
    • OD (H) in:   3.39
    • ID (D) in:   3"
    • ID mm:   76.1
    GUULSM101NT
    		SMS Union (4") | Gasket | Nitrile (NBR) SMS Gasket Nitrile (NBR) 4" 0.200000
    dimensional image
    View Page → SMS Union (4") | Gasket | Nitrile (NBR) GTIN:  840384333574 Legacy Part Number DK:  PNSM0400 Dimensional Image Key:
    • OD (H) mm:   114
    • ID (D) mm:   101.6
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   4.49"
    • Thickness (T) in:   0.22"
    • OD (H) in:   4.49
    • ID (D) in:   4"
    • ID mm:   101.6
    GUSM025VB
    		SMS Union (1") | Gasket | Viton (FKM) SMS Gasket Viton (FKM) 1" 0.100000
    dimensional image
    View Page → SMS Union (1") | Gasket | Viton (FKM) GTIN:  840384333208 Legacy Part Number DK:  PVSM0100 Dimensional Image Key:
    • OD (H) mm:   32
    • ID (D) mm:   25
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   1.26"
    • Thickness (T) in:   0.22"
    • OD (H) in:   0.22
    • ID (D) in:   0.98"
    • ID mm:   25
    GUSM038VB
    		SMS Union (1 1/2") | Gasket | Viton (FKM) SMS Gasket Viton (FKM) 1 1/2" 0.050000
    dimensional image
    View Page → SMS Union (1 1/2") | Gasket | Viton (FKM) GTIN:  840384333277 Legacy Part Number DK:  PVSM0150 Dimensional Image Key:
    • OD (H) mm:   48
    • ID (D) mm:   38
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   1.89"
    • Thickness (T) in:   0.22"
    • OD (H) in:   0.22
    • ID (D) in:   1.5"
    • ID mm:   38
    GUSM051VB
    		SMS Union (2") | Gasket | Viton (FKM) SMS Gasket Viton (FKM) 2" 0.120000
    dimensional image
    View Page → SMS Union (2") | Gasket | Viton (FKM) GTIN:  840384333345 Legacy Part Number DK:  PVSM0200 Dimensional Image Key:
    • OD (H) mm:   61
    • ID (D) mm:   51
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   2.4"
    • Thickness (T) in:   0.22"
    • OD (H) in:   0.22
    • ID (D) in:   2.01"
    • ID mm:   51
    GUSM063VB
    		SMS Union (2 1/2") | Gasket | Viton (FKM) SMS Gasket Viton (FKM) 2 1/2" 0.150000
    dimensional image
    View Page → SMS Union (2 1/2") | Gasket | Viton (FKM) GTIN:  840384333413 Legacy Part Number DK:  PVSM0250 Dimensional Image Key:
    • OD (H) mm:   73.5
    • ID (D) mm:   63.5
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   2.89"
    • Thickness (T) in:   0.22"
    • OD (H) in:   0.22
    • ID (D) in:   2.5"
    • ID mm:   63.5
    GUSM076VB
    		SMS Union (3") | Gasket | Viton (FKM) SMS Gasket Viton (FKM) 3" 0.170000
    dimensional image
    View Page → SMS Union (3") | Gasket | Viton (FKM) GTIN:  840384333482 Legacy Part Number DK:  PVSM0300 Dimensional Image Key:
    • OD (H) mm:   86
    • ID (D) mm:   76.1
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   3.39"
    • Thickness (T) in:   0.22"
    • OD (H) in:   0.22
    • ID (D) in:   3"
    • ID mm:   76.1
    GUSM101VB
    		SMS Union (4") | Gasket | Viton (FKM) SMS Gasket Viton (FKM) 4" 0.200000
    dimensional image
    View Page → SMS Union (4") | Gasket | Viton (FKM) GTIN:  840384333550 Legacy Part Number DK:  PVSM0400 Dimensional Image Key:
    • OD (H) mm:   114
    • ID (D) mm:   101.6
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   4.49"
    • Thickness (T) in:   0.22"
    • OD (H) in:   0.22
    • ID (D) in:   4"
    • ID mm:   101.6
    GUSM025PS
    		SMS Union (1") | Gasket | PTFE SMS Gasket PTFE 1" 0.100000
    dimensional image
    View Page → SMS Union (1") | Gasket | PTFE GTIN:  840384333185 Legacy Part Number DK:  PTSM0100 Dimensional Image Key:
    • OD (H) mm:   32
    • ID (D) mm:   25
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   1.26"
    • Thickness (T) in:   0.22"
    • OD (H) in:   0.22
    • ID (D) in:   0.98"
    • ID mm:   25
    GUSM038PS
    		SMS Union (1 1/2") | Gasket | PTFE SMS Gasket PTFE 1 1/2" 0.050000
    dimensional image
    View Page → SMS Union (1 1/2") | Gasket | PTFE GTIN:  840384333239 Legacy Part Number DK:  PTSM0150 Dimensional Image Key:
    • OD (H) mm:   48
    • ID (D) mm:   38
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   1.89"
    • Thickness (T) in:   0.22"
    • OD (H) in:   0.22
    • ID (D) in:   1.5"
    • ID mm:   38
    GUSM051PS
    		SMS Union (2") | Gasket | PTFE SMS Gasket PTFE 2" 0.120000
    dimensional image
    View Page → SMS Union (2") | Gasket | PTFE GTIN:  840384333321 Legacy Part Number DK:  PTSM0200 Dimensional Image Key:
    • OD (H) mm:   61
    • ID (D) mm:   51
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   2.4"
    • Thickness (T) in:   0.22"
    • OD (H) in:   0.22
    • ID (D) in:   2.01"
    • ID mm:   51
    GUSM063PS
    		SMS Union (2 1/2") | Gasket | PTFE SMS Gasket PTFE 2 1/2" 0.150000
    dimensional image
    View Page → SMS Union (2 1/2") | Gasket | PTFE GTIN:  840384333376 Legacy Part Number DK:  PTSM0250 Dimensional Image Key:
    • OD (H) mm:   73.5
    • ID (D) mm:   63.5
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   2.89"
    • Thickness (T) in:   0.22"
    • OD (H) in:   0.22
    • ID (D) in:   2.5"
    • ID mm:   63.5
    GUSM076PS
    		SMS Union (3") | Gasket | PTFE SMS Gasket PTFE 3" 0.170000
    dimensional image
    View Page → SMS Union (3") | Gasket | PTFE GTIN:  840384333468 Legacy Part Number DK:  PTSM0300 Dimensional Image Key:
    • OD (H) mm:   86
    • ID (D) mm:   76.1
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   3.39"
    • Thickness (T) in:   0.22"
    • OD (H) in:   0.22
    • ID (D) in:   3"
    • ID mm:   76.1
    GUSM101PS
    		SMS Union (4") | Gasket | PTFE SMS Gasket PTFE 4" 0.200000
    dimensional image
    View Page → SMS Union (4") | Gasket | PTFE GTIN:  840384333536 Legacy Part Number DK:  PTSM0400 Dimensional Image Key:
    • OD (H) mm:   114
    • ID (D) mm:   101.6
    • Thickness (T) mm:   5.5
    • OD 2 (H) in:   4.49"
    • Thickness (T) in:   0.22"
    • OD (H) in:   0.22
    • ID (D) in:   4"
    • ID mm:   101.6
    Prev 1 2 3 Next
    SMS Union (1
    SMS Union (1") | Gasket | EPDM
    Hygienic
    GUULSM025EK
    SMS Union (1 1/2
    SMS Union (1 1/2") | Gasket | EPDM
    Hygienic
    GUULSM038EK
    SMS Union (2
    SMS Union (2") | Gasket | EPDM
    Hygienic
    GUULSM051EK
    SMS Union (2 1/2
    SMS Union (2 1/2") | Gasket | EPDM
    Hygienic
    GUULSM063EK
    SMS Union (3
    SMS Union (3") | Gasket | EPDM
    Hygienic
    GUULSM076EK
    SMS Union (4
    SMS Union (4") | Gasket | EPDM
    Hygienic
    GUULSM101EK
    SMS Union (1
    SMS Union (1") | Gasket | Nitrile (NBR)
    Hygienic
    GUULSM025NT
    SMS Union (1 1/2
    SMS Union (1 1/2") | Gasket | Nitrile (NBR)
    Hygienic
    GUULSM038NT
    SMS Union (2
    SMS Union (2") | Gasket | Nitrile (NBR)
    Hygienic
    GUULSM051NT
    SMS Union (2 1/2
    SMS Union (2 1/2") | Gasket | Nitrile (NBR)
    Hygienic
    GUULSM063NT
    SMS Union (3
    SMS Union (3") | Gasket | Nitrile (NBR)
    Hygienic
    GUULSM076NT
    SMS Union (4
    SMS Union (4") | Gasket | Nitrile (NBR)
    Hygienic
    GUULSM101NT
    SMS Union (1
    SMS Union (1") | Gasket | Viton (FKM)
    Hygienic
    GUSM025VB
    SMS Union (1 1/2
    SMS Union (1 1/2") | Gasket | Viton (FKM)
    Hygienic
    GUSM038VB
    SMS Union (2
    SMS Union (2") | Gasket | Viton (FKM)
    Hygienic
    GUSM051VB
    SMS Union (2 1/2
    SMS Union (2 1/2") | Gasket | Viton (FKM)
    Hygienic
    GUSM063VB
    SMS Union (3
    SMS Union (3") | Gasket | Viton (FKM)
    Hygienic
    GUSM076VB
    SMS Union (4
    SMS Union (4") | Gasket | Viton (FKM)
    Hygienic
    GUSM101VB
    SMS Union (1
    SMS Union (1") | Gasket | PTFE
    Hygienic
    GUSM025PS
    SMS Union (1 1/2
    SMS Union (1 1/2") | Gasket | PTFE
    Hygienic
    GUSM038PS
    SMS Union (2
    SMS Union (2") | Gasket | PTFE
    Hygienic
    GUSM051PS
    SMS Union (2 1/2
    SMS Union (2 1/2") | Gasket | PTFE
    Hygienic
    GUSM063PS
    SMS Union (3
    SMS Union (3") | Gasket | PTFE
    Hygienic
    GUSM076PS
    SMS Union (4
    SMS Union (4") | Gasket | PTFE
    Hygienic
    GUSM101PS
    Prev 1 2 3 Next
