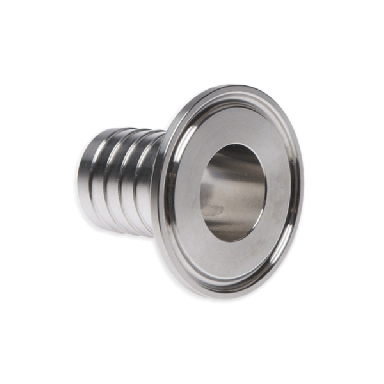

    Hose Adapters


    Hose Adapters
    Description

    ACL offers a comprehensive range of ferrule to hose adapter fittings that are designed to allow a clamp flange to be connected directly to a flexible hose. Our standard range of ferrule to hose adapter fittings are designed to suit both imperial and metric flexible hose sizes that are commonly available throughout the industry.

    All our hose adapters are manufactured from 316L S/S. This offers both excellent material properties and guarantees good controllable surface finishes. The ferrule to hose adapters fittings are machined with flanges to match BS4825, ISO & DIN32676 standard ferrules.

    In the detailed section you will find information relating to our standard range of ferrule to hose adapter fittings. Due to the manufacturing process we are able to offer “non-standard” hose adapter to suit all customer requirements. If the following data does not show a ferrule to hose adapter to meet your specification, please do not hesitate to contact our sales staff.

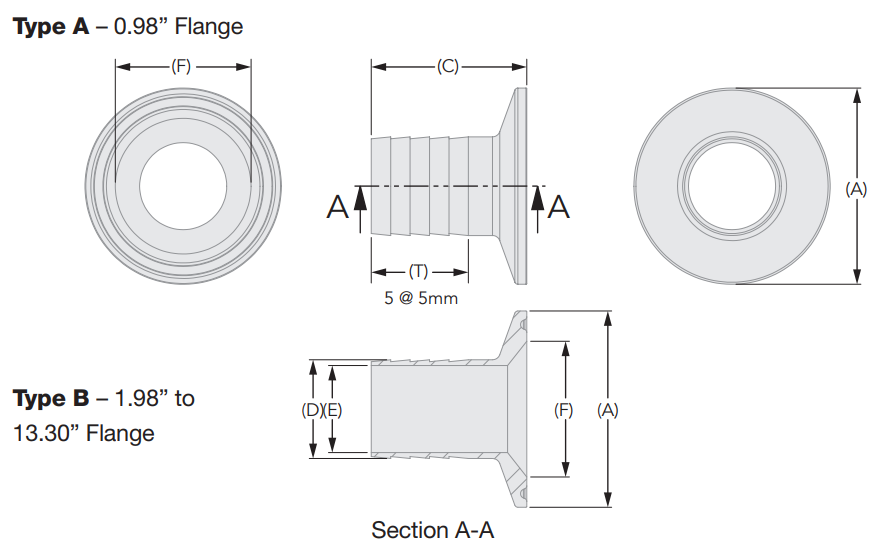

    Dimensional Image
    Features
    • Material: 316L / 1.4404
    • Surface Finish: equal to, or better than 0.8 Ra(ųm) / 32 Ra(ųin)
    • Manufactured: 3.1 Certified
    • Produced in the UK​
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
    • Circularity of components is within 0.1mm​
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    Fittings / Hose Adapters
    Clamps & Sealing Clamps & Sealing Fittings Fittings Weld Fittings Weld Fittings ASME BPE Fittings ASME BPE Fittings Sight Flow Indicators Sight Flow Indicators Valves Valves Maintenance Items Maintenance Items Single Use Single Use Filters Filters
    Hose Adapters Hose Adapters
    Adapters Adapters Reducers Reducers Union Fittings Union Fittings Blanks Blanks
    Total: 98
    Industry
    PART#    		 Product
    Name    		 Type Material Grade EN Standard ASTM Standard Size (in) Size (DIN) Size (mm) Flange (mm) Flange (in) Connection (in) ID (mm) ID (in) OD (mm) OD (in) Neck (mm) Neck (in) Length (mm) Length (in) Weight
    ADADHM0136350406L
    		Metric Hose Tail | Tri-Clamp (1/4") x Hose Tail (DN 10) | 316L Metric 316L 1.4404 ˜ SS2348 DN 10 34 1.34" 1/4" 0.13" 6.4 0.25" 40 1.57" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (1/4") x Hose Tail (DN 10) | 316L Legacy Part Number IE:  HTD.D10.025 Legacy Part Number UK:  HTD.D10.025 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   10
    • Hose ID (E) mm:   3.4
    • Ferrule Connection (T):   .25"
    • Hose OD (D) in:   0.25"
    • Mating (F) in:   0.39"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   6.4
    • Hose ID (E) in:   0.13"
    • ID mm:   3.4
    • Mating (M) in:   0.39"
    ADADHM0139520406L
    		Metric Hose Tail | Tri-Clamp (3/8") x Hose Tail (DN 10) | 316L Metric 316L 1.4404 ˜ SS2348 DN 10 34 1.34" 3/8" 0.26" 9.5 0.37" 40 1.57" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (3/8") x Hose Tail (DN 10) | 316L Legacy Part Number IE:  HTD.D10.038 Legacy Part Number UK:  HTD.D10.038 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   10
    • Hose ID (E) mm:   6.5
    • Ferrule Connection (T):   .375"
    • Hose OD (D) in:   0.37"
    • Mating (F) in:   0.39"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   9.5
    • Hose ID (E) in:   0.26"
    • ID mm:   6.5
    • Mating (M) in:   0.39"
    ADADHM0131270406L
    		Metric Hose Tail | Tri-Clamp (1/2") x Hose Tail (DN 10) | 316L Metric 316L 1.4404 ˜ SS2348 DN 10 34 1.34" 1/2" 0.38" 12.7 0.5" 40 1.57" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (1/2") x Hose Tail (DN 10) | 316L Legacy Part Number IE:  HTD.D10.050 Legacy Part Number UK:  HTD.D10.050 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   10
    • Hose ID (E) mm:   9.7
    • Ferrule Connection (T):   .5"
    • Hose OD (D) in:   0.5"
    • Mating (F) in:   0.39"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   12.7
    • Hose ID (E) in:   0.38"
    • ID mm:   9.7
    • Mating (M) in:   0.39"
    ADADHM0131950406L
    		Metric Hose Tail | Tri-Clamp (3/4") x Hose Tail (DN 10) | 316L Metric 316L 1.4404 ˜ SS2348 DN 10 34 1.34" 3/4" 0.63" 19 0.75" 40 1.57" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (3/4") x Hose Tail (DN 10) | 316L Legacy Part Number IE:  HTD.D10.075 Legacy Part Number UK:  HTD.D10.075 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   10
    • Hose ID (E) mm:   16
    • Ferrule Connection (T):   .75"
    • Hose OD (D) in:   0.75"
    • Mating (F) in:   0.39"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   19
    • Hose ID (E) in:   0.63"
    • ID mm:   16
    • Mating (M) in:   0.39"
    ADADHM0196350406L
    		Metric Hose Tail | Tri-Clamp (1/4") x Hose Tail (DN 15) | 316L Metric 316L 1.4404 ˜ SS2348 DN 15 34 1.34" 1/4" 0.13" 6.4 0.25" 40 1.57" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (1/4") x Hose Tail (DN 15) | 316L Legacy Part Number IE:  HTD.D15.025 Legacy Part Number UK:  HTD.D15.025 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   16
    • Hose ID (E) mm:   3.4
    • Ferrule Connection (T):   .25"
    • Hose OD (D) in:   0.25"
    • Mating (F) in:   0.63"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   6.4
    • Hose ID (E) in:   0.13"
    • ID mm:   3.4
    • Mating (M) in:   0.63"
    ADADHM0199520406L
    		Metric Hose Tail | Tri-Clamp (3/8") x Hose Tail (DN 15) | 316L Metric 316L 1.4404 ˜ SS2348 DN 15 34 1.34" 3/8" 0.26" 9.5 0.37" 40 1.57" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (3/8") x Hose Tail (DN 15) | 316L Legacy Part Number IE:  HTD.D15.038 Legacy Part Number UK:  HTD.D15.038 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   16
    • Hose ID (E) mm:   6.5
    • Ferrule Connection (T):   .375"
    • Hose OD (D) in:   0.37"
    • Mating (F) in:   0.63"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   9.5
    • Hose ID (E) in:   0.26"
    • ID mm:   6.5
    • Mating (M) in:   0.63"
    ADADHM0191270406L
    		Metric Hose Tail | Tri-Clamp (1/2") x Hose Tail (DN 15) | 316L Metric 316L 1.4404 ˜ SS2348 DN 15 34 1.34" 1/2" 0.38" 12.7 0.5" 40 1.57" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (1/2") x Hose Tail (DN 15) | 316L Legacy Part Number IE:  HTD.D15.050 Legacy Part Number UK:  HTD.D15.050 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   16
    • Hose ID (E) mm:   9.7
    • Ferrule Connection (T):   .5"
    • Hose OD (D) in:   0.5"
    • Mating (F) in:   0.63"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   12.7
    • Hose ID (E) in:   0.38"
    • ID mm:   9.7
    • Mating (M) in:   0.63"
    ADADHM0191950406L
    		Metric Hose Tail | Tri-Clamp (3/4") x Hose Tail (DN 15) | 316L Metric 316L 1.4404 ˜ SS2348 DN 15 34 1.34" 3/4" 0.63" 19 0.75" 40 1.57" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (3/4") x Hose Tail (DN 15) | 316L Legacy Part Number IE:  HTD.D15.075 Legacy Part Number UK:  HTD.D15.075 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   16
    • Hose ID (E) mm:   16
    • Ferrule Connection (T):   .75"
    • Hose OD (D) in:   0.75"
    • Mating (F) in:   0.63"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   19
    • Hose ID (E) in:   0.63"
    • ID mm:   16
    • Mating (M) in:   0.63"
    ADADHM0296350406L
    		Metric Hose Tail | Tri-Clamp (1/4") x Hose Tail (DN 20) | 316L Metric 316L 1.4404 ˜ SS2348 DN 20 34 1.34" 1/4" 0.13" 6.4 0.25" 40 1.57" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (1/4") x Hose Tail (DN 20) | 316L Legacy Part Number IE:  HTD.D20.025 Legacy Part Number UK:  HTD.D20.025 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   20
    • Hose ID (E) mm:   3.4
    • Ferrule Connection (T):   .25"
    • Hose OD (D) in:   0.25"
    • Mating (F) in:   0.79"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   6.4
    • Hose ID (E) in:   0.13"
    • ID mm:   3.4
    • Mating (M) in:   0.79"
    ADADHM0299520406L
    		Metric Hose Tail | Tri-Clamp (3/8") x Hose Tail (DN 20) | 316L Metric 316L 1.4404 ˜ SS2348 DN 20 34 1.34" 3/8" 0.26" 9.5 0.37" 40 1.57" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (3/8") x Hose Tail (DN 20) | 316L Legacy Part Number IE:  HTD.D20.038 Legacy Part Number UK:  HTD.D20.038 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   20
    • Hose ID (E) mm:   6.5
    • Ferrule Connection (T):   .375"
    • Hose OD (D) in:   0.37"
    • Mating (F) in:   0.79"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   9.5
    • Hose ID (E) in:   0.26"
    • ID mm:   6.5
    • Mating (M) in:   0.79"
    ADADHM0291270406L
    		Metric Hose Tail | Tri-Clamp (1/2") x Hose Tail (DN 20) | 316L Metric 316L 1.4404 ˜ SS2348 DN 20 34 1.34" 1/2" 0.38" 12.7 0.5" 40 1.57" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (1/2") x Hose Tail (DN 20) | 316L Legacy Part Number IE:  HTD.D20.050 Legacy Part Number UK:  HTD.D20.050 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   20
    • Hose ID (E) mm:   9.7
    • Ferrule Connection (T):   .5"
    • Hose OD (D) in:   0.5"
    • Mating (F) in:   0.79"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   12.7
    • Hose ID (E) in:   0.38"
    • ID mm:   9.7
    • Mating (M) in:   0.79"
    ADADHM0291950406L
    		Metric Hose Tail | Tri-Clamp (3/4") x Hose Tail (DN 20) | 316L Metric 316L 1.4404 ˜ SS2348 DN 20 34 1.34" 3/4" 0.63" 19 0.75" 40 1.57" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (3/4") x Hose Tail (DN 20) | 316L Legacy Part Number IE:  HTD.D20.075 Legacy Part Number UK:  HTD.D20.075 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   20
    • Hose ID (E) mm:   16
    • Ferrule Connection (T):   .75"
    • Hose OD (D) in:   0.75"
    • Mating (F) in:   0.79"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   19
    • Hose ID (E) in:   0.63"
    • ID mm:   16
    • Mating (M) in:   0.79"
    ADADHM1270080326L
    		Metric Hose Tail | Tri-Clamp (8 x 5) x Hose Tail (1/2") | 316L Imperial 316L 1.4404 ˜ SS2348 1/2" 25 0.98" 0.2" 8 0.31" 32 1.26" 0.020200
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (8 x 5) x Hose Tail (1/2") | 316L Legacy Part Number IE:  HTD.050.008 Legacy Part Number UK:  HTD.050.008 Legacy Part Number DK:  HTD050008 Dimensional Image Key:
    • Length (C) mm:   32
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • Mating (F) mm:   10
    • Hose ID (E) mm:   5
    • Ferrule Connection (T):   8 x 5
    • Hose OD (D) in:   0.31"
    • Mating (F) in:   0.39"
    • Length (C) in:   1.26"
    • Hose OD (D) mm:   8
    • Hose ID (E) in:   0.2"
    • ID mm:   5
    • Mating (M) in:   0.39"
    ADADHM1270140406L
    		Metric Hose Tail | Tri-Clamp (14 x 11) x Hose Tail (1/2") | 316L Imperial 316L 1.4404 ˜ SS2348 1/2" 25 0.98" 0.43" 14 0.55" 40 1.57" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (14 x 11) x Hose Tail (1/2") | 316L Legacy Part Number IE:  HTD.050.014 Legacy Part Number UK:  HTD.050.014 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • Mating (F) mm:   10
    • Hose ID (E) mm:   11
    • Ferrule Connection (T):   14 x 11
    • Hose OD (D) in:   0.55"
    • Mating (F) in:   0.39"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   14
    • Hose ID (E) in:   0.43"
    • ID mm:   11
    • Mating (M) in:   0.39"
    ADADHM1270160406L
    		Metric Hose Tail | Tri-Clamp (16 x 13) x Hose Tail (1/2") | 316L Imperial 316L 1.4404 ˜ SS2348 1/2" 25 0.98" 0.51" 16 0.63" 40 1.57" 0.037700
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (16 x 13) x Hose Tail (1/2") | 316L Legacy Part Number IE:  HTD.050.016 Legacy Part Number UK:  HTD.050.016 Legacy Part Number DK:  HTD050016 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • Mating (F) mm:   10
    • Hose ID (E) mm:   13
    • Ferrule Connection (T):   16 x 13
    • Hose OD (D) in:   0.63"
    • Mating (F) in:   0.39"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   16
    • Hose ID (E) in:   0.51"
    • ID mm:   13
    • Mating (M) in:   0.39"
    ADADHM1950080326L
    		Metric Hose Tail | Tri-Clamp (8 x 5) x Hose Tail (3/4") | 316L Imperial 316L 1.4404 ˜ SS2348 3/4" 25 0.98" 0.2" 8 0.31" 32 1.26" 0.018200
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (8 x 5) x Hose Tail (3/4") | 316L Legacy Part Number IE:  HTD.075.008 Legacy Part Number UK:  HTD.075.008 Legacy Part Number DK:  HTD075008 Dimensional Image Key:
    • Length (C) mm:   32
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • Mating (F) mm:   16
    • Hose ID (E) mm:   5
    • Ferrule Connection (T):   8 x 5
    • Hose OD (D) in:   0.31"
    • Mating (F) in:   0.63"
    • Length (C) in:   1.26"
    • Hose OD (D) mm:   8
    • Hose ID (E) in:   0.2"
    • ID mm:   5
    • Mating (M) in:   0.63"
    ADADHM1950140406L
    		Metric Hose Tail | Tri-Clamp (14 x 11) x Hose Tail (3/4") | 316L Imperial 316L 1.4404 ˜ SS2348 3/4" 25 0.98" 0.43" 14 0.55" 40 1.57" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (14 x 11) x Hose Tail (3/4") | 316L Legacy Part Number IE:  HTD.075.014 Legacy Part Number UK:  HTD.075.014 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • Mating (F) mm:   16
    • Hose ID (E) mm:   11
    • Ferrule Connection (T):   14 x 11
    • Hose OD (D) in:   0.55"
    • Mating (F) in:   0.63"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   14
    • Hose ID (E) in:   0.43"
    • ID mm:   11
    • Mating (M) in:   0.63"
    ADADHM1950160406L
    		Metric Hose Tail | Tri-Clamp (16 x 13) x Hose Tail (3/4") | 316L Imperial 316L 1.4404 ˜ SS2348 3/4" 25 0.98" 0.51" 16 0.63" 40 1.57" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (16 x 13) x Hose Tail (3/4") | 316L Legacy Part Number IE:  HTD.075.016 Legacy Part Number UK:  HTD.075.016 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • Mating (F) mm:   16
    • Hose ID (E) mm:   13
    • Ferrule Connection (T):   16 x 13
    • Hose OD (D) in:   0.63"
    • Mating (F) in:   0.63"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   16
    • Hose ID (E) in:   0.51"
    • ID mm:   13
    • Mating (M) in:   0.63"
    ADADHM0250140406L
    		Metric Hose Tail | Tri-Clamp (14 x 11) x Hose Tail (1") | 316L Imperial 316L 1.4404 ˜ SS2348 1" 50.5 1.99" 0.43" 14 0.55" 40 1.57" 0.085900
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (14 x 11) x Hose Tail (1") | 316L Legacy Part Number IE:  HTD.100.014 Legacy Part Number UK:  HTD.100.014 Legacy Part Number DK:  HTD100014 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • Mating (F) mm:   22.5
    • Hose ID (E) mm:   11
    • Ferrule Connection (T):   14 x 11
    • Hose OD (D) in:   0.55"
    • Mating (F) in:   0.89"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   14
    • Hose ID (E) in:   0.43"
    • ID mm:   11
    • Mating (M) in:   0.89"
    ADADHM0250160406L
    		Metric Hose Tail | Tri-Clamp (16 x 13) x Hose Tail (1") | 316L Imperial 316L 1.4404 ˜ SS2348 1" 50.5 1.99" 0.51" 16 0.63" 40 1.57" 0.085600
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (16 x 13) x Hose Tail (1") | 316L Legacy Part Number IE:  HTD.100.016 Legacy Part Number UK:  HTD.100.016 Legacy Part Number DK:  HTD100016 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • Mating (F) mm:   22.5
    • Hose ID (E) mm:   13
    • Ferrule Connection (T):   16 x 13
    • Hose OD (D) in:   0.63"
    • Mating (F) in:   0.89"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   16
    • Hose ID (E) in:   0.51"
    • ID mm:   13
    • Mating (M) in:   0.89"
    ADADHM0250220406L
    		Metric Hose Tail | Tri-Clamp (22 x 19) x Hose Tail (1") | 316L Imperial 316L 1.4404 ˜ SS2348 1" 50.5 1.99" 0.75" 22 0.87" 40 1.57" 0.086700
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (22 x 19) x Hose Tail (1") | 316L Legacy Part Number IE:  HTD.100.022 Legacy Part Number UK:  HTD.100.022 Legacy Part Number DK:  HTD100022 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • Mating (F) mm:   22.5
    • Hose ID (E) mm:   19
    • Ferrule Connection (T):   22 x 19
    • Hose OD (D) in:   0.87"
    • Mating (F) in:   0.89"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   22
    • Hose ID (E) in:   0.75"
    • ID mm:   19
    • Mating (M) in:   0.89"
    ADADHM0380080326L
    		Metric Hose Tail | Tri-Clamp (8 x 5) x Hose Tail (1 1/2") | 316L Imperial 316L 1.4404 ˜ SS2348 1 1/2" 50.5 1.99" 0.2" 8 0.31" 32 1.26" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (8 x 5) x Hose Tail (1 1/2") | 316L Legacy Part Number IE:  HTD.150.008 Legacy Part Number UK:  HTD.150.008 Dimensional Image Key:
    • Length (C) mm:   32
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • Mating (F) mm:   35
    • Hose ID (E) mm:   5
    • Ferrule Connection (T):   8 x 5
    • Hose OD (D) in:   0.31"
    • Mating (F) in:   1.38"
    • Length (C) in:   1.26"
    • Hose OD (D) mm:   8
    • Hose ID (E) in:   0.2"
    • ID mm:   5
    • Mating (M) in:   1.38"
    ADADHM0380140406L
    		Metric Hose Tail | Tri-Clamp (14 x 11) x Hose Tail (1 1/2") | 316L Imperial 316L 1.4404 ˜ SS2348 1 1/2" 50.5 1.99" 0.43" 14 0.55" 40 1.57" 0.000000
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (14 x 11) x Hose Tail (1 1/2") | 316L Legacy Part Number IE:  HTD.150.014 Legacy Part Number UK:  HTD.150.014 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • Mating (F) mm:   35
    • Hose ID (E) mm:   11
    • Ferrule Connection (T):   14 x 11
    • Hose OD (D) in:   0.55"
    • Mating (F) in:   1.38"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   14
    • Hose ID (E) in:   0.43"
    • ID mm:   11
    • Mating (M) in:   1.38"
    ADADHM0380160406L
    		Metric Hose Tail | Tri-Clamp (16 x 13) x Hose Tail (1 1/2") | 316L Imperial 316L 1.4404 ˜ SS2348 1 1/2" 50.5 1.99" 0.51" 16 0.63" 40 1.57" 0.080400
    dimensional image
    View Page → Metric Hose Tail | Tri-Clamp (16 x 13) x Hose Tail (1 1/2") | 316L Legacy Part Number IE:  HTD.150.016 Legacy Part Number UK:  HTD.150.016 Legacy Part Number DK:  HTD150016 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • Mating (F) mm:   35
    • Hose ID (E) mm:   13
    • Ferrule Connection (T):   16 x 13
    • Hose OD (D) in:   0.63"
    • Mating (F) in:   1.38"
    • Length (C) in:   1.57"
    • Hose OD (D) mm:   16
    • Hose ID (E) in:   0.51"
    • ID mm:   13
    • Mating (M) in:   1.38"
    Prev 1 2 3 4 … 5 Next
    Metric Hose Tail | Tri-Clamp (1/4
    Metric Hose Tail | Tri-Clamp (1/4") x Hose Tail (DN 10) | 316L
    Hygienic
    ADADHM0136350406L
    Metric Hose Tail | Tri-Clamp (3/8
    Metric Hose Tail | Tri-Clamp (3/8") x Hose Tail (DN 10) | 316L
    Hygienic
    ADADHM0139520406L
    Metric Hose Tail | Tri-Clamp (1/2
    Metric Hose Tail | Tri-Clamp (1/2") x Hose Tail (DN 10) | 316L
    Hygienic
    ADADHM0131270406L
    Metric Hose Tail | Tri-Clamp (3/4
    Metric Hose Tail | Tri-Clamp (3/4") x Hose Tail (DN 10) | 316L
    Hygienic
    ADADHM0131950406L
    Metric Hose Tail | Tri-Clamp (1/4
    Metric Hose Tail | Tri-Clamp (1/4") x Hose Tail (DN 15) | 316L
    Hygienic
    ADADHM0196350406L
    Metric Hose Tail | Tri-Clamp (3/8
    Metric Hose Tail | Tri-Clamp (3/8") x Hose Tail (DN 15) | 316L
    Hygienic
    ADADHM0199520406L
    Metric Hose Tail | Tri-Clamp (1/2
    Metric Hose Tail | Tri-Clamp (1/2") x Hose Tail (DN 15) | 316L
    Hygienic
    ADADHM0191270406L
    Metric Hose Tail | Tri-Clamp (3/4
    Metric Hose Tail | Tri-Clamp (3/4") x Hose Tail (DN 15) | 316L
    Hygienic
    ADADHM0191950406L
    Metric Hose Tail | Tri-Clamp (1/4
    Metric Hose Tail | Tri-Clamp (1/4") x Hose Tail (DN 20) | 316L
    Hygienic
    ADADHM0296350406L
    Metric Hose Tail | Tri-Clamp (3/8
    Metric Hose Tail | Tri-Clamp (3/8") x Hose Tail (DN 20) | 316L
    Hygienic
    ADADHM0299520406L
    Metric Hose Tail | Tri-Clamp (1/2
    Metric Hose Tail | Tri-Clamp (1/2") x Hose Tail (DN 20) | 316L
    Hygienic
    ADADHM0291270406L
    Metric Hose Tail | Tri-Clamp (3/4
    Metric Hose Tail | Tri-Clamp (3/4") x Hose Tail (DN 20) | 316L
    Hygienic
    ADADHM0291950406L
    Metric Hose Tail | Tri-Clamp (8 x 5) x Hose Tail (1/2
    Metric Hose Tail | Tri-Clamp (8 x 5) x Hose Tail (1/2") | 316L
    Hygienic
    ADADHM1270080326L
    Metric Hose Tail | Tri-Clamp (14 x 11) x Hose Tail (1/2
    Metric Hose Tail | Tri-Clamp (14 x 11) x Hose Tail (1/2") | 316L
    Hygienic
    ADADHM1270140406L
    Metric Hose Tail | Tri-Clamp (16 x 13) x Hose Tail (1/2
    Metric Hose Tail | Tri-Clamp (16 x 13) x Hose Tail (1/2") | 316L
    Hygienic
    ADADHM1270160406L
    Metric Hose Tail | Tri-Clamp (8 x 5) x Hose Tail (3/4
    Metric Hose Tail | Tri-Clamp (8 x 5) x Hose Tail (3/4") | 316L
    Hygienic
    ADADHM1950080326L
    Metric Hose Tail | Tri-Clamp (14 x 11) x Hose Tail (3/4
    Metric Hose Tail | Tri-Clamp (14 x 11) x Hose Tail (3/4") | 316L
    Hygienic
    ADADHM1950140406L
    Metric Hose Tail | Tri-Clamp (16 x 13) x Hose Tail (3/4
    Metric Hose Tail | Tri-Clamp (16 x 13) x Hose Tail (3/4") | 316L
    Hygienic
    ADADHM1950160406L
    Metric Hose Tail | Tri-Clamp (14 x 11) x Hose Tail (1
    Metric Hose Tail | Tri-Clamp (14 x 11) x Hose Tail (1") | 316L
    Hygienic
    ADADHM0250140406L
    Metric Hose Tail | Tri-Clamp (16 x 13) x Hose Tail (1
    Metric Hose Tail | Tri-Clamp (16 x 13) x Hose Tail (1") | 316L
    Hygienic
    ADADHM0250160406L
    Metric Hose Tail | Tri-Clamp (22 x 19) x Hose Tail (1
    Metric Hose Tail | Tri-Clamp (22 x 19) x Hose Tail (1") | 316L
    Hygienic
    ADADHM0250220406L
    Metric Hose Tail | Tri-Clamp (8 x 5) x Hose Tail (1 1/2
    Metric Hose Tail | Tri-Clamp (8 x 5) x Hose Tail (1 1/2") | 316L
    Hygienic
    ADADHM0380080326L
    Metric Hose Tail | Tri-Clamp (14 x 11) x Hose Tail (1 1/2
    Metric Hose Tail | Tri-Clamp (14 x 11) x Hose Tail (1 1/2") | 316L
    Hygienic
    ADADHM0380140406L
    Metric Hose Tail | Tri-Clamp (16 x 13) x Hose Tail (1 1/2
    Metric Hose Tail | Tri-Clamp (16 x 13) x Hose Tail (1 1/2") | 316L
    Hygienic
    ADADHM0380160406L
    Prev 1 2 3 4 … 5 Next
