    Reducers


    Reducers
    Description

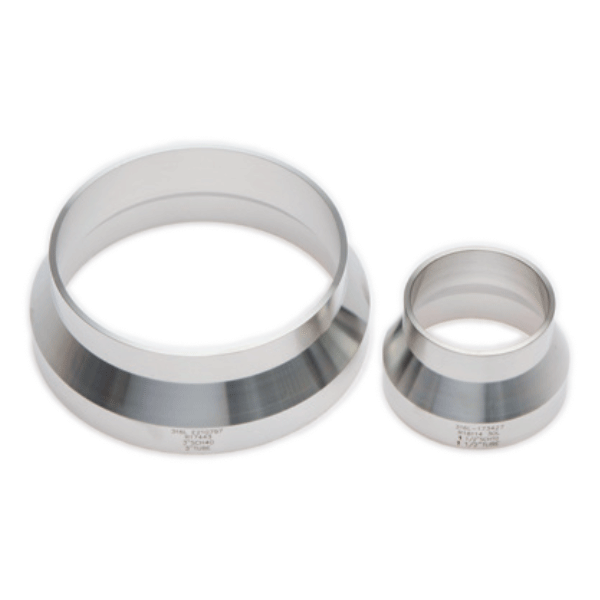

    Concentric reducers, eccentric reducers and pipe to tube reducers schedules 10 & 40. Quality checks by ACL are at the highest level for fitting manufacturers. Flatness of sealing face meets or exceeds guidelines.
    Features
    • UK Produced
    • Quality checks by ACL are at the highest level for fitting manufacturers: JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
    • Flatness of sealing face meets or exceeds guidelines
    • Circularity of components is within 0.1mm
    • Surface finish is 0.8Ra um minimum
    Materials
    Materials are AD2000 (PED) and ASME VIII
    Fittings / Reducers
    Clamps & Sealing Clamps & Sealing Fittings Fittings Weld Fittings Weld Fittings ASME BPE Fittings ASME BPE Fittings Sight Flow Indicators Sight Flow Indicators Valves Valves Maintenance Items Maintenance Items Single Use Single Use Filters Filters
    Reducers Reducers
    Adapters Adapters Hose Adapters Hose Adapters Union Fittings Union Fittings Blanks Blanks

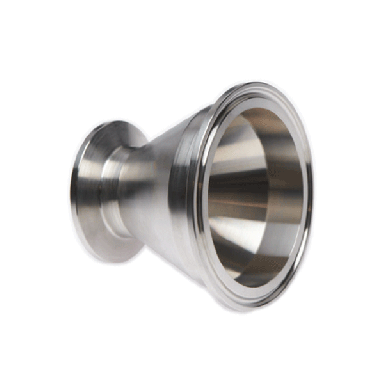

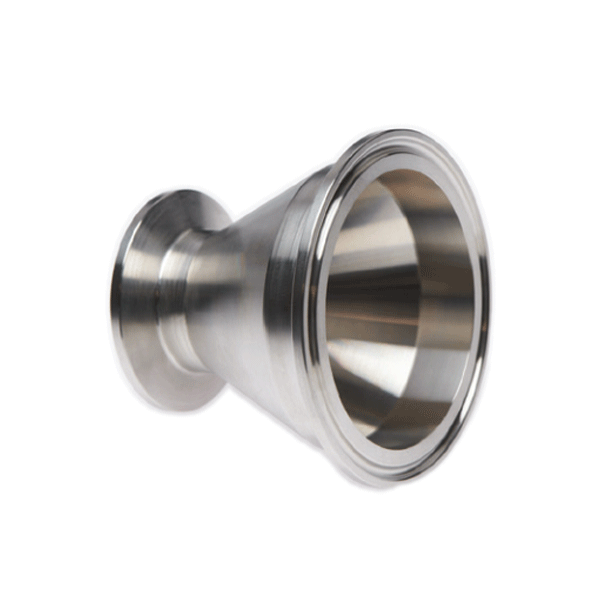

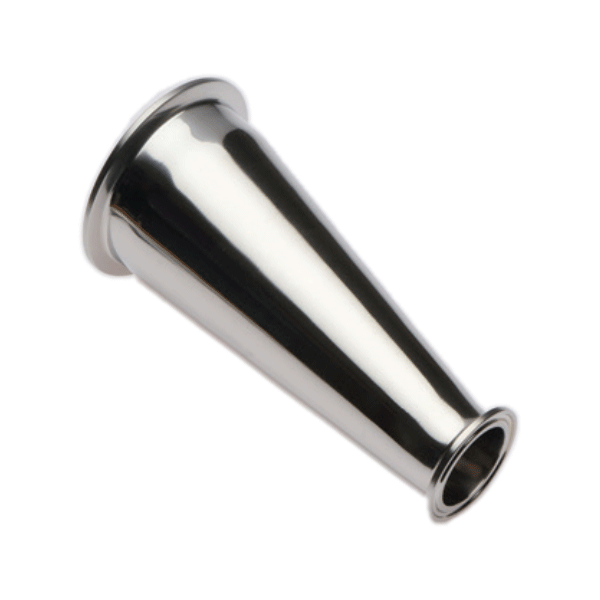

    Concentric - Ferrule Ended Concentric - Ferrule Ended Eccentric - Ferrule Ended Eccentric - Ferrule Ended Pipe to tube - Schedule 10 & 40 Pipe to tube - Schedule 10 & 40
    Total: 176
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade Size (in) Size (DIN) Male / Female Weight
    PFRCB4195127040SD6L
    		Reducer (3/4" to 1/2") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 3/4" 0.040100

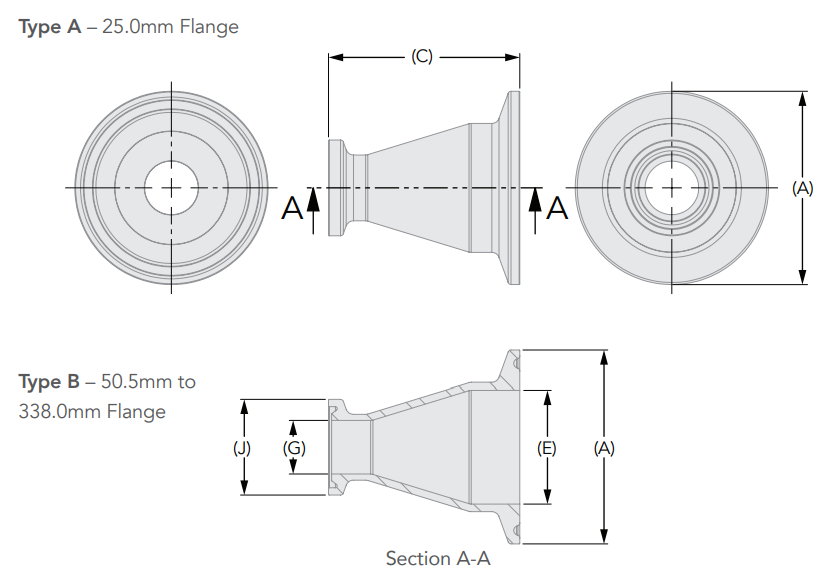

    dimensional image
    View Page → Reducer (3/4" to 1/2") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.075.050 Legacy Part Number UK:  CR.075.050 - 3/4" x 1/2" CONCENTRIC Legacy Part Number DK:  CR075050 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • ID (E) mm:   15.9
    • ID 2 (G) mm:   9.5
    • Flange 1 (A) mm:   25.4
    • ID 1 (E) mm:   15.9
    • Flange 2 (J) mm:   25
    • ID (E) in:   0.63"
    • Length (C) in:   1.57"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.37"
    • ID mm:   15.9
    PFRCB4025127050SD6L
    		Reducer (1" to 1/2") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 1" 0.108000
    dimensional image
    View Page → Reducer (1" to 1/2") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.100.050 Legacy Part Number UK:  CR.100.050 - 1" x 1/2" CONCENTRIC REDUCER Legacy Part Number DK:  CR100050 Dimensional Image Key:
    • Length (C) mm:   50
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   22.2
    • ID 2 (G) mm:   9.5
    • Flange 1 (A) mm:   50.5
    • ID 1 (E) mm:   22.2
    • Flange 2 (J) mm:   25
    • ID (E) in:   0.87"
    • Length (C) in:   1.97"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.37"
    • ID mm:   22.2
    PFRCB4025195050SD6L
    		Reducer (1" to 3/4") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 1" 0.106000
    dimensional image
    View Page → Reducer (1" to 3/4") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.100.075 Legacy Part Number UK:  CR.100.075 - 1" x 3/4" CONCENTRIC REDUCER Legacy Part Number DK:  CR100075 Dimensional Image Key:
    • Length (C) mm:   50
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   22.2
    • ID 2 (G) mm:   15.8
    • Flange 1 (A) mm:   50.5
    • ID 1 (E) mm:   22.2
    • Flange 2 (J) mm:   25
    • ID (E) in:   0.87"
    • Length (C) in:   1.97"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.62"
    • ID mm:   22.2
    PFRCB4038127050SD6L
    		Reducer (1 1/2" to 1/2") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 1 1/2" 0.097600
    dimensional image
    View Page → Reducer (1 1/2" to 1/2") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.150.050 Legacy Part Number UK:  CR.150.050 - 11/2" x1/2" CONCENTRIC Legacy Part Number DK:  CR150050 Dimensional Image Key:
    • Length (C) mm:   50
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   34.9
    • ID 2 (G) mm:   9.5
    • Flange 1 (A) mm:   50.5
    • ID 1 (E) mm:   34.9
    • Flange 2 (J) mm:   25
    • ID (E) in:   1.37"
    • Length (C) in:   1.97"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.37"
    • ID mm:   34.9
    PFRCB4038195050SD6L
    		Reducer (1 1/2" to 3/4") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 1 1/2" 0.096000
    dimensional image
    View Page → Reducer (1 1/2" to 3/4") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.150.075 Legacy Part Number UK:  CR.150.075 - 11/2" x3/4" CONCENTRIC Legacy Part Number DK:  CR150075 Dimensional Image Key:
    • Length (C) mm:   50
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   34.9
    • ID 2 (G) mm:   15.8
    • Flange 1 (A) mm:   50.5
    • ID 1 (E) mm:   34.9
    • Flange 2 (J) mm:   25
    • ID (E) in:   1.37"
    • Length (C) in:   1.97"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.62"
    • ID mm:   34.9
    PFRCB4038025050SD6L
    		Reducer (1 1/2" to 1") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 1 1/2" 0.148000
    dimensional image
    View Page → Reducer (1 1/2" to 1") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.150.100 Legacy Part Number UK:  CR.150.100 - 1 1/2" x 1" CONCENTRIC Legacy Part Number DK:  CR150100 Dimensional Image Key:
    • Length (C) mm:   50
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   34.9
    • ID 2 (G) mm:   22.2
    • Flange 1 (A) mm:   50.5
    • ID 1 (E) mm:   34.9
    • Flange 2 (J) mm:   50.5
    • ID (E) in:   1.37"
    • Length (C) in:   1.97"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   1.99"
    • ID 2 (G) in:   0.87"
    • ID mm:   34.9
    PFRCB4051127050SD6L
    		Reducer (2" to 1/2") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 2" 0.208000
    dimensional image
    View Page → Reducer (2" to 1/2") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.200.050 Legacy Part Number UK:  CR.200.050 - 2" x 1/2" CONCENTRIC REDUCER Legacy Part Number DK:  CR200050 Dimensional Image Key:
    • Length (C) mm:   50
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • ID (E) mm:   47.6
    • ID 2 (G) mm:   9.5
    • Flange 1 (A) mm:   64
    • ID 1 (E) mm:   47.6
    • Flange 2 (J) mm:   25
    • ID (E) in:   1.87"
    • Length (C) in:   1.97"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.37"
    • ID mm:   47.6
    PFRCB4051195050SD6L
    		Reducer (2" to 3/4") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 2" 0.152000
    dimensional image
    View Page → Reducer (2" to 3/4") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.200.075 Legacy Part Number UK:  CR.200.075 - 2" TO 3/4" CONCENTRIC REDUCER Dimensional Image Key:
    • Length (C) mm:   50
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • ID (E) mm:   47.6
    • ID 2 (G) mm:   15.8
    • Flange 1 (A) mm:   64
    • ID 1 (E) mm:   47.6
    • Flange 2 (J) mm:   25
    • ID (E) in:   1.87"
    • Length (C) in:   1.97"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.62"
    • ID mm:   47.6
    PFRCB4051025050SD6L
    		Reducer (2" to 1") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 2" 0.186000
    dimensional image
    View Page → Reducer (2" to 1") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.200.100 Legacy Part Number UK:  CR.200.100 - 2" x 1" CONCENTRIC REDUCER Legacy Part Number DK:  CR200100 Dimensional Image Key:
    • Length (C) mm:   50
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • ID (E) mm:   47.6
    • ID 2 (G) mm:   22.2
    • Flange 1 (A) mm:   64
    • ID 1 (E) mm:   47.6
    • Flange 2 (J) mm:   50.5
    • ID (E) in:   1.87"
    • Length (C) in:   1.97"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   1.99"
    • ID 2 (G) in:   0.87"
    • ID mm:   47.6
    PFRCB4051038050SD6L
    		Reducer (2" to 1 1/2") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 2" 0.160200
    dimensional image
    View Page → Reducer (2" to 1 1/2") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.200.150 Legacy Part Number UK:  CR.200.150 - 2" x 1 1/2" CONCENTRIC Legacy Part Number DK:  CR200150 Dimensional Image Key:
    • Length (C) mm:   50
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • ID (E) mm:   47.6
    • ID 2 (G) mm:   34.9
    • Flange 1 (A) mm:   64
    • ID 1 (E) mm:   47.6
    • Flange 2 (J) mm:   50.5
    • ID (E) in:   1.87"
    • Length (C) in:   1.97"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   1.99"
    • ID 2 (G) in:   1.37"
    • ID mm:   47.6
    PFRCB4063127060SD6L
    		Reducer (2 1/2" to 1/2") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 2 1/2" 0.000000
    dimensional image
    View Page → Reducer (2 1/2" to 1/2") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.250.050 Legacy Part Number UK:  CR.250.050 Dimensional Image Key:
    • Length (C) mm:   60
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • ID (E) mm:   60.3
    • ID 2 (G) mm:   9.5
    • Flange 1 (A) mm:   77.5
    • ID 1 (E) mm:   60.3
    • Flange 2 (J) mm:   25
    • ID (E) in:   2.37"
    • Length (C) in:   2.36"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.37"
    • ID mm:   60.3
    PFRCB4063195060SD6L
    		Reducer (2 1/2" to 3/4") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 2 1/2" 0.180000
    dimensional image
    View Page → Reducer (2 1/2" to 3/4") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.250.075 Legacy Part Number UK:  2.5" - 0.75" BS4823-3 CONCENTRIC REDUCER FERRULE ENDED 0.8Ra Dimensional Image Key:
    • Length (C) mm:   60
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • ID (E) mm:   60.3
    • ID 2 (G) mm:   15.8
    • Flange 1 (A) mm:   77.5
    • ID 1 (E) mm:   60.3
    • Flange 2 (J) mm:   25
    • ID (E) in:   2.37"
    • Length (C) in:   2.36"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.62"
    • ID mm:   60.3
    PFRCB4063025060SD6L
    		Reducer (2 1/2" to 1") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 2 1/2" 0.280000
    dimensional image
    View Page → Reducer (2 1/2" to 1") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.250.100 Legacy Part Number UK:  CR.250.100 - 2 1/2" x 1" CONCENTRIC Legacy Part Number DK:  CR250100 Dimensional Image Key:
    • Length (C) mm:   60
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • ID (E) mm:   60.3
    • ID 2 (G) mm:   22.2
    • Flange 1 (A) mm:   77.5
    • ID 1 (E) mm:   60.3
    • Flange 2 (J) mm:   50.5
    • ID (E) in:   2.37"
    • Length (C) in:   2.36"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   1.99"
    • ID 2 (G) in:   0.87"
    • ID mm:   60.3
    PFRCB4063038060SD6L
    		Reducer (2 1/2" to 1 1/2") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 2 1/2" 0.228000
    dimensional image
    View Page → Reducer (2 1/2" to 1 1/2") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.250.150 Legacy Part Number UK:  CR.250.150 - 2 1/2" x 1 1/2" CONCENTRIC Legacy Part Number DK:  CR250150 Dimensional Image Key:
    • Length (C) mm:   60
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • ID (E) mm:   60.3
    • ID 2 (G) mm:   34.9
    • Flange 1 (A) mm:   77.5
    • ID 1 (E) mm:   60.3
    • Flange 2 (J) mm:   50.5
    • ID (E) in:   2.37"
    • Length (C) in:   2.36"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   1.99"
    • ID 2 (G) in:   1.37"
    • ID mm:   60.3
    PFRCB4063051060SD6L
    		Reducer (2 1/2" to 2") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 2 1/2" 0.236000
    dimensional image
    View Page → Reducer (2 1/2" to 2") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.250.200 Legacy Part Number UK:  CR.250.200 - 2 1/2" x 2" CONCENTRIC Legacy Part Number DK:  CR250200 Dimensional Image Key:
    • Length (C) mm:   60
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • ID (E) mm:   60.3
    • ID 2 (G) mm:   47.6
    • Flange 1 (A) mm:   77.5
    • ID 1 (E) mm:   60.3
    • Flange 2 (J) mm:   64
    • ID (E) in:   2.37"
    • Length (C) in:   2.36"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   2.52"
    • ID 2 (G) in:   1.87"
    • ID mm:   60.3
    PFRCB4076127060SD6L
    		Reducer (3" to 1/2") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 3" 0.000000
    dimensional image
    View Page → Reducer (3" to 1/2") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.300.050 Legacy Part Number UK:  CR.300.050 Dimensional Image Key:
    • Length (C) mm:   60
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • ID (E) mm:   73
    • ID 2 (G) mm:   9.5
    • Flange 1 (A) mm:   91
    • ID 1 (E) mm:   73
    • Flange 2 (J) mm:   25
    • ID (E) in:   2.87"
    • Length (C) in:   2.36"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.37"
    • ID mm:   73
    PFRCB4076195060SD6L
    		Reducer (3" to 3/4") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 3" 0.200000
    dimensional image
    View Page → Reducer (3" to 3/4") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.300.075 Legacy Part Number UK:  3" TO 3/4" BS4825 FERRULE ENDED CONCENTRIC REDUCER 0.8Ra 316 Dimensional Image Key:
    • Length (C) mm:   60
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • ID (E) mm:   73
    • ID 2 (G) mm:   15.8
    • Flange 1 (A) mm:   91
    • ID 1 (E) mm:   73
    • Flange 2 (J) mm:   25
    • ID (E) in:   2.87"
    • Length (C) in:   2.36"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.62"
    • ID mm:   73
    PFRCB4076025060SD6L
    		Reducer (3" to 1") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 3" 0.280000
    dimensional image
    View Page → Reducer (3" to 1") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.300.100 Legacy Part Number UK:  CR.300.100 - 3" TO 1" CONCENTRIC REDUCER Legacy Part Number DK:  CR300100 Dimensional Image Key:
    • Length (C) mm:   60
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • ID (E) mm:   73
    • ID 2 (G) mm:   22.2
    • Flange 1 (A) mm:   91
    • ID 1 (E) mm:   73
    • Flange 2 (J) mm:   50.5
    • ID (E) in:   2.87"
    • Length (C) in:   2.36"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   1.99"
    • ID 2 (G) in:   0.87"
    • ID mm:   73
    PFRCB4076038060SD6L
    		Reducer (3" to 1 1/2") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 3" 0.236000
    dimensional image
    View Page → Reducer (3" to 1 1/2") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.300.150 Legacy Part Number UK:  CR.300.150 - 3" x 1 1/2" CONCENTRIC Legacy Part Number DK:  CR300150 Dimensional Image Key:
    • Length (C) mm:   60
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • ID (E) mm:   73
    • ID 2 (G) mm:   34.9
    • Flange 1 (A) mm:   91
    • ID 1 (E) mm:   73
    • Flange 2 (J) mm:   50.5
    • ID (E) in:   2.87"
    • Length (C) in:   2.36"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   1.99"
    • ID 2 (G) in:   1.37"
    • ID mm:   73
    PFRCB4076051060SD6L
    		Reducer (3" to 2") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 3" 0.257500
    dimensional image
    View Page → Reducer (3" to 2") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.300.200 Legacy Part Number UK:  CR.300.200 - 3" x 2" CONCENTRIC REDUCER Legacy Part Number DK:  CR300200 Dimensional Image Key:
    • Length (C) mm:   60
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • ID (E) mm:   73
    • ID 2 (G) mm:   47.6
    • Flange 1 (A) mm:   91
    • ID 1 (E) mm:   73
    • Flange 2 (J) mm:   64
    • ID (E) in:   2.87"
    • Length (C) in:   2.36"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   2.52"
    • ID 2 (G) in:   1.87"
    • ID mm:   73
    PFRCB4076063060SD6L
    		Reducer (3" to 2 1/2") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 3" 130000000.000000
    dimensional image
    View Page → Reducer (3" to 2 1/2") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CR.300.250 Legacy Part Number UK:  CR.300.250 - 3" to 2.1/2" CONCENTRIC REDUCER 316L - 60mm LON Dimensional Image Key:
    • Length (C) mm:   60
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • ID (E) mm:   73
    • ID 2 (G) mm:   60.3
    • Flange 1 (A) mm:   91
    • ID 1 (E) mm:   73
    • Flange 2 (J) mm:   77.5
    • ID (E) in:   2.87"
    • Length (C) in:   2.36"
    • Flange 1 (A) in:   —
    • ID 1 (E) in:   —
    • Flange 2 (J) in:   3.05"
    • ID 2 (G) in:   2.37"
    • ID mm:   73
    DFRCB4195127040SD6L
    		Reducer (3/4" to 1/2") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 3/4" 0.070000
    dimensional image
    View Page → Reducer (3/4" to 1/2") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CRD.075.050 Legacy Part Number UK:  CRD.075.050 Dimensional Image Key:
    • Length (C) mm:   40
    • Flange (A) mm:   25
    • Flange (A) in:   0.98"
    • ID (E) mm:   15.9
    • ID 2 (G) mm:   9.5
    • Flange 1 (A) mm:   25
    • ID 1 (E) mm:   15.9
    • Flange 2 (J) mm:   25
    • ID (E) in:   0.63"
    • Length (C) in:   1.57"
    • Flange 1 (A) in:   0.98
    • ID 1 (E) in:   0.63
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.37"
    • ID mm:   15.9
    DFRCB4025127050SD6L
    		Reducer (1" to 1/2") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 1" 0.180000
    dimensional image
    View Page → Reducer (1" to 1/2") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CRD.100.050 Legacy Part Number UK:  CRD.100.050 Dimensional Image Key:
    • Length (C) mm:   50
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   22.2
    • ID 2 (G) mm:   9.5
    • Flange 1 (A) mm:   50.5
    • ID 1 (E) mm:   22.2
    • Flange 2 (J) mm:   25
    • ID (E) in:   0.87"
    • Length (C) in:   1.97"
    • Flange 1 (A) in:   1.99
    • ID 1 (E) in:   0.87
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.37"
    • ID mm:   22.2
    DFRCB4025195050SD6L
    		Reducer (1" to 3/4") | Concentric (Ferrule Ended) | 316L Concentric - Ferrule Ended 316L 1" 0.090000
    dimensional image
    View Page → Reducer (1" to 3/4") | Concentric (Ferrule Ended) | 316L Legacy Part Number IE:  CRD.100.075 Legacy Part Number UK:  CRD.100.075 Dimensional Image Key:
    • Length (C) mm:   50
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   22.2
    • ID 2 (G) mm:   15.8
    • Flange 1 (A) mm:   50.5
    • ID 1 (E) mm:   22.2
    • Flange 2 (J) mm:   25
    • ID (E) in:   0.87"
    • Length (C) in:   1.97"
    • Flange 1 (A) in:   1.99
    • ID 1 (E) in:   0.87
    • Flange 2 (J) in:   0.98"
    • ID 2 (G) in:   0.62"
    • ID mm:   22.2
    Prev 1 2 3 4 … 8 Next
    Reducer (3/4
    Reducer (3/4" to 1/2") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4195127040SD6L
    Reducer (1
    Reducer (1" to 1/2") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4025127050SD6L
    Reducer (1
    Reducer (1" to 3/4") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4025195050SD6L
    Reducer (1 1/2
    Reducer (1 1/2" to 1/2") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4038127050SD6L
    Reducer (1 1/2
    Reducer (1 1/2" to 3/4") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4038195050SD6L
    Reducer (1 1/2
    Reducer (1 1/2" to 1") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4038025050SD6L
    Reducer (2
    Reducer (2" to 1/2") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4051127050SD6L
    Reducer (2
    Reducer (2" to 3/4") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4051195050SD6L
    Reducer (2
    Reducer (2" to 1") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4051025050SD6L
    Reducer (2
    Reducer (2" to 1 1/2") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4051038050SD6L
    Reducer (2 1/2
    Reducer (2 1/2" to 1/2") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4063127060SD6L
    Reducer (2 1/2
    Reducer (2 1/2" to 3/4") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4063195060SD6L
    Reducer (2 1/2
    Reducer (2 1/2" to 1") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4063025060SD6L
    Reducer (2 1/2
    Reducer (2 1/2" to 1 1/2") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4063038060SD6L
    Reducer (2 1/2
    Reducer (2 1/2" to 2") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4063051060SD6L
    Reducer (3
    Reducer (3" to 1/2") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4076127060SD6L
    Reducer (3
    Reducer (3" to 3/4") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4076195060SD6L
    Reducer (3
    Reducer (3" to 1") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4076025060SD6L
    Reducer (3
    Reducer (3" to 1 1/2") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4076038060SD6L
    Reducer (3
    Reducer (3" to 2") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4076051060SD6L
    Reducer (3
    Reducer (3" to 2 1/2") | Concentric (Ferrule Ended) | 316L
    Pharmaceutical
    PFRCB4076063060SD6L
    Reducer (3/4
    Reducer (3/4" to 1/2") | Concentric (Ferrule Ended) | 316L
    Hygienic
    DFRCB4195127040SD6L
    Reducer (1
    Reducer (1" to 1/2") | Concentric (Ferrule Ended) | 316L
    Hygienic
    DFRCB4025127050SD6L
    Reducer (1
    Reducer (1" to 3/4") | Concentric (Ferrule Ended) | 316L
    Hygienic
    DFRCB4025195050SD6L
    Prev 1 2 3 4 … 8 Next
