Eccentric - Ferrule Ended

Description

Eccentric reducers are a cleaner, self-draining variation of the concentric reducer and are supplied with ferrule ends as standard. All Eccentric reducers are fabricated from 316L certified material and are supplied with de-scaled welds and internally polished to 0.8Ra. The ferrule ended eccentric reducers are manufactured to BS4825, ISO1127 & BPE dimensions as standard although DN32676, SMS & SWG mating ends can be manufactured and supplied upon request.

Specifications

Surface Finish: equal to, or better than 0.8 Ra(ųm) / 32 Ra(ųin)
Materials are AD2000 (PED) and ASME VIII

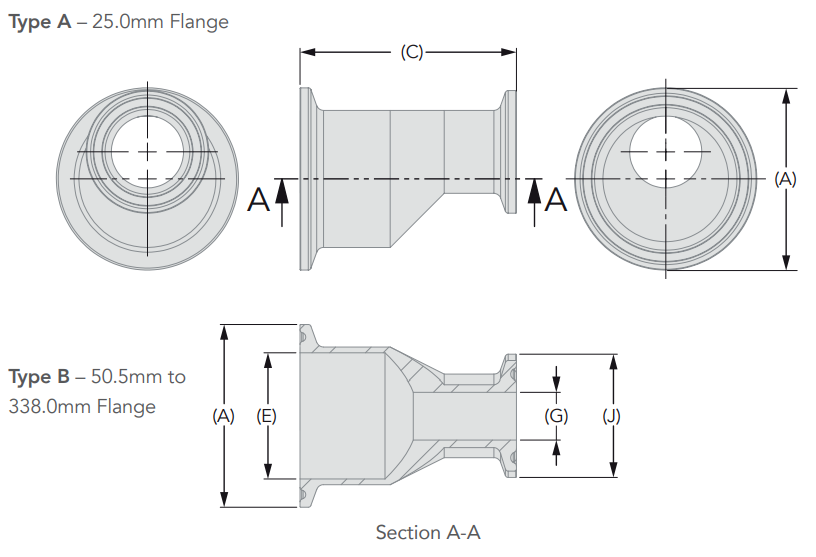

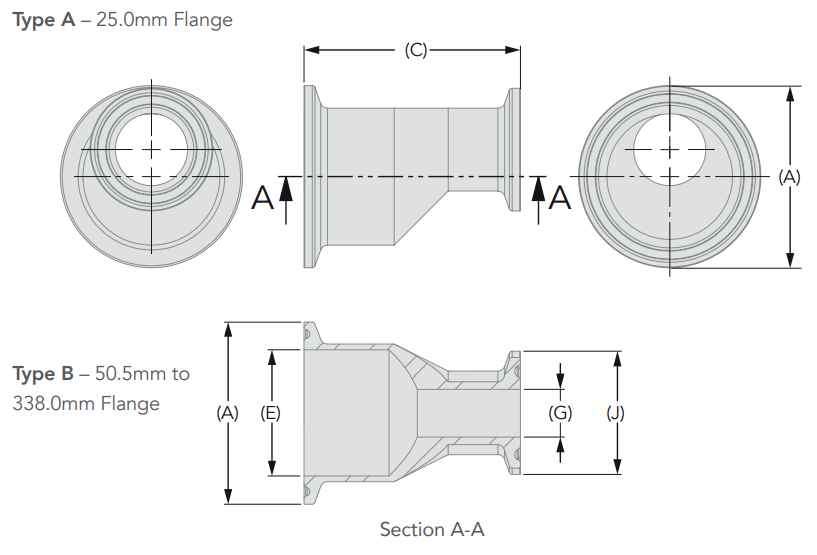

Dimensional Image

Features

Produced in the UK
Quality checks by ACL are at the highest level for fitting manufacturers: JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
Circularity of components is within 0.1mm

Materials

Material: 316L / 1.4404
Manufactured: Welded 3.1 Material

Reducers / Eccentric - Ferrule Ended

Eccentric - Ferrule Ended

Concentric - Ferrule Ended

Pipe to tube - Schedule 10 & 40

Industry PART#	Product Name	Standard	Type	Material Grade	EN Standard	ASTM Standard	Size (in)	Size 2 (in)	Size (mm)	Size 2 (mm)	Flange (mm)	Flange (in)	Flange 2 (mm)	Flange 2 (in)	ID (in)	ID 2 (mm)	ID 2 (in)	Length (mm)	Length (in)	Weight
Hygienic DFREA1076063060SD6L	Reducer (3" to 2 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	3"	2 1/2"	76.2	63.5	91	3.58"	50.5	1.99"	2.87"	34.9	1.37"	76.2	3"	0.000000
View Page → Reducer (3" to 2 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.300.250 Legacy Part Number UK: ERD.300.250 Dimensional Image Key: Length (C) mm: 76.2 Flange (A) mm: 91 Flange (A) in: 3.58" ID (E) mm: 73 ID 2 (G) mm: 34.9 Flange 1 (A) mm: 91 ID 1 (E) mm: 73 Flange 2 (J) mm: 50.5 ID (E) in: 2.87" Length (C) in: 3" Flange 1 (A) in: 3.58 ID 1 (E) in: 2.87 Flange 2 (J) in: 1.99" ID 2 (G) in: 1.37" ID mm: 73
Hygienic DFREA1076051060SD6L	Reducer (3" to 2") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	3"	2"	76.2	50.8	91	3.58"	50.5	1.99"	2.87"	22.2	0.87"	127	5"	0.000000
View Page → Reducer (3" to 2") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.300.200 Legacy Part Number UK: ERD.300.200 Dimensional Image Key: Length (C) mm: 127 Flange (A) mm: 91 Flange (A) in: 3.58" ID (E) mm: 73 ID 2 (G) mm: 22.2 Flange 1 (A) mm: 91 ID 1 (E) mm: 73 Flange 2 (J) mm: 50.5 ID (E) in: 2.87" Length (C) in: 5" Flange 1 (A) in: 3.58 ID 1 (E) in: 2.87 Flange 2 (J) in: 1.99" ID 2 (G) in: 0.87" ID mm: 73
Hygienic DFREA1076038060SD6L	Reducer (3" to 1 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	3"	1 1/2"	76.2	38.1	91	3.58"	25.4	1"	2.87"	15.8	0.62"	177.8	7"	0.000000
View Page → Reducer (3" to 1 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.300.150 Legacy Part Number UK: ERD.300.150 Dimensional Image Key: Length (C) mm: 177.8 Flange (A) mm: 91 Flange (A) in: 3.58" ID (E) mm: 73 ID 2 (G) mm: 15.8 Flange 1 (A) mm: 91 ID 1 (E) mm: 73 Flange 2 (J) mm: 25.4 ID (E) in: 2.87" Length (C) in: 7" Flange 1 (A) in: 3.58 ID 1 (E) in: 2.87 Flange 2 (J) in: 1" ID 2 (G) in: 0.62" ID mm: 73
Hygienic DFREA1076025060SD6L	Reducer (3" to 1") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	3"	1"	76.2	25.4	91	3.58"	25.4	1"	2.87"	9.5	0.37"	228.6	9"	0.000000
View Page → Reducer (3" to 1") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.300.100 Legacy Part Number UK: ERD.300.100 Dimensional Image Key: Length (C) mm: 228.6 Flange (A) mm: 91 Flange (A) in: 3.58" ID (E) mm: 73 ID 2 (G) mm: 9.5 Flange 1 (A) mm: 91 ID 1 (E) mm: 73 Flange 2 (J) mm: 25.4 ID (E) in: 2.87" Length (C) in: 9" Flange 1 (A) in: 3.58 ID 1 (E) in: 2.87 Flange 2 (J) in: 1" ID 2 (G) in: 0.37" ID mm: 73
Hygienic DFREA1063051060SD6L	Reducer (2 1/2" to 2") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	2 1/2"	2"	88.9	50.8	77.5	3.05"	64	2.52"	2.37"	47.6	1.87"	76.2	3"	0.000000
View Page → Reducer (2 1/2" to 2") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.250.200 Legacy Part Number UK: ERD.250.200 Dimensional Image Key: Length (C) mm: 76.2 Flange (A) mm: 77.5 Flange (A) in: 3.05" ID (E) mm: 60.3 ID 2 (G) mm: 47.6 Flange 1 (A) mm: 77.5 ID 1 (E) mm: 60.3 Flange 2 (J) mm: 64 ID (E) in: 2.37" Length (C) in: 3" Flange 1 (A) in: 3.05 ID 1 (E) in: 2.37 Flange 2 (J) in: 2.52" ID 2 (G) in: 1.87" ID mm: 60.3
Hygienic DFREA1063038060SD6L	Reducer (2 1/2" to 1 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	2 1/2"	1 1/2"	88.9	38.1	77.5	3.05"	50.5	1.99"	2.37"	34.9	1.37"	127	5"	0.000000
View Page → Reducer (2 1/2" to 1 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.250.150 Legacy Part Number UK: ERD.250.150 Dimensional Image Key: Length (C) mm: 127 Flange (A) mm: 77.5 Flange (A) in: 3.05" ID (E) mm: 60.3 ID 2 (G) mm: 34.9 Flange 1 (A) mm: 77.5 ID 1 (E) mm: 60.3 Flange 2 (J) mm: 50.5 ID (E) in: 2.37" Length (C) in: 5" Flange 1 (A) in: 3.05 ID 1 (E) in: 2.37 Flange 2 (J) in: 1.99" ID 2 (G) in: 1.37" ID mm: 60.3
Hygienic DFREA1063025060SD6L	Reducer (2 1/2" to 1") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	2 1/2"	1"	88.9	25.4	77.5	3.05"	50.5	1.99"	2.37"	22.2	0.87"	177.8	7"	0.000000
View Page → Reducer (2 1/2" to 1") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.250.100 Legacy Part Number UK: ERD.250.100 Dimensional Image Key: Length (C) mm: 177.8 Flange (A) mm: 77.5 Flange (A) in: 3.05" ID (E) mm: 60.3 ID 2 (G) mm: 22.2 Flange 1 (A) mm: 77.5 ID 1 (E) mm: 60.3 Flange 2 (J) mm: 50.5 ID (E) in: 2.37" Length (C) in: 7" Flange 1 (A) in: 3.05 ID 1 (E) in: 2.37 Flange 2 (J) in: 1.99" ID 2 (G) in: 0.87" ID mm: 60.3
Hygienic DFREA1063195060SD6L	Reducer (2 1/2" to 3/4") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	2 1/2"	3/4"	88.9	19.05	77.5	3.05"	25.4	1"	2.37"	15.8	0.62"	177.8	7"	0.000000
View Page → Reducer (2 1/2" to 3/4") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.250.075 Legacy Part Number UK: ERD.250.075 Dimensional Image Key: Length (C) mm: 177.8 Flange (A) mm: 77.5 Flange (A) in: 3.05" ID (E) mm: 60.3 ID 2 (G) mm: 15.8 Flange 1 (A) mm: 77.5 ID 1 (E) mm: 60.3 Flange 2 (J) mm: 25.4 ID (E) in: 2.37" Length (C) in: 7" Flange 1 (A) in: 3.05 ID 1 (E) in: 2.37 Flange 2 (J) in: 1" ID 2 (G) in: 0.62" ID mm: 60.3
Hygienic DFREA1063127060SD6L	Reducer (2 1/2" to 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	2 1/2"	1/2"	88.9	12.7	77.5	3.05"	25.4	1"	2.37"	9.5	0.37"	190.5	7.5"	0.000000
View Page → Reducer (2 1/2" to 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.250.050 Legacy Part Number UK: ERD.250.050 Dimensional Image Key: Length (C) mm: 190.5 Flange (A) mm: 77.5 Flange (A) in: 3.05" ID (E) mm: 60.3 ID 2 (G) mm: 9.5 Flange 1 (A) mm: 77.5 ID 1 (E) mm: 60.3 Flange 2 (J) mm: 25.4 ID (E) in: 2.37" Length (C) in: 7.5" Flange 1 (A) in: 3.05 ID 1 (E) in: 2.37 Flange 2 (J) in: 1" ID 2 (G) in: 0.37" ID mm: 60.3
Hygienic DFREA1051038050SD6L	Reducer (2" to 1 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	2"	1 1/2"	50.8	38.1	64	2.52"	50.5	1.99"	1.87"	34.9	1.37"	76.2	3"	0.000000
View Page → Reducer (2" to 1 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.200.150 Legacy Part Number UK: ERD.200.150 Dimensional Image Key: Length (C) mm: 76.2 Flange (A) mm: 64 Flange (A) in: 2.52" ID (E) mm: 47.6 ID 2 (G) mm: 34.9 Flange 1 (A) mm: 64 ID 1 (E) mm: 47.6 Flange 2 (J) mm: 50.5 ID (E) in: 1.87" Length (C) in: 3" Flange 1 (A) in: 2.52 ID 1 (E) in: 1.87 Flange 2 (J) in: 1.99" ID 2 (G) in: 1.37" ID mm: 47.6
Hygienic DFREA1051025050SD6L	Reducer (2" to 1") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	2"	1"	50.8	25.4	64	2.52"	50.5	1.99"	1.87"	22.2	0.87"	127	5"	0.200000
View Page → Reducer (2" to 1") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.200.100 Legacy Part Number UK: ERD.200.100 Dimensional Image Key: Length (C) mm: 127 Flange (A) mm: 64 Flange (A) in: 2.52" ID (E) mm: 47.6 ID 2 (G) mm: 22.2 Flange 1 (A) mm: 64 ID 1 (E) mm: 47.6 Flange 2 (J) mm: 50.5 ID (E) in: 1.87" Length (C) in: 5" Flange 1 (A) in: 2.52 ID 1 (E) in: 1.87 Flange 2 (J) in: 1.99" ID 2 (G) in: 0.87" ID mm: 47.6
Hygienic DFREA1051195050SD6L	Reducer (2" to 3/4") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	2"	3/4"	50.8	19.05	64	2.52"	25.4	1"	1.87"	15.8	0.62"	127	5"	0.000000
View Page → Reducer (2" to 3/4") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.200.075 Legacy Part Number UK: ERD.200.075 Dimensional Image Key: Length (C) mm: 127 Flange (A) mm: 64 Flange (A) in: 2.52" ID (E) mm: 47.6 ID 2 (G) mm: 15.8 Flange 1 (A) mm: 64 ID 1 (E) mm: 47.6 Flange 2 (J) mm: 25.4 ID (E) in: 1.87" Length (C) in: 5" Flange 1 (A) in: 2.52 ID 1 (E) in: 1.87 Flange 2 (J) in: 1" ID 2 (G) in: 0.62" ID mm: 47.6
Hygienic DFREA1051127050SD6L	Reducer (2" to 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	2"	1/2"	50.8	12.7	64	2.52"	25.4	1"	1.87"	9.5	0.37"	139.7	5.5"	0.000000
View Page → Reducer (2" to 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.200.050 Legacy Part Number UK: ERD.200.050 Dimensional Image Key: Length (C) mm: 139.7 Flange (A) mm: 64 Flange (A) in: 2.52" ID (E) mm: 47.6 ID 2 (G) mm: 9.5 Flange 1 (A) mm: 64 ID 1 (E) mm: 47.6 Flange 2 (J) mm: 25.4 ID (E) in: 1.87" Length (C) in: 5.5" Flange 1 (A) in: 2.52 ID 1 (E) in: 1.87 Flange 2 (J) in: 1" ID 2 (G) in: 0.37" ID mm: 47.6
Hygienic DFREA1038025050SD6L	Reducer (1 1/2" to 1") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	1 1/2"	1"	38.1	25.4	50.5	1.99"	50.5	1.99"	1.37"	22.2	0.87"	76.2	3"	0.000000
View Page → Reducer (1 1/2" to 1") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.150.100 Legacy Part Number UK: ERD.150.100 Dimensional Image Key: Length (C) mm: 76.2 Flange (A) mm: 50.5 Flange (A) in: 1.99" ID (E) mm: 34.9 ID 2 (G) mm: 22.2 Flange 1 (A) mm: 50.5 ID 1 (E) mm: 34.9 Flange 2 (J) mm: 50.5 ID (E) in: 1.37" Length (C) in: 3" Flange 1 (A) in: 1.99 ID 1 (E) in: 1.37 Flange 2 (J) in: 1.99" ID 2 (G) in: 0.87" ID mm: 34.9
Hygienic DFREA1038195050SD6L	Reducer (1 1/2" to 3/4") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	1 1/2"	3/4"	38.1	19.05	50.5	1.99"	25.4	1"	1.37"	15.8	0.62"	76.2	3"	0.000000
View Page → Reducer (1 1/2" to 3/4") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.150.075 Legacy Part Number UK: ERD.150.075 Dimensional Image Key: Length (C) mm: 76.2 Flange (A) mm: 50.5 Flange (A) in: 1.99" ID (E) mm: 34.9 ID 2 (G) mm: 15.8 Flange 1 (A) mm: 50.5 ID 1 (E) mm: 34.9 Flange 2 (J) mm: 25.4 ID (E) in: 1.37" Length (C) in: 3" Flange 1 (A) in: 1.99 ID 1 (E) in: 1.37 Flange 2 (J) in: 1" ID 2 (G) in: 0.62" ID mm: 34.9
Hygienic DFREA1038127050SD6L	Reducer (1 1/2" to 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	1 1/2"	1/2"	38.1	12.7	50.5	1.99"	25.4	1"	1.37"	9.5	0.37"	88.9	3.5"	0.000000
View Page → Reducer (1 1/2" to 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.150.050 Legacy Part Number UK: ERD.150.050 Dimensional Image Key: Length (C) mm: 88.9 Flange (A) mm: 50.5 Flange (A) in: 1.99" ID (E) mm: 34.9 ID 2 (G) mm: 9.5 Flange 1 (A) mm: 50.5 ID 1 (E) mm: 34.9 Flange 2 (J) mm: 25.4 ID (E) in: 1.37" Length (C) in: 3.5" Flange 1 (A) in: 1.99 ID 1 (E) in: 1.37 Flange 2 (J) in: 1" ID 2 (G) in: 0.37" ID mm: 34.9
Hygienic DFREA1025195050SD6L	Reducer (1" to 3/4") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	1"	3/4"	25.4	19.05	50.5	1.99"	25.4	1"	0.87"	15.8	0.62"	50.8	2"	0.000000
View Page → Reducer (1" to 3/4") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.100.075 Legacy Part Number UK: ERD.100.075 Dimensional Image Key: Length (C) mm: 50.8 Flange (A) mm: 50.5 Flange (A) in: 1.99" ID (E) mm: 22.2 ID 2 (G) mm: 15.8 Flange 1 (A) mm: 50.5 ID 1 (E) mm: 22.2 Flange 2 (J) mm: 25.4 ID (E) in: 0.87" Length (C) in: 2" Flange 1 (A) in: 1.99 ID 1 (E) in: 0.87 Flange 2 (J) in: 1" ID 2 (G) in: 0.62" ID mm: 22.2
Hygienic DFREA1025127050SD6L	Reducer (1" to 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	1"	1/2"	25.4	12.7	50.5	1.99"	25.4	1"	0.87"	9.5	0.37"	63.5	2.5"	0.000000
View Page → Reducer (1" to 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.100.050 Legacy Part Number UK: ERD.100.050 Dimensional Image Key: Length (C) mm: 63.5 Flange (A) mm: 50.5 Flange (A) in: 1.99" ID (E) mm: 22.2 ID 2 (G) mm: 9.5 Flange 1 (A) mm: 50.5 ID 1 (E) mm: 22.2 Flange 2 (J) mm: 25.4 ID (E) in: 0.87" Length (C) in: 2.5" Flange 1 (A) in: 1.99 ID 1 (E) in: 0.87 Flange 2 (J) in: 1" ID 2 (G) in: 0.37" ID mm: 22.2
Hygienic DFREA1195127040SD6L	Reducer (3/4" to 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L	ASME BPE	BPE Eccentric - Ferrule Ended	316L	1.4404	╦£ SS2348	3/4"	1/2"	19.05	12.7	25.4	1"	25.4	1"	0.63"	9.5	0.37"	50.8	2"	0.000000
View Page → Reducer (3/4" to 1/2") \| BPE Eccentric (Ferrule Ended) \| 316L Legacy Part Number IE: ERD.075.050 Legacy Part Number UK: ERD.075.050 Dimensional Image Key: Length (C) mm: 50.8 Flange (A) mm: 25.4 Flange (A) in: 1" ID (E) mm: 15.9 ID 2 (G) mm: 9.5 Flange 1 (A) mm: 25.4 ID 1 (E) mm: 15.9 Flange 2 (J) mm: 25.4 ID (E) in: 0.63" Length (C) in: 2" Flange 1 (A) in: 1 ID 1 (E) in: 0.63 Flange 2 (J) in: 1" ID 2 (G) in: 0.37" ID mm: 15.9

Reducer (3" to 2 1/2") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1076063060SD6L

Reducer (3" to 2") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1076051060SD6L

Reducer (3" to 1 1/2") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1076038060SD6L

Reducer (3" to 1") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1076025060SD6L

Reducer (2 1/2" to 2") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1063051060SD6L

Reducer (2 1/2" to 1 1/2") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1063038060SD6L

Reducer (2 1/2" to 1") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1063025060SD6L

Reducer (2 1/2" to 3/4") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1063195060SD6L

Reducer (2 1/2" to 1/2") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1063127060SD6L

Reducer (2" to 1 1/2") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1051038050SD6L

Reducer (2" to 1") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1051025050SD6L

Reducer (2" to 3/4") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1051195050SD6L

Reducer (2" to 1/2") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1051127050SD6L

Reducer (1 1/2" to 1") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1038025050SD6L

Reducer (1 1/2" to 3/4") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1038195050SD6L

Reducer (1 1/2" to 1/2") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1038127050SD6L

Reducer (1" to 3/4") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1025195050SD6L

Reducer (1" to 1/2") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1025127050SD6L

Reducer (3/4" to 1/2") | BPE Eccentric (Ferrule Ended) | 316L
Hygienic
DFREA1195127040SD6L
