Pipe to tube - Schedule 10 & 40

Description

Pipe to Tube Reducers are used to convert Schedule Pipe-Work commonly found in the USA to OD Tubing commonly found throughout the UK and Europe. All Pipe to Tube Reducers are machined from 3.1b certified 316L solid bar, guaranteeing a high quality surface finish manufactured to 0.8Ra as standard, although 0.6Ra, 0.4Ra and electro-polishing options can be supplied upon request Reducers are designed to have 10mm of parallel pipe/tube on each end, aiding the orbital welding process. We stock Schedule 10 to OD and Schedule 40 to OD reducers as standard, although variations of all standard tubing dimensions can be supplied, please contact our sales staff with your requirement.

The Pharmaceutical Reducers Pipe to Tube Plain Ended is available in two variations; Schedule 10 and Schedule 40.

Specifications

Surface Finish: equal to, or better than 0.8 Ra(ųm) / 32 Ra(ųin)
Materials are AD2000 (PED) and ASME VIII

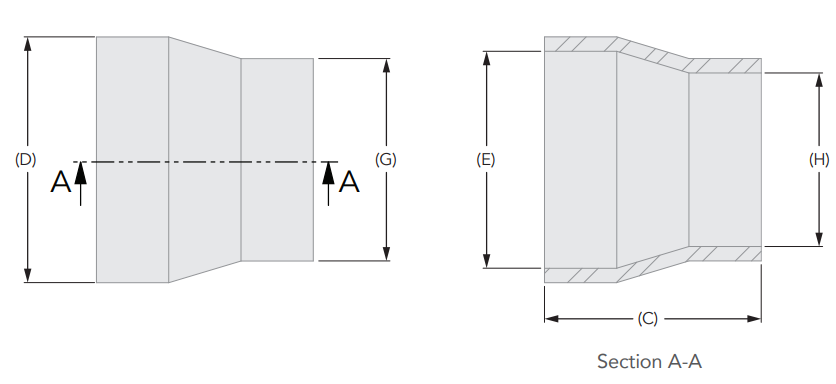

Dimensional Image

Features

UK Produced
Quality checks by ACL are at the highest level for fitting manufacturers: JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
Flatness of sealing face meets or exceeds guidelines
Circularity of components is within 0.1mm

Materials

Material: 316L / 1.4404
Manufactured: 3.1 Certified- Solid Bar

Reducers / Pipe to tube - Schedule 10 & 40

Pipe to tube - Schedule 10 & 40

Concentric - Ferrule Ended

Eccentric - Ferrule Ended

Industry PART#	Product Name	Type	Pipe	Tube	Material Grade	EN Standard	ASTM Standard	Size (in)	Size 2 (in)	Size (mm)	Size 2 (mm)	ID (in)	ID 2 (mm)	ID 2 (in)	OD (mm)	OD (in)	OD 2 (mm)	OD 2 (in)	Length (mm)	Length (in)	Weight
Pharmaceutical PWPRB2021127030SD6L	Reducer (1/2" to 1/2") \| Pipe to Tube Schedule 10 (Weld End) \| 316L	Pipe to Tube Schedule 10 - Weld End	Schedule 10	BS4825	316L	1.4404	╦£ SS2348	1/2"	1/2"	12.7	12.7	0.67"	9.52	0.37"	21.34	0.84"	12.7	0.5"	30	1.18"	0.000000
View Page → Reducer (1/2" to 1/2") \| Pipe to Tube Schedule 10 (Weld End) \| 316L Legacy Part Number IE: PTR.S10.050 Legacy Part Number UK: PTR.S10.050 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 21.34 ID (E) mm: 17.12 OD 2 (H) mm: 12.7 ID 2 (G) mm: 9.52 OD (D) mm: 21.34 ID 1 (E) mm: 17.12 OD 2 (G) mm: 12.7 ID 2 (H) mm: 9.52 ID (E) in: 0.67" Length (C) in: 1.18" OD (D) in: 0.84" ID 1 (E) in: — ID 2 (G) in: 0.37" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 0.5" ID mm: 17.12
Pharmaceutical PWPRB2026195030SD6L	Reducer (3/4" to 1/2") \| Pipe to Tube Schedule 10 (Weld End) \| 316L	Pipe to Tube Schedule 10 - Weld End	Schedule 10	BS4825	316L	1.4404	╦£ SS2348	3/4"	1/2"	19.05	12.7	0.88"	15.87	0.62"	26.67	1.05"	19.5	0.77"	30	1.18"	0.000000
View Page → Reducer (3/4" to 1/2") \| Pipe to Tube Schedule 10 (Weld End) \| 316L Legacy Part Number IE: PTR.S10.075 Legacy Part Number UK: PTR.S10.075 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 26.67 ID (E) mm: 22.45 OD 2 (H) mm: 19.5 ID 2 (G) mm: 15.87 OD (D) mm: 26.67 ID 1 (E) mm: 22.45 OD 2 (G) mm: 19.5 ID 2 (H) mm: 15.87 ID (E) in: 0.88" Length (C) in: 1.18" OD (D) in: 1.05" ID 1 (E) in: — ID 2 (G) in: 0.62" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 0.77" ID mm: 22.45
Pharmaceutical PWPRB2033025030SD6L	Reducer (1" to 3/4") \| Pipe to Tube Schedule 10 (Weld End) \| 316L	Pipe to Tube Schedule 10 - Weld End	Schedule 10	BS4825	316L	1.4404	╦£ SS2348	1"	3/4"	25.4	19.05	1.1"	22.2	0.87"	33.4	1.31"	25.65	1.01"	30	1.18"	0.000000
View Page → Reducer (1" to 3/4") \| Pipe to Tube Schedule 10 (Weld End) \| 316L Legacy Part Number IE: PTR.S10.100 Legacy Part Number UK: PTR.S10.100 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 33.4 ID (E) mm: 27.86 OD 2 (H) mm: 25.65 ID 2 (G) mm: 22.2 OD (D) mm: 33.4 ID 1 (E) mm: 27.86 OD 2 (G) mm: 25.65 ID 2 (H) mm: 22.2 ID (E) in: 1.1" Length (C) in: 1.18" OD (D) in: 1.31" ID 1 (E) in: — ID 2 (G) in: 0.87" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 1.01" ID mm: 27.86
Pharmaceutical PWPRB2048038030SD6L	Reducer (1 1/2" to 1/2") \| Pipe to Tube Schedule 10 (Weld End) \| 316L	Pipe to Tube Schedule 10 - Weld End	Schedule 10	BS4825	316L	1.4404	╦£ SS2348	1 1/2"	1/2"	38.1	12.7	1.88"	34.9	1.37"	48.26	1.9"	38.35	1.51"	30	1.18"	0.000000
View Page → Reducer (1 1/2" to 1/2") \| Pipe to Tube Schedule 10 (Weld End) \| 316L Legacy Part Number IE: PTR.S10.150 Legacy Part Number UK: PTR.S10.150 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 48.26 ID (E) mm: 47.72 OD 2 (H) mm: 38.35 ID 2 (G) mm: 34.9 OD (D) mm: 48.26 ID 1 (E) mm: 47.72 OD 2 (G) mm: 38.35 ID 2 (H) mm: 34.9 ID (E) in: 1.88" Length (C) in: 1.18" OD (D) in: 1.9" ID 1 (E) in: — ID 2 (G) in: 1.37" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 1.51" ID mm: 47.72
PWPRB2060051030SD6L	Pharmaceutical Reducer (2" to 3/4") \| Pipe to Tube Schedule 10 (Weld End) \| 316L
View Page → Pharmaceutical Reducer (2" to 3/4") \| Pipe to Tube Schedule 10 (Weld End) \| 316L Legacy Part Number IE: PTR.S10.200 Legacy Part Number UK: 2" SCH10 to 2" PIPE to TUBE REDUCER 0.8Ra 316L Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 60.33 ID (E) mm: 54.79 OD 2 (H) mm: 51.05 ID 2 (G) mm: 47.6 OD (D) mm: 60.33 ID 1 (E) mm: 54.79 OD 2 (G) mm: 51.05 ID 2 (H) mm: 47.6 ID (E) in: 2.16" Length (C) in: 1.18" OD (D) in: 2.38" ID 1 (E) in: — ID 2 (G) in: 1.87" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 2.01"
PWPRB2073063030SD6L	Pharmaceutical Reducer (2 1/2" to 1") \| Pipe to Tube Schedule 10 (Weld End) \| 316L
View Page → Pharmaceutical Reducer (2 1/2" to 1") \| Pipe to Tube Schedule 10 (Weld End) \| 316L Legacy Part Number IE: PTR.S10.250 Legacy Part Number UK: 2 1/2" SCH10 to 2 1/2" PIPE to TUBE REDUCER 0.8Ra 316L Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 73.03 ID (E) mm: 66.93 OD 2 (H) mm: 63.75 ID 2 (G) mm: 60.3 OD (D) mm: 73.03 ID 1 (E) mm: 66.93 OD 2 (G) mm: 63.75 ID 2 (H) mm: 60.3 ID (E) in: 2.64" Length (C) in: 1.18" OD (D) in: 2.88" ID 1 (E) in: — ID 2 (G) in: 2.37" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 2.51"
Pharmaceutical PWPRB2089076030SD6L	Reducer (3" to 1/2") \| Pipe to Tube Schedule 10 (Weld End) \| 316L	Pipe to Tube Schedule 10 - Weld End	Schedule 10	BS4825	316L	1.4404	╦£ SS2348	3"	1/2"	76.2	12.7	3.26"	73	2.87"	88.9	3.5"	76.45	3.01"	30	1.18"	0.152000
View Page → Reducer (3" to 1/2") \| Pipe to Tube Schedule 10 (Weld End) \| 316L Legacy Part Number IE: PTR.S10.300 Legacy Part Number UK: 3" SCH10 TO 3" TUBE 316 x 30 LONG 0.8Ra 316L Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 88.9 ID (E) mm: 82.8 OD 2 (H) mm: 76.45 ID 2 (G) mm: 73 OD (D) mm: 88.9 ID 1 (E) mm: 82.8 OD 2 (G) mm: 76.45 ID 2 (H) mm: 73 ID (E) in: 3.26" Length (C) in: 1.18" OD (D) in: 3.5" ID 1 (E) in: — ID 2 (G) in: 2.87" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 3.01" ID mm: 82.8
Pharmaceutical PWPRB2101089030SD6L	Reducer (3 1/2" to 3/4") \| Pipe to Tube Schedule 10 (Weld End) \| 316L	Pipe to Tube Schedule 10 - Weld End	Schedule 10	BS4825	316L	1.4404	╦£ SS2348	3 1/2"	3/4"	88.9	19.05	3.76"	84.7	3.33"	101.5	4"	88.9	3.5"	30	1.18"	0.000000
View Page → Reducer (3 1/2" to 3/4") \| Pipe to Tube Schedule 10 (Weld End) \| 316L Legacy Part Number IE: PTR.S10.350 Legacy Part Number UK: PTR.S10.350 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 101.5 ID (E) mm: 95.5 OD 2 (H) mm: 88.9 ID 2 (G) mm: 84.7 OD (D) mm: 101.5 ID 1 (E) mm: 95.5 OD 2 (G) mm: 88.9 ID 2 (H) mm: 84.7 ID (E) in: 3.76" Length (C) in: 1.18" OD (D) in: 4" ID 1 (E) in: — ID 2 (G) in: 3.33" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 3.5" ID mm: 95.5
PWPRB2114101030SD6L	Pharmaceutical Reducer (4" to 1") \| Pipe to Tube Schedule 10 (Weld End) \| 316L
View Page → Pharmaceutical Reducer (4" to 1") \| Pipe to Tube Schedule 10 (Weld End) \| 316L Legacy Part Number IE: PTR.S10.400 Legacy Part Number UK: PTR.S10.400 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 114.3 ID (E) mm: 108.2 OD 2 (H) mm: 101.85 ID 2 (G) mm: 97.6 OD (D) mm: 114.3 ID 1 (E) mm: 108.2 OD 2 (G) mm: 101.85 ID 2 (H) mm: 97.6 ID (E) in: 4.26" Length (C) in: 1.18" OD (D) in: 4.5" ID 1 (E) in: — ID 2 (G) in: 3.84" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 4.01"
PWPRB2168154030SD6L	Pharmaceutical Reducer (6" to 1 1/2") \| Pipe to Tube Schedule 10 (Weld End) \| 316L
View Page → Pharmaceutical Reducer (6" to 1 1/2") \| Pipe to Tube Schedule 10 (Weld End) \| 316L Legacy Part Number IE: PTR.S10.600 Legacy Part Number UK: 6" - 1 1/2" WELD TYPE TUBE ADAPTOR REDUCER 316L Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 168.28 ID (E) mm: 161.48 OD 2 (H) mm: 154 ID 2 (G) mm: 150 OD (D) mm: 168.28 ID 1 (E) mm: 161.48 OD 2 (G) mm: 154 ID 2 (H) mm: 150 ID (E) in: 6.36" Length (C) in: 1.18" OD (D) in: 6.63" ID 1 (E) in: — ID 2 (G) in: 5.91" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 6.06"
Pharmaceutical PWPRB3021127030SD6L	Reducer (1/2" to 1/2") \| Pipe to Tube Schedule 40 (Weld End) \| 316L	Pipe to Tube Schedule 40 - Weld End	Schedule 40	BS4825	316L	1.4404	╦£ SS2348	1/2"	1/2"	12.7	12.7	0.62"	9.52	0.37"	21.34	0.84"	12.7	0.5"	30	1.18"	0.000000
View Page → Reducer (1/2" to 1/2") \| Pipe to Tube Schedule 40 (Weld End) \| 316L Legacy Part Number IE: PTR.S40.050 Legacy Part Number UK: PTR.S40.050 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 21.34 ID (E) mm: 15.8 OD 2 (H) mm: 12.7 ID 2 (G) mm: 9.52 OD (D) mm: 21.34 ID 1 (E) mm: 15.8 OD 2 (G) mm: 12.7 ID 2 (H) mm: 9.52 ID (E) in: 0.62" Length (C) in: 1.18" OD (D) in: 0.84" ID 1 (E) in: — ID 2 (G) in: 0.37" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 0.5" ID mm: 15.8
Pharmaceutical PWPRB3026195030SD6L	Reducer (3/4" to 1/2") \| Pipe to Tube Schedule 40 (Weld End) \| 316L	Pipe to Tube Schedule 40 - Weld End	Schedule 40	BS4825	316L	1.4404	╦£ SS2348	3/4"	1/2"	19.05	12.7	0.82"	15.87	0.62"	26.67	1.05"	19.5	0.77"	30	1.18"	0.000000
View Page → Reducer (3/4" to 1/2") \| Pipe to Tube Schedule 40 (Weld End) \| 316L Legacy Part Number IE: PTR.S40.075 Legacy Part Number UK: PTR.S40.075 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 26.67 ID (E) mm: 20.93 OD 2 (H) mm: 19.5 ID 2 (G) mm: 15.87 OD (D) mm: 26.67 ID 1 (E) mm: 20.93 OD 2 (G) mm: 19.5 ID 2 (H) mm: 15.87 ID (E) in: 0.82" Length (C) in: 1.18" OD (D) in: 1.05" ID 1 (E) in: — ID 2 (G) in: 0.62" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 0.77" ID mm: 20.93
Pharmaceutical PWPRB3033025030SD6L	Reducer (1" to 3/4") \| Pipe to Tube Schedule 40 (Weld End) \| 316L	Pipe to Tube Schedule 40 - Weld End	Schedule 40	BS4825	316L	1.4404	╦£ SS2348	1"	3/4"	25.4	19.05	1.05"	22.2	0.87"	33.4	1.31"	25.65	1.01"	30	1.18"	0.076000
View Page → Reducer (1" to 3/4") \| Pipe to Tube Schedule 40 (Weld End) \| 316L Legacy Part Number IE: PTR.S40.100 Legacy Part Number UK: PTR.S40.100 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 33.4 ID (E) mm: 26.64 OD 2 (H) mm: 25.65 ID 2 (G) mm: 22.2 OD (D) mm: 33.4 ID 1 (E) mm: 26.64 OD 2 (G) mm: 25.65 ID 2 (H) mm: 22.2 ID (E) in: 1.05" Length (C) in: 1.18" OD (D) in: 1.31" ID 1 (E) in: — ID 2 (G) in: 0.87" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 1.01" ID mm: 26.64
Pharmaceutical PWPRB3048038030SD6L	Reducer (1 1/2" to 1/2") \| Pipe to Tube Schedule 40 (Weld End) \| 316L	Pipe to Tube Schedule 40 - Weld End	Schedule 40	BS4825	316L	1.4404	╦£ SS2348	1 1/2"	1/2"	38.1	12.7	1.61"	34.9	1.37"	48.26	1.9"	38.35	1.51"	30	1.18"	0.000000
View Page → Reducer (1 1/2" to 1/2") \| Pipe to Tube Schedule 40 (Weld End) \| 316L Legacy Part Number IE: PTR.S40.150 Legacy Part Number UK: PTR.S40.150 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 48.26 ID (E) mm: 40.88 OD 2 (H) mm: 38.35 ID 2 (G) mm: 34.9 OD (D) mm: 48.26 ID 1 (E) mm: 40.88 OD 2 (G) mm: 38.35 ID 2 (H) mm: 34.9 ID (E) in: 1.61" Length (C) in: 1.18" OD (D) in: 1.9" ID 1 (E) in: — ID 2 (G) in: 1.37" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 1.51" ID mm: 40.88
Pharmaceutical PWPRB3060051030SD6L	Reducer (2" to 3/4") \| Pipe to Tube Schedule 40 (Weld End) \| 316L	Pipe to Tube Schedule 40 - Weld End	Schedule 40	BS4825	316L	1.4404	╦£ SS2348	2"	3/4"	50.8	19.05	2.07"	47.6	1.87"	60.33	2.38"	51.05	2.01"	30	1.18"	0.000000
View Page → Reducer (2" to 3/4") \| Pipe to Tube Schedule 40 (Weld End) \| 316L Legacy Part Number IE: PTR.S40.200 Legacy Part Number UK: PTR.S40.200 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 60.33 ID (E) mm: 52.51 OD 2 (H) mm: 51.05 ID 2 (G) mm: 47.6 OD (D) mm: 60.33 ID 1 (E) mm: 52.51 OD 2 (G) mm: 51.05 ID 2 (H) mm: 47.6 ID (E) in: 2.07" Length (C) in: 1.18" OD (D) in: 2.38" ID 1 (E) in: — ID 2 (G) in: 1.87" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 2.01" ID mm: 52.51
PWPRB3073063030SD6L	Pharmaceutical Reducer (2 1/2" to 1") \| Pipe to Tube Schedule 40 (Weld End) \| 316L
View Page → Pharmaceutical Reducer (2 1/2" to 1") \| Pipe to Tube Schedule 40 (Weld End) \| 316L Legacy Part Number IE: PTR.S40.250 Legacy Part Number UK: 2.5" SCH40 TO BS4825 TUBE ADAPTOR 0.8Ra 316L Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 73.03 ID (E) mm: 62.71 OD 2 (H) mm: 63.75 ID 2 (G) mm: 60.3 OD (D) mm: 73.03 ID 1 (E) mm: 62.71 OD 2 (G) mm: 63.75 ID 2 (H) mm: 60.3 ID (E) in: 2.47" Length (C) in: 1.18" OD (D) in: 2.88" ID 1 (E) in: — ID 2 (G) in: 2.37" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 2.51"
Pharmaceutical PWPRB3089076030SD6L	Reducer (3" to 1/2") \| Pipe to Tube Schedule 40 (Weld End) \| 316L	Pipe to Tube Schedule 40 - Weld End	Schedule 40	BS4825	316L	1.4404	╦£ SS2348	3"	1/2"	76.2	12.7	3.07"	73	2.87"	88.9	3.5"	76.45	3.01"	30	1.18"	0.000000
View Page → Reducer (3" to 1/2") \| Pipe to Tube Schedule 40 (Weld End) \| 316L Legacy Part Number IE: PTR.S40.300 Legacy Part Number UK: PTR.S40.300 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 88.9 ID (E) mm: 77.92 OD 2 (H) mm: 76.45 ID 2 (G) mm: 73 OD (D) mm: 88.9 ID 1 (E) mm: 77.92 OD 2 (G) mm: 76.45 ID 2 (H) mm: 73 ID (E) in: 3.07" Length (C) in: 1.18" OD (D) in: 3.5" ID 1 (E) in: — ID 2 (G) in: 2.87" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 3.01" ID mm: 77.92
Pharmaceutical PWPRB3101089030SD6L	Reducer (3 1/2" to 3/4") \| Pipe to Tube Schedule 40 (Weld End) \| 316L	Pipe to Tube Schedule 40 - Weld End	Schedule 40	BS4825	316L	1.4404	╦£ SS2348	3 1/2"	3/4"	88.9	19.05	3.55"	84.7	3.33"	101.5	4"	88.9	3.5"	30	1.18"	0.000000
View Page → Reducer (3 1/2" to 3/4") \| Pipe to Tube Schedule 40 (Weld End) \| 316L Legacy Part Number IE: PTR.S40.350 Legacy Part Number UK: PTR.S40.350 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 101.5 ID (E) mm: 90.12 OD 2 (H) mm: 88.9 ID 2 (G) mm: 84.7 OD (D) mm: 101.5 ID 1 (E) mm: 90.12 OD 2 (G) mm: 88.9 ID 2 (H) mm: 84.7 ID (E) in: 3.55" Length (C) in: 1.18" OD (D) in: 4" ID 1 (E) in: — ID 2 (G) in: 3.33" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 3.5" ID mm: 90.12
Pharmaceutical PWPRB3114101030SD6L	Reducer (4" to 1") \| Pipe to Tube Schedule 40 (Weld End) \| 316L	Pipe to Tube Schedule 40 - Weld End	Schedule 40	BS4825	316L	1.4404	╦£ SS2348	4"	1"	101.6	25.4	4.03"	97.6	3.84"	114.3	4.5"	101.85	4.01"	30	1.18"	0.000000
View Page → Reducer (4" to 1") \| Pipe to Tube Schedule 40 (Weld End) \| 316L Legacy Part Number IE: PTR.S40.400 Legacy Part Number UK: PTR.S40.400 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 114.3 ID (E) mm: 102.26 OD 2 (H) mm: 101.85 ID 2 (G) mm: 97.6 OD (D) mm: 114.3 ID 1 (E) mm: 102.26 OD 2 (G) mm: 101.85 ID 2 (H) mm: 97.6 ID (E) in: 4.03" Length (C) in: 1.18" OD (D) in: 4.5" ID 1 (E) in: — ID 2 (G) in: 3.84" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 4.01" ID mm: 102.26
Pharmaceutical PWPRB3168154030SD6L	Reducer (6" to 1 1/2") \| Pipe to Tube Schedule 40 (Weld End) \| 316L	Pipe to Tube Schedule 40 - Weld End	Schedule 40	BS4825	316L	1.4404	╦£ SS2348	6"	1 1/2"	152.4	38.1	6.07"	150	5.91"	168.28	6.63"	154	6.06"	30	1.18"	0.000000
View Page → Reducer (6" to 1 1/2") \| Pipe to Tube Schedule 40 (Weld End) \| 316L Legacy Part Number IE: PTR.S40.600 Legacy Part Number UK: PTR.S40.600 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 168.28 ID (E) mm: 154.06 OD 2 (H) mm: 154 ID 2 (G) mm: 150 OD (D) mm: 168.28 ID 1 (E) mm: 154.06 OD 2 (G) mm: 154 ID 2 (H) mm: 150 ID (E) in: 6.07" Length (C) in: 1.18" OD (D) in: 6.63" ID 1 (E) in: — ID 2 (G) in: 5.91" OD 1 (D) in: — OD 2 (G) in: — ID 2 (H) in: — OD 2 (H) in: 6.06" ID mm: 154.06
Hygienic DWPRB2021127030SD6L	Reducer (1/2" to 1/2") \| Pipe to Tube Schedule 10 (Weld End) \| 316L	Pipe to Tube Schedule 10 - Weld End	Schedule 10	BS4825	316L	1.4404	╦£ SS2348	1/2"	1/2"	12.7	12.7	0.67"	9.52	0.37"	21.34	0.84"	12.7	0.5"	30	1.18"	0.000000
View Page → Reducer (1/2" to 1/2") \| Pipe to Tube Schedule 10 (Weld End) \| 316L Legacy Part Number IE: PTRD.S10.050 Legacy Part Number UK: PTRD.S10.050 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 21.34 ID (E) mm: 17.12 OD 2 (H) mm: 12.7 ID 2 (G) mm: 9.52 OD (D) mm: 21.34 ID 1 (E) mm: 17.12 OD 2 (G) mm: 12.7 ID 2 (H) mm: 9.52 ID (E) in: 0.67" Length (C) in: 1.18" OD (D) in: 0.84" ID 1 (E) in: 0.67 ID 2 (G) in: 0.37" OD 1 (D) in: 0.84 OD 2 (G) in: 0.5 ID 2 (H) in: 0.37 OD 2 (H) in: 0.5" ID mm: 17.12
Hygienic DWPRB2026195030SD6L	Reducer (3/4" to 1/2") \| Pipe to Tube Schedule 10 (Weld End) \| 316L	Pipe to Tube Schedule 10 - Weld End	Schedule 10	BS4825	316L	1.4404	╦£ SS2348	3/4"	1/2"	19.05	12.7	0.88"	15.87	0.62"	26.67	1.05"	19.5	0.77"	30	1.18"	0.000000
View Page → Reducer (3/4" to 1/2") \| Pipe to Tube Schedule 10 (Weld End) \| 316L Legacy Part Number IE: PTRD.S10.075 Legacy Part Number UK: PTRD.S10.075 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 26.67 ID (E) mm: 22.45 OD 2 (H) mm: 19.5 ID 2 (G) mm: 15.87 OD (D) mm: 26.67 ID 1 (E) mm: 22.45 OD 2 (G) mm: 19.5 ID 2 (H) mm: 15.87 ID (E) in: 0.88" Length (C) in: 1.18" OD (D) in: 1.05" ID 1 (E) in: 0.88 ID 2 (G) in: 0.62" OD 1 (D) in: 1.05 OD 2 (G) in: 0.77 ID 2 (H) in: 0.62 OD 2 (H) in: 0.77" ID mm: 22.45
Hygienic DWPRB2033025030SD6L	Reducer (1" to 3/4") \| Pipe to Tube Schedule 10 (Weld End) \| 316L	Pipe to Tube Schedule 10 - Weld End	Schedule 10	BS4825	316L	1.4404	╦£ SS2348	1"	3/4"	25.4	19.05	1.1"	22.2	0.87"	33.4	1.31"	25.65	1.01"	30	1.18"	0.000000
View Page → Reducer (1" to 3/4") \| Pipe to Tube Schedule 10 (Weld End) \| 316L Legacy Part Number IE: PTRD.S10.100 Legacy Part Number UK: PTRD.S10.100 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 33.4 ID (E) mm: 27.86 OD 2 (H) mm: 25.65 ID 2 (G) mm: 22.2 OD (D) mm: 33.4 ID 1 (E) mm: 27.86 OD 2 (G) mm: 25.65 ID 2 (H) mm: 22.2 ID (E) in: 1.1" Length (C) in: 1.18" OD (D) in: 1.31" ID 1 (E) in: 1.1 ID 2 (G) in: 0.87" OD 1 (D) in: 1.31 OD 2 (G) in: 1.01 ID 2 (H) in: 0.87 OD 2 (H) in: 1.01" ID mm: 27.86
Hygienic DWPRB2048038030SD6L	Reducer (1 1/2" to 1/2") \| Pipe to Tube Schedule 10 (Weld End) \| 316L	Pipe to Tube Schedule 10 - Weld End	Schedule 10	BS4825	316L	1.4404	╦£ SS2348	1 1/2"	1/2"	38.1	25.4	1.88"	34.9	1.37"	48.26	1.9"	38.35	1.51"	30	1.18"	0.000000
View Page → Reducer (1 1/2" to 1/2") \| Pipe to Tube Schedule 10 (Weld End) \| 316L Legacy Part Number IE: PTRD.S10.150 Legacy Part Number UK: PTRD.S10.150 Dimensional Image Key: Length (C) mm: 30 OD 1 (D) mm: 48.26 ID (E) mm: 47.72 OD 2 (H) mm: 38.35 ID 2 (G) mm: 34.9 OD (D) mm: 48.26 ID 1 (E) mm: 47.72 OD 2 (G) mm: 38.35 ID 2 (H) mm: 34.9 ID (E) in: 1.88" Length (C) in: 1.18" OD (D) in: 1.9" ID 1 (E) in: 1.88 ID 2 (G) in: 1.37" OD 1 (D) in: 1.9 OD 2 (G) in: 1.51 ID 2 (H) in: 1.37 OD 2 (H) in: 1.51" ID mm: 47.72
