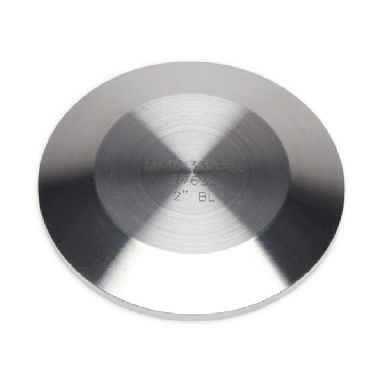

    Description
    Acl blanks, 1.4404 material; flatness of sealing face meets or exceeds guidelines​.

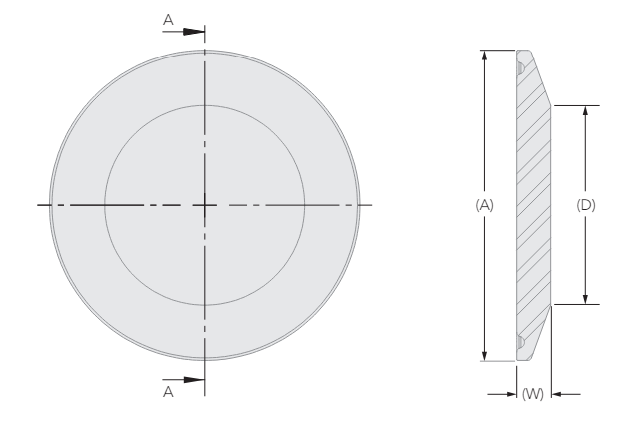

    Dimensional Image
    Features
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
    • Circularity of components is within 0.1mm​
    • Bends – Interior surface to ASME: BPE SF1 (Can be supplied to SF4 on request)
    • Compatibility: ASME BPE / 3A / BS4825
    Materials
    • 316L/1,4404 3,1 Certified – Solid Bar
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​
    Fittings / Blanks
    Clamps & Sealing Clamps & Sealing Fittings Fittings Weld Fittings Weld Fittings ASME BPE Fittings ASME BPE Fittings Sight Flow Indicators Sight Flow Indicators Valves Valves Maintenance Items Maintenance Items Single Use Single Use Filters Filters
    Blanks Blanks
    Adapters Adapters Hose Adapters Hose Adapters Reducers Reducers Union Fittings Union Fittings
    Total: 38
    Industry
    PART#    		 Product
    Name    		 Standard Material Grade EN Standard Size (in) Size (DIN) Flange (mm) Flange (in) Face (mm) Face (in) Neck (mm) Neck (in) Weight
    BKBDB4025SD6L
    		Blank (1/2" - 3/4") | BS4825 Part 3 | 316L BS4825 Part 3 316L 1.4404 1/2" - 3/4" 25.4 12.5 0.49" 0.014000
    dimensional image
    View Page → Blank (1/2" - 3/4") | BS4825 Part 3 | 316L Legacy Part Number IE:  BKD.0050 Legacy Part Number UK:  BKD.0050 - * 1/2" - 3/4" BLANK 316L Legacy Part Number DK:  BKD0050 Dimensional Image Key:
    • Width (W) mm:   5.6
    • Flange (A) mm:   25.4
    • Flange (A) in:   1"
    • Face (D) mm:   12.5
    • Width (W) in:   0.22
    • Face (D) in:   0.49
    BKBDDA034SD6L
    		Blank (DN10) | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 DN10 DN 10-15-20 34 15.5 0.61" 0.032000
    dimensional image
    View Page → Blank (DN10) | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.D010 Legacy Part Number UK:  BKD.D010 - * DIN 101520 BLANK 316L Legacy Part Number DK:  BKDD010 Dimensional Image Key:
    • Width (W) mm:   7
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Face (D) mm:   15.5
    • Width (W) in:   0.28
    • Face (D) in:   0.61
    BKBDB4050SD6L
    		Blank (1" - 1 1/2") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 1" - 1 1/2" DN 25 50.5 24.5 0.96" 0.080000
    dimensional image
    View Page → Blank (1" - 1 1/2") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.0100 Legacy Part Number UK:  BKD.0100 - * 1" - 1 1/2" BLANK 316L Legacy Part Number DK:  BKD0100 Dimensional Image Key:
    • Width (W) mm:   7
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • Face (D) mm:   24.5
    • Width (W) in:   0.28
    • Face (D) in:   0.96
    BKBDB4064SD6L
    		Blank (2") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 2" DN 50 64 39 1.54" 0.137100
    dimensional image
    View Page → Blank (2") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.0200 Legacy Part Number UK:  BKD.0200 - * 2" BLANK 316L Legacy Part Number DK:  BKD0200 Dimensional Image Key:
    • Width (W) mm:   7
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • Face (D) mm:   39
    • Width (W) in:   0.28
    • Face (D) in:   1.54
    BKBDB4077SD6L
    		Blank (2 1/2") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 2 1/2" 77.5 53.5 2.11" 0.204900
    dimensional image
    View Page → Blank (2 1/2") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.0250 Legacy Part Number UK:  BKD.0250 - * 2 1/2" BLANK 316L Legacy Part Number DK:  BKD0250 Dimensional Image Key:
    • Width (W) mm:   7
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • Face (D) mm:   53.5
    • Width (W) in:   0.28
    • Face (D) in:   2.11
    BKBDB4091SD6L
    		Blank (3") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 3" DN 65 91 66.5 2.62" 0.292800
    dimensional image
    View Page → Blank (3") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.0300 Legacy Part Number UK:  BKD.0300 - * 3" BLANK 316L Legacy Part Number DK:  BKD0300 Dimensional Image Key:
    • Width (W) mm:   7
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • Face (D) mm:   66.5
    • Width (W) in:   0.28
    • Face (D) in:   2.62
    BKBDB4106SD6L
    		Blank (3 1/2") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 3 1/2" DN 80 106 81 3.19" 0.402000
    dimensional image
    View Page → Blank (3 1/2") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.0350 Legacy Part Number UK:  BKD.0350 - * 3 1/2" BLANK 316L Legacy Part Number DK:  BKD0350 Dimensional Image Key:
    • Width (W) mm:   9
    • Flange (A) mm:   106
    • Flange (A) in:   4.17"
    • Face (D) mm:   81
    • Width (W) in:   0.35
    • Face (D) in:   3.19
    BKBDB4119SD6L
    		Blank (4") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 4" DN 100 119 82 3.23" 0.600000
    dimensional image
    View Page → Blank (4") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.0400 Legacy Part Number UK:  BKD.0400 - * 4" BLANK 316L Legacy Part Number DK:  BKD0400 Dimensional Image Key:
    • Width (W) mm:   9
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • Face (D) mm:   82
    • Width (W) in:   0.35
    • Face (D) in:   3.23
    BKBDB4130SD6L
    		Blank (4 1/2") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 4 1/2" 130 95 3.74" 0.180000
    dimensional image
    View Page → Blank (4 1/2") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.0450 Legacy Part Number DK:  BKD0450 Dimensional Image Key:
    • Width (W) mm:   10
    • Flange (A) mm:   130
    • Flange (A) in:   5.12"
    • Face (D) mm:   95
    • Width (W) in:   0.39
    • Face (D) in:   3.74
    BKBDB4144SD6L
    		Blank (5") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 5" 144.4 106 4.17" 1.092000
    dimensional image
    View Page → Blank (5") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.0500 Legacy Part Number UK:  BKD.0500 - * 5" BLANK 316L Legacy Part Number DK:  BKD0500 Dimensional Image Key:
    • Width (W) mm:   10
    • Flange (A) mm:   144.4
    • Flange (A) in:   5.69"
    • Face (D) mm:   106
    • Width (W) in:   0.39
    • Face (D) in:   4.17
    BKBDB4155SD6L
    		Blank (5 1/2") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 5 1/2" DN 125 155 130 5.12" 1.394000
    dimensional image
    View Page → Blank (5 1/2") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.0550 Legacy Part Number UK:  BKD.0550 - * 5 1/2" BLANK 316L Legacy Part Number DK:  BKD0550 Dimensional Image Key:
    • Width (W) mm:   10
    • Flange (A) mm:   155
    • Flange (A) in:   6.1"
    • Face (D) mm:   130
    • Width (W) in:   0.39
    • Face (D) in:   5.12
    BKBDB4167SD6L
    		Blank (6") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 6" 167 140 5.51" 1.616000
    dimensional image
    View Page → Blank (6") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.0600 Legacy Part Number UK:  BKD.0600 - * 6" BLANK 316L Legacy Part Number DK:  BKD0600 Dimensional Image Key:
    • Width (W) mm:   10
    • Flange (A) mm:   167
    • Flange (A) in:   6.57"
    • Face (D) mm:   140
    • Width (W) in:   0.39
    • Face (D) in:   5.51
    BKBDB4183SD6L
    		Blank (6 5/8") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 6 5/8" DN 150 183 158 6.22" 1.958000
    dimensional image
    View Page → Blank (6 5/8") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.0658 Legacy Part Number UK:  BKD.0658 - * 6 5/8" BLANK 316L Legacy Part Number DK:  BKD0658 Dimensional Image Key:
    • Width (W) mm:   10
    • Flange (A) mm:   183
    • Flange (A) in:   7.2"
    • Face (D) mm:   158
    • Width (W) in:   0.39
    • Face (D) in:   6.22
    BKBDB4217SD6L
    		Blank (8") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 8" 217.4 190 7.48" 2.802000
    dimensional image
    View Page → Blank (8") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.0800 Legacy Part Number UK:  BKD.0800 - * 8" BLANK 316L Legacy Part Number DK:  BKD0800 Dimensional Image Key:
    • Width (W) mm:   10
    • Flange (A) mm:   217.4
    • Flange (A) in:   8.56"
    • Face (D) mm:   190
    • Width (W) in:   0.39
    • Face (D) in:   7.48
    BKBDB4233SD6L
    		Blank (8 5/8") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 8 5/8" DN 200 233.5 206 8.11" 3.242000
    dimensional image
    View Page → Blank (8 5/8") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.0858 Legacy Part Number UK:  BKD.0858 - * 8 5/8" BLANK 316L Legacy Part Number DK:  BKD0858 Dimensional Image Key:
    • Width (W) mm:   10
    • Flange (A) mm:   233.5
    • Flange (A) in:   9.19"
    • Face (D) mm:   206
    • Width (W) in:   0.39
    • Face (D) in:   8.11
    BKBDB4268SD6L
    		Blank (10") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 10" DN 250 268 241 9.49" 4.284000
    dimensional image
    View Page → Blank (10") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.1000 Legacy Part Number UK:  BKD.1000 - * 10" BLANK 316L Legacy Part Number DK:  BKD1000 Dimensional Image Key:
    • Width (W) mm:   10
    • Flange (A) mm:   268
    • Flange (A) in:   10.55"
    • Face (D) mm:   241
    • Width (W) in:   0.39
    • Face (D) in:   9.49
    BKBDB4286SD6L
    		Blank (10 5/8") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 10 5/8" 286.1 261 10.28" 4.876000
    dimensional image
    View Page → Blank (10 5/8") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.1058 Legacy Part Number UK:  BKD.1058 - * 10 5/8" BLANK 316L Legacy Part Number DK:  BKD1058 Dimensional Image Key:
    • Width (W) mm:   10
    • Flange (A) mm:   286.1
    • Flange (A) in:   11.26"
    • Face (D) mm:   261
    • Width (W) in:   0.39
    • Face (D) in:   10.28
    BKBDB4319SD6L
    		Blank (12") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 12" DN 300 319 311 12.24" 6.180000
    dimensional image
    View Page → Blank (12") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.1200 Legacy Part Number UK:  BKD.1200 - * 12" BLANK 316L Legacy Part Number DK:  BKD1200 Dimensional Image Key:
    • Width (W) mm:   10
    • Flange (A) mm:   319
    • Flange (A) in:   12.56"
    • Face (D) mm:   311
    • Width (W) in:   0.39
    • Face (D) in:   12.24
    BKBDB4338SD6L
    		Blank (12 5/8") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 12 5/8" 338.5 329 12.95" 7.028000
    dimensional image
    View Page → Blank (12 5/8") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BKD.1258 Legacy Part Number UK:  BKD.1258 - * 12 5/8" BLANK 316L Legacy Part Number DK:  BKD1258 Dimensional Image Key:
    • Width (W) mm:   10
    • Flange (A) mm:   338.5
    • Flange (A) in:   13.33"
    • Face (D) mm:   329
    • Width (W) in:   0.39
    • Face (D) in:   12.95
    BKBPB4050SD6L
    		Blank (1" - 1 1/2") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 1" - 1 1/2" DN 25 50.5 24.5 0.96" 0.082000
    dimensional image
    View Page → Blank (1" - 1 1/2") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BK.0100 Legacy Part Number UK:  BK.0100 - 1" to 1 1/2" BLANK 316L Legacy Part Number DK:  BK0100 Dimensional Image Key:
    • Width (W) mm:   7
    • Flange (A) mm:   50.5
    • Flange (A) in:   —
    • Face (D) mm:   24.5
    • Width (W) in:   —
    • Face (D) in:   —
    BKBPB4025SD6L
    		Blank (1/2") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 1/2" 25.4 12.5 0.49" 0.014000
    dimensional image
    View Page → Blank (1/2") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BK.0050 Legacy Part Number UK:  BK.0050 - 1/2" - 3/4" BLANK 316L Legacy Part Number DK:  BK0050 Dimensional Image Key:
    • Width (W) mm:   5.6
    • Flange (A) mm:   25.4
    • Flange (A) in:   —
    • Face (D) mm:   12.5
    • Width (W) in:   —
    • Face (D) in:   —
    BKBPB4286SD6L
    		Blank (10 5/8") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 10 5/8" 286.1 261 10.28" 4.880000
    dimensional image
    View Page → Blank (10 5/8") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BK.1058 Legacy Part Number UK:  BK.1058 - 10.5/8" BLANK 316L (10" SCH 5) Legacy Part Number DK:  BK1058 Dimensional Image Key:
    • Width (W) mm:   10
    • Flange (A) mm:   286.1
    • Flange (A) in:   —
    • Face (D) mm:   261
    • Width (W) in:   —
    • Face (D) in:   —
    BKBPB4268SD6L
    		Blank (10") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 10" DN 250 268 241 9.49" 4.314000
    dimensional image
    View Page → Blank (10") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BK.1000 Legacy Part Number UK:  BK.1000 - 10" BLANK 316L Legacy Part Number DK:  BK1000 Dimensional Image Key:
    • Width (W) mm:   10
    • Flange (A) mm:   268
    • Flange (A) in:   —
    • Face (D) mm:   241
    • Width (W) in:   —
    • Face (D) in:   —
    BKBPB4338SD6L
    		Blank (12 5/8") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L BS4825 Part 3, DIN 32676, ISO 1127 316L 1.4404 12 5/8" 338.5 329 12.95" 7.028000
    dimensional image
    View Page → Blank (12 5/8") | BS4825 Part 3, DIN 32676, ISO 1127 | 316L Legacy Part Number IE:  BK.1258 Legacy Part Number UK:  BK.1258 - 12.5/8" BLANK 316L (12" SCH 5) Legacy Part Number DK:  BK1258 Dimensional Image Key:
    • Width (W) mm:   10
    • Flange (A) mm:   338.5
    • Flange (A) in:   —
    • Face (D) mm:   329
    • Width (W) in:   —
    • Face (D) in:   —
