SMS Blind Nuts, with Chain

Description

ACL SMS Blind Nuts with Chain are manufactured in accordance with SMS 1145 for use in Food & Beverage and Dairy process systems. The integral chain retains the blind nut when the fitting is open, preventing loss and maintaining hygiene. Produced from 316L stainless steel.

Specifications

Standard: SMS 1145
Surface finish: 0.8Ra µm minimum
Materials comply with AD2000 (PED) and ASME VIII

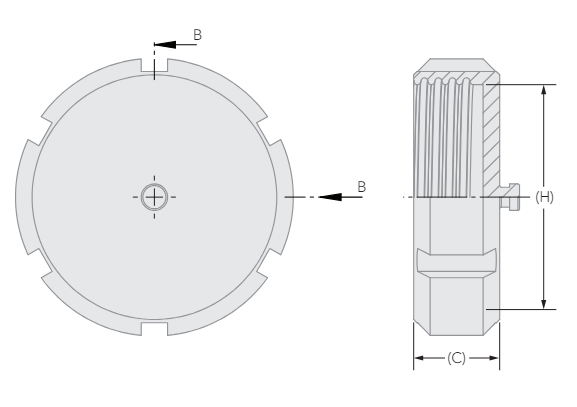

Dimensional Image

Features

Manufactured to SMS 1145 standard
Integral chain retains blind nut during maintenance
Prevents loss of blind nut in process environments
Produced from 316L stainless steel
High-quality surface finish for hygienic compliance
Available in a full range of sizes

Materials

Material: 316L Stainless Steel (nut and chain)

Industry PART#	Product Name	Standard	Type	Size Imperial	Material	Add To Cart LIST PRICE
Hygienic BNSM000250126L	SMS Union (1") \| Blind Nut \| 316L	SMS	Blind Nut	1"	316L	Contact Customer Service For Access To Availability & Ordering
View Page SMS Union (1") \| Blind Nut \| 316L Legacy Part Number IE: BOSM0100 Legacy Part Number UK: BOSM0100 Legacy Part Number DK: BOSM0100 Dimensional Image Key: • Length (C) mm: 20 • OD (H) mm: 40 • Length (C) in: 0.79" • OD 2 (H) in: 1.57" • OD (H) in: 1.57
Hygienic BNSM000380126L	SMS Union (1 1/2") \| Blind Nut \| 316L	SMS	Blind Nut	1 1/2"	316L	Contact Customer Service For Access To Availability & Ordering
View Page SMS Union (1 1/2") \| Blind Nut \| 316L Legacy Part Number IE: BOSM0150 Legacy Part Number UK: BOSM0150 Legacy Part Number DK: BOSM0150 Dimensional Image Key: • Length (C) mm: 25 • OD (H) mm: 60 • Length (C) in: 0.98" • OD 2 (H) in: 2.36" • OD (H) in: 2.36
Hygienic BNSM000510126L	SMS Union (2") \| Blind Nut \| 316L	SMS	Blind Nut	2"	316L	Contact Customer Service For Access To Availability & Ordering
View Page SMS Union (2") \| Blind Nut \| 316L Legacy Part Number IE: BOSM0200 Legacy Part Number UK: BOSM0200 Legacy Part Number DK: BOSM0200 Dimensional Image Key: • Length (C) mm: 26 • OD (H) mm: 70 • Length (C) in: 1.02" • OD 2 (H) in: 2.76" • OD (H) in: 2.76
Hygienic BNSM000630166L	SMS Union (2 1/2") \| Blind Nut \| 316L	SMS	Blind Nut	2 1/2"	316L	Contact Customer Service For Access To Availability & Ordering
View Page SMS Union (2 1/2") \| Blind Nut \| 316L Legacy Part Number IE: BOSM0250 Legacy Part Number UK: BOSM0250 Legacy Part Number DK: BOSM0250 Dimensional Image Key: • Length (C) mm: 30 • OD (H) mm: 85 • Length (C) in: 1.18" • OD 2 (H) in: 3.35" • OD (H) in: 3.35
Hygienic BNSM000760206L	SMS Union (3") \| Blind Nut \| 316L	SMS	Blind Nut	3"	316L	Contact Customer Service For Access To Availability & Ordering
View Page SMS Union (3") \| Blind Nut \| 316L Legacy Part Number IE: BOSM0300 Legacy Part Number UK: BOSM0300 Legacy Part Number DK: BOSM0300 Dimensional Image Key: • Length (C) mm: 30 • OD (H) mm: 98 • Length (C) in: 1.18" • OD 2 (H) in: 3.86" • OD (H) in: 3.86
Hygienic BNSM001010206L	SMS Union (4") \| Blind Nut \| 316L	SMS	Blind Nut	4"	316L	Contact Customer Service For Access To Availability & Ordering
View Page SMS Union (4") \| Blind Nut \| 316L Legacy Part Number IE: BOSM0400 Legacy Part Number UK: BOSM0400 Legacy Part Number DK: BOSM0400 Dimensional Image Key: • Length (C) mm: 30 • OD (H) mm: 132 • Length (C) in: 1.18" • OD 2 (H) in: 5.2" • OD (H) in: 5.2
