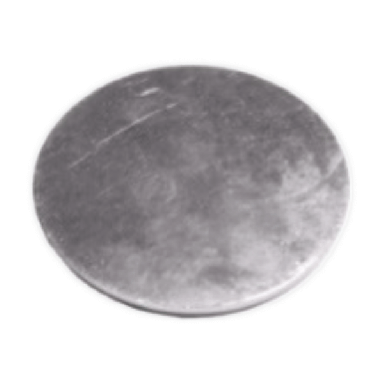

SMS Blanks

Description

ACL SMS Blanks are manufactured in accordance with SMS 1145 and are used in conjunction with SMS nuts to provide a hygienic end closure for SMS union connections in Food & Beverage and Dairy process systems. Produced from 316L stainless steel with a high-quality surface finish.

Specifications

Standard: SMS 1145
Surface finish: 0.8Ra µm minimum
Materials comply with AD2000 (PED) and ASME VIII

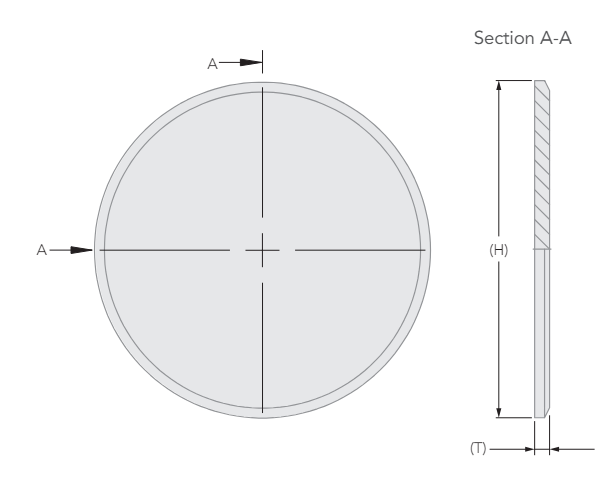

Dimensional Image

Features

Manufactured to SMS 1145 standard
Provides hygienic end closure for SMS union connections
Used in conjunction with SMS nuts
Produced from 316L stainless steel
High-quality surface finish for hygienic compliance
Available in a full range of sizes

Materials

Material: 316L Stainless Steel as standard

Industry PART#	Product Name	Standard	Type	Size Imperial	Material	Add To Cart LIST PRICE
Hygienic BLSM000250126L	SMS Union (1") \| Blank \| 316L	SMS	Blank	1"	316L	Contact Customer Service For Access To Availability & Ordering
View Page SMS Union (1") \| Blank \| 316L Legacy Part Number IE: BKSM0100 Legacy Part Number UK: BKSM0100 Legacy Part Number DK: BKSM0100 Dimensional Image Key: • OD (H) mm: 35.5 • Thickness (T) mm: 3 • OD 2 (H) in: 1.4" • Thickness (T) in: 0.12" • OD (H) in: 1.4
Hygienic BLSM000380126L	SMS Union (1 1/2") \| Blank \| 316L	SMS	Blank	1 1/2"	316L	Contact Customer Service For Access To Availability & Ordering
View Page SMS Union (1 1/2") \| Blank \| 316L Legacy Part Number IE: BKSM0150 Legacy Part Number UK: BKSM0150 Legacy Part Number DK: BKSM0150 Dimensional Image Key: • OD (H) mm: 55 • Thickness (T) mm: 3 • OD 2 (H) in: 2.17" • Thickness (T) in: 0.12" • OD (H) in: 2.17
Hygienic BLSM000510126L	SMS Union (2") \| Blank \| 316L	SMS	Blank	2"	316L	Contact Customer Service For Access To Availability & Ordering
View Page SMS Union (2") \| Blank \| 316L Legacy Part Number IE: BKSM0200 Legacy Part Number UK: BKSM0200 Legacy Part Number DK: BKSM0200 Dimensional Image Key: • OD (H) mm: 65 • Thickness (T) mm: 3 • OD 2 (H) in: 2.56" • Thickness (T) in: 0.12" • OD (H) in: 2.56
Hygienic BLSM000630166L	SMS Union (2 1/2") \| Blank \| 316L	SMS	Blank	2 1/2"	316L	Contact Customer Service For Access To Availability & Ordering
View Page SMS Union (2 1/2") \| Blank \| 316L Legacy Part Number IE: BKSM0250 Legacy Part Number UK: BKSM0250 Legacy Part Number DK: BKSM0250 Dimensional Image Key: • OD (H) mm: 80 • Thickness (T) mm: 4 • OD 2 (H) in: 3.15" • Thickness (T) in: 0.16" • OD (H) in: 3.15
Hygienic BLSM000760206L	SMS Union (3") \| Blank \| 316L	SMS	Blank	3"	316L	Contact Customer Service For Access To Availability & Ordering
View Page SMS Union (3") \| Blank \| 316L Legacy Part Number IE: BKSM0300 Legacy Part Number UK: BKSM0300 Legacy Part Number DK: BKSM0300 Dimensional Image Key: • OD (H) mm: 93 • Thickness (T) mm: 4 • OD 2 (H) in: 3.66" • Thickness (T) in: 0.16" • OD (H) in: 3.66
Hygienic BLSM001010206L	SMS Union (4") \| Blank \| 316L	SMS	Blank	4"	316L	Contact Customer Service For Access To Availability & Ordering
View Page SMS Union (4") \| Blank \| 316L Legacy Part Number IE: BKSM0400 Legacy Part Number UK: BKSM0400 Legacy Part Number DK: BKSM0400 Dimensional Image Key: • OD (H) mm: 127 • Thickness (T) mm: 4 • OD 2 (H) in: 5" • Thickness (T) in: 0.16" • OD (H) in: 5
