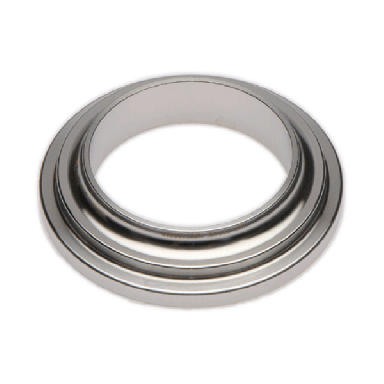

    SMS Liners Long & Short


    SMS Liners Long & Short
    Description

    ACL SMS Liners are manufactured in accordance with SMS 1145 and are available in long and short configurations to suit different weld-end installation requirements in Food & Beverage and Dairy process systems. Produced from 316L stainless steel with surface finishes meeting or exceeding the SMS standard.

    Specifications
    • Standard: SMS 1145
    • Surface finish: 0.8Ra µm minimum (internal)
    • Materials comply with AD2000 (PED) and ASME VIII

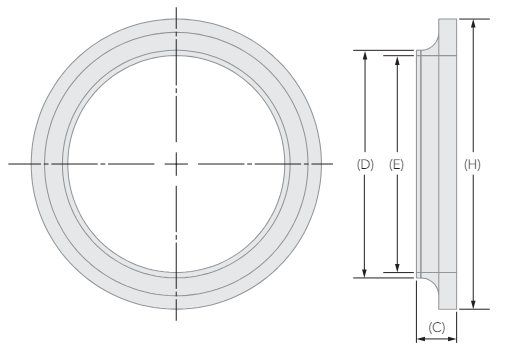

    Dimensional Image
    Features
    • Manufactured to SMS 1145 standard
    • Available in long and short configurations
    • Produced from 316L stainless steel
    • Internal surface finish to 0.8Ra µm or better
    • Flatness and circularity within tight tolerances
    • Full laser marking for traceability
    Materials
    • Material: 316L Stainless Steel as standard
    Total: 12
    Industry
    PART#    		 Product
    Name    		 Standard Type Size Imperial Size Metric Size ISO Size 2 Imperial Size 2 Metric Flange Flange 1 Gender Material Connection
    Add
    To Cart     LIST
    PRICE
    Hygienic
    LISMLV0250126L
    		SMS Union (1") | Liner (Long) | 316L SMS Liner - Long 1" 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     SMS Union (1") | Liner (Long) | 316L Legacy Part Number IE:   LISML100 Legacy Part Number UK:   LISML100 Legacy Part Number DK:   LISML100
    Dimensional Image Key:
    • • Length (C) mm:  17
    • • ID (E) mm:  22.6
    • • OD 2 (H) mm:  35.5
    • • OD (D) mm:  25
    • • OD (H) mm:  25
    • • ID (D) mm:  22.6
    • • ID (E) in:  0.89"
    • • Length (C) in:  0.67"
    • • OD 1 (D) in:  0.98
    • • OD 2 (H) in:  0.98"
    • • OD (H) in:  1.4"
    • • ID (D) in:  0.89"
    • • ID (mm):  22.6
    Hygienic
    LISMLV0380126L
    		SMS Union (1 1/2") | Liner (Long) | 316L SMS Liner - Long 1 1/2" 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     SMS Union (1 1/2") | Liner (Long) | 316L Legacy Part Number IE:   LISML150 Legacy Part Number UK:   LISML150 Legacy Part Number DK:   LISML150
    Dimensional Image Key:
    • • Length (C) mm:  20
    • • ID (E) mm:  35.6
    • • OD 2 (H) mm:  55
    • • OD (D) mm:  38
    • • OD (H) mm:  38
    • • ID (D) mm:  35.6
    • • ID (E) in:  1.4"
    • • Length (C) in:  0.79"
    • • OD 1 (D) in:  1.5
    • • OD 2 (H) in:  1.5"
    • • OD (H) in:  2.17"
    • • ID (D) in:  1.4"
    • • ID (mm):  35.6
    Hygienic
    LISMLV0510126L
    		SMS Union (2") | Liner (Long) | 316L SMS Liner - Long 2" 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     SMS Union (2") | Liner (Long) | 316L Legacy Part Number IE:   LISML200 Legacy Part Number UK:   LISML200 Legacy Part Number DK:   LISML200
    Dimensional Image Key:
    • • Length (C) mm:  20
    • • ID (E) mm:  48.6
    • • OD 2 (H) mm:  65
    • • OD (D) mm:  51
    • • OD (H) mm:  51
    • • ID (D) mm:  48.6
    • • ID (E) in:  1.91"
    • • Length (C) in:  0.79"
    • • OD 1 (D) in:  2.01
    • • OD 2 (H) in:  2.01"
    • • OD (H) in:  2.56"
    • • ID (D) in:  1.91"
    • • ID (mm):  48.6
    Hygienic
    LISMLV0630166L
    		SMS Union (2 1/2") | Liner (Long) | 316L SMS Liner - Long 2 1/2" 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     SMS Union (2 1/2") | Liner (Long) | 316L Legacy Part Number IE:   LISML250 Legacy Part Number UK:   LISML250 Legacy Part Number DK:   LISML250
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • ID (E) mm:  60.3
    • • OD 2 (H) mm:  80
    • • OD (D) mm:  63.5
    • • OD (H) mm:  63.5
    • • ID (D) mm:  60.3
    • • ID (E) in:  2.37"
    • • Length (C) in:  0.98"
    • • OD 1 (D) in:  2.5
    • • OD 2 (H) in:  2.5"
    • • OD (H) in:  3.15"
    • • ID (D) in:  2.37"
    • • ID (mm):  60.3
    Hygienic
    LISMLV0760206L
    		SMS Union (3") | Liner (Long) | 316L SMS Liner - Long 3" 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     SMS Union (3") | Liner (Long) | 316L Legacy Part Number IE:   LISML300 Legacy Part Number UK:   LISML300 Legacy Part Number DK:   LISML300
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • ID (E) mm:  70.1
    • • OD 2 (H) mm:  93
    • • OD (D) mm:  76.1
    • • OD (H) mm:  76.1
    • • ID (D) mm:  70.1
    • • ID (E) in:  2.76"
    • • Length (C) in:  1.18"
    • • OD 1 (D) in:  3
    • • OD 2 (H) in:  3"
    • • OD (H) in:  3.66"
    • • ID (D) in:  2.76"
    • • ID (mm):  70.1
    Hygienic
    LISMLV1010206L
    		SMS Union (4") | Liner (Long) | 316L SMS Liner - Long 4" 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     SMS Union (4") | Liner (Long) | 316L Legacy Part Number IE:   LISML400 Legacy Part Number UK:   LISML400 Legacy Part Number DK:   LISML400
    Dimensional Image Key:
    • • Length (C) mm:  35
    • • ID (E) mm:  97.6
    • • OD 2 (H) mm:  127
    • • OD (D) mm:  101.6
    • • OD (H) mm:  101.6
    • • ID (D) mm:  97.6
    • • ID (E) in:  3.84"
    • • Length (C) in:  1.38"
    • • OD 1 (D) in:  4
    • • OD 2 (H) in:  4"
    • • OD (H) in:  5"
    • • ID (D) in:  3.84"
    • • ID (mm):  97.6
    Hygienic
    LISM000250126L
    		SMS Union (1") | Liner (Short) | 316L SMS Liner - Short 1" 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     SMS Union (1") | Liner (Short) | 316L Legacy Part Number IE:   LISM0100 Legacy Part Number UK:   LISM0100 Legacy Part Number DK:   LISM0100
    Dimensional Image Key:
    • • Length (C) mm:  7.5
    • • ID (E) mm:  22.6
    • • OD 2 (H) mm:  35.5
    • • OD (D) mm:  25
    • • OD (H) mm:  25
    • • ID (D) mm:  22.6
    • • ID (E) in:  0.89"
    • • Length (C) in:  0.3"
    • • OD 1 (D) in:  0.98
    • • OD 2 (H) in:  0.98"
    • • OD (H) in:  1.4"
    • • ID (D) in:  0.89"
    • • ID (mm):  22.6
    Hygienic
    LISM000380126L
    		SMS Union (1 1/2") | Liner (Short) | 316L SMS Liner - Short 1 1/2" 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     SMS Union (1 1/2") | Liner (Short) | 316L Legacy Part Number IE:   LISM0150 Legacy Part Number UK:   LISM0150 Legacy Part Number DK:   LISM0150
    Dimensional Image Key:
    • • Length (C) mm:  9
    • • ID (E) mm:  35.6
    • • OD 2 (H) mm:  55
    • • OD (D) mm:  38
    • • OD (H) mm:  38
    • • ID (D) mm:  35.6
    • • ID (E) in:  1.4"
    • • Length (C) in:  0.35"
    • • OD 1 (D) in:  1.5
    • • OD 2 (H) in:  1.5"
    • • OD (H) in:  2.17"
    • • ID (D) in:  1.4"
    • • ID (mm):  35.6
    Hygienic
    LISM000510126L
    		SMS Union (2") | Liner (Short) | 316L SMS Liner - Short 2" 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     SMS Union (2") | Liner (Short) | 316L Legacy Part Number IE:   LISM0200 Legacy Part Number UK:   LISM0200 Legacy Part Number DK:   LISM0200
    Dimensional Image Key:
    • • Length (C) mm:  9
    • • ID (E) mm:  48.6
    • • OD 2 (H) mm:  65
    • • OD (D) mm:  51
    • • OD (H) mm:  51
    • • ID (D) mm:  48.6
    • • ID (E) in:  1.91"
    • • Length (C) in:  0.35"
    • • OD 1 (D) in:  2.01
    • • OD 2 (H) in:  2.01"
    • • OD (H) in:  2.56"
    • • ID (D) in:  1.91"
    • • ID (mm):  48.6
    Hygienic
    LISM000630166L
    		SMS Union (2 1/2") | Liner (Short) | 316L SMS Liner - Short 2 1/2" 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     SMS Union (2 1/2") | Liner (Short) | 316L Legacy Part Number IE:   LISM0250 Legacy Part Number UK:   LISM0250 Legacy Part Number DK:   LISM0250
    Dimensional Image Key:
    • • Length (C) mm:  9
    • • ID (E) mm:  60.3
    • • OD 2 (H) mm:  80
    • • OD (D) mm:  63.5
    • • OD (H) mm:  63.5
    • • ID (D) mm:  60.3
    • • ID (E) in:  2.37"
    • • Length (C) in:  0.35"
    • • OD 1 (D) in:  2.5
    • • OD 2 (H) in:  2.5"
    • • OD (H) in:  3.15"
    • • ID (D) in:  2.37"
    • • ID (mm):  60.3
    Hygienic
    LISM000760206L
    		SMS Union (3") | Liner (Short) | 316L SMS Liner - Short 3" 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     SMS Union (3") | Liner (Short) | 316L Legacy Part Number IE:   LISM0300 Legacy Part Number UK:   LISM0300 Legacy Part Number DK:   LISM0300
    Dimensional Image Key:
    • • Length (C) mm:  10
    • • ID (E) mm:  70.1
    • • OD 2 (H) mm:  93
    • • OD (D) mm:  76.1
    • • OD (H) mm:  76.1
    • • ID (D) mm:  70.1
    • • ID (E) in:  2.76"
    • • Length (C) in:  0.39"
    • • OD 1 (D) in:  3
    • • OD 2 (H) in:  3"
    • • OD (H) in:  3.66"
    • • ID (D) in:  2.76"
    • • ID (mm):  70.1
    Hygienic
    LISM001010206L
    		SMS Union (4") | Liner (Short) | 316L SMS Liner - Short 4" 316L
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     SMS Union (4") | Liner (Short) | 316L Legacy Part Number IE:   LISM0400 Legacy Part Number UK:   LISM0400 Legacy Part Number DK:   LISM0400
    Dimensional Image Key:
    • • Length (C) mm:  12
    • • ID (E) mm:  97.6
    • • OD 2 (H) mm:  127
    • • OD (D) mm:  101.6
    • • OD (H) mm:  101.6
    • • ID (D) mm:  97.6
    • • ID (E) in:  3.84"
    • • Length (C) in:  0.47"
    • • OD 1 (D) in:  4
    • • OD 2 (H) in:  4"
    • • OD (H) in:  5"
    • • ID (D) in:  3.84"
    • • ID (mm):  97.6
