    DIN Fittings


    DIN Fittings
    Description

    ACL DIN fittings are manufactured in accordance with DIN 11851 standard for use in the Food & Beverage and Dairy industries. The range includes male fittings, nuts, liners, blanks, blind nuts (with chain) and union gaskets, providing a complete system of hygienic connections. All DIN fittings are produced from 316L stainless steel with surface finishes meeting or exceeding the requirements of the DIN standard.

    Full laser marking and 3.1 material certification are available, with a Declaration of Conformity issued as standard.

    Specifications
    • Standard: DIN 11851
    • Surface finish: 0.8Ra µm minimum
    • Materials comply with AD2000 (PED) and ASME VIII
    • 3.1 material certification available
    Features
    • Manufactured to DIN 11851 standard

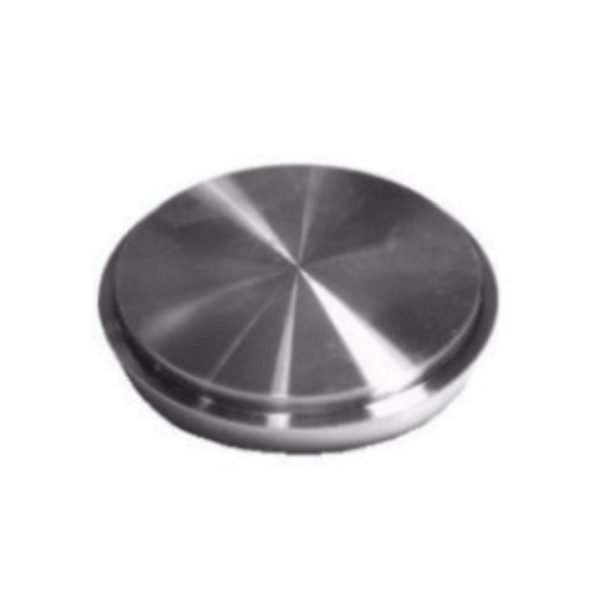

    • Complete system: male, nuts, liners, blanks, blind nuts and gaskets
    • Produced from 316L stainless steel as standard
    • Surface finish to 0.8Ra µm or better
    • Full laser marking for traceability
    • 3.1 material certification available
    • Declaration of Conformity issued as standard
    Materials
    • Material: 316L Stainless Steel as standard
    • Alternative materials available on request
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.
    Union Fittings / DIN Fittings
    Adapters Adapters Hose Adapters Hose Adapters Reducers Reducers Union Fittings Union Fittings Blanks Blanks
    DIN Fittings DIN Fittings
    Spanner Spanner DS Fittings DS Fittings SMS Fittings SMS Fittings RJT Fittings RJT Fittings IDF Fittings IDF Fittings

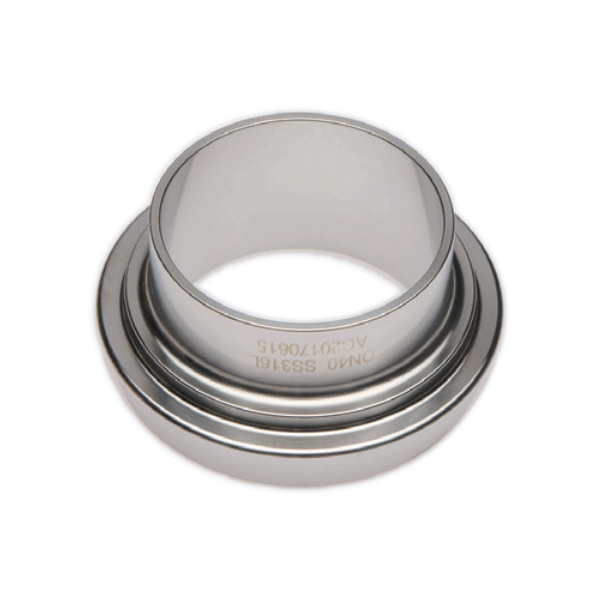

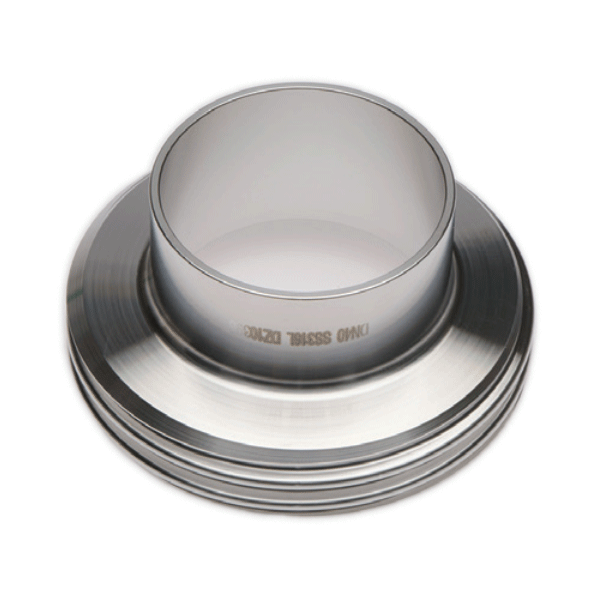

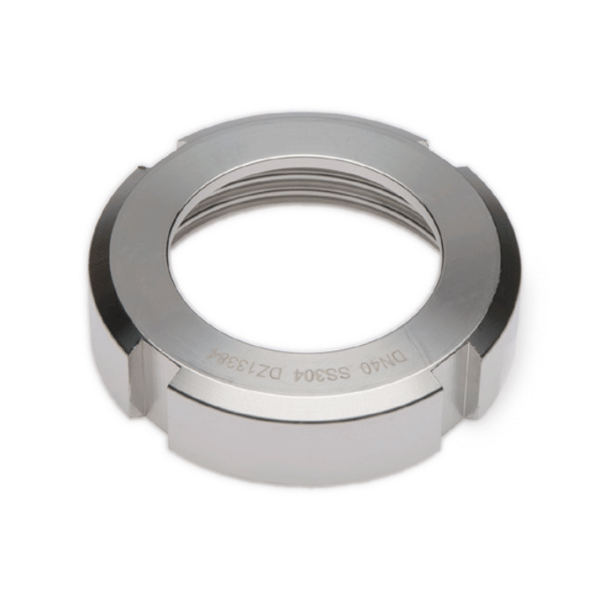

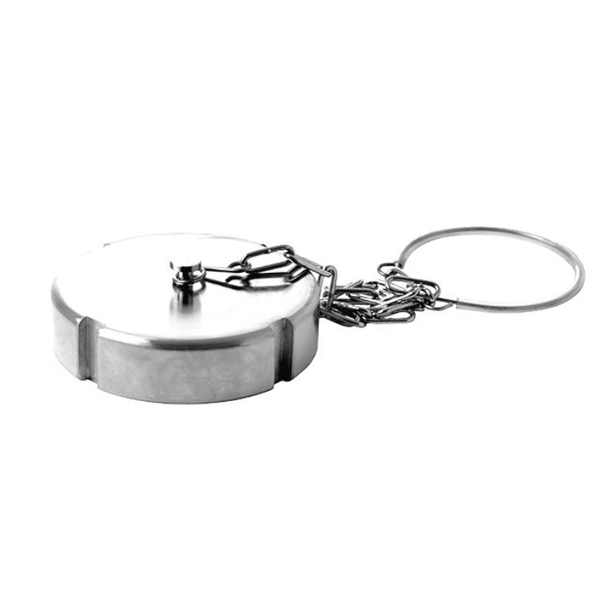

    DIN Male DIN Male DIN Liners DIN Liners DIN Nuts DIN Nuts DIN Blind Nuts, with Chain DIN Blind Nuts, with Chain DIN Union Gaskets DIN Union Gaskets DIN Blanks DIN Blanks
    Total: 96
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade Size (in) Size (DIN) Male / Female Weight

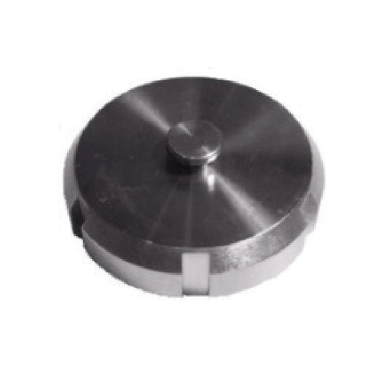

    BNDI000130156L
    		DIN Union (10mm) | Blind Nut | 316L DIN Blind Nut 316L DN 10 0.100000

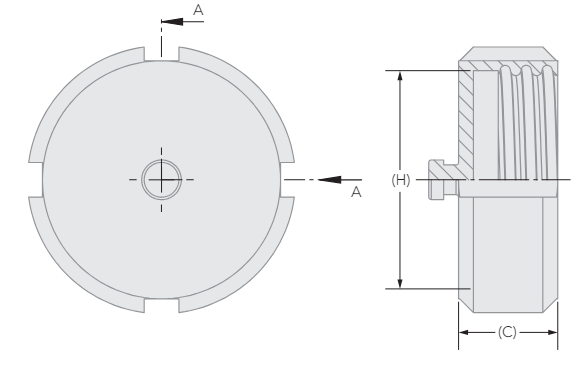

    dimensional image
    View Page → DIN Union (10mm) | Blind Nut | 316L GTIN:  840384332188 Legacy Part Number DK:  BODI0010 Dimensional Image Key:
    • Length (C) mm:   18
    • OD (H) mm:   28
    • ID 1 (H) mm:   28
    • Length (C) in:   0.71"
    • OD 2 (H) in:   1.1"
    • ID (H) in:   1.1
    BNDI000190156L
    		DIN Union (15mm) | Blind Nut | 316L DIN Blind Nut 316L DN 15 0.200000
    dimensional image
    View Page → DIN Union (15mm) | Blind Nut | 316L GTIN:  840384332195 Legacy Part Number DK:  BODI0015 Dimensional Image Key:
    • Length (C) mm:   18
    • OD (H) mm:   34
    • ID 1 (H) mm:   34
    • Length (C) in:   0.71"
    • OD 2 (H) in:   1.34"
    • ID (H) in:   1.34
    BNDI000230156L
    		DIN Union (20mm) | Blind Nut | 316L DIN Blind Nut 316L DN 20 0.200000
    dimensional image
    View Page → DIN Union (20mm) | Blind Nut | 316L GTIN:  840384332201 Legacy Part Number DK:  BODI0020 Dimensional Image Key:
    • Length (C) mm:   21
    • OD (H) mm:   44
    • ID 1 (H) mm:   44
    • Length (C) in:   0.83"
    • OD 2 (H) in:   1.73"
    • ID (H) in:   1.73
    BNDI000290156L
    		DIN Union (25mm) | Blind Nut | 316L DIN Blind Nut 316L DN 25 0.300000
    dimensional image
    View Page → DIN Union (25mm) | Blind Nut | 316L GTIN:  840384332218 Legacy Part Number DK:  BODI0025 Dimensional Image Key:
    • Length (C) mm:   21
    • OD (H) mm:   52
    • ID 1 (H) mm:   52
    • Length (C) in:   0.83"
    • OD 2 (H) in:   2.05"
    • ID (H) in:   2.05
    BNDI000350156L
    		DIN Union (32mm) | Blind Nut | 316L DIN Blind Nut 316L DN 32 0.400000
    dimensional image
    View Page → DIN Union (32mm) | Blind Nut | 316L GTIN:  840384332225 Legacy Part Number DK:  BODI0032 Dimensional Image Key:
    • Length (C) mm:   21
    • OD (H) mm:   58
    • ID 1 (H) mm:   58
    • Length (C) in:   0.83"
    • OD 2 (H) in:   2.28"
    • ID (H) in:   2.28
    BNDI000410156L
    		DIN Union (40mm) | Blind Nut | 316L DIN Blind Nut 316L DN 40 0.400000
    dimensional image
    View Page → DIN Union (40mm) | Blind Nut | 316L GTIN:  840384332232 Legacy Part Number DK:  BODI0040 Dimensional Image Key:
    • Length (C) mm:   21
    • OD (H) mm:   65
    • ID 1 (H) mm:   65
    • Length (C) in:   0.83"
    • OD 2 (H) in:   2.56"
    • ID (H) in:   2.56
    BNDI000530156L
    		DIN Union (50mm) | Blind Nut | 316L DIN Blind Nut 316L DN 50 0.400000
    dimensional image
    View Page → DIN Union (50mm) | Blind Nut | 316L GTIN:  840384332249 Legacy Part Number DK:  BODI0050 Dimensional Image Key:
    • Length (C) mm:   21
    • OD (H) mm:   78
    • ID 1 (H) mm:   78
    • Length (C) in:   0.83"
    • OD 2 (H) in:   3.07"
    • ID (H) in:   3.07
    BNDI000700206L
    		DIN Union (65mm) | Blind Nut | 316L DIN Blind Nut 316L DN 60 0.500000
    dimensional image
    View Page → DIN Union (65mm) | Blind Nut | 316L GTIN:  840384332256 Legacy Part Number DK:  BODI0065 Dimensional Image Key:
    • Length (C) mm:   25
    • OD (H) mm:   95
    • ID 1 (H) mm:   95
    • Length (C) in:   0.98"
    • OD 2 (H) in:   3.74"
    • ID (H) in:   3.74
    BNDI000850206L
    		DIN Union (80mm) | Blind Nut | 316L DIN Blind Nut 316L DN 80 0.500000
    dimensional image
    View Page → DIN Union (80mm) | Blind Nut | 316L GTIN:  840384332263 Legacy Part Number DK:  BODI0080 Dimensional Image Key:
    • Length (C) mm:   30
    • OD (H) mm:   110
    • ID 1 (H) mm:   110
    • Length (C) in:   1.18"
    • OD 2 (H) in:   4.33"
    • ID (H) in:   4.33
    BNDI001040206L
    		DIN Union (100mm) | Blind Nut | 316L DIN Blind Nut 316L DN 100 0.600000
    dimensional image
    View Page → DIN Union (100mm) | Blind Nut | 316L GTIN:  840384332270 Legacy Part Number DK:  BODI0100 Dimensional Image Key:
    • Length (C) mm:   31
    • OD (H) mm:   130
    • ID 1 (H) mm:   130
    • Length (C) in:   1.22"
    • OD 2 (H) in:   5.12"
    • ID (H) in:   5.12
    BNDI001290206L
    		DIN Union (125mm) | Blind Nut | 316L DIN Blind Nut 316L DN 125 0.700000
    dimensional image
    View Page → DIN Union (125mm) | Blind Nut | 316L GTIN:  840384332287 Legacy Part Number DK:  BODI0125 Dimensional Image Key:
    • Length (C) mm:   35
    • OD (H) mm:   160
    • ID 1 (H) mm:   160
    • Length (C) in:   1.38"
    • OD 2 (H) in:   6.3"
    • ID (H) in:   6.3
    BNDI001540206L
    		DIN Union (150mm) | Blind Nut | 316L DIN Blind Nut 316L DN 150 0.800000
    dimensional image
    View Page → DIN Union (150mm) | Blind Nut | 316L GTIN:  840384333581 Legacy Part Number DK:  BODI0150 Dimensional Image Key:
    • Length (C) mm:   40
    • OD (H) mm:   190
    • ID 1 (H) mm:   190
    • Length (C) in:   1.57"
    • OD 2 (H) in:   7.48"
    • ID (H) in:   7.48

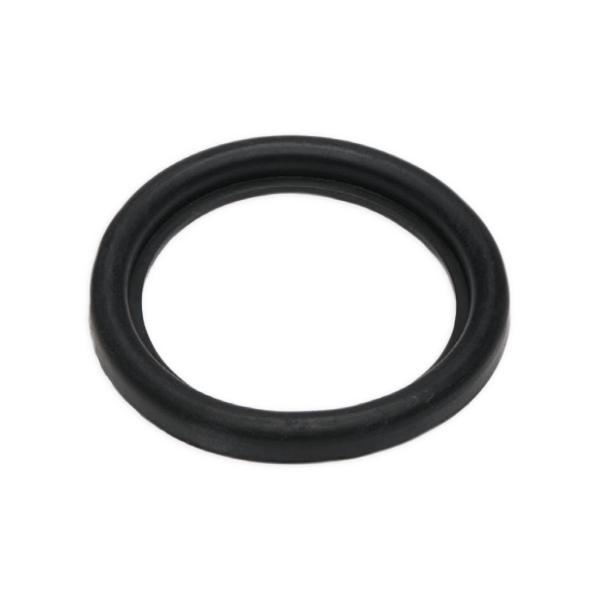

    GUDI013EK
    		DIN Union (10mm) | Gasket | EPDM DIN Gasket EPDM DN 10 0.000000
    dimensional image
    View Page → DIN Union (10mm) | Gasket | EPDM Dimensional Image Key:
    • ID (E) mm:   12
    • OD (D) mm:   20
    • OD (H) mm:   20
    • ID (D) mm:   12
    • Thickness (T) mm:   4.5
    • ID (E) in:   0.47"
    • OD (D) in:   0.79
    • OD 2 (H) in:   0.79"
    • Thickness (T) in:   0.18"
    • ID (D) in:   0.47"
    • ID mm:   12
    GUDI019EK
    		DIN Union (15mm) | Gasket | EPDM DIN Gasket EPDM DN 15 0.000000
    dimensional image
    View Page → DIN Union (15mm) | Gasket | EPDM Dimensional Image Key:
    • ID (E) mm:   18
    • OD (D) mm:   26
    • OD (H) mm:   26
    • ID (D) mm:   18
    • Thickness (T) mm:   4.5
    • ID (E) in:   0.71"
    • OD (D) in:   1.02
    • OD 2 (H) in:   1.02"
    • Thickness (T) in:   0.18"
    • ID (D) in:   0.71"
    • ID mm:   18
    GUDI023EK
    		DIN Union (20mm) | Gasket | EPDM DIN Gasket EPDM DN 20 0.000000
    dimensional image
    View Page → DIN Union (20mm) | Gasket | EPDM Dimensional Image Key:
    • ID (E) mm:   23
    • OD (D) mm:   33
    • OD (H) mm:   33
    • ID (D) mm:   23
    • Thickness (T) mm:   4.5
    • ID (E) in:   0.91"
    • OD (D) in:   1.3
    • OD 2 (H) in:   1.3"
    • Thickness (T) in:   0.18"
    • ID (D) in:   0.91"
    • ID mm:   23
    GUDI029EK
    		DIN Union (25mm) | Gasket | EPDM DIN Gasket EPDM DN 25 0.000000
    dimensional image
    View Page → DIN Union (25mm) | Gasket | EPDM Dimensional Image Key:
    • ID (E) mm:   30
    • OD (D) mm:   40
    • OD (H) mm:   40
    • ID (D) mm:   30
    • Thickness (T) mm:   5
    • ID (E) in:   1.18"
    • OD (D) in:   1.57
    • OD 2 (H) in:   1.57"
    • Thickness (T) in:   0.2"
    • ID (D) in:   1.18"
    • ID mm:   30
    GUDI035EK
    		DIN Union (32mm) | Gasket | EPDM DIN Gasket EPDM DN 32 0.000000
    dimensional image
    View Page → DIN Union (32mm) | Gasket | EPDM Dimensional Image Key:
    • ID (E) mm:   36
    • OD (D) mm:   46
    • OD (H) mm:   46
    • ID (D) mm:   36
    • Thickness (T) mm:   5
    • ID (E) in:   1.42"
    • OD (D) in:   1.81
    • OD 2 (H) in:   1.81"
    • Thickness (T) in:   0.2"
    • ID (D) in:   1.42"
    • ID mm:   36
    GUDI041EK
    		DIN Union (40mm) | Gasket | EPDM DIN Gasket EPDM DN 40 1.000000
    dimensional image
    View Page → DIN Union (40mm) | Gasket | EPDM Legacy Part Number UK:  DN40 Blue EPDM D Seal DIN 11851 Dimensional Image Key:
    • ID (E) mm:   42
    • OD (D) mm:   52
    • OD (H) mm:   52
    • ID (D) mm:   42
    • Thickness (T) mm:   5
    • ID (E) in:   1.65"
    • OD (D) in:   2.05
    • OD 2 (H) in:   2.05"
    • Thickness (T) in:   0.2"
    • ID (D) in:   1.65"
    • ID mm:   42
    GUDI053EK
    		DIN Union (50mm) | Gasket | EPDM DIN Gasket EPDM DN 50 1.000000
    dimensional image
    View Page → DIN Union (50mm) | Gasket | EPDM Legacy Part Number UK:  DN50 Blue EPDM D Seal DIN 11851 Dimensional Image Key:
    • ID (E) mm:   54
    • OD (D) mm:   64
    • OD (H) mm:   64
    • ID (D) mm:   54
    • Thickness (T) mm:   5
    • ID (E) in:   2.13"
    • OD (D) in:   2.52
    • OD 2 (H) in:   2.52"
    • Thickness (T) in:   0.2"
    • ID (D) in:   2.13"
    • ID mm:   54
    GUDI070EK
    		DIN Union (65mm) | Gasket | EPDM DIN Gasket EPDM DN 60 0.000000
    dimensional image
    View Page → DIN Union (65mm) | Gasket | EPDM Dimensional Image Key:
    • ID (E) mm:   71
    • OD (D) mm:   81
    • OD (H) mm:   81
    • ID (D) mm:   71
    • Thickness (T) mm:   5
    • ID (E) in:   2.8"
    • OD (D) in:   3.19
    • OD 2 (H) in:   3.19"
    • Thickness (T) in:   0.2"
    • ID (D) in:   2.8"
    • ID mm:   71
    GUDI085EK
    		DIN Union (80mm) | Gasket | EPDM DIN Gasket EPDM DN 80 0.000000
    dimensional image
    View Page → DIN Union (80mm) | Gasket | EPDM Dimensional Image Key:
    • ID (E) mm:   85
    • OD (D) mm:   95
    • OD (H) mm:   95
    • ID (D) mm:   85
    • Thickness (T) mm:   5
    • ID (E) in:   3.35"
    • OD (D) in:   3.74
    • OD 2 (H) in:   3.74"
    • Thickness (T) in:   0.2"
    • ID (D) in:   3.35"
    • ID mm:   85
    GUDI104EK
    		Hygienic DIN Union (100mm) | Gasket | EPDM
    dimensional image
    View Page → Hygienic DIN Union (100mm) | Gasket | EPDM Legacy Part Number UK:  DIN100 UNION GASKET - EPDM Dimensional Image Key:
    • ID (E) mm:   104
    • OD (D) mm:   114
    • OD (H) mm:   114
    • ID (D) mm:   104
    • Thickness (T) mm:   6
    • ID (E) in:   4.09"
    • OD (D) in:   4.49
    • OD 2 (H) in:   4.49"
    • Thickness (T) in:   0.24"
    • ID (D) in:   4.09"
    GUDI129EK
    		DIN Union (125mm) | Gasket | EPDM DIN Gasket EPDM DN 125 0.000000
    dimensional image
    View Page → DIN Union (125mm) | Gasket | EPDM Dimensional Image Key:
    • ID (E) mm:   130
    • OD (D) mm:   142
    • OD (H) mm:   142
    • ID (D) mm:   130
    • Thickness (T) mm:   7
    • ID (E) in:   5.12"
    • OD (D) in:   5.59
    • OD 2 (H) in:   5.59"
    • Thickness (T) in:   0.28"
    • ID (D) in:   5.12"
    • ID mm:   130
    GUDI154EK
    		DIN Union (150mm) | Gasket | EPDM DIN Gasket EPDM DN 150 0.000000
    dimensional image
    View Page → DIN Union (150mm) | Gasket | EPDM Dimensional Image Key:
    • ID (E) mm:   155
    • OD (D) mm:   167
    • OD (H) mm:   167
    • ID (D) mm:   155
    • Thickness (T) mm:   7
    • ID (E) in:   6.1"
    • OD (D) in:   6.57
    • OD 2 (H) in:   6.57"
    • Thickness (T) in:   0.28"
    • ID (D) in:   6.1"
    • ID mm:   155
    Prev 1 2 3 4 Next
    DIN Union (10mm) | Blind Nut | 316L
    DIN Union (10mm) | Blind Nut | 316L
    Hygienic
    BNDI000130156L
    DIN Union (15mm) | Blind Nut | 316L
    DIN Union (15mm) | Blind Nut | 316L
    Hygienic
    BNDI000190156L
    DIN Union (20mm) | Blind Nut | 316L
    DIN Union (20mm) | Blind Nut | 316L
    Hygienic
    BNDI000230156L
    DIN Union (25mm) | Blind Nut | 316L
    DIN Union (25mm) | Blind Nut | 316L
    Hygienic
    BNDI000290156L
    DIN Union (32mm) | Blind Nut | 316L
    DIN Union (32mm) | Blind Nut | 316L
    Hygienic
    BNDI000350156L
    DIN Union (40mm) | Blind Nut | 316L
    DIN Union (40mm) | Blind Nut | 316L
    Hygienic
    BNDI000410156L
    DIN Union (50mm) | Blind Nut | 316L
    DIN Union (50mm) | Blind Nut | 316L
    Hygienic
    BNDI000530156L
    DIN Union (65mm) | Blind Nut | 316L
    DIN Union (65mm) | Blind Nut | 316L
    Hygienic
    BNDI000700206L
    DIN Union (80mm) | Blind Nut | 316L
    DIN Union (80mm) | Blind Nut | 316L
    Hygienic
    BNDI000850206L
    DIN Union (100mm) | Blind Nut | 316L
    DIN Union (100mm) | Blind Nut | 316L
    Hygienic
    BNDI001040206L
    DIN Union (125mm) | Blind Nut | 316L
    DIN Union (125mm) | Blind Nut | 316L
    Hygienic
    BNDI001290206L
    DIN Union (150mm) | Blind Nut | 316L
    DIN Union (150mm) | Blind Nut | 316L
    Hygienic
    BNDI001540206L
    DIN Union (10mm) | Gasket | EPDM
    DIN Union (10mm) | Gasket | EPDM
    Hygienic
    GUDI013EK
    DIN Union (15mm) | Gasket | EPDM
    DIN Union (15mm) | Gasket | EPDM
    Hygienic
    GUDI019EK
    DIN Union (20mm) | Gasket | EPDM
    DIN Union (20mm) | Gasket | EPDM
    Hygienic
    GUDI023EK
    DIN Union (25mm) | Gasket | EPDM
    DIN Union (25mm) | Gasket | EPDM
    Hygienic
    GUDI029EK
    DIN Union (32mm) | Gasket | EPDM
    DIN Union (32mm) | Gasket | EPDM
    Hygienic
    GUDI035EK
    DIN Union (40mm) | Gasket | EPDM
    DIN Union (40mm) | Gasket | EPDM
    Hygienic
    GUDI041EK
    DIN Union (50mm) | Gasket | EPDM
    DIN Union (50mm) | Gasket | EPDM
    Hygienic
    GUDI053EK
    DIN Union (65mm) | Gasket | EPDM
    DIN Union (65mm) | Gasket | EPDM
    Hygienic
    GUDI070EK
    DIN Union (80mm) | Gasket | EPDM
    DIN Union (80mm) | Gasket | EPDM
    Hygienic
    GUDI085EK
    Hygienic DIN Union (100mm) | Gasket | EPDM
    Hygienic DIN Union (100mm) | Gasket | EPDM
    GUDI104EK
    DIN Union (125mm) | Gasket | EPDM
    DIN Union (125mm) | Gasket | EPDM
    Hygienic
    GUDI129EK
    DIN Union (150mm) | Gasket | EPDM
    DIN Union (150mm) | Gasket | EPDM
    Hygienic
    GUDI154EK
    Prev 1 2 3 4 Next
