    RJT Fittings


    RJT Fittings
    Description

    ACL RJT fittings are manufactured in accordance with BS 4825 Part 4 (RJT standard) for use in the Food & Beverage and Dairy industries. The range covers the complete RJT union system including male fittings, nuts (round and hex), liners, and union gaskets. All RJT fittings are produced from 316L stainless steel with surface finishes meeting or exceeding the BS standard requirements.

    Full laser marking and 3.1 material certification are available, with a Declaration of Conformity issued as standard.

    Specifications
    • Standard: BS 4825 Part 4
    • Surface finish: 0.8Ra µm minimum
    • Materials comply with AD2000 (PED) and ASME VIII
    • 3.1 material certification available
    Features
    • Manufactured to BS 4825 Part 4 (RJT) standard
    • Complete system: male, nuts (round and hex), liners, and gaskets
    • Produced from 316L stainless steel as standard
    • Surface finish to 0.8Ra µm or better
    • Full laser marking for traceability
    • 3.1 material certification available
    • Declaration of Conformity issued as standard
    Materials
    • Material: 316L Stainless Steel as standard
    • Alternative materials available on request
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.
    Union Fittings / RJT Fittings
    Adapters Adapters Hose Adapters Hose Adapters Reducers Reducers Union Fittings Union Fittings Blanks Blanks
    RJT Fittings RJT Fittings
    Spanner Spanner DS Fittings DS Fittings SMS Fittings SMS Fittings DIN Fittings DIN Fittings IDF Fittings IDF Fittings

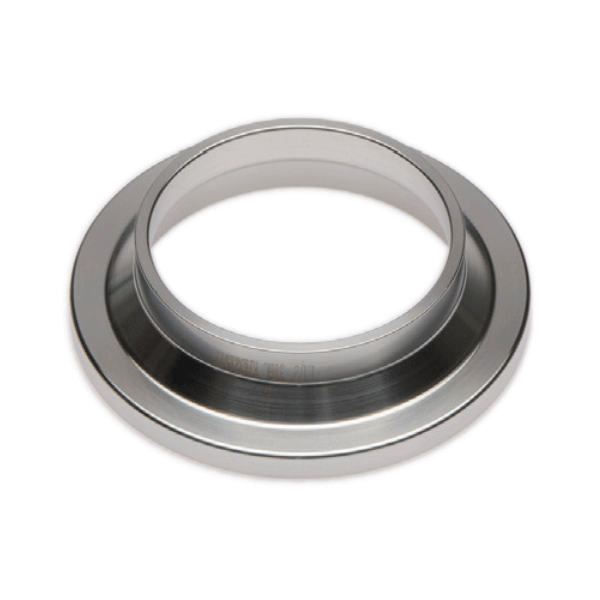

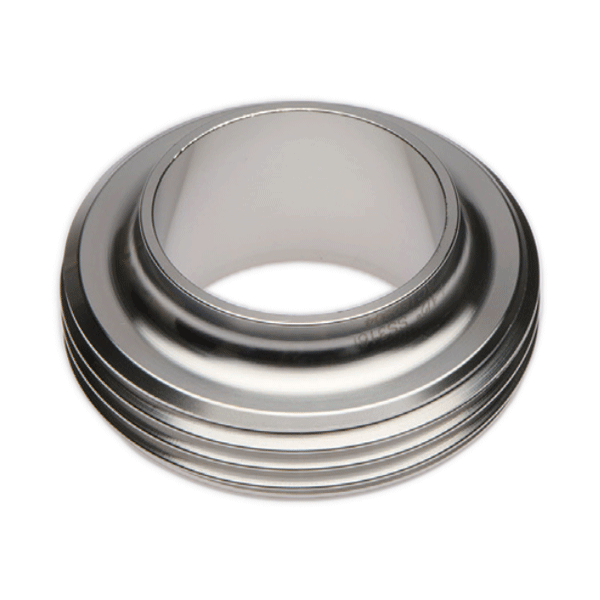

    RJT Male RJT Male RJT Liners RJT Liners RJT Nuts, Hex RJT Nuts, Hex RJT Nuts, Round RJT Nuts, Round RJT Union Gaskets RJT Union Gaskets
    Total: 42
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade Size (in) Size (DIN) Male / Female Weight
    NURJ000250124L

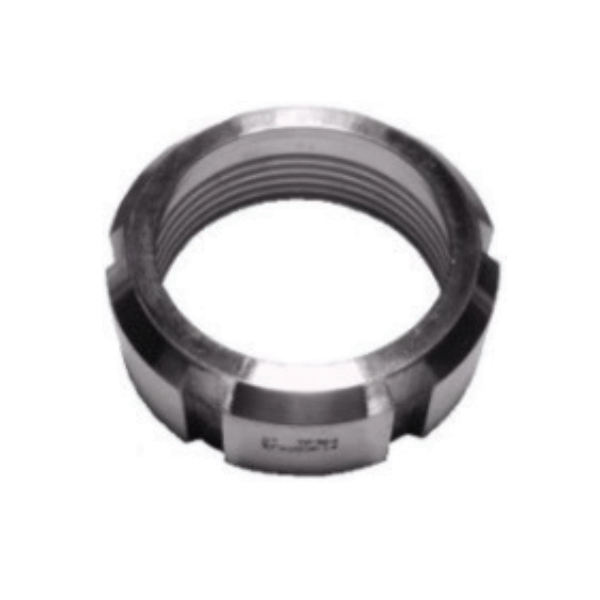

    		RJT Union (1") | Nut (Round) | 304 RJT Nut - Round 304 1" 0.150000

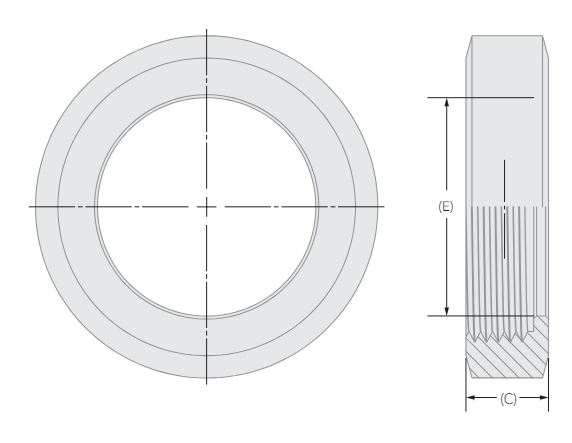

    dimensional image
    View Page → RJT Union (1") | Nut (Round) | 304 Legacy Part Number IE:  OMRJ0100R Legacy Part Number UK:  OMRJ0100R Legacy Part Number DK:  OMRJ0100R Dimensional Image Key:
    • Length (C) mm:   22.2
    • ID (E) mm:   22.2
    • ID (D) mm:   22.2
    • ID (E) in:   0.87"
    • Length (C) in:   0.87"
    • ID (D) in:   0.87"
    • ID mm:   22.2
    NURJ000380124L
    		RJT Union (1 1/2") | Nut (Round) | 304 RJT Nut - Round 304 1 1/2" 0.180000
    dimensional image
    View Page → RJT Union (1 1/2") | Nut (Round) | 304 Legacy Part Number IE:  OMRJ0150R Legacy Part Number UK:  OMRJ0150R Legacy Part Number DK:  OMRJ0150R Dimensional Image Key:
    • Length (C) mm:   22.2
    • ID (E) mm:   34.9
    • ID (D) mm:   34.9
    • ID (E) in:   1.37"
    • Length (C) in:   0.87"
    • ID (D) in:   1.37"
    • ID mm:   34.9
    NURJ000510124L
    		RJT Union (2") | Nut (Round) | 304 RJT Nut - Round 304 2" 0.220000
    dimensional image
    View Page → RJT Union (2") | Nut (Round) | 304 Legacy Part Number IE:  OMRJ0200R Legacy Part Number UK:  OMRJ0200R Legacy Part Number DK:  OMRJ0200R Dimensional Image Key:
    • Length (C) mm:   22.2
    • ID (E) mm:   47.6
    • ID (D) mm:   47.6
    • ID (E) in:   1.87"
    • Length (C) in:   0.87"
    • ID (D) in:   1.87"
    • ID mm:   47.6
    NURJ000630164L
    		RJT Union (2 1/2") | Nut (Round) | 304 RJT Nut - Round 304 2 1/2" 0.300000
    dimensional image
    View Page → RJT Union (2 1/2") | Nut (Round) | 304 Legacy Part Number IE:  OMRJ0250R Legacy Part Number UK:  OMRJ0250R Legacy Part Number DK:  OMRJ0250R Dimensional Image Key:
    • Length (C) mm:   22.2
    • ID (E) mm:   60.3
    • ID (D) mm:   60.3
    • ID (E) in:   2.37"
    • Length (C) in:   0.87"
    • ID (D) in:   2.37"
    • ID mm:   60.3
    NURJ000760204L
    		RJT Union (3") | Nut (Round) | 304 RJT Nut - Round 304 3" 0.350000
    dimensional image
    View Page → RJT Union (3") | Nut (Round) | 304 Legacy Part Number IE:  OMRJ0300R Legacy Part Number UK:  OMRJ0300R Legacy Part Number DK:  OMRJ0300R Dimensional Image Key:
    • Length (C) mm:   22.2
    • ID (E) mm:   73
    • ID (D) mm:   73
    • ID (E) in:   2.87"
    • Length (C) in:   0.87"
    • ID (D) in:   2.87"
    • ID mm:   73
    NURJ001010204L
    		RJT Union (4") | Nut (Round) | 304 RJT Nut - Round 304 4" 0.400000
    dimensional image
    View Page → RJT Union (4") | Nut (Round) | 304 Legacy Part Number IE:  OMRJ0400R Legacy Part Number UK:  OMRJ0400R Legacy Part Number DK:  OMRJ0400R Dimensional Image Key:
    • Length (C) mm:   22.2
    • ID (E) mm:   97.6
    • ID (D) mm:   97.6
    • ID (E) in:   3.84"
    • Length (C) in:   0.87"
    • ID (D) in:   3.84"
    • ID mm:   97.6
    NURJHX0250124L

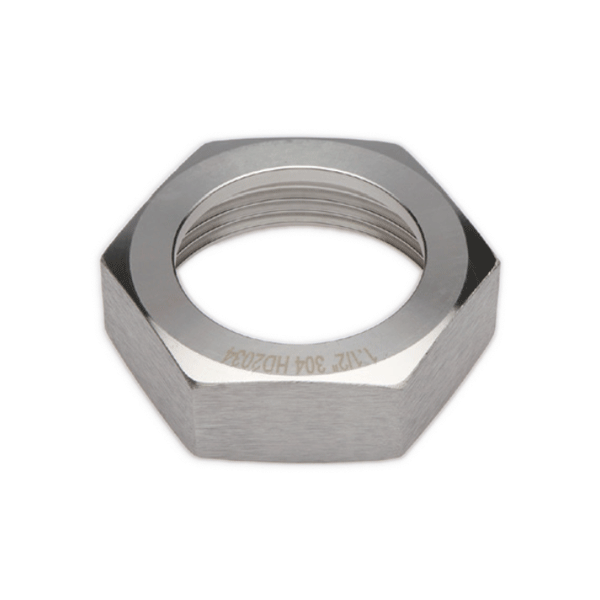

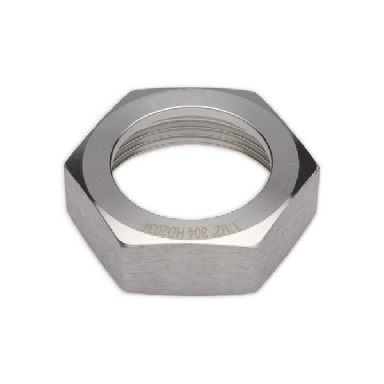

    		RJT Union (1") | Nut (Hex) | 304 RJT Nut - Hex 304 1" 0.150000

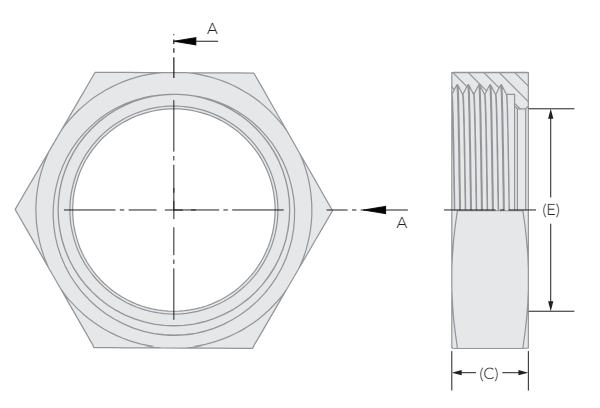

    dimensional image
    View Page → RJT Union (1") | Nut (Hex) | 304 Legacy Part Number IE:  OMRJ0100 Legacy Part Number UK:  OMRJ0100 Legacy Part Number DK:  OMRJ0100 Dimensional Image Key:
    • Length (C) mm:   22.2
    • ID (E) mm:   22.2
    • ID (D) mm:   22.2
    • ID (E) in:   0.87"
    • Length (C) in:   0.87"
    • ID (D) in:   0.87"
    • ID mm:   22.2
    NURJHX0380124L
    		RJT Union (1 1/2") | Nut (Hex) | 304 RJT Nut - Hex 304 1 1/2" 0.180000
    dimensional image
    View Page → RJT Union (1 1/2") | Nut (Hex) | 304 Legacy Part Number IE:  OMRJ0150 Legacy Part Number UK:  OMRJ0150 Legacy Part Number DK:  OMRJ0150 Dimensional Image Key:
    • Length (C) mm:   22.2
    • ID (E) mm:   34.9
    • ID (D) mm:   34.9
    • ID (E) in:   1.37"
    • Length (C) in:   0.87"
    • ID (D) in:   1.37"
    • ID mm:   34.9
    NURJHX0510124L
    		RJT Union (2") | Nut (Hex) | 304 RJT Nut - Hex 304 2" 0.220000
    dimensional image
    View Page → RJT Union (2") | Nut (Hex) | 304 Legacy Part Number IE:  OMRJ0200 Legacy Part Number UK:  OMRJ0200 Legacy Part Number DK:  OMRJ0200 Dimensional Image Key:
    • Length (C) mm:   22.2
    • ID (E) mm:   47.6
    • ID (D) mm:   47.6
    • ID (E) in:   1.87"
    • Length (C) in:   0.87"
    • ID (D) in:   1.87"
    • ID mm:   47.6
    NURJHX0630164L
    		RJT Union (2 1/2") | Nut (Hex) | 304 RJT Nut - Hex 304 2 1/2" 0.300000
    dimensional image
    View Page → RJT Union (2 1/2") | Nut (Hex) | 304 Legacy Part Number IE:  OMRJ0250 Legacy Part Number UK:  OMRJ0250 Legacy Part Number DK:  OMRJ0250 Dimensional Image Key:
    • Length (C) mm:   22.2
    • ID (E) mm:   60.3
    • ID (D) mm:   60.3
    • ID (E) in:   2.37"
    • Length (C) in:   0.87"
    • ID (D) in:   2.37"
    • ID mm:   60.3
    NURJHX0760204L
    		RJT Union (3") | Nut (Hex) | 304 RJT Nut - Hex 304 3" 0.350000
    dimensional image
    View Page → RJT Union (3") | Nut (Hex) | 304 Legacy Part Number IE:  OMRJ0300 Legacy Part Number UK:  OMRJ0300 Legacy Part Number DK:  OMRJ0300 Dimensional Image Key:
    • Length (C) mm:   22.2
    • ID (E) mm:   73
    • ID (D) mm:   73
    • ID (E) in:   2.87"
    • Length (C) in:   0.87"
    • ID (D) in:   2.87"
    • ID mm:   73
    NURJHX1010204L
    		RJT Union (4") | Nut (Hex) | 304 RJT Nut - Hex 304 4" 0.400000
    dimensional image
    View Page → RJT Union (4") | Nut (Hex) | 304 Legacy Part Number IE:  OMRJ0400 Legacy Part Number UK:  OMRJ0400 Legacy Part Number DK:  OMRJ0400 Dimensional Image Key:
    • Length (C) mm:   22.2
    • ID (E) mm:   97.6
    • ID (D) mm:   97.6
    • ID (E) in:   3.84"
    • Length (C) in:   0.87"
    • ID (D) in:   3.84"
    • ID mm:   97.6
    GUFFRJ025EK

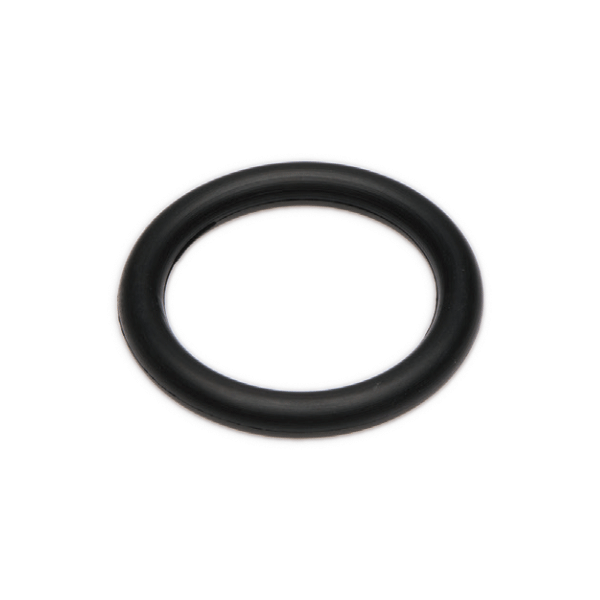

    		RJT Union (1") | Gasket | EPDM Flat-Faced RJT Gasket EPDM Flat-Faced 1" 0.100000
    dimensional image
    View Page → RJT Union (1") | Gasket | EPDM Flat-Faced Legacy Part Number IE:  PERJFL0100 Legacy Part Number UK:  PERJFL0100 Legacy Part Number DK:  PERJFL0100 Dimensional Image Key:
    • ID (E) mm:   26.7
    • OD (D) mm:   39.9
    • OD (H) mm:   39.9
    • ID (D) mm:   26.7
    • Thickness (T) mm:   6.6
    • ID (E) in:   1.05"
    • OD (D) in:   1.57
    • OD 2 (H) in:   1.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   1.05"
    • ID mm:   26.7
    GUFFRJ038EK
    		RJT Union (1 1/2") | Gasket | EPDM Flat-Faced RJT Gasket EPDM Flat-Faced 1 1/2" 0.050000
    dimensional image
    View Page → RJT Union (1 1/2") | Gasket | EPDM Flat-Faced Legacy Part Number IE:  PERJFL0150 Legacy Part Number UK:  PERJFL0150 Legacy Part Number DK:  PERJFL0150 Dimensional Image Key:
    • ID (E) mm:   39.4
    • OD (D) mm:   52.9
    • OD (H) mm:   52.9
    • ID (D) mm:   39.4
    • Thickness (T) mm:   6.6
    • ID (E) in:   1.55"
    • OD (D) in:   2.08
    • OD 2 (H) in:   2.08"
    • Thickness (T) in:   0.26"
    • ID (D) in:   1.55"
    • ID mm:   39.4
    GUFFRJ051EK
    		RJT Union (2") | Gasket | EPDM Flat-Faced RJT Gasket EPDM Flat-Faced 2" 0.120000
    dimensional image
    View Page → RJT Union (2") | Gasket | EPDM Flat-Faced Legacy Part Number IE:  PERJFL0200 Legacy Part Number UK:  PERJFL0200 Legacy Part Number DK:  PERJFL0200 Dimensional Image Key:
    • ID (E) mm:   52.1
    • OD (D) mm:   65.3
    • OD (H) mm:   65.3
    • ID (D) mm:   52.1
    • Thickness (T) mm:   6.6
    • ID (E) in:   2.05"
    • OD (D) in:   2.57
    • OD 2 (H) in:   2.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   2.05"
    • ID mm:   52.1
    GUFFRJ063EK
    		RJT Union (2 1/2") | Gasket | EPDM Flat-Faced RJT Gasket EPDM Flat-Faced 2 1/2" 0.150000
    dimensional image
    View Page → RJT Union (2 1/2") | Gasket | EPDM Flat-Faced Legacy Part Number IE:  PERJFL0250 Legacy Part Number UK:  PERJFL0250 Legacy Part Number DK:  PERJFL0250 Dimensional Image Key:
    • ID (E) mm:   64.8
    • OD (D) mm:   78
    • OD (H) mm:   78
    • ID (D) mm:   64.8
    • Thickness (T) mm:   6.6
    • ID (E) in:   2.55"
    • OD (D) in:   3.07
    • OD 2 (H) in:   3.07"
    • Thickness (T) in:   0.26"
    • ID (D) in:   2.55"
    • ID mm:   64.8
    GUFFRJ076EK
    		RJT Union (3") | Gasket | EPDM Flat-Faced RJT Gasket EPDM Flat-Faced 3" 0.170000
    dimensional image
    View Page → RJT Union (3") | Gasket | EPDM Flat-Faced Legacy Part Number IE:  PERJFL0300 Legacy Part Number UK:  PERJFL0300 Legacy Part Number DK:  PERJFL0300 Dimensional Image Key:
    • ID (E) mm:   77.5
    • OD (D) mm:   90.7
    • OD (H) mm:   90.7
    • ID (D) mm:   77.5
    • Thickness (T) mm:   6.6
    • ID (E) in:   3.05"
    • OD (D) in:   3.57
    • OD 2 (H) in:   3.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   3.05"
    • ID mm:   77.5
    GUFFRJ101EK
    		RJT Union (4") | Gasket | EPDM Flat-Faced RJT Gasket EPDM Flat-Faced 4" 0.200000
    dimensional image
    View Page → RJT Union (4") | Gasket | EPDM Flat-Faced Legacy Part Number IE:  PERJFL0400 Legacy Part Number UK:  PERJFL0400 Legacy Part Number DK:  PERJFL0400 Dimensional Image Key:
    • ID (E) mm:   102.9
    • OD (D) mm:   116.1
    • OD (H) mm:   116.1
    • ID (D) mm:   102.9
    • Thickness (T) mm:   6.6
    • ID (E) in:   4.05"
    • OD (D) in:   4.57
    • OD 2 (H) in:   4.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   4.05"
    • ID mm:   102.9
    GURJ025EK
    		RJT Union (1") | Gasket | EPDM RJT Gasket EPDM 1" 0.100000
    dimensional image
    View Page → RJT Union (1") | Gasket | EPDM Legacy Part Number IE:  PERJ0100 Legacy Part Number UK:  PERJ0100 Legacy Part Number DK:  PERJ0100 Dimensional Image Key:
    • ID (E) mm:   26.7
    • OD (D) mm:   39.9
    • OD (H) mm:   39.9
    • ID (D) mm:   26.7
    • Thickness (T) mm:   6.6
    • ID (E) in:   1.05"
    • OD (D) in:   1.57
    • OD 2 (H) in:   1.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   1.05"
    • ID mm:   26.7
    GURJ038EK
    		RJT Union (1 1/2") | Gasket | EPDM RJT Gasket EPDM 1 1/2" 0.050000
    dimensional image
    View Page → RJT Union (1 1/2") | Gasket | EPDM Legacy Part Number IE:  PERJ0150 Legacy Part Number UK:  PERJ0150 Legacy Part Number DK:  PERJ0150 Dimensional Image Key:
    • ID (E) mm:   39.4
    • OD (D) mm:   52.9
    • OD (H) mm:   52.9
    • ID (D) mm:   39.4
    • Thickness (T) mm:   6.6
    • ID (E) in:   1.55"
    • OD (D) in:   2.08
    • OD 2 (H) in:   2.08"
    • Thickness (T) in:   0.26"
    • ID (D) in:   1.55"
    • ID mm:   39.4
    GURJ051EK
    		RJT Union (2") | Gasket | EPDM RJT Gasket EPDM 2" 0.120000
    dimensional image
    View Page → RJT Union (2") | Gasket | EPDM Legacy Part Number IE:  PERJ0200 Legacy Part Number UK:  PERJ0200 Legacy Part Number DK:  PERJ0200 Dimensional Image Key:
    • ID (E) mm:   52.1
    • OD (D) mm:   65.3
    • OD (H) mm:   65.3
    • ID (D) mm:   52.1
    • Thickness (T) mm:   6.6
    • ID (E) in:   2.05"
    • OD (D) in:   2.57
    • OD 2 (H) in:   2.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   2.05"
    • ID mm:   52.1
    GURJ063EK
    		RJT Union (2 1/2") | Gasket | EPDM RJT Gasket EPDM 2 1/2" 0.150000
    dimensional image
    View Page → RJT Union (2 1/2") | Gasket | EPDM Legacy Part Number IE:  PERJ0250 Legacy Part Number UK:  PERJ0250 Legacy Part Number DK:  PERJ0250 Dimensional Image Key:
    • ID (E) mm:   64.8
    • OD (D) mm:   78
    • OD (H) mm:   78
    • ID (D) mm:   64.8
    • Thickness (T) mm:   6.6
    • ID (E) in:   2.55"
    • OD (D) in:   3.07
    • OD 2 (H) in:   3.07"
    • Thickness (T) in:   0.26"
    • ID (D) in:   2.55"
    • ID mm:   64.8
    GURJ076EK
    		RJT Union (3") | Gasket | EPDM RJT Gasket EPDM 3" 0.170000
    dimensional image
    View Page → RJT Union (3") | Gasket | EPDM Legacy Part Number IE:  PERJ0300 Legacy Part Number UK:  PERJ0300 Legacy Part Number DK:  PERJ0300 Dimensional Image Key:
    • ID (E) mm:   77.5
    • OD (D) mm:   90.7
    • OD (H) mm:   90.7
    • ID (D) mm:   77.5
    • Thickness (T) mm:   6.6
    • ID (E) in:   3.05"
    • OD (D) in:   3.57
    • OD 2 (H) in:   3.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   3.05"
    • ID mm:   77.5
    GURJ101EK
    		RJT Union (4") | Gasket | EPDM RJT Gasket EPDM 4" 0.200000
    dimensional image
    View Page → RJT Union (4") | Gasket | EPDM Legacy Part Number IE:  PERJ0400 Legacy Part Number UK:  PERJ0400 Legacy Part Number DK:  PERJ0400 Dimensional Image Key:
    • ID (E) mm:   102.9
    • OD (D) mm:   116.1
    • OD (H) mm:   116.1
    • ID (D) mm:   102.9
    • Thickness (T) mm:   6.6
    • ID (E) in:   4.05"
    • OD (D) in:   4.57
    • OD 2 (H) in:   4.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   4.05"
    • ID mm:   102.9
    Prev 1 2 Next
    RJT Union (1
    RJT Union (1") | Nut (Round) | 304
    Hygienic
    NURJ000250124L
    RJT Union (1 1/2
    RJT Union (1 1/2") | Nut (Round) | 304
    Hygienic
    NURJ000380124L
    RJT Union (2
    RJT Union (2") | Nut (Round) | 304
    Hygienic
    NURJ000510124L
    RJT Union (2 1/2
    RJT Union (2 1/2") | Nut (Round) | 304
    Hygienic
    NURJ000630164L
    RJT Union (3
    RJT Union (3") | Nut (Round) | 304
    Hygienic
    NURJ000760204L
    RJT Union (4
    RJT Union (4") | Nut (Round) | 304
    Hygienic
    NURJ001010204L
    RJT Union (1
    RJT Union (1") | Nut (Hex) | 304
    Hygienic
    NURJHX0250124L
    RJT Union (1 1/2
    RJT Union (1 1/2") | Nut (Hex) | 304
    Hygienic
    NURJHX0380124L
    RJT Union (2
    RJT Union (2") | Nut (Hex) | 304
    Hygienic
    NURJHX0510124L
    RJT Union (2 1/2
    RJT Union (2 1/2") | Nut (Hex) | 304
    Hygienic
    NURJHX0630164L
    RJT Union (3
    RJT Union (3") | Nut (Hex) | 304
    Hygienic
    NURJHX0760204L
    RJT Union (4
    RJT Union (4") | Nut (Hex) | 304
    Hygienic
    NURJHX1010204L
    RJT Union (1
    RJT Union (1") | Gasket | EPDM Flat-Faced
    Hygienic
    GUFFRJ025EK
    RJT Union (1 1/2
    RJT Union (1 1/2") | Gasket | EPDM Flat-Faced
    Hygienic
    GUFFRJ038EK
    RJT Union (2
    RJT Union (2") | Gasket | EPDM Flat-Faced
    Hygienic
    GUFFRJ051EK
    RJT Union (2 1/2
    RJT Union (2 1/2") | Gasket | EPDM Flat-Faced
    Hygienic
    GUFFRJ063EK
    RJT Union (3
    RJT Union (3") | Gasket | EPDM Flat-Faced
    Hygienic
    GUFFRJ076EK
    RJT Union (4
    RJT Union (4") | Gasket | EPDM Flat-Faced
    Hygienic
    GUFFRJ101EK
    RJT Union (1
    RJT Union (1") | Gasket | EPDM
    Hygienic
    GURJ025EK
    RJT Union (1 1/2
    RJT Union (1 1/2") | Gasket | EPDM
    Hygienic
    GURJ038EK
    RJT Union (2
    RJT Union (2") | Gasket | EPDM
    Hygienic
    GURJ051EK
    RJT Union (2 1/2
    RJT Union (2 1/2") | Gasket | EPDM
    Hygienic
    GURJ063EK
    RJT Union (3
    RJT Union (3") | Gasket | EPDM
    Hygienic
    GURJ076EK
    RJT Union (4
    RJT Union (4") | Gasket | EPDM
    Hygienic
    GURJ101EK
    Prev 1 2 Next
