RJT Liners

Description

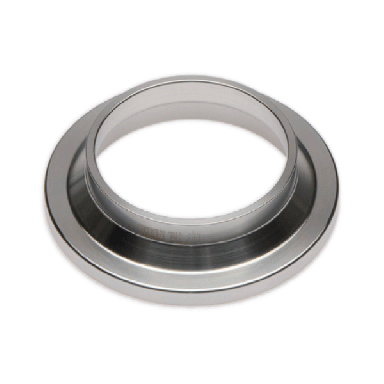

ACL RJT Liners provide the weld end of the RJT union assembly and are manufactured in accordance with BS 4825 Part 4 for use in Food & Beverage and Dairy process systems. Produced from 316L stainless steel bar or tube stock with surface finishes meeting or exceeding the BS standard.

Specifications

Standard: BS 4825 Part 4
Surface finish: 0.8Ra µm minimum (internal)
Materials comply with AD2000 (PED) and ASME VIII

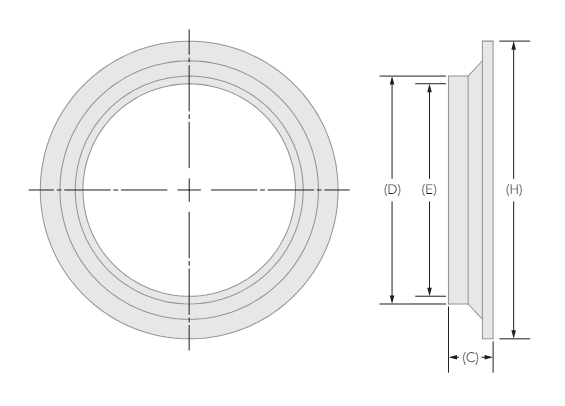

Dimensional Image

Features

Manufactured to BS 4825 Part 4 standard
Produced from 316L stainless steel
Internal surface finish to 0.8Ra µm or better
Flatness and circularity within tight tolerances
Full laser marking for traceability
Available in a full range of sizes

Materials

Material: 316L Stainless Steel as standard

Data Center

ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.

Industry PART#	Product Name	Standard	Type	Size Imperial	Material	Add To Cart LIST PRICE
Hygienic NIRJ000250126L	RJT Union (1") \| Male Thread Liner / Nipple \| 316L	RJT	Male Thread Liner / Nipple	1"	316L	Contact Customer Service For Access To Availability & Ordering
View Page RJT Union (1") \| Male Thread Liner / Nipple \| 316L Legacy Part Number IE: NIRJ0100 Legacy Part Number UK: NIRJ0100 Legacy Part Number DK: NIRJ0100 Dimensional Image Key: • Length (C) mm: 12.7 • OD 1 (D) mm: 25.4 • ID (E) mm: 22.2 • OD 2 (H) mm: 40 • OD (H) mm: 25.4 • ID (D) mm: 22.2 • ID (E) in: 0.87" • Length (C) in: 0.5" • OD 1 (D) in: 1 • OD 2 (H) in: 1" • OD (H) in: 1.57" • ID (D) in: 0.87" • ID (mm): 22.2
Hygienic NIRJ000380126L	RJT Union (1 1/2") \| Male Thread Liner / Nipple \| 316L	RJT	Male Thread Liner / Nipple	1 1/2"	316L	Contact Customer Service For Access To Availability & Ordering
View Page RJT Union (1 1/2") \| Male Thread Liner / Nipple \| 316L Legacy Part Number IE: NIRJ0150 Legacy Part Number UK: NIRJ0150 Legacy Part Number DK: NIRJ0150 Dimensional Image Key: • Length (C) mm: 12.7 • OD 1 (D) mm: 38.1 • ID (E) mm: 34.9 • OD 2 (H) mm: 54 • OD (H) mm: 38.1 • ID (D) mm: 34.9 • ID (E) in: 1.37" • Length (C) in: 0.5" • OD 1 (D) in: 1.5 • OD 2 (H) in: 1.5" • OD (H) in: 2.13" • ID (D) in: 1.37" • ID (mm): 34.9
Hygienic NIRJ000510126L	RJT Union (2") \| Male Thread Liner / Nipple \| 316L	RJT	Male Thread Liner / Nipple	2"	316L	Contact Customer Service For Access To Availability & Ordering
View Page RJT Union (2") \| Male Thread Liner / Nipple \| 316L Legacy Part Number IE: NIRJ0200 Legacy Part Number UK: NIRJ0200 Legacy Part Number DK: NIRJ0200 Dimensional Image Key: • Length (C) mm: 12.7 • OD 1 (D) mm: 50.8 • ID (E) mm: 47.6 • OD 2 (H) mm: 68 • OD (H) mm: 50.8 • ID (D) mm: 47.6 • ID (E) in: 1.87" • Length (C) in: 0.5" • OD 1 (D) in: 2 • OD 2 (H) in: 2" • OD (H) in: 2.68" • ID (D) in: 1.87" • ID (mm): 47.6
Hygienic NIRJ000630166L	RJT Union (2 1/2") \| Male Thread Liner / Nipple \| 316L	RJT	Male Thread Liner / Nipple	2 1/2"	316L	Contact Customer Service For Access To Availability & Ordering
View Page RJT Union (2 1/2") \| Male Thread Liner / Nipple \| 316L Legacy Part Number IE: NIRJ0250 Legacy Part Number UK: NIRJ0250 Legacy Part Number DK: NIRJ0250 Dimensional Image Key: • Length (C) mm: 12.7 • OD 1 (D) mm: 63.5 • ID (E) mm: 60.3 • OD 2 (H) mm: 84 • OD (H) mm: 63.5 • ID (D) mm: 60.3 • ID (E) in: 2.37" • Length (C) in: 0.5" • OD 1 (D) in: 2.5 • OD 2 (H) in: 2.5" • OD (H) in: 3.31" • ID (D) in: 2.37" • ID (mm): 60.3
Hygienic NIRJ000760206L	RJT Union (3") \| Male Thread Liner / Nipple \| 316L	RJT	Male Thread Liner / Nipple	3"	316L	Contact Customer Service For Access To Availability & Ordering
View Page RJT Union (3") \| Male Thread Liner / Nipple \| 316L Legacy Part Number IE: NIRJ0300 Legacy Part Number UK: NIRJ0300 Legacy Part Number DK: NIRJ0300 Dimensional Image Key: • Length (C) mm: 12.7 • OD 1 (D) mm: 76.2 • ID (E) mm: 73 • OD 2 (H) mm: 96 • OD (H) mm: 76.2 • ID (D) mm: 73 • ID (E) in: 2.87" • Length (C) in: 0.5" • OD 1 (D) in: 3 • OD 2 (H) in: 3" • OD (H) in: 3.78" • ID (D) in: 2.87" • ID (mm): 73
Hygienic NIRJ001010206L	RJT Union (4") \| Male Thread Liner / Nipple \| 316L	RJT	Male Thread Liner / Nipple	4"	316L	Contact Customer Service For Access To Availability & Ordering
View Page RJT Union (4") \| Male Thread Liner / Nipple \| 316L Legacy Part Number IE: NIRJ0400 Legacy Part Number UK: NIRJ0400 Legacy Part Number DK: NIRJ0400 Dimensional Image Key: • Length (C) mm: 25.4 • OD 1 (D) mm: 102 • ID (E) mm: 97.6 • OD 2 (H) mm: 124 • OD (H) mm: 102 • ID (D) mm: 97.6 • ID (E) in: 3.84" • Length (C) in: 1" • OD 1 (D) in: 4.02 • OD 2 (H) in: 4.02" • OD (H) in: 4.88" • ID (D) in: 3.84" • ID (mm): 97.6
