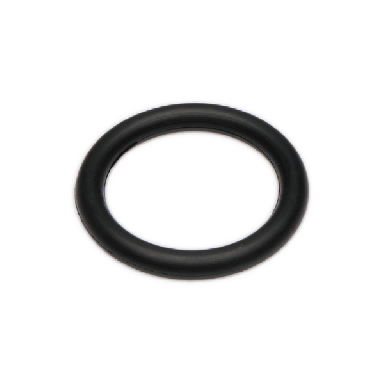

    RJT Union Gaskets


    RJT Union Gaskets
    Description

    ACL RJT Union Gaskets are manufactured for use with RJT hygienic fittings (BS 4825 Part 4) in Food & Beverage and Dairy process systems. Available in a full range of elastomer and polymer materials, all gaskets are FDA approved as a minimum requirement with USP Class VI available on request.

    Specifications
    • Standard: BS 4825 Part 4
    • FDA approved as minimum; USP Class VI available
    • Supplied lipped as standard

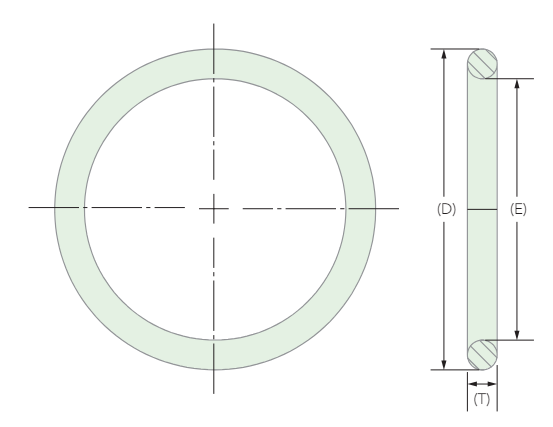

    Dimensional Image
    Features
    • Manufactured for use with RJT (BS 4825 Part 4) fittings
    • Available in EPDM, Silicone, Viton, PTFE and other materials
    • FDA approved as standard; USP Class VI available
    • Supplied lipped as standard for ease of assembly
    • Full range of common sizes in stock
    Materials
    • Elastomers: EPDM, Silicone, Viton
    • Polymers: PTFE, PEEK, TFM
    • Envelope: Polymer body with elastomer inner
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.
    RJT Fittings / RJT Union Gaskets
    Spanner Spanner DS Fittings DS Fittings SMS Fittings SMS Fittings DIN Fittings DIN Fittings RJT Fittings RJT Fittings IDF Fittings IDF Fittings
    RJT Union Gaskets RJT Union Gaskets
    RJT Male RJT Male RJT Liners RJT Liners RJT Nuts, Hex RJT Nuts, Hex RJT Nuts, Round RJT Nuts, Round
    Total: 18
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade Size (in) Size (DIN) ID (mm) ID (in) OD (mm) OD (in) Face (mm) Face (in) Weight
    GUFFRJ025EK
    		RJT Union (1") | Gasket | EPDM Flat-Faced RJT Gasket EPDM Flat-Faced 1" 1.05" 39.9 1.57" 0.100000
    dimensional image
    View Page → RJT Union (1") | Gasket | EPDM Flat-Faced GTIN:  840384333093 Legacy Part Number DK:  PERJFL0100 Dimensional Image Key:
    • ID (E) mm:   26.7
    • OD (D) mm:   39.9
    • OD (H) mm:   39.9
    • ID (D) mm:   26.7
    • Thickness (T) mm:   6.6
    • ID (E) in:   1.05"
    • OD (D) in:   1.57
    • OD 2 (H) in:   1.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   1.05"
    • ID mm:   26.7
    GUFFRJ038EK
    		RJT Union (1 1/2") | Gasket | EPDM Flat-Faced RJT Gasket EPDM Flat-Faced 1 1/2" 1.55" 52.9 2.08" 0.050000
    dimensional image
    View Page → RJT Union (1 1/2") | Gasket | EPDM Flat-Faced GTIN:  840384333109 Legacy Part Number DK:  PERJFL0150 Dimensional Image Key:
    • ID (E) mm:   39.4
    • OD (D) mm:   52.9
    • OD (H) mm:   52.9
    • ID (D) mm:   39.4
    • Thickness (T) mm:   6.6
    • ID (E) in:   1.55"
    • OD (D) in:   2.08
    • OD 2 (H) in:   2.08"
    • Thickness (T) in:   0.26"
    • ID (D) in:   1.55"
    • ID mm:   39.4
    GUFFRJ051EK
    		RJT Union (2") | Gasket | EPDM Flat-Faced RJT Gasket EPDM Flat-Faced 2" 2.05" 65.3 2.57" 0.120000
    dimensional image
    View Page → RJT Union (2") | Gasket | EPDM Flat-Faced GTIN:  840384333116 Legacy Part Number DK:  PERJFL0200 Dimensional Image Key:
    • ID (E) mm:   52.1
    • OD (D) mm:   65.3
    • OD (H) mm:   65.3
    • ID (D) mm:   52.1
    • Thickness (T) mm:   6.6
    • ID (E) in:   2.05"
    • OD (D) in:   2.57
    • OD 2 (H) in:   2.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   2.05"
    • ID mm:   52.1
    GUFFRJ063EK
    		RJT Union (2 1/2") | Gasket | EPDM Flat-Faced RJT Gasket EPDM Flat-Faced 2 1/2" 2.55" 78 3.07" 0.150000
    dimensional image
    View Page → RJT Union (2 1/2") | Gasket | EPDM Flat-Faced GTIN:  840384333123 Legacy Part Number DK:  PERJFL0250 Dimensional Image Key:
    • ID (E) mm:   64.8
    • OD (D) mm:   78
    • OD (H) mm:   78
    • ID (D) mm:   64.8
    • Thickness (T) mm:   6.6
    • ID (E) in:   2.55"
    • OD (D) in:   3.07
    • OD 2 (H) in:   3.07"
    • Thickness (T) in:   0.26"
    • ID (D) in:   2.55"
    • ID mm:   64.8
    GUFFRJ076EK
    		RJT Union (3") | Gasket | EPDM Flat-Faced RJT Gasket EPDM Flat-Faced 3" 3.05" 90.7 3.57" 0.170000
    dimensional image
    View Page → RJT Union (3") | Gasket | EPDM Flat-Faced GTIN:  840384333130 Legacy Part Number DK:  PERJFL0300 Dimensional Image Key:
    • ID (E) mm:   77.5
    • OD (D) mm:   90.7
    • OD (H) mm:   90.7
    • ID (D) mm:   77.5
    • Thickness (T) mm:   6.6
    • ID (E) in:   3.05"
    • OD (D) in:   3.57
    • OD 2 (H) in:   3.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   3.05"
    • ID mm:   77.5
    GUFFRJ101EK
    		RJT Union (4") | Gasket | EPDM Flat-Faced RJT Gasket EPDM Flat-Faced 4" 4.05" 116.1 4.57" 0.200000
    dimensional image
    View Page → RJT Union (4") | Gasket | EPDM Flat-Faced GTIN:  840384333147 Legacy Part Number DK:  PERJFL0400 Dimensional Image Key:
    • ID (E) mm:   102.9
    • OD (D) mm:   116.1
    • OD (H) mm:   116.1
    • ID (D) mm:   102.9
    • Thickness (T) mm:   6.6
    • ID (E) in:   4.05"
    • OD (D) in:   4.57
    • OD 2 (H) in:   4.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   4.05"
    • ID mm:   102.9
    GURJ025EK
    		RJT Union (1") | Gasket | EPDM RJT Gasket EPDM 1" 1.05" 39.9 1.57" 0.100000
    dimensional image
    View Page → RJT Union (1") | Gasket | EPDM GTIN:  840384332911 Legacy Part Number DK:  PERJ0100 Dimensional Image Key:
    • ID (E) mm:   26.7
    • OD (D) mm:   39.9
    • OD (H) mm:   39.9
    • ID (D) mm:   26.7
    • Thickness (T) mm:   6.6
    • ID (E) in:   1.05"
    • OD (D) in:   1.57
    • OD 2 (H) in:   1.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   1.05"
    • ID mm:   26.7
    GURJ038EK
    		RJT Union (1 1/2") | Gasket | EPDM RJT Gasket EPDM 1 1/2" 1.55" 52.9 2.08" 0.050000
    dimensional image
    View Page → RJT Union (1 1/2") | Gasket | EPDM GTIN:  840384332942 Legacy Part Number DK:  PERJ0150 Dimensional Image Key:
    • ID (E) mm:   39.4
    • OD (D) mm:   52.9
    • OD (H) mm:   52.9
    • ID (D) mm:   39.4
    • Thickness (T) mm:   6.6
    • ID (E) in:   1.55"
    • OD (D) in:   2.08
    • OD 2 (H) in:   2.08"
    • Thickness (T) in:   0.26"
    • ID (D) in:   1.55"
    • ID mm:   39.4
    GURJ051EK
    		RJT Union (2") | Gasket | EPDM RJT Gasket EPDM 2" 2.05" 65.3 2.57" 0.120000
    dimensional image
    View Page → RJT Union (2") | Gasket | EPDM GTIN:  840384332973 Legacy Part Number DK:  PERJ0200 Dimensional Image Key:
    • ID (E) mm:   52.1
    • OD (D) mm:   65.3
    • OD (H) mm:   65.3
    • ID (D) mm:   52.1
    • Thickness (T) mm:   6.6
    • ID (E) in:   2.05"
    • OD (D) in:   2.57
    • OD 2 (H) in:   2.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   2.05"
    • ID mm:   52.1
    GURJ063EK
    		RJT Union (2 1/2") | Gasket | EPDM RJT Gasket EPDM 2 1/2" 2.55" 78 3.07" 0.150000
    dimensional image
    View Page → RJT Union (2 1/2") | Gasket | EPDM GTIN:  840384333017 Legacy Part Number DK:  PERJ0250 Dimensional Image Key:
    • ID (E) mm:   64.8
    • OD (D) mm:   78
    • OD (H) mm:   78
    • ID (D) mm:   64.8
    • Thickness (T) mm:   6.6
    • ID (E) in:   2.55"
    • OD (D) in:   3.07
    • OD 2 (H) in:   3.07"
    • Thickness (T) in:   0.26"
    • ID (D) in:   2.55"
    • ID mm:   64.8
    GURJ076EK
    		RJT Union (3") | Gasket | EPDM RJT Gasket EPDM 3" 3.05" 90.7 3.57" 0.170000
    dimensional image
    View Page → RJT Union (3") | Gasket | EPDM GTIN:  840384333031 Legacy Part Number DK:  PERJ0300 Dimensional Image Key:
    • ID (E) mm:   77.5
    • OD (D) mm:   90.7
    • OD (H) mm:   90.7
    • ID (D) mm:   77.5
    • Thickness (T) mm:   6.6
    • ID (E) in:   3.05"
    • OD (D) in:   3.57
    • OD 2 (H) in:   3.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   3.05"
    • ID mm:   77.5
    GURJ101EK
    		RJT Union (4") | Gasket | EPDM RJT Gasket EPDM 4" 4.05" 116.1 4.57" 0.200000
    dimensional image
    View Page → RJT Union (4") | Gasket | EPDM GTIN:  840384333062 Legacy Part Number DK:  PERJ0400 Dimensional Image Key:
    • ID (E) mm:   102.9
    • OD (D) mm:   116.1
    • OD (H) mm:   116.1
    • ID (D) mm:   102.9
    • Thickness (T) mm:   6.6
    • ID (E) in:   4.05"
    • OD (D) in:   4.57
    • OD 2 (H) in:   4.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   4.05"
    • ID mm:   102.9
    GURJ025NT
    		RJT Union (1") | Gasket | NBR RJT Gasket NBR 1" 1.05" 39.9 1.57" 0.100000
    dimensional image
    View Page → RJT Union (1") | Gasket | NBR GTIN:  840384332928 Legacy Part Number DK:  PNRJ0100 Dimensional Image Key:
    • ID (E) mm:   26.7
    • OD (D) mm:   39.9
    • OD (H) mm:   39.9
    • ID (D) mm:   26.7
    • Thickness (T) mm:   6.6
    • ID (E) in:   1.05"
    • OD (D) in:   1.57
    • OD 2 (H) in:   1.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   1.05"
    • ID mm:   26.7
    GURJ038NT
    		RJT Union (1 1/2") | Gasket | NBR RJT Gasket NBR 1 1/2" 1.55" 52.9 2.08" 0.050000
    dimensional image
    View Page → RJT Union (1 1/2") | Gasket | NBR GTIN:  840384332959 Legacy Part Number DK:  PNRJ0150 Dimensional Image Key:
    • ID (E) mm:   39.4
    • OD (D) mm:   52.9
    • OD (H) mm:   52.9
    • ID (D) mm:   39.4
    • Thickness (T) mm:   6.6
    • ID (E) in:   1.55"
    • OD (D) in:   2.08
    • OD 2 (H) in:   2.08"
    • Thickness (T) in:   0.26"
    • ID (D) in:   1.55"
    • ID mm:   39.4
    GURJ051NT
    		RJT Union (2") | Gasket | NBR RJT Gasket NBR 2" 2.05" 65.3 2.57" 0.120000
    dimensional image
    View Page → RJT Union (2") | Gasket | NBR GTIN:  840384332980 Legacy Part Number DK:  PNRJ0200 Dimensional Image Key:
    • ID (E) mm:   52.1
    • OD (D) mm:   65.3
    • OD (H) mm:   65.3
    • ID (D) mm:   52.1
    • Thickness (T) mm:   6.6
    • ID (E) in:   2.05"
    • OD (D) in:   2.57
    • OD 2 (H) in:   2.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   2.05"
    • ID mm:   52.1
    GURJ063NT
    		RJT Union (2 1/2") | Gasket | NBR RJT Gasket NBR 2 1/2" 2.55" 78 3.07" 0.150000
    dimensional image
    View Page → RJT Union (2 1/2") | Gasket | NBR GTIN:  840384333000 Legacy Part Number DK:  PNRJ0250 Dimensional Image Key:
    • ID (E) mm:   64.8
    • OD (D) mm:   78
    • OD (H) mm:   78
    • ID (D) mm:   64.8
    • Thickness (T) mm:   6.6
    • ID (E) in:   2.55"
    • OD (D) in:   3.07
    • OD 2 (H) in:   3.07"
    • Thickness (T) in:   0.26"
    • ID (D) in:   2.55"
    • ID mm:   64.8
    GURJ076NT
    		RJT Union (3") | Gasket | NBR RJT Gasket NBR 3" 3.05" 90.7 3.57" 0.170000
    dimensional image
    View Page → RJT Union (3") | Gasket | NBR GTIN:  840384333048 Legacy Part Number DK:  PNRJ0300 Dimensional Image Key:
    • ID (E) mm:   77.5
    • OD (D) mm:   90.7
    • OD (H) mm:   90.7
    • ID (D) mm:   77.5
    • Thickness (T) mm:   6.6
    • ID (E) in:   3.05"
    • OD (D) in:   3.57
    • OD 2 (H) in:   3.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   3.05"
    • ID mm:   77.5
    GURJ101NT
    		RJT Union (4") | Gasket | NBR RJT Gasket NBR 4" 4.05" 116.1 4.57" 0.200000
    dimensional image
    View Page → RJT Union (4") | Gasket | NBR GTIN:  840384333079 Legacy Part Number DK:  PNRJ0400 Dimensional Image Key:
    • ID (E) mm:   102.9
    • OD (D) mm:   116.1
    • OD (H) mm:   116.1
    • ID (D) mm:   102.9
    • Thickness (T) mm:   6.6
    • ID (E) in:   4.05"
    • OD (D) in:   4.57
    • OD 2 (H) in:   4.57"
    • Thickness (T) in:   0.26"
    • ID (D) in:   4.05"
    • ID mm:   102.9
