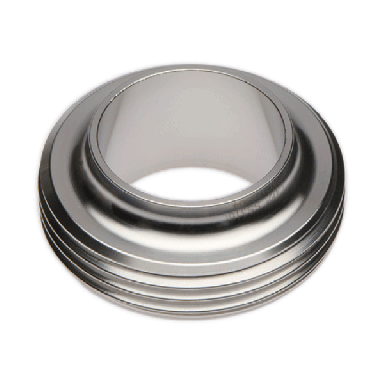

    RJT Male


    RJT Male
    Description

    ACL RJT Male fittings are manufactured in accordance with BS 4825 Part 4 for use in Food & Beverage and Dairy process systems. Produced from 316L stainless steel, these fittings provide the male threaded end of the RJT union assembly and are available in a full range of sizes from stock.

    Specifications
    • Standard: BS 4825 Part 4
    • Surface finish: 0.8Ra µm minimum
    • Materials comply with AD2000 (PED) and ASME VIII

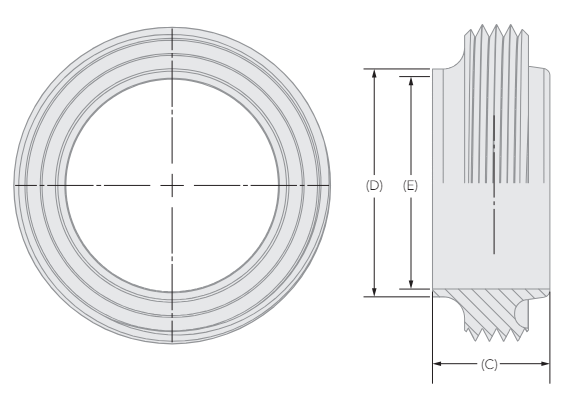

    Dimensional Image
    Features
    • Manufactured to BS 4825 Part 4 standard
    • Produced from 316L stainless steel
    • High-quality internal and external surface finish
    • Flatness of sealing face meets or exceeds guidelines
    • Full laser marking for traceability
    • Available in a full range of sizes
    Materials
    • Material: 316L Stainless Steel as standard
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.
    RJT Fittings / RJT Male
    Spanner Spanner DS Fittings DS Fittings SMS Fittings SMS Fittings DIN Fittings DIN Fittings RJT Fittings RJT Fittings IDF Fittings IDF Fittings
    RJT Male RJT Male
    RJT Liners RJT Liners RJT Nuts, Hex RJT Nuts, Hex RJT Nuts, Round RJT Nuts, Round RJT Union Gaskets RJT Union Gaskets
    Total: 6
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade EN Standard ASTM Standard Size (in) Size (DIN) ID (mm) ID (in) OD (mm) OD (in) Flange (mm) Flange (in) Neck (mm) Neck (in) Height (mm) Height (in) Face (mm) Face (in) Weight
    LIRJ000250126L
    		RJT Union (1") | Liner | 316L RJT Liner 316L 1.4404 S31603 1" 0.87" 25.4 1" 0.300000
    dimensional image
    View Page → RJT Union (1") | Liner | 316L Legacy Part Number IE:  LIRJ0100 Legacy Part Number UK:  LIRJ0100 Legacy Part Number DK:  LIRJ0100 Dimensional Image Key:
    • Length (C) mm:   21.5
    • ID (E) mm:   22.2
    • OD (D) mm:   25.4
    • OD (H) mm:   25.4
    • ID (D) mm:   22.2
    • ID (E) in:   0.87"
    • Length (C) in:   0.85"
    • OD (D) in:   1
    • OD 2 (H) in:   1"
    • Thickness (T) in:   0.85
    • ID (D) in:   0.87"
    • ID mm:   22.2
    LIRJ000380126L
    		RJT Union (1 1/2") | Liner | 316L RJT Liner 316L 1.4404 S31603 1 1/2" 1.37" 38.1 1.5" 0.350000
    dimensional image
    View Page → RJT Union (1 1/2") | Liner | 316L Legacy Part Number IE:  LIRJ0150 Legacy Part Number UK:  LIRJ0150 Legacy Part Number DK:  LIRJ0150 Dimensional Image Key:
    • Length (C) mm:   21.5
    • ID (E) mm:   34.9
    • OD (D) mm:   38.1
    • OD (H) mm:   38.1
    • ID (D) mm:   34.9
    • ID (E) in:   1.37"
    • Length (C) in:   0.85"
    • OD (D) in:   1.5
    • OD 2 (H) in:   1.5"
    • Thickness (T) in:   0.85
    • ID (D) in:   1.37"
    • ID mm:   34.9
    LIRJ000510126L
    		RJT Union (2") | Liner | 316L RJT Liner 316L 1.4404 S31603 2" 1.87" 50.8 2" 0.450000
    dimensional image
    View Page → RJT Union (2") | Liner | 316L Legacy Part Number IE:  LIRJ0200 Legacy Part Number UK:  LIRJ0200 Legacy Part Number DK:  LIRJ0200 Dimensional Image Key:
    • Length (C) mm:   21.5
    • ID (E) mm:   47.6
    • OD (D) mm:   50.8
    • OD (H) mm:   50.8
    • ID (D) mm:   47.6
    • ID (E) in:   1.87"
    • Length (C) in:   0.85"
    • OD (D) in:   2
    • OD 2 (H) in:   2"
    • Thickness (T) in:   0.85
    • ID (D) in:   1.87"
    • ID mm:   47.6
    LIRJ000630166L
    		RJT Union (2 1/2") | Liner | 316L RJT Liner 316L 1.4404 S31603 2 1/2" 2.37" 63.5 2.5" 0.600000
    dimensional image
    View Page → RJT Union (2 1/2") | Liner | 316L Legacy Part Number IE:  LIRJ0250 Legacy Part Number UK:  LIRJ0250 Legacy Part Number DK:  LIRJ0250 Dimensional Image Key:
    • Length (C) mm:   21.5
    • ID (E) mm:   60.3
    • OD (D) mm:   63.5
    • OD (H) mm:   63.5
    • ID (D) mm:   60.3
    • ID (E) in:   2.37"
    • Length (C) in:   0.85"
    • OD (D) in:   2.5
    • OD 2 (H) in:   2.5"
    • Thickness (T) in:   0.85
    • ID (D) in:   2.37"
    • ID mm:   60.3
    LIRJ000760206L
    		RJT Union (3") | Liner | 316L RJT Liner 316L 1.4404 S31603 3" 2.87" 76.2 3" 0.750000
    dimensional image
    View Page → RJT Union (3") | Liner | 316L Legacy Part Number IE:  LIRJ0300 Legacy Part Number UK:  LIRJ0300 Legacy Part Number DK:  LIRJ0300 Dimensional Image Key:
    • Length (C) mm:   21.5
    • ID (E) mm:   73
    • OD (D) mm:   76.2
    • OD (H) mm:   76.2
    • ID (D) mm:   73
    • ID (E) in:   2.87"
    • Length (C) in:   0.85"
    • OD (D) in:   3
    • OD 2 (H) in:   3"
    • Thickness (T) in:   0.85
    • ID (D) in:   2.87"
    • ID mm:   73
    LIRJ001010206L
    		RJT Union (4") | Liner | 316L RJT Liner 316L 1.4404 S31603 4" 3.84" 102 4.02" 0.900000
    dimensional image
    View Page → RJT Union (4") | Liner | 316L Legacy Part Number IE:  LIRJ0400 Legacy Part Number UK:  LIRJ0400 Legacy Part Number DK:  LIRJ0400 Dimensional Image Key:
    • Length (C) mm:   21.5
    • ID (E) mm:   97.6
    • OD (D) mm:   102
    • OD (H) mm:   102
    • ID (D) mm:   97.6
    • ID (E) in:   3.84"
    • Length (C) in:   0.85"
    • OD (D) in:   4.02
    • OD 2 (H) in:   4.02"
    • Thickness (T) in:   0.85
    • ID (D) in:   3.84"
    • ID mm:   97.6
