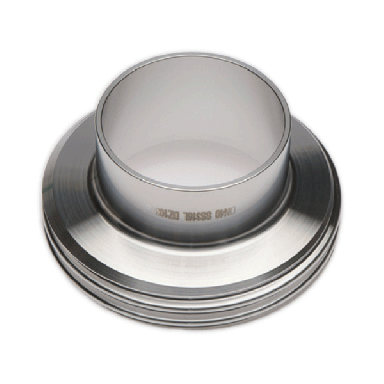

    DIN Male


    DIN Male
    Description

    ACL DIN Male fittings are manufactured in accordance with DIN 11851 for use in Food & Beverage and Dairy process systems. Produced from 316L stainless steel, these fittings provide the male threaded end of the DIN union assembly and are available in a full range of sizes from stock.

    Specifications
    • Standard: DIN 11851
    • Surface finish: 0.8Ra µm minimum
    • Materials comply with AD2000 (PED) and ASME VIII

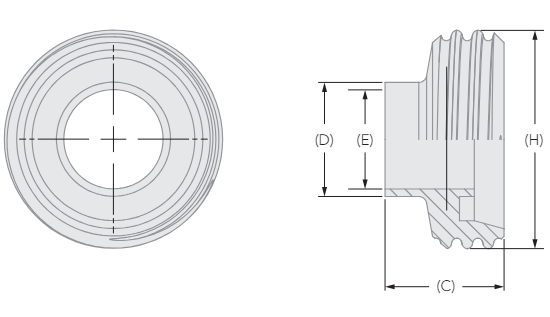

    Dimensional Image
    Features
    • Manufactured to DIN 11851 standard
    • Produced from 316L stainless steel
    • High-quality internal and external surface finish
    • Flatness of sealing face meets or exceeds guidelines
    • Full laser marking for traceability
    • Available in a full range of sizes
    Materials
    • Material: 316L Stainless Steel as standard
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.
    DIN Fittings / DIN Male
    Spanner Spanner DS Fittings DS Fittings SMS Fittings SMS Fittings DIN Fittings DIN Fittings RJT Fittings RJT Fittings IDF Fittings IDF Fittings
    DIN Male DIN Male
    DIN Liners DIN Liners DIN Nuts DIN Nuts DIN Blind Nuts, with Chain DIN Blind Nuts, with Chain DIN Union Gaskets DIN Union Gaskets DIN Blanks DIN Blanks
    Total: 12
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade EN Standard ASTM Standard Size (in) Size (DIN) ID (mm) ID (in) OD (mm) OD (in) Flange (mm) Flange (in) Neck (mm) Neck (in) Height (mm) Height (in) Face (mm) Face (in) Weight
    NIDI000130156L
    		DIN Union (10mm) | Male Thread Liner / Nipple | 316L DIN Male Thread Liner / Nipple 316L 1.4404 S31603 DN 10 0.39" 13 0.51" 0.100000
    dimensional image
    View Page → DIN Union (10mm) | Male Thread Liner / Nipple | 316L Legacy Part Number IE:  NIDI0010 Legacy Part Number UK:  NIDI0010 Legacy Part Number DK:  NIDI0010 Dimensional Image Key:
    • Length (C) mm:   21
    • OD 1 (D) mm:   13
    • ID (E) mm:   10
    • OD 2 (H) mm:   28
    • OD (H) mm:   13
    • ID (D) mm:   10
    • ID (E) in:   0.39"
    • Length (C) in:   0.83"
    • OD 1 (D) in:   0.51
    • OD 2 (H) in:   0.51"
    • OD (H) in:   1.1"
    • ID (D) in:   0.39"
    • ID mm:   10
    NIDI000190156L
    		DIN Union (15mm) | Male Thread Liner / Nipple | 316L DIN Male Thread Liner / Nipple 316L 1.4404 S31603 DN 15 0.63" 19 0.75" 0.150000
    dimensional image
    View Page → DIN Union (15mm) | Male Thread Liner / Nipple | 316L Legacy Part Number IE:  NIDI0015 Legacy Part Number UK:  NIDI0015 Legacy Part Number DK:  NIDI0015 Dimensional Image Key:
    • Length (C) mm:   21
    • OD 1 (D) mm:   19
    • ID (E) mm:   16
    • OD 2 (H) mm:   34
    • OD (H) mm:   19
    • ID (D) mm:   16
    • ID (E) in:   0.63"
    • Length (C) in:   0.83"
    • OD 1 (D) in:   0.75
    • OD 2 (H) in:   0.75"
    • OD (H) in:   1.34"
    • ID (D) in:   0.63"
    • ID mm:   16
    NIDI000230156L
    		DIN Union (20mm) | Male Thread Liner / Nipple | 316L DIN Male Thread Liner / Nipple 316L 1.4404 S31603 DN 20 0.79" 23 0.91" 0.200000
    dimensional image
    View Page → DIN Union (20mm) | Male Thread Liner / Nipple | 316L Legacy Part Number IE:  NIDI0020 Legacy Part Number UK:  NIDI0020 Legacy Part Number DK:  NIDI0020 Dimensional Image Key:
    • Length (C) mm:   24
    • OD 1 (D) mm:   23
    • ID (E) mm:   20
    • OD 2 (H) mm:   44
    • OD (H) mm:   23
    • ID (D) mm:   20
    • ID (E) in:   0.79"
    • Length (C) in:   0.94"
    • OD 1 (D) in:   0.91
    • OD 2 (H) in:   0.91"
    • OD (H) in:   1.73"
    • ID (D) in:   0.79"
    • ID mm:   20
    NIDI000290156L
    		DIN Union (25mm) | Male Thread Liner / Nipple | 316L DIN Male Thread Liner / Nipple 316L 1.4404 S31603 DN 25 1.02" 29 1.14" 0.250000
    dimensional image
    View Page → DIN Union (25mm) | Male Thread Liner / Nipple | 316L Legacy Part Number IE:  NIDI0025 Legacy Part Number UK:  NIDI0025 Legacy Part Number DK:  NIDI0025 Dimensional Image Key:
    • Length (C) mm:   29
    • OD 1 (D) mm:   29
    • ID (E) mm:   26
    • OD 2 (H) mm:   52
    • OD (H) mm:   29
    • ID (D) mm:   26
    • ID (E) in:   1.02"
    • Length (C) in:   1.14"
    • OD 1 (D) in:   1.14
    • OD 2 (H) in:   1.14"
    • OD (H) in:   2.05"
    • ID (D) in:   1.02"
    • ID mm:   26
    NIDI000350156L
    		DIN Union (32mm) | Male Thread Liner / Nipple | 316L DIN Male Thread Liner / Nipple 316L 1.4404 S31603 DN 32 1.26" 35 1.38" 0.300000
    dimensional image
    View Page → DIN Union (32mm) | Male Thread Liner / Nipple | 316L Legacy Part Number IE:  NIDI0032 Legacy Part Number UK:  NIDI0032 Legacy Part Number DK:  NIDI0032 Dimensional Image Key:
    • Length (C) mm:   32
    • OD 1 (D) mm:   35
    • ID (E) mm:   32
    • OD 2 (H) mm:   58
    • OD (H) mm:   35
    • ID (D) mm:   32
    • ID (E) in:   1.26"
    • Length (C) in:   1.26"
    • OD 1 (D) in:   1.38
    • OD 2 (H) in:   1.38"
    • OD (H) in:   2.28"
    • ID (D) in:   1.26"
    • ID mm:   32
    NIDI000410156L
    		DIN Union (40mm) | Male Thread Liner / Nipple | 316L DIN Male Thread Liner / Nipple 316L 1.4404 S31603 DN 40 1.5" 41 1.61" 0.350000
    dimensional image
    View Page → DIN Union (40mm) | Male Thread Liner / Nipple | 316L Legacy Part Number IE:  NIDI0040 Legacy Part Number UK:  NIDI0040 Legacy Part Number DK:  NIDI0040 Dimensional Image Key:
    • Length (C) mm:   33
    • OD 1 (D) mm:   41
    • ID (E) mm:   38
    • OD 2 (H) mm:   65
    • OD (H) mm:   41
    • ID (D) mm:   38
    • ID (E) in:   1.5"
    • Length (C) in:   1.3"
    • OD 1 (D) in:   1.61
    • OD 2 (H) in:   1.61"
    • OD (H) in:   2.56"
    • ID (D) in:   1.5"
    • ID mm:   38
    NIDI000530156L
    		DIN Union (50mm) | Male Thread Liner / Nipple | 316L DIN Male Thread Liner / Nipple 316L 1.4404 S31603 DN 50 1.97" 53 2.09" 0.450000
    dimensional image
    View Page → DIN Union (50mm) | Male Thread Liner / Nipple | 316L Legacy Part Number IE:  NIDI0050 Legacy Part Number UK:  NIDI0050 Legacy Part Number DK:  NIDI0050 Dimensional Image Key:
    • Length (C) mm:   35
    • OD 1 (D) mm:   53
    • ID (E) mm:   50
    • OD 2 (H) mm:   78
    • OD (H) mm:   53
    • ID (D) mm:   50
    • ID (E) in:   1.97"
    • Length (C) in:   1.38"
    • OD 1 (D) in:   2.09
    • OD 2 (H) in:   2.09"
    • OD (H) in:   3.07"
    • ID (D) in:   1.97"
    • ID mm:   50
    NIDI000700206L
    		DIN Union (65mm) | Male Thread Liner / Nipple | 316L DIN Male Thread Liner / Nipple 316L 1.4404 S31603 DN 65 2.6" 70 2.76" 0.600000
    dimensional image
    View Page → DIN Union (65mm) | Male Thread Liner / Nipple | 316L Legacy Part Number IE:  NIDI0065 Legacy Part Number UK:  NIDI0065 Legacy Part Number DK:  NIDI0065 Dimensional Image Key:
    • Length (C) mm:   40
    • OD 1 (D) mm:   70
    • ID (E) mm:   66
    • OD 2 (H) mm:   95
    • OD (H) mm:   70
    • ID (D) mm:   66
    • ID (E) in:   2.6"
    • Length (C) in:   1.57"
    • OD 1 (D) in:   2.76
    • OD 2 (H) in:   2.76"
    • OD (H) in:   3.74"
    • ID (D) in:   2.6"
    • ID mm:   66
    NIDI000850206L
    		DIN Union (80mm) | Male Thread Liner / Nipple | 316L DIN Male Thread Liner / Nipple 316L 1.4404 S31603 DN 80 3.19" 85 3.35" 0.750000
    dimensional image
    View Page → DIN Union (80mm) | Male Thread Liner / Nipple | 316L Legacy Part Number IE:  NIDI0080 Legacy Part Number UK:  NIDI0080 Legacy Part Number DK:  NIDI0080 Dimensional Image Key:
    • Length (C) mm:   45
    • OD 1 (D) mm:   85
    • ID (E) mm:   81
    • OD 2 (H) mm:   110
    • OD (H) mm:   85
    • ID (D) mm:   81
    • ID (E) in:   3.19"
    • Length (C) in:   1.77"
    • OD 1 (D) in:   3.35
    • OD 2 (H) in:   3.35"
    • OD (H) in:   4.33"
    • ID (D) in:   3.19"
    • ID mm:   81
    NIDI001040206L
    		DIN Union (100mm) | Male Thread Liner / Nipple | 316L DIN Male Thread Liner / Nipple 316L 1.4404 S31603 DN 100 3.94" 104 4.09" 0.900000
    dimensional image
    View Page → DIN Union (100mm) | Male Thread Liner / Nipple | 316L Legacy Part Number IE:  NIDI0100 Legacy Part Number UK:  NIDI0100 Legacy Part Number DK:  NIDI0100 Dimensional Image Key:
    • Length (C) mm:   54
    • OD 1 (D) mm:   104
    • ID (E) mm:   100
    • OD 2 (H) mm:   130
    • OD (H) mm:   104
    • ID (D) mm:   100
    • ID (E) in:   3.94"
    • Length (C) in:   2.13"
    • OD 1 (D) in:   4.09
    • OD 2 (H) in:   4.09"
    • OD (H) in:   5.12"
    • ID (D) in:   3.94"
    • ID mm:   100
    NIDI001290206L
    		DIN Union (125mm) | Male Thread Liner / Nipple | 316L DIN Male Thread Liner / Nipple 316L 1.4404 S31603 DN 125 4.92" 129 5.08" 1.100000
    dimensional image
    View Page → DIN Union (125mm) | Male Thread Liner / Nipple | 316L Legacy Part Number IE:  NIDI0125 Legacy Part Number UK:  NIDI0125 Legacy Part Number DK:  NIDI0125 Dimensional Image Key:
    • Length (C) mm:   46
    • OD 1 (D) mm:   129
    • ID (E) mm:   125
    • OD 2 (H) mm:   160
    • OD (H) mm:   129
    • ID (D) mm:   125
    • ID (E) in:   4.92"
    • Length (C) in:   1.81"
    • OD 1 (D) in:   5.08
    • OD 2 (H) in:   5.08"
    • OD (H) in:   6.3"
    • ID (D) in:   4.92"
    • ID mm:   125
    NIDI001540206L
    		DIN Union (150mm) | Male Thread Liner / Nipple | 316L DIN Male Thread Liner / Nipple 316L 1.4404 S31603 DN 150 5.91" 154 6.06" 1.300000
    dimensional image
    View Page → DIN Union (150mm) | Male Thread Liner / Nipple | 316L Legacy Part Number IE:  NIDI0150 Legacy Part Number UK:  NIDI0150 Legacy Part Number DK:  NIDI0150 Dimensional Image Key:
    • Length (C) mm:   50
    • OD 1 (D) mm:   154
    • ID (E) mm:   150
    • OD 2 (H) mm:   190
    • OD (H) mm:   154
    • ID (D) mm:   150
    • ID (E) in:   5.91"
    • Length (C) in:   1.97"
    • OD 1 (D) in:   6.06
    • OD 2 (H) in:   6.06"
    • OD (H) in:   7.48"
    • ID (D) in:   5.91"
    • ID mm:   150
