    DIN Union Gaskets


    DIN Union Gaskets
    Description

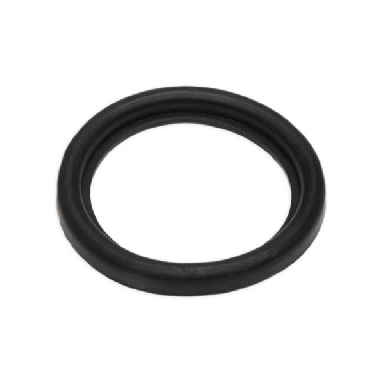

    ACL DIN Union Gaskets are manufactured for use with DIN 11851 hygienic fittings in Food & Beverage and Dairy process systems. Available in a full range of elastomer and polymer materials, all gaskets are FDA approved as a minimum requirement with USP Class VI available on request.

    Specifications
    • Standard: DIN 11851
    • FDA approved as minimum; USP Class VI available
    • Supplied lipped as standard

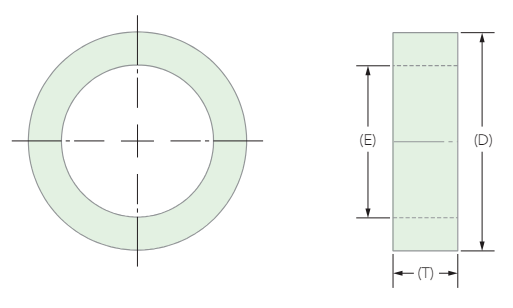

    Dimensional Image
    Features
    • Manufactured for use with DIN 11851 fittings
    • Available in EPDM, Silicone, Viton, PTFE and other materials
    • FDA approved as standard; USP Class VI available
    • Supplied as Type 2 Lipped as standard for ease of assembly
    • Full range of common sizes in stock
    Materials
    • Elastomers: EPDM, Silicone, Viton
    • Polymers: PTFE, PEEK, TFM
    • Envelope: Polymer body with elastomer inner
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.
    DIN Fittings / DIN Union Gaskets
    Spanner Spanner DS Fittings DS Fittings SMS Fittings SMS Fittings DIN Fittings DIN Fittings RJT Fittings RJT Fittings IDF Fittings IDF Fittings
    DIN Union Gaskets DIN Union Gaskets
    DIN Male DIN Male DIN Liners DIN Liners DIN Nuts DIN Nuts DIN Blind Nuts, with Chain DIN Blind Nuts, with Chain DIN Blanks DIN Blanks
    Total: 36
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade Size (in) Size (DIN) ID (mm) ID (in) OD (mm) OD (in) Face (mm) Face (in) Weight
    GUDI013EK
    		DIN Union (10mm) | Gasket | EPDM DIN Gasket EPDM DN 10 0.47" 20 0.79" 0.000000
    dimensional image
    View Page → DIN Union (10mm) | Gasket | EPDM Legacy Part Number IE:  PE.DI.0010 Legacy Part Number UK:  PE.DI.0010 Dimensional Image Key:
    • ID (E) mm:   12
    • OD (D) mm:   20
    • OD (H) mm:   20
    • ID (D) mm:   12
    • Thickness (T) mm:   4.5
    • ID (E) in:   0.47"
    • OD (D) in:   0.79
    • OD 2 (H) in:   0.79"
    • Thickness (T) in:   0.18"
    • ID (D) in:   0.47"
    • ID mm:   12
    GUDI019EK
    		DIN Union (15mm) | Gasket | EPDM DIN Gasket EPDM DN 15 0.71" 26 1.02" 0.000000
    dimensional image
    View Page → DIN Union (15mm) | Gasket | EPDM Legacy Part Number IE:  PE.DI.0015 Legacy Part Number UK:  PE.DI.0015 Dimensional Image Key:
    • ID (E) mm:   18
    • OD (D) mm:   26
    • OD (H) mm:   26
    • ID (D) mm:   18
    • Thickness (T) mm:   4.5
    • ID (E) in:   0.71"
    • OD (D) in:   1.02
    • OD 2 (H) in:   1.02"
    • Thickness (T) in:   0.18"
    • ID (D) in:   0.71"
    • ID mm:   18
    GUDI023EK
    		DIN Union (20mm) | Gasket | EPDM DIN Gasket EPDM DN 20 0.91" 33 1.3" 0.000000
    dimensional image
    View Page → DIN Union (20mm) | Gasket | EPDM Legacy Part Number IE:  PE.DI.0020 Legacy Part Number UK:  PE.DI.0020 Dimensional Image Key:
    • ID (E) mm:   23
    • OD (D) mm:   33
    • OD (H) mm:   33
    • ID (D) mm:   23
    • Thickness (T) mm:   4.5
    • ID (E) in:   0.91"
    • OD (D) in:   1.3
    • OD 2 (H) in:   1.3"
    • Thickness (T) in:   0.18"
    • ID (D) in:   0.91"
    • ID mm:   23
    GUDI029EK
    		DIN Union (25mm) | Gasket | EPDM DIN Gasket EPDM DN 25 1.18" 40 1.57" 0.000000
    dimensional image
    View Page → DIN Union (25mm) | Gasket | EPDM Legacy Part Number IE:  PE.DI.0025 Legacy Part Number UK:  PE.DI.0025 Dimensional Image Key:
    • ID (E) mm:   30
    • OD (D) mm:   40
    • OD (H) mm:   40
    • ID (D) mm:   30
    • Thickness (T) mm:   5
    • ID (E) in:   1.18"
    • OD (D) in:   1.57
    • OD 2 (H) in:   1.57"
    • Thickness (T) in:   0.2"
    • ID (D) in:   1.18"
    • ID mm:   30
    GUDI035EK
    		DIN Union (32mm) | Gasket | EPDM DIN Gasket EPDM DN 32 1.42" 46 1.81" 0.000000
    dimensional image
    View Page → DIN Union (32mm) | Gasket | EPDM Legacy Part Number IE:  PE.DI.0032 Legacy Part Number UK:  PE.DI.0032 Dimensional Image Key:
    • ID (E) mm:   36
    • OD (D) mm:   46
    • OD (H) mm:   46
    • ID (D) mm:   36
    • Thickness (T) mm:   5
    • ID (E) in:   1.42"
    • OD (D) in:   1.81
    • OD 2 (H) in:   1.81"
    • Thickness (T) in:   0.2"
    • ID (D) in:   1.42"
    • ID mm:   36
    GUDI041EK
    		DIN Union (40mm) | Gasket | EPDM DIN Gasket EPDM DN 40 1.65" 52 2.05" 1.000000
    dimensional image
    View Page → DIN Union (40mm) | Gasket | EPDM Legacy Part Number IE:  PE.DI.0040 Legacy Part Number UK:  DN40 Blue EPDM D Seal DIN 11851 Dimensional Image Key:
    • ID (E) mm:   42
    • OD (D) mm:   52
    • OD (H) mm:   52
    • ID (D) mm:   42
    • Thickness (T) mm:   5
    • ID (E) in:   1.65"
    • OD (D) in:   2.05
    • OD 2 (H) in:   2.05"
    • Thickness (T) in:   0.2"
    • ID (D) in:   1.65"
    • ID mm:   42
    GUDI053EK
    		DIN Union (50mm) | Gasket | EPDM DIN Gasket EPDM DN 50 2.13" 64 2.52" 1.000000
    dimensional image
    View Page → DIN Union (50mm) | Gasket | EPDM Legacy Part Number IE:  PE.DI.0050 Legacy Part Number UK:  DN50 Blue EPDM D Seal DIN 11851 Dimensional Image Key:
    • ID (E) mm:   54
    • OD (D) mm:   64
    • OD (H) mm:   64
    • ID (D) mm:   54
    • Thickness (T) mm:   5
    • ID (E) in:   2.13"
    • OD (D) in:   2.52
    • OD 2 (H) in:   2.52"
    • Thickness (T) in:   0.2"
    • ID (D) in:   2.13"
    • ID mm:   54
    GUDI070EK
    		DIN Union (65mm) | Gasket | EPDM DIN Gasket EPDM DN 60 2.8" 81 3.19" 0.000000
    dimensional image
    View Page → DIN Union (65mm) | Gasket | EPDM Legacy Part Number IE:  PE.DI.0065 Legacy Part Number UK:  PE.DI.0065 Dimensional Image Key:
    • ID (E) mm:   71
    • OD (D) mm:   81
    • OD (H) mm:   81
    • ID (D) mm:   71
    • Thickness (T) mm:   5
    • ID (E) in:   2.8"
    • OD (D) in:   3.19
    • OD 2 (H) in:   3.19"
    • Thickness (T) in:   0.2"
    • ID (D) in:   2.8"
    • ID mm:   71
    GUDI085EK
    		DIN Union (80mm) | Gasket | EPDM DIN Gasket EPDM DN 80 3.35" 95 3.74" 0.000000
    dimensional image
    View Page → DIN Union (80mm) | Gasket | EPDM Legacy Part Number IE:  PE.DI.0080 Legacy Part Number UK:  PE.DI.0080 Dimensional Image Key:
    • ID (E) mm:   85
    • OD (D) mm:   95
    • OD (H) mm:   95
    • ID (D) mm:   85
    • Thickness (T) mm:   5
    • ID (E) in:   3.35"
    • OD (D) in:   3.74
    • OD 2 (H) in:   3.74"
    • Thickness (T) in:   0.2"
    • ID (D) in:   3.35"
    • ID mm:   85
    GUDI104EK
    		Hygienic DIN Union (100mm) | Gasket | EPDM
    dimensional image
    View Page → Hygienic DIN Union (100mm) | Gasket | EPDM Legacy Part Number IE:  PE.DI.0100 Legacy Part Number UK:  DIN100 UNION GASKET - EPDM Dimensional Image Key:
    • ID (E) mm:   104
    • OD (D) mm:   114
    • OD (H) mm:   114
    • ID (D) mm:   104
    • Thickness (T) mm:   6
    • ID (E) in:   4.09"
    • OD (D) in:   4.49
    • OD 2 (H) in:   4.49"
    • Thickness (T) in:   0.24"
    • ID (D) in:   4.09"
    GUDI129EK
    		DIN Union (125mm) | Gasket | EPDM DIN Gasket EPDM DN 125 5.12" 142 5.59" 0.000000
    dimensional image
    View Page → DIN Union (125mm) | Gasket | EPDM Legacy Part Number IE:  PE.DI.0125 Legacy Part Number UK:  PE.DI.0125 Dimensional Image Key:
    • ID (E) mm:   130
    • OD (D) mm:   142
    • OD (H) mm:   142
    • ID (D) mm:   130
    • Thickness (T) mm:   7
    • ID (E) in:   5.12"
    • OD (D) in:   5.59
    • OD 2 (H) in:   5.59"
    • Thickness (T) in:   0.28"
    • ID (D) in:   5.12"
    • ID mm:   130
    GUDI154EK
    		DIN Union (150mm) | Gasket | EPDM DIN Gasket EPDM DN 150 6.1" 167 6.57" 0.000000
    dimensional image
    View Page → DIN Union (150mm) | Gasket | EPDM Legacy Part Number IE:  PE.DI.0150 Legacy Part Number UK:  PE.DI.0150 Dimensional Image Key:
    • ID (E) mm:   155
    • OD (D) mm:   167
    • OD (H) mm:   167
    • ID (D) mm:   155
    • Thickness (T) mm:   7
    • ID (E) in:   6.1"
    • OD (D) in:   6.57
    • OD 2 (H) in:   6.57"
    • Thickness (T) in:   0.28"
    • ID (D) in:   6.1"
    • ID mm:   155
    GUDI013BK
    		DIN Union (10mm) | Gasket | Nitrile (NBR) DIN Gasket Nitrile (NBR) DN 10 0.47" 20 0.79" 0.000000
    dimensional image
    View Page → DIN Union (10mm) | Gasket | Nitrile (NBR) Legacy Part Number IE:  — Dimensional Image Key:
    • ID (E) mm:   12
    • OD (D) mm:   20
    • OD (H) mm:   20
    • ID (D) mm:   12
    • Thickness (T) mm:   4.5
    • ID (E) in:   0.47"
    • OD (D) in:   0.79
    • OD 2 (H) in:   0.79"
    • Thickness (T) in:   0.18"
    • ID (D) in:   0.47"
    • ID mm:   12
    GUDI019BK
    		DIN Union (15mm) | Gasket | Nitrile (NBR) DIN Gasket Nitrile (NBR) DN 15 0.71" 26 1.02" 0.000000
    dimensional image
    View Page → DIN Union (15mm) | Gasket | Nitrile (NBR) Legacy Part Number IE:  — Dimensional Image Key:
    • ID (E) mm:   18
    • OD (D) mm:   26
    • OD (H) mm:   26
    • ID (D) mm:   18
    • Thickness (T) mm:   4.5
    • ID (E) in:   0.71"
    • OD (D) in:   1.02
    • OD 2 (H) in:   1.02"
    • Thickness (T) in:   0.18"
    • ID (D) in:   0.71"
    • ID mm:   18
    GUDI023BK
    		DIN Union (20mm) | Gasket | Nitrile (NBR) DIN Gasket Nitrile (NBR) DN 20 0.91" 33 1.3" 0.000000
    dimensional image
    View Page → DIN Union (20mm) | Gasket | Nitrile (NBR) Legacy Part Number IE:  — Dimensional Image Key:
    • ID (E) mm:   23
    • OD (D) mm:   33
    • OD (H) mm:   33
    • ID (D) mm:   23
    • Thickness (T) mm:   4.5
    • ID (E) in:   0.91"
    • OD (D) in:   1.3
    • OD 2 (H) in:   1.3"
    • Thickness (T) in:   0.18"
    • ID (D) in:   0.91"
    • ID mm:   23
    GUDI029BK
    		DIN Union (25mm) | Gasket | Nitrile (NBR) DIN Gasket Nitrile (NBR) DN 25 1.18" 40 1.57" 0.000000
    dimensional image
    View Page → DIN Union (25mm) | Gasket | Nitrile (NBR) Legacy Part Number IE:  PN.DI.0025 Legacy Part Number UK:  PN.DI.0025 Dimensional Image Key:
    • ID (E) mm:   30
    • OD (D) mm:   40
    • OD (H) mm:   40
    • ID (D) mm:   30
    • Thickness (T) mm:   5
    • ID (E) in:   1.18"
    • OD (D) in:   1.57
    • OD 2 (H) in:   1.57"
    • Thickness (T) in:   0.2"
    • ID (D) in:   1.18"
    • ID mm:   30
    GUDI035BK
    		DIN Union (32mm) | Gasket | Nitrile (NBR) DIN Gasket Nitrile (NBR) DN 32 1.42" 46 1.81" 0.000000
    dimensional image
    View Page → DIN Union (32mm) | Gasket | Nitrile (NBR) Legacy Part Number IE:  — Dimensional Image Key:
    • ID (E) mm:   36
    • OD (D) mm:   46
    • OD (H) mm:   46
    • ID (D) mm:   36
    • Thickness (T) mm:   5
    • ID (E) in:   1.42"
    • OD (D) in:   1.81
    • OD 2 (H) in:   1.81"
    • Thickness (T) in:   0.2"
    • ID (D) in:   1.42"
    • ID mm:   36
    GUDI041BK
    		DIN Union (40mm) | Gasket | Nitrile (NBR) DIN Gasket Nitrile (NBR) DN 40 1.65" 52 2.05" 0.000000
    dimensional image
    View Page → DIN Union (40mm) | Gasket | Nitrile (NBR) Legacy Part Number IE:  PN.DI.0040 Legacy Part Number UK:  PN.DI.0040 Dimensional Image Key:
    • ID (E) mm:   42
    • OD (D) mm:   52
    • OD (H) mm:   52
    • ID (D) mm:   42
    • Thickness (T) mm:   5
    • ID (E) in:   1.65"
    • OD (D) in:   2.05
    • OD 2 (H) in:   2.05"
    • Thickness (T) in:   0.2"
    • ID (D) in:   1.65"
    • ID mm:   42
    GUDI053BK
    		DIN Union (50mm) | Gasket | Nitrile (NBR) DIN Gasket Nitrile (NBR) DN 50 2.13" 64 2.52" 0.000000
    dimensional image
    View Page → DIN Union (50mm) | Gasket | Nitrile (NBR) Legacy Part Number IE:  PN.DI.0050 Legacy Part Number UK:  PN.DI.0050 Dimensional Image Key:
    • ID (E) mm:   54
    • OD (D) mm:   64
    • OD (H) mm:   64
    • ID (D) mm:   54
    • Thickness (T) mm:   5
    • ID (E) in:   2.13"
    • OD (D) in:   2.52
    • OD 2 (H) in:   2.52"
    • Thickness (T) in:   0.2"
    • ID (D) in:   2.13"
    • ID mm:   54
    GUDI070BK
    		Hygienic DIN Union (65mm) | Gasket | Nitrile (NBR)
    dimensional image
    View Page → Hygienic DIN Union (65mm) | Gasket | Nitrile (NBR) Legacy Part Number IE:  PN.DI.0065 Legacy Part Number UK:  DN 65 DIN UNION GASKET NITRILE (NBR) Dimensional Image Key:
    • ID (E) mm:   71
    • OD (D) mm:   81
    • OD (H) mm:   81
    • ID (D) mm:   71
    • Thickness (T) mm:   5
    • ID (E) in:   2.8"
    • OD (D) in:   3.19
    • OD 2 (H) in:   3.19"
    • Thickness (T) in:   0.2"
    • ID (D) in:   2.8"
    GUDI085BK
    		DIN Union (80mm) | Gasket | Nitrile (NBR) DIN Gasket Nitrile (NBR) DN 80 3.35" 95 3.74" 0.000000
    dimensional image
    View Page → DIN Union (80mm) | Gasket | Nitrile (NBR) Legacy Part Number IE:  PN.DI.0080 Legacy Part Number UK:  PN.DI.0080 Dimensional Image Key:
    • ID (E) mm:   85
    • OD (D) mm:   95
    • OD (H) mm:   95
    • ID (D) mm:   85
    • Thickness (T) mm:   5
    • ID (E) in:   3.35"
    • OD (D) in:   3.74
    • OD 2 (H) in:   3.74"
    • Thickness (T) in:   0.2"
    • ID (D) in:   3.35"
    • ID mm:   85
    GUDI104BK
    		DIN Union (100mm) | Gasket | Nitrile (NBR) DIN Gasket Nitrile (NBR) DN 100 4.09" 114 4.49" 0.000000
    dimensional image
    View Page → DIN Union (100mm) | Gasket | Nitrile (NBR) Legacy Part Number IE:  PN.DI.0100 Legacy Part Number UK:  PN.DI.0100 Dimensional Image Key:
    • ID (E) mm:   104
    • OD (D) mm:   114
    • OD (H) mm:   114
    • ID (D) mm:   104
    • Thickness (T) mm:   6
    • ID (E) in:   4.09"
    • OD (D) in:   4.49
    • OD 2 (H) in:   4.49"
    • Thickness (T) in:   0.24"
    • ID (D) in:   4.09"
    • ID mm:   104
    GUDI129BK
    		DIN Union (125mm) | Gasket | Nitrile (NBR) DIN Gasket Nitrile (NBR) DN 125 5.12" 142 5.59" 0.000000
    dimensional image
    View Page → DIN Union (125mm) | Gasket | Nitrile (NBR) Legacy Part Number IE:  — Dimensional Image Key:
    • ID (E) mm:   130
    • OD (D) mm:   142
    • OD (H) mm:   142
    • ID (D) mm:   130
    • Thickness (T) mm:   7
    • ID (E) in:   5.12"
    • OD (D) in:   5.59
    • OD 2 (H) in:   5.59"
    • Thickness (T) in:   0.28"
    • ID (D) in:   5.12"
    • ID mm:   130
    GUDI154BK
    		DIN Union (150mm) | Gasket | Nitrile (NBR) DIN Gasket Nitrile (NBR) DN 150 6.1" 167 6.57" 0.000000
    dimensional image
    View Page → DIN Union (150mm) | Gasket | Nitrile (NBR) Legacy Part Number IE:  — Dimensional Image Key:
    • ID (E) mm:   155
    • OD (D) mm:   167
    • OD (H) mm:   167
    • ID (D) mm:   155
    • Thickness (T) mm:   7
    • ID (E) in:   6.1"
    • OD (D) in:   6.57
    • OD 2 (H) in:   6.57"
    • Thickness (T) in:   0.28"
    • ID (D) in:   6.1"
    • ID mm:   155
    Prev 1 2 Next
    DIN Union (10mm) | Gasket | EPDM
    DIN Union (10mm) | Gasket | EPDM
    Hygienic
    GUDI013EK
    DIN Union (15mm) | Gasket | EPDM
    DIN Union (15mm) | Gasket | EPDM
    Hygienic
    GUDI019EK
    DIN Union (20mm) | Gasket | EPDM
    DIN Union (20mm) | Gasket | EPDM
    Hygienic
    GUDI023EK
    DIN Union (25mm) | Gasket | EPDM
    DIN Union (25mm) | Gasket | EPDM
    Hygienic
    GUDI029EK
    DIN Union (32mm) | Gasket | EPDM
    DIN Union (32mm) | Gasket | EPDM
    Hygienic
    GUDI035EK
    DIN Union (40mm) | Gasket | EPDM
    DIN Union (40mm) | Gasket | EPDM
    Hygienic
    GUDI041EK
    DIN Union (50mm) | Gasket | EPDM
    DIN Union (50mm) | Gasket | EPDM
    Hygienic
    GUDI053EK
    DIN Union (65mm) | Gasket | EPDM
    DIN Union (65mm) | Gasket | EPDM
    Hygienic
    GUDI070EK
    DIN Union (80mm) | Gasket | EPDM
    DIN Union (80mm) | Gasket | EPDM
    Hygienic
    GUDI085EK
    Hygienic DIN Union (100mm) | Gasket | EPDM
    Hygienic DIN Union (100mm) | Gasket | EPDM
    GUDI104EK
    DIN Union (125mm) | Gasket | EPDM
    DIN Union (125mm) | Gasket | EPDM
    Hygienic
    GUDI129EK
    DIN Union (150mm) | Gasket | EPDM
    DIN Union (150mm) | Gasket | EPDM
    Hygienic
    GUDI154EK
    DIN Union (10mm) | Gasket | Nitrile (NBR)
    DIN Union (10mm) | Gasket | Nitrile (NBR)
    Hygienic
    GUDI013BK
    DIN Union (15mm) | Gasket | Nitrile (NBR)
    DIN Union (15mm) | Gasket | Nitrile (NBR)
    Hygienic
    GUDI019BK
    DIN Union (20mm) | Gasket | Nitrile (NBR)
    DIN Union (20mm) | Gasket | Nitrile (NBR)
    Hygienic
    GUDI023BK
    DIN Union (25mm) | Gasket | Nitrile (NBR)
    DIN Union (25mm) | Gasket | Nitrile (NBR)
    Hygienic
    GUDI029BK
    DIN Union (32mm) | Gasket | Nitrile (NBR)
    DIN Union (32mm) | Gasket | Nitrile (NBR)
    Hygienic
    GUDI035BK
    DIN Union (40mm) | Gasket | Nitrile (NBR)
    DIN Union (40mm) | Gasket | Nitrile (NBR)
    Hygienic
    GUDI041BK
    DIN Union (50mm) | Gasket | Nitrile (NBR)
    DIN Union (50mm) | Gasket | Nitrile (NBR)
    Hygienic
    GUDI053BK
    Hygienic DIN Union (65mm) | Gasket | Nitrile (NBR)
    Hygienic DIN Union (65mm) | Gasket | Nitrile (NBR)
    GUDI070BK
    DIN Union (80mm) | Gasket | Nitrile (NBR)
    DIN Union (80mm) | Gasket | Nitrile (NBR)
    Hygienic
    GUDI085BK
    DIN Union (100mm) | Gasket | Nitrile (NBR)
    DIN Union (100mm) | Gasket | Nitrile (NBR)
    Hygienic
    GUDI104BK
    DIN Union (125mm) | Gasket | Nitrile (NBR)
    DIN Union (125mm) | Gasket | Nitrile (NBR)
    Hygienic
    GUDI129BK
    DIN Union (150mm) | Gasket | Nitrile (NBR)
    DIN Union (150mm) | Gasket | Nitrile (NBR)
    Hygienic
    GUDI154BK
    Prev 1 2 Next
